Electric Pole Accessories

CW-CA2000: Cable Anchor Bracket

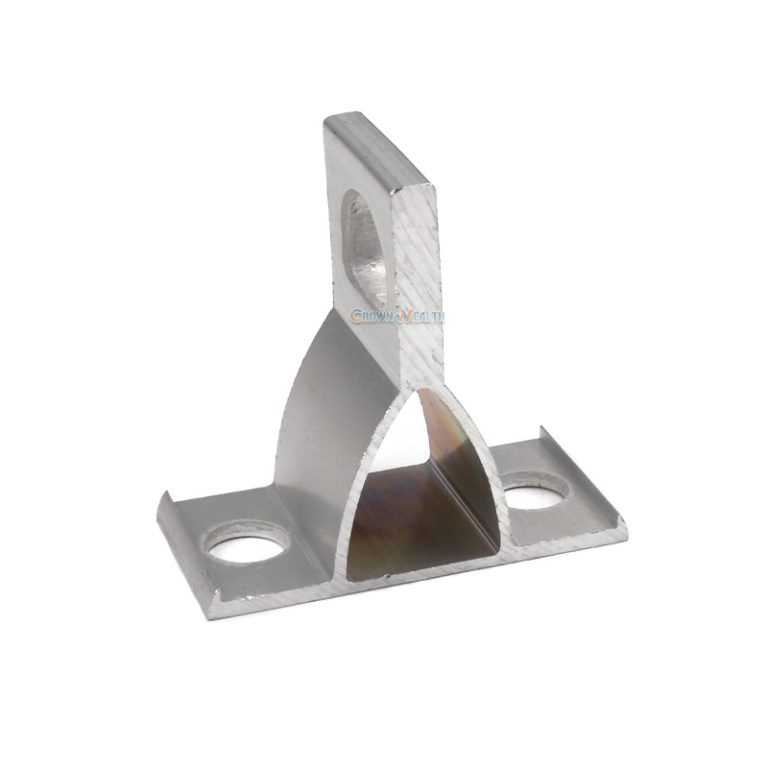

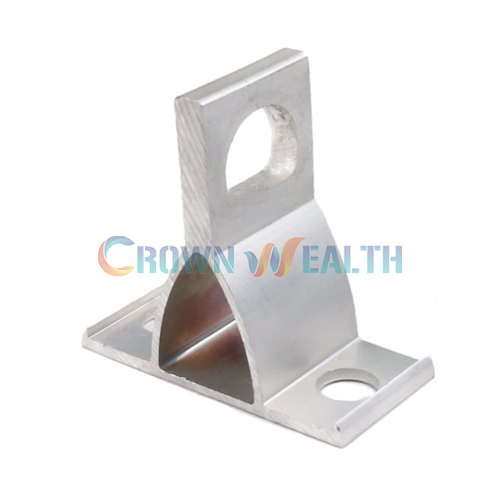

CA 2000 Cable anchor bracket, also known as pole bracket or aluminum bracket, is used for receiving across a drop wire clamp, dead end clamp or suspension clamp for ABC cable. You can take advantage of its design for simple, fast and reliable installation.

CW-CA2000: Cable Anchor Bracket

CA 2000 Cable anchor bracket, also known as pole bracket or aluminum bracket, is used for receiving across a drop wire clamp, dead end clamp or suspension clamp for ABC cable. You can take advantage of its design for simple, fast and reliable installation.

Description

The installation of this cable anchor bracket is very easy, you can be fixed on poles by 2 stainless steel banding (20 mm) or 1 bolts 14, 16 mm diameter.

The pole bracket we use is made of high-quality aluminum alloy, which provides you with extraordinary tensile mechanical strength, ideal product for various weather conditions.

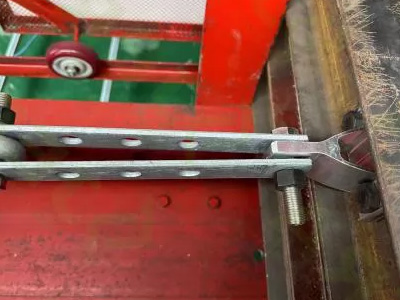

The anchor bracket we produce will undergo strict quality control in link from raw material selection to packaging and shipment. This anchor bracket finished product did not show any damage or deformation during the tensile load test from 15KN to 35KN, and broke when the tensile force continued to increase. It can fully meet your market needs.

aluminum anchor bracket
Cable Anchor Bracket Features

High mechanical strength, up to 20 KN

Corrosion resistance

Can be fixed with stainless steel banding strap or pole line bolts

Where to Use?

Developed to be used on wood, metal or concrete poles

Pole line hardware application

Outdoor fiber optic cable clamp deployments

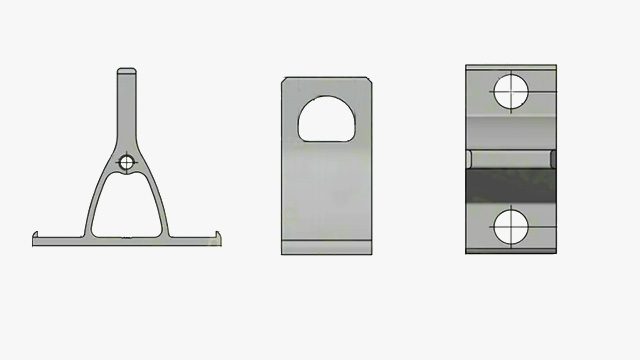

Anchor Fixing Bracket Parameters

Parts No. Description Material Min. Failing Load
CW-CA Cable Anchor Bracket Aluminum Alloy 20 KN

aluminum anchor bracket

Description

The installation of this cable anchor bracket is very easy, you can be fixed on poles by 2 stainless steel banding (20 mm) or 1 bolts 14, 16 mm diameter.

The pole bracket we use is made of high-quality aluminum alloy, which provides you with extraordinary tensile mechanical strength, ideal product for various weather conditions.

The anchor bracket we produce will undergo strict quality control in link from raw material selection to packaging and shipment. This anchor bracket finished product did not show any damage or deformation during the tensile load test from 15KN to 35KN, and broke when the tensile force continued to increase. It can fully meet your market needs.

aluminum anchor bracket
Cable Anchor Bracket Features

High mechanical strength, up to 20 KN

Corrosion resistance

Can be fixed with stainless steel banding strap or pole line bolts

Where to Use?

Developed to be used on wood, metal or concrete poles

Pole line hardware application

Outdoor fiber optic cable clamp deployments

Anchor Fixing Bracket Parameters

Parts No. Description Material Min. Failing Load
CW-CA Cable Anchor Bracket Aluminum Alloy 20 KN

aluminum anchor bracket
