Widely used in overhead transmission lines, it is a reliable solution for applying guy wire, ground wire, and application for optical fiber.
Get free samples to test your project application and provide you with low-cost quality products. Because Hbcrownwealth is one of the leading guy grip factory in China.
The high durability is mainly due to Hbcrownwealth selection of raw materials, manufacturing process, and consideration of the environment in which your project is applied.

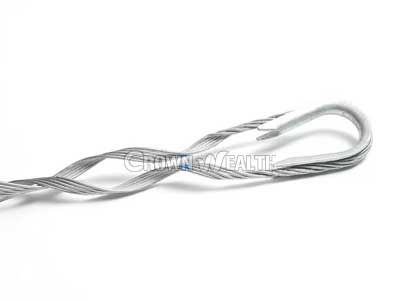

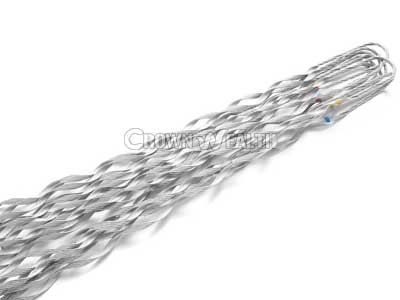

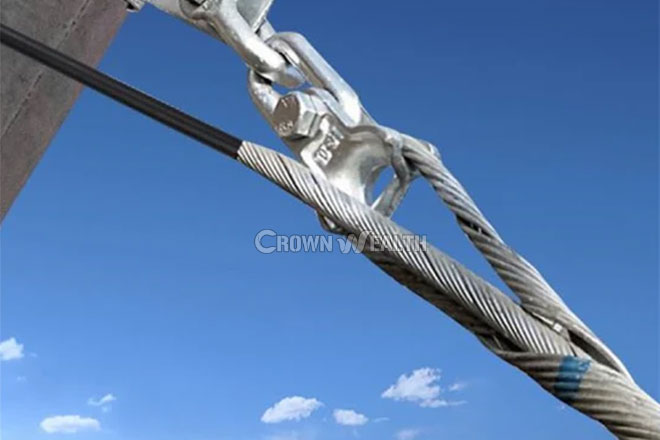

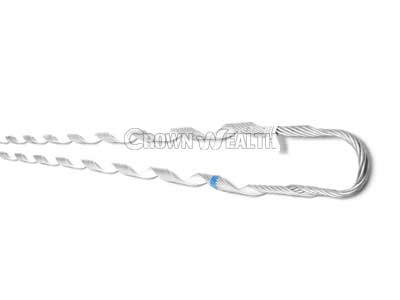

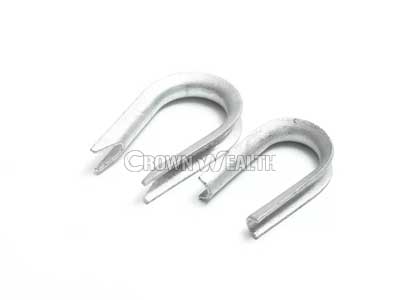

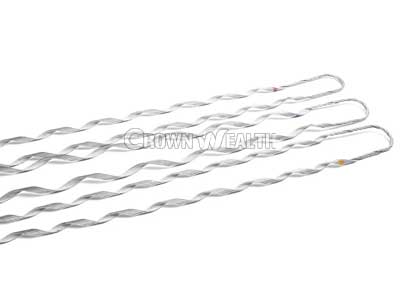

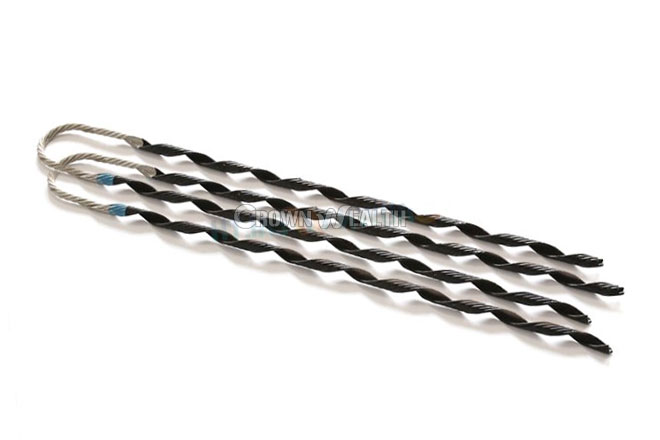

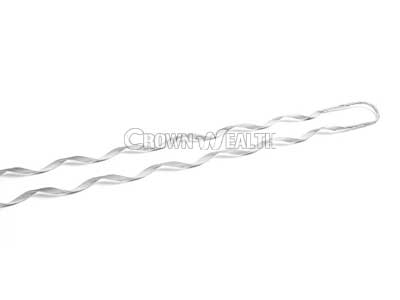

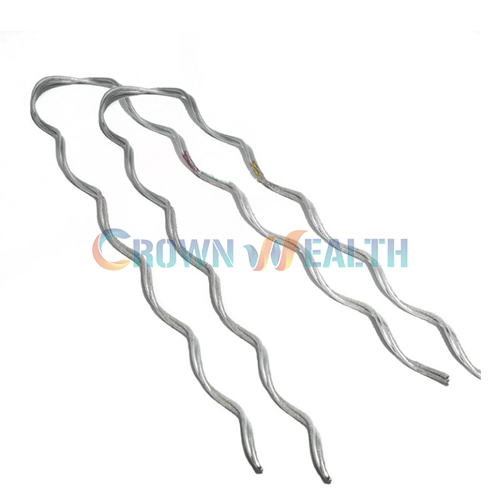

Guy grips are called dead end grips or preformed guy grips. According to the market project application requirements, Hbcrownwealth designed have spiral legs and inert gravel at each spiral turn, which can tightly fix the load-bearing wires, guy wires, or fiber optic cables. The deadend grips are made of high-quality galvanized steel, 201/304/316 stainless steel, and aluminum clad steel materials, it can be used with wire rope thimbles to connect to ground anchors or pole brackets. Responsible for clamping conductors, grounding wires, and optical fiber applications in constructing power and communication lines.
Common sizes include guy grip 1/8″, 3/16″, 1/4″, 3/8″, etc.
Hbcrownwealth is a professional guy grip supplier. We have all sizes and can customize the guy grip size required for your project application according to your design and needs.
High Strength & Durability
Undergone rigorous tensile strength testing and can maintain long-term stable performance even in harsh environments such as marine.
Corrosion Resistant Materials
High-quality galvanized steel, 201/304/316 stainless steel, and aluminum clad steel materials, stable anti-oxidation and corrosion resistance.
Extensive Application
High, medium, and low-voltage transmission lines, optical fiber communications, power equipment installation, etc.
Easy Installation
Adopt a spiral design, and the operator only needs to wind them in sequence to complete the installation and improve construction efficiency.

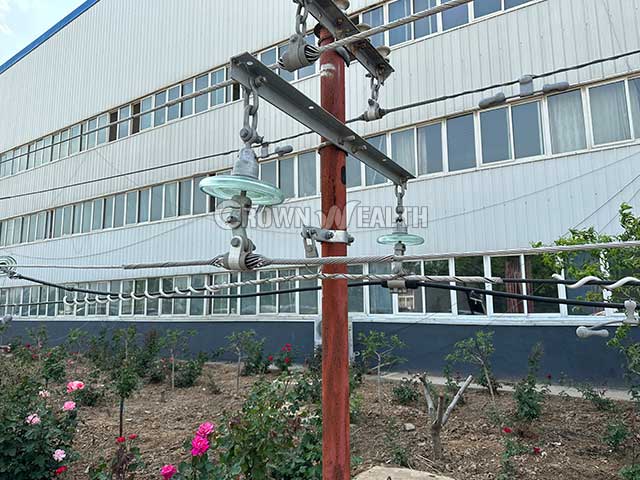

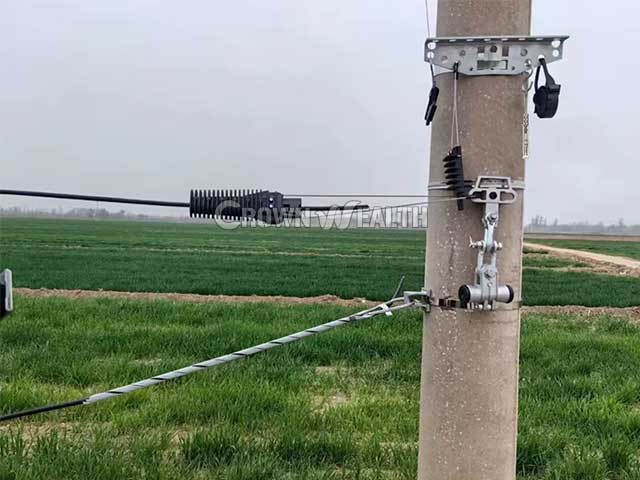

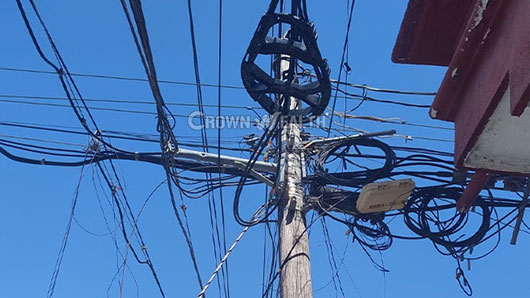

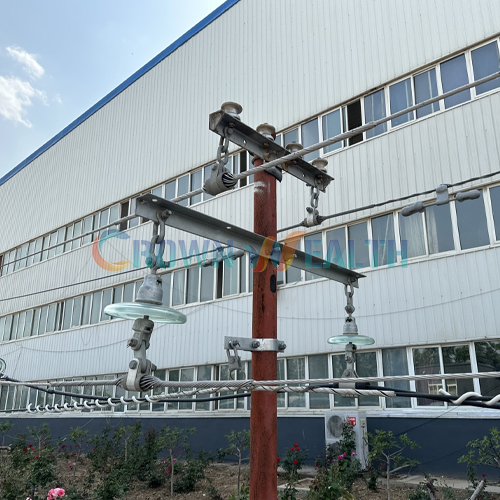

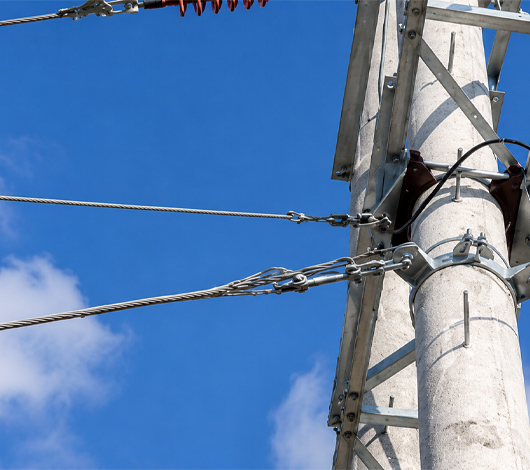

Utility poles play a critical role in supporting power distribution and communication networks across both urban and rural environments. To ensure reliable cable installation and long-term network stability, you need dependable hardware that can withstand demanding outdoor conditions.
With Hbcrownwealth Guy Grip products, you can securely anchor and support a wide range of cables and conductors on utility poles. Moreover, our guy grips are engineered to maintain strong holding performance under wind loads, mechanical tension, and changing weather conditions.
As a result, you can improve cable stability, reduce maintenance requirements, and enhance the overall reliability of your overhead line infrastructure. Whether you are working on power transmission projects, telecommunications networks, or utility pole installations, Hbcrownwealth provides durable and efficient guy grip solutions designed to support your long-term operational success.

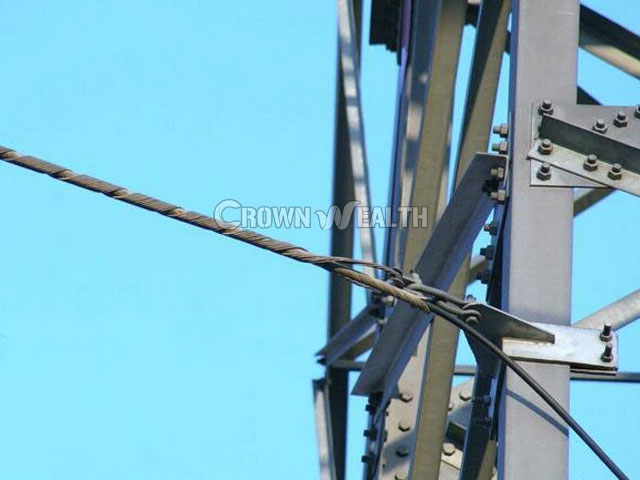

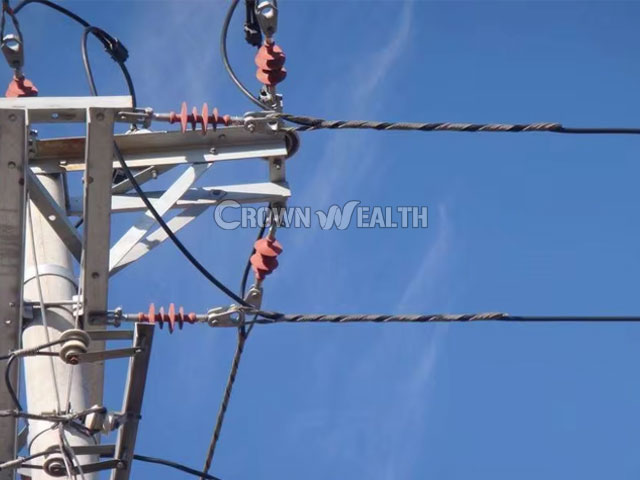

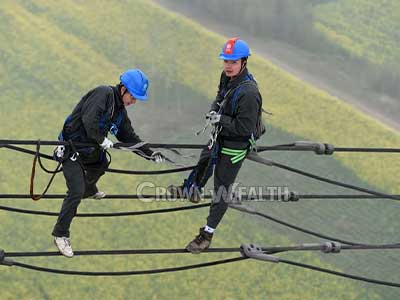

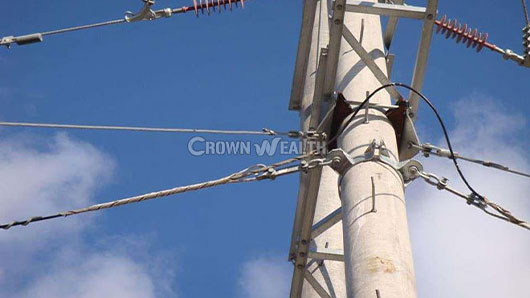

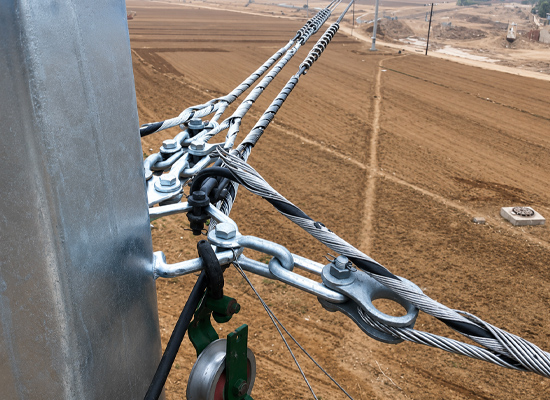

Long-distance transmission lines require reliable support systems to maintain network stability across challenging terrains and obstacle crossings. Therefore, choosing the right hardware is essential for ensuring safe and uninterrupted power delivery.
With Hbcrownwealth Guy Grip products, you can securely fix and support conductors on high-voltage, medium-voltage, and low-voltage transmission lines. Our guy grips are engineered to provide strong mechanical holding strength, helping you maintain cable stability even under heavy loads, strong winds, and demanding environmental conditions.
Moreover, their durable design helps reduce conductor movement, improve line reliability, and extend the service life of your transmission infrastructure. As a result, you can ensure continuous power transmission, minimize maintenance requirements, and enhance the overall performance of your overhead power line projects.
Whether you are constructing new transmission networks or upgrading existing utility infrastructure, Hbcrownwealth Guy Grip solutions provide the strength, reliability, and long-term performance your projects demand.

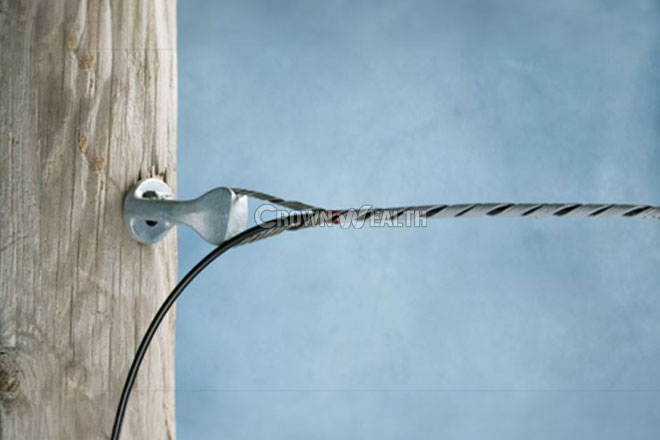

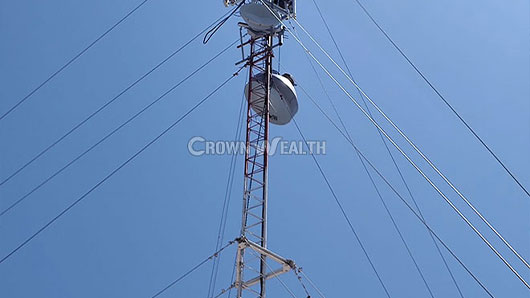

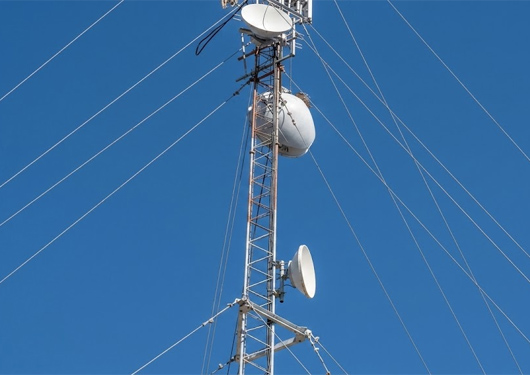

Modern fiber optic and telecommunications networks require reliable cable support solutions to ensure stable data transmission and long-term network performance.
With Hbcrownwealth Guy Grip products, you can securely fix and support fiber optic cables, helping you maintain network stability and improve transmission reliability.
Moreover, you can use our guy grips to anchor telephone lines and other communication cables with confidence. Their strong holding performance helps reduce cable movement caused by wind, vibration, and environmental stress. As a result, you can improve signal reliability, minimize maintenance requirements, and ensure uninterrupted communication services for both urban and rural network applications.

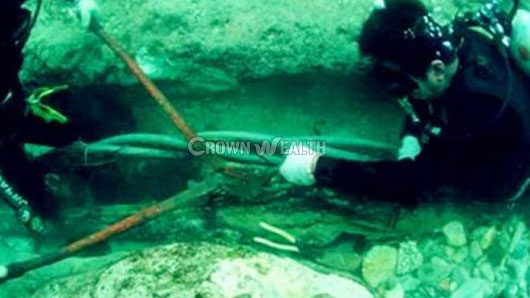

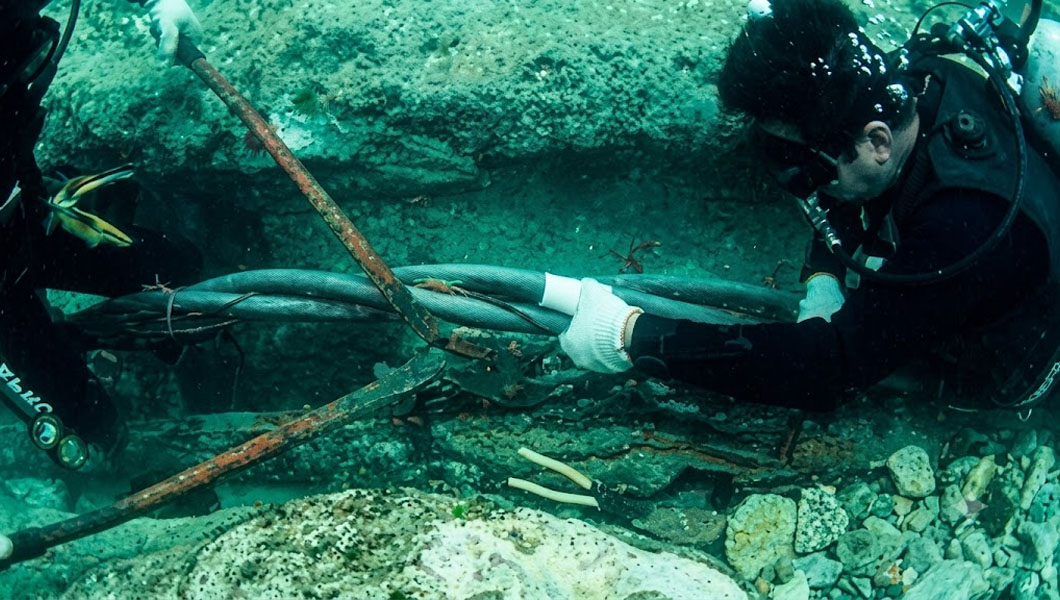

When you choose Hbcrownwealth guy grip ends, you gain a reliable solution for securing and supporting cables in the most demanding environments. For example, whether you are working with submarine cables, offshore platform installations, or mining tunnel systems, you can count on stable and secure performance even under extreme conditions.
In addition, you benefit from excellent corrosion resistance, which allows the product to withstand high-salt and high-humidity environments with ease. As a result, you can maintain long-term mechanical performance, reduce maintenance needs, and ensure a consistently extended service life for your cable systems.
Are you looking for a trusted guy grips dead end manufacturer as a long-term partner? Hbcrownwealth is ready to secure and power your transmission lines with industry-leading reliability.
Why Choose Our Guy Grips?
◇ Premium Material Strength: You get maximum durability because we use only the highest-grade galvanized steel, stainless steel, and aluminum-clad steel.

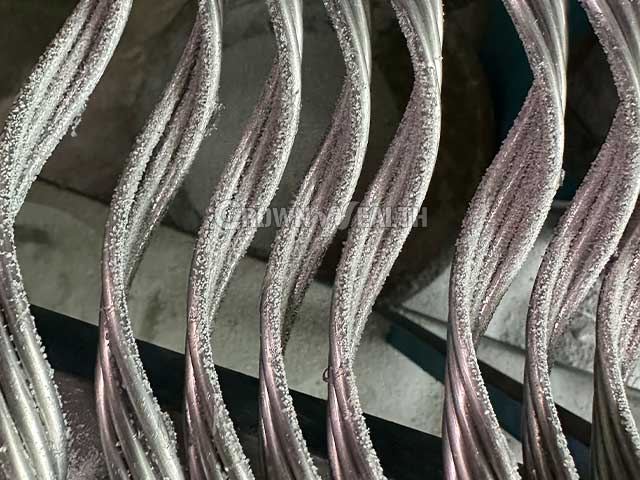

◇ Advanced Security: Thanks to our unique spiral leg design and inert gravel coating inside each turn, you can firmly secure load-bearing wires, guy wires, or optical cables. This directly ensures your overhead lines never suffer from interruptions.
◇ Flexible Installation: While designed for single permanent use, you can successfully reinstall them twice within 90 days, provided you follow the correct installation procedure.
◇ Global Accessibility & Competitive Pricing: You can source our products globally, and you will find that our guy grip prices are incredibly competitive in the international market.

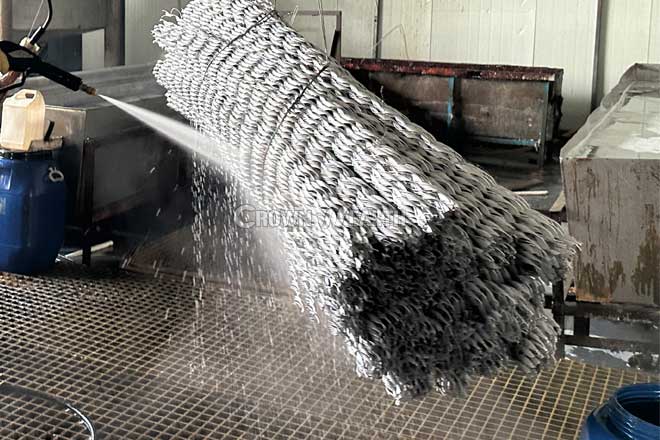

Customized Production Process

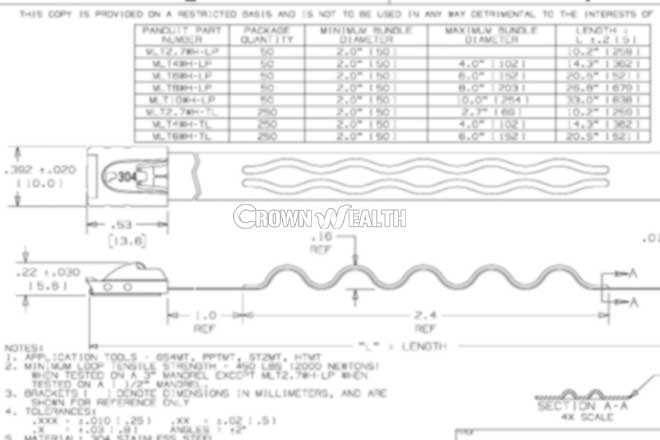

Our engineers first draw a drawing of the product your project requires.
We then use strict high standards to source strong and durable raw materials that meet your project needs, which are then hot-dip galvanized. They are tightly wound using our precision machines to ensure their original strength and durability to withstand the loads and tensions your project will apply.

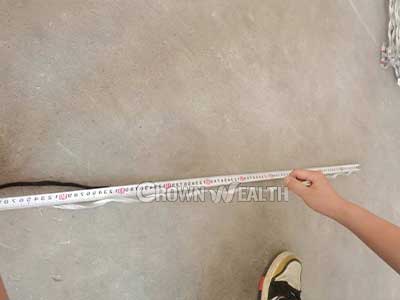

Finally, we employ strict quality control to ensure that each part undergoes visual inspection for surface defects, dimensional measurements, and breaking load testing. Finally, qualified and standard-compliant products are delivered to your project.

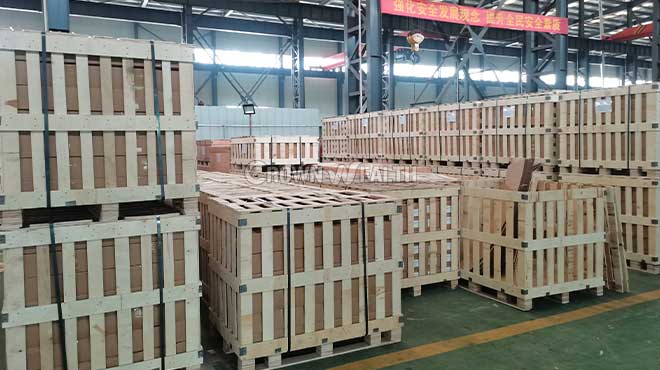

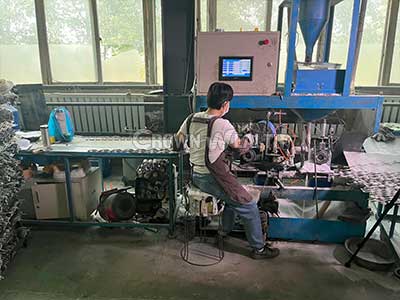

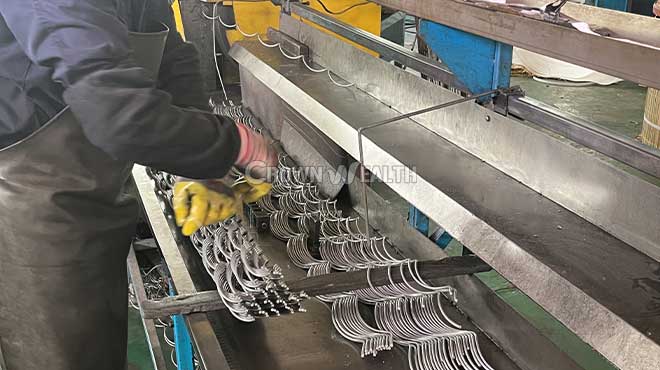

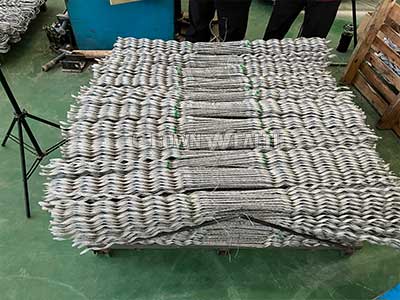

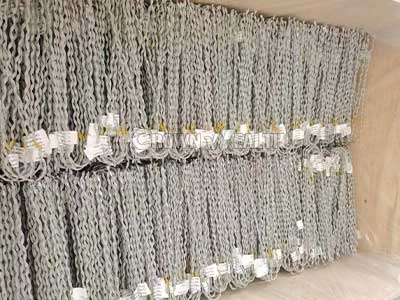

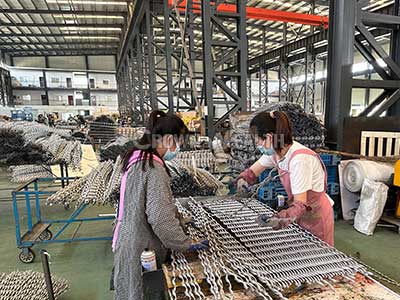

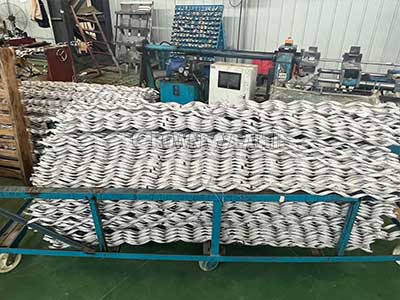

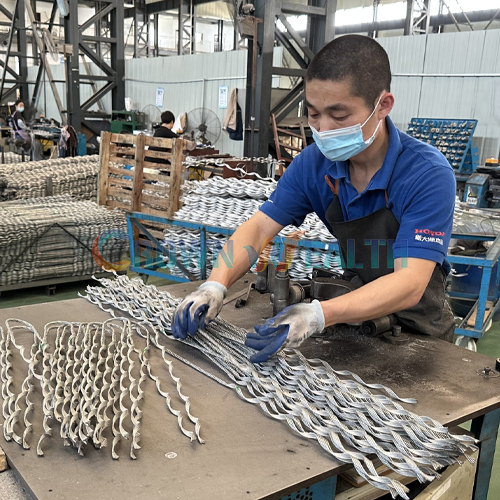

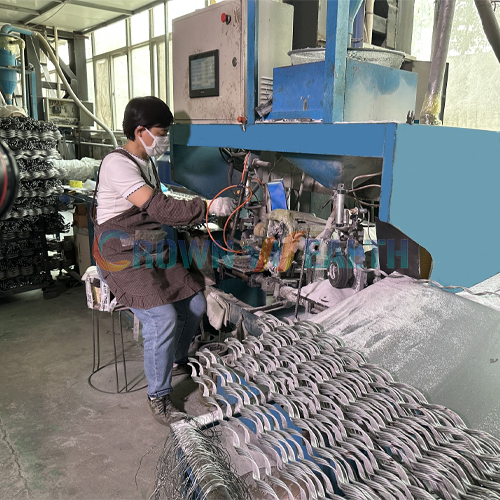

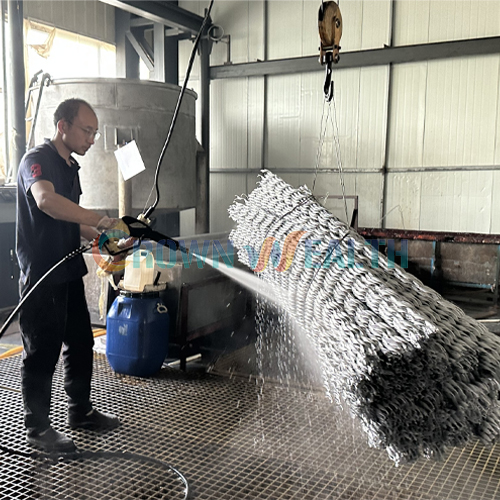

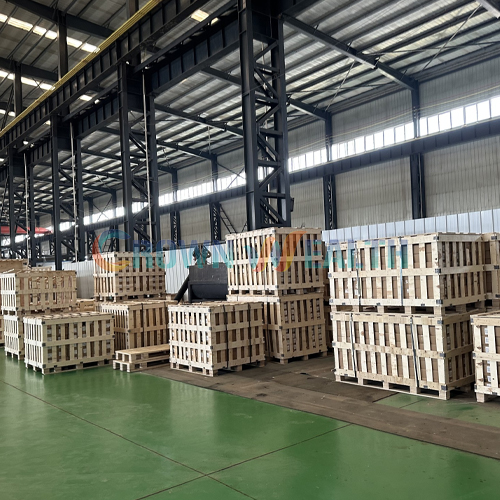

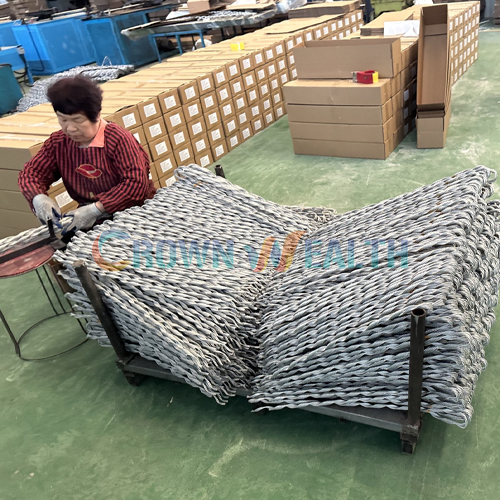

Corner of Hbcrownwealth Factory
Hbcrownwealth factory feature industry-standard grip strength, durability, and corrosion resistance for reliable, safe use.

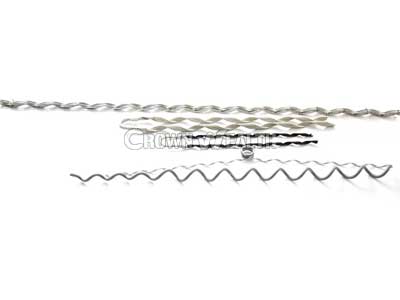

We have a variety of lengths and diameters for you to choose from. If the size specifications of our existing products do not match the guy grip size you expect, we will redesign it according to your needs and customize for you so that the size specifications are consistent.

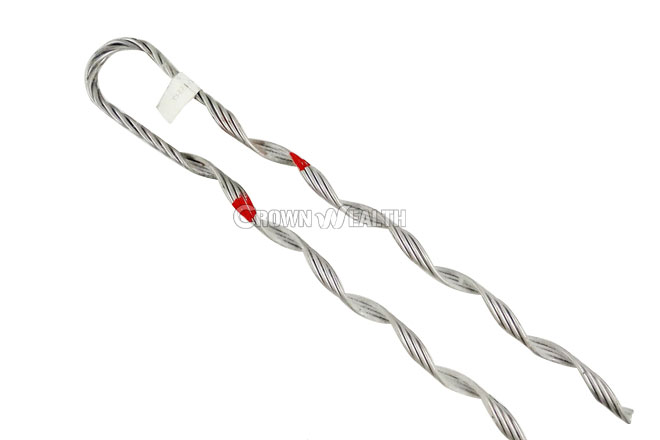

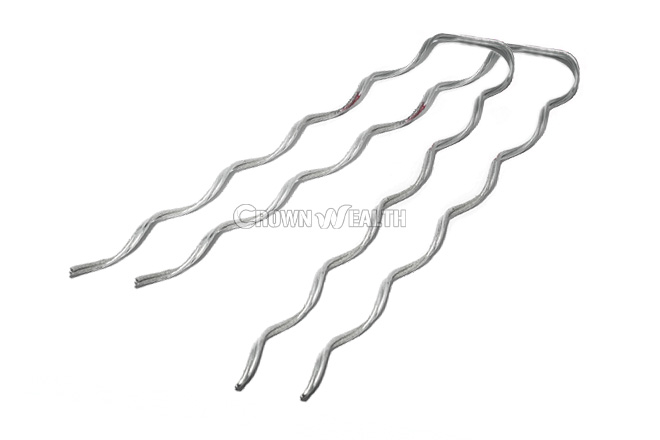

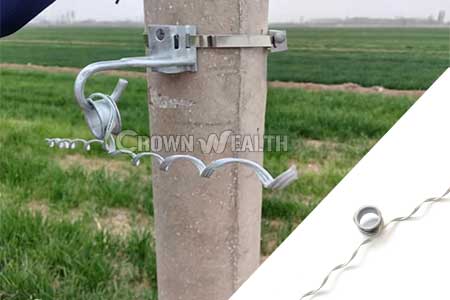

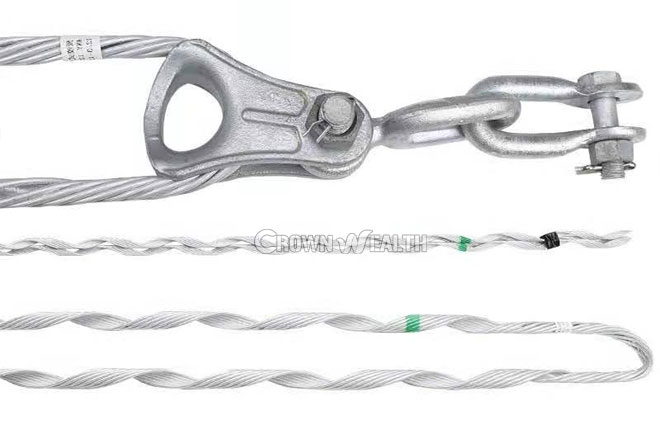

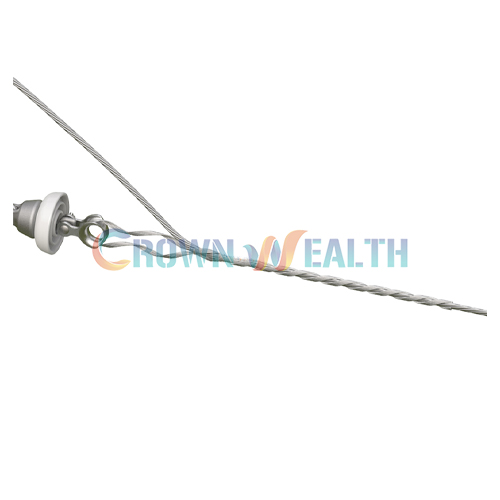

Hbcrownwealth preformed dead end, also known as preformed tension clamp, is an indispensable component in power lines. It is mainly used in communication ADSS optical fiber, OPGW cable, or OPPC, consolidating its key role in long-distance data transmission.

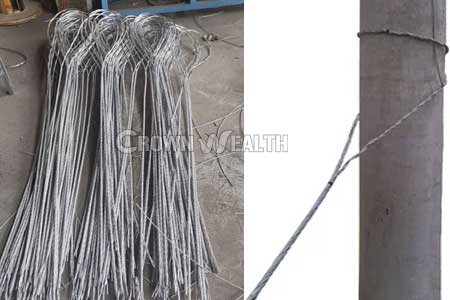

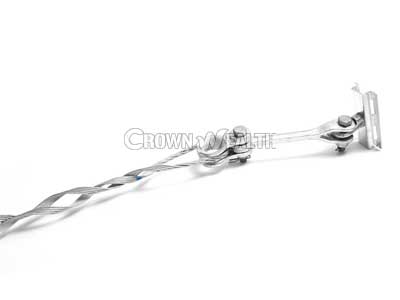

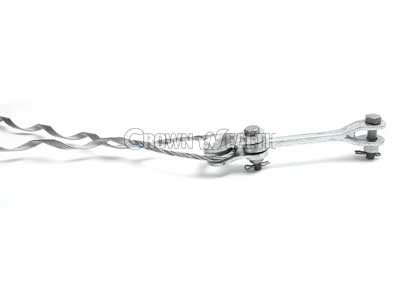

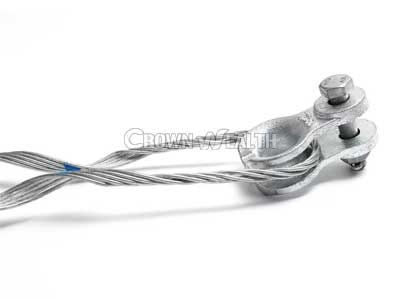

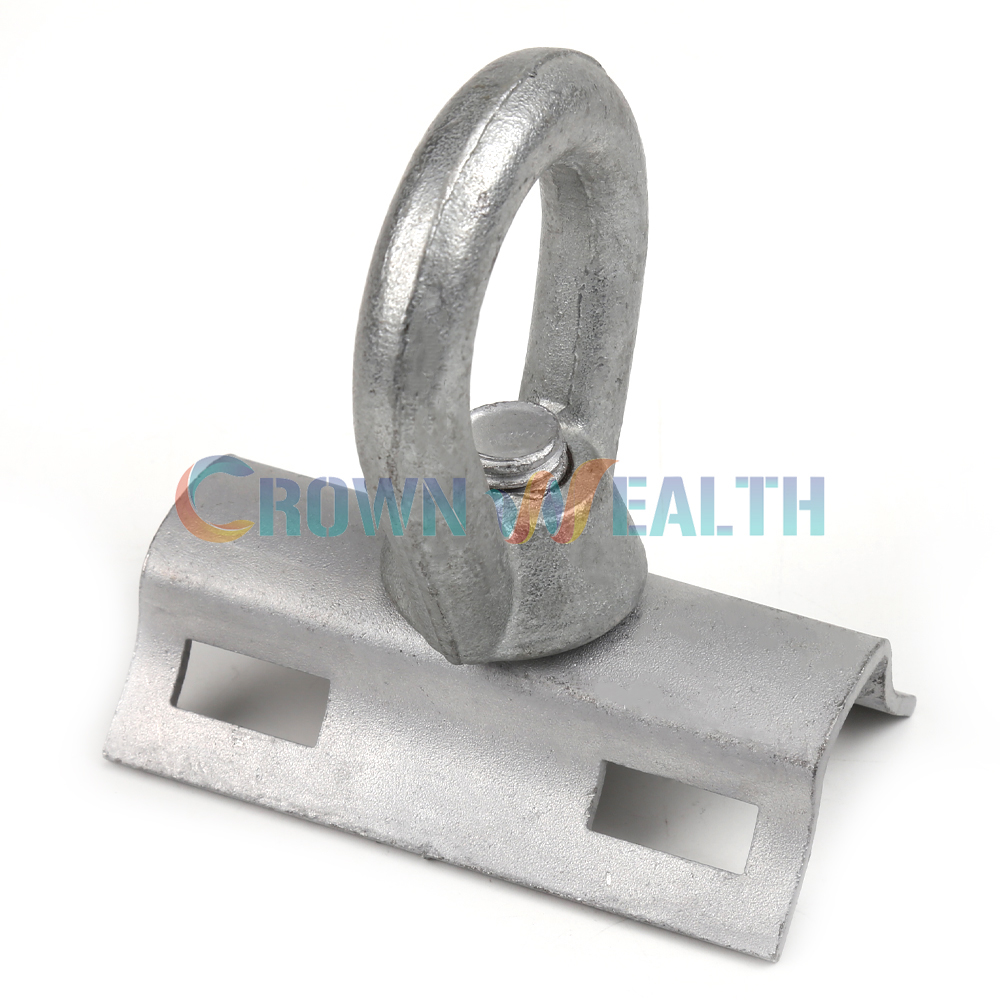

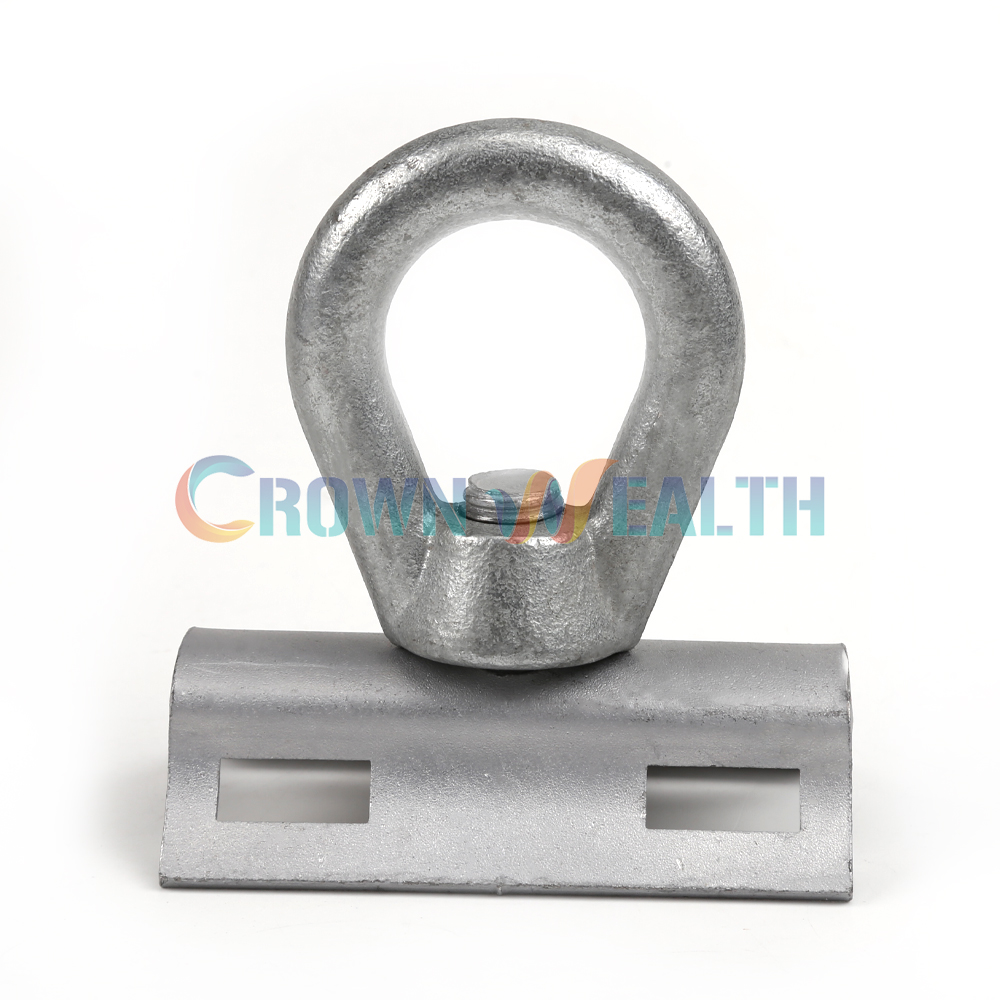

Hbcrownwealth pole top make off is mainly used in the electrical and telecommunication fields to terminate guy wires. This termination helps to anchor the pole firmly to the ground, providing stability to the overhead line system. The pole top connector is made of galvanized steel and can withstand high loads and extreme tensions not less than 95% of the guy wire grip breaking load.
The resources are written by experienced engineers and are completely free, which can save you a lot of time. We can empty your shopping list according to your needs.
| Parts No. | Dia. Cable /mm | Length /mm | Weight /kg | Code Color |
| CW-GUYTA-O1OXXXX | 9.0-10.4 | 780-830 | 0.3-0.4 | Yellow |
| 10.5-13.4 | 880-980 | 0.43-0.59 | Red | |
| 13.5-16.9 | 1020-1140 | 0.72-0.92 | Blue | |
| CW-GUYTA-020XXXX | 8.6-10.7 | 800/1100 | 0.88-1.06 | Green |
| 10.8-12.9 | 1.08-1.38 | Orange | ||
| 13.0-14.6 | 1.54-1.57 | Black | ||
| 14.7-15.5 | 1.6 | White | ||
| CW-GUYTA-O3OXXXX | 8.6-10.7 | 1100/1400 | 1.17-1.4 | Yellow |
| 10.8-12.9 | 1.43-1.84 | Red | ||
| 13.0-14.6 | 2.04-2.08 | Blue | ||
| 14.7-15.5 | 2.12 | Green |

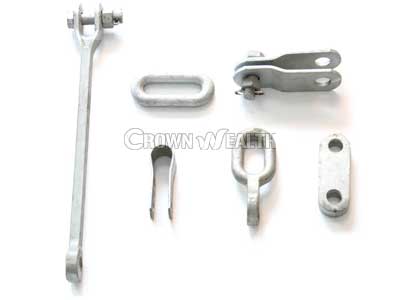

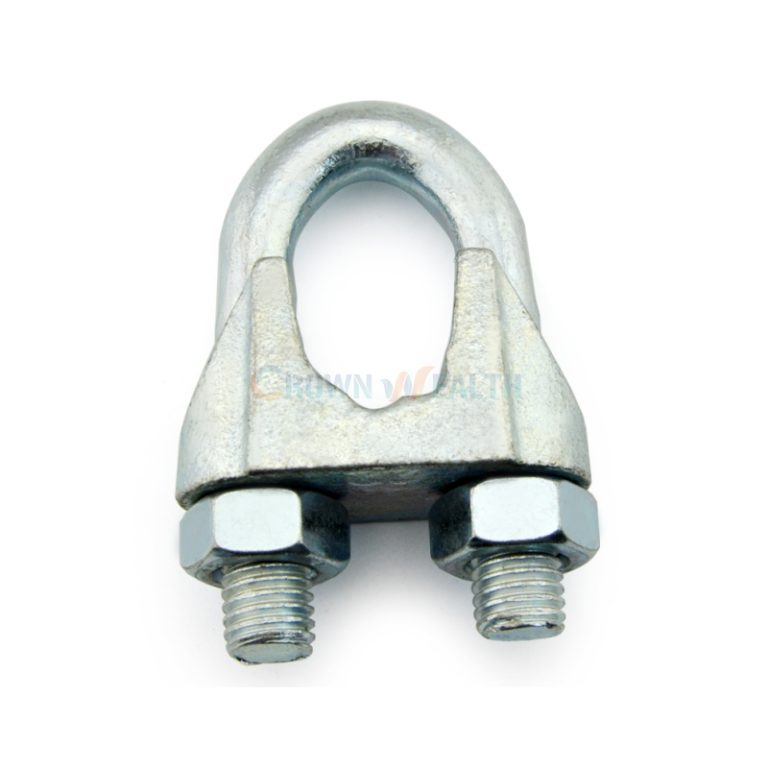

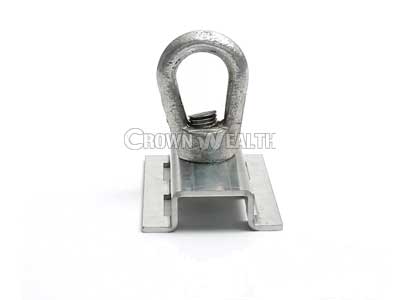

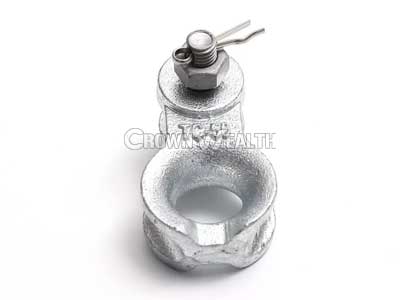

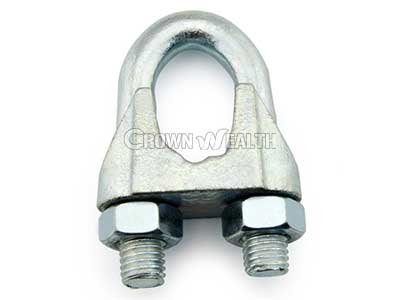

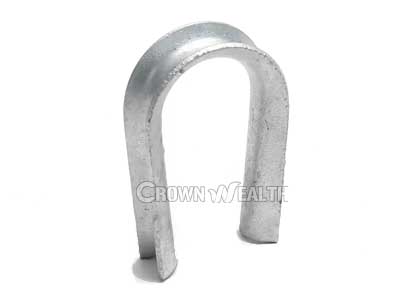

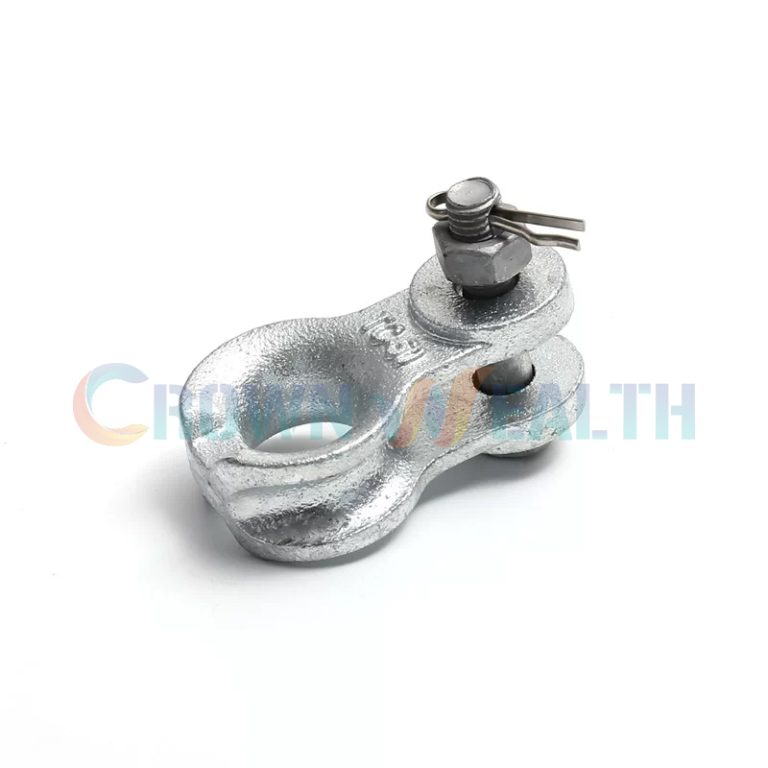

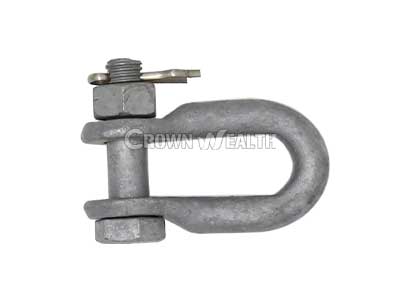

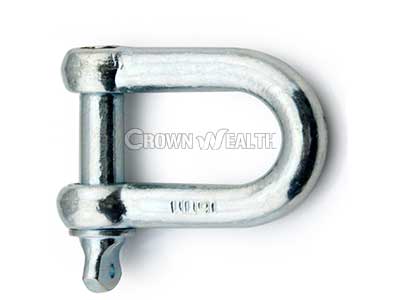

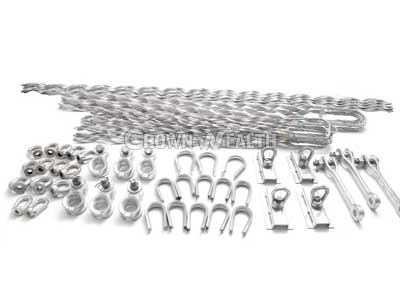

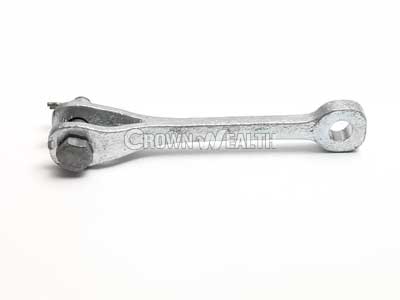

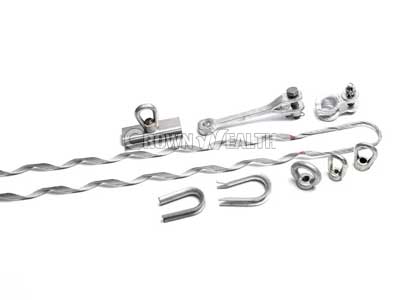

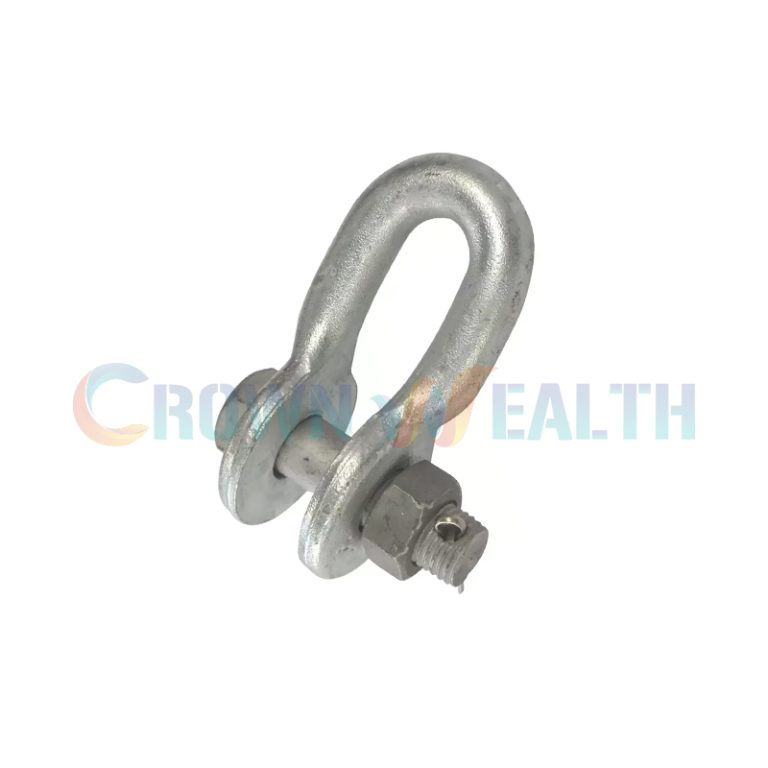

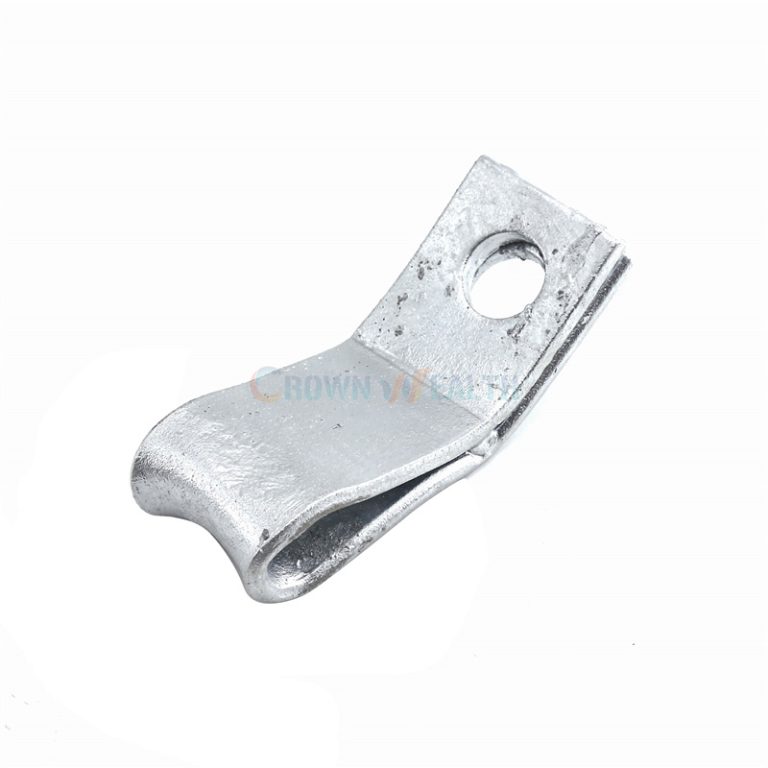

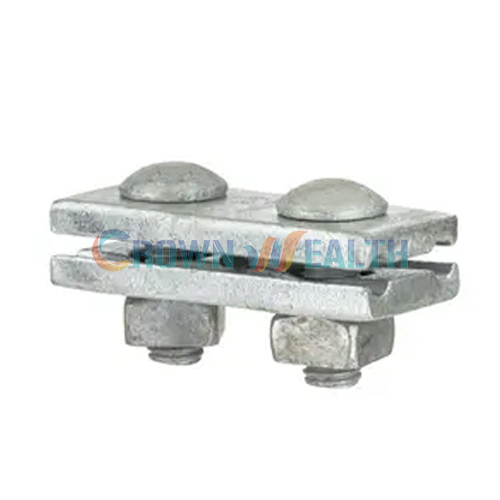

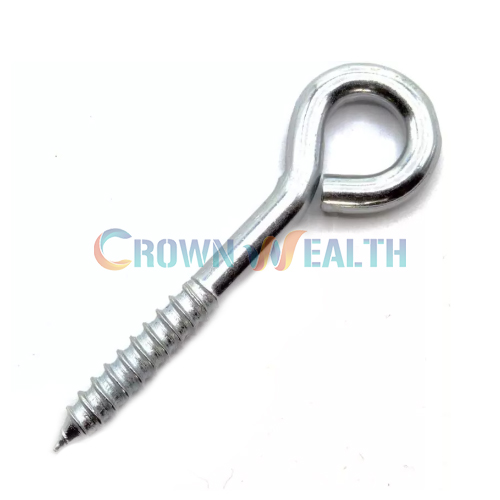

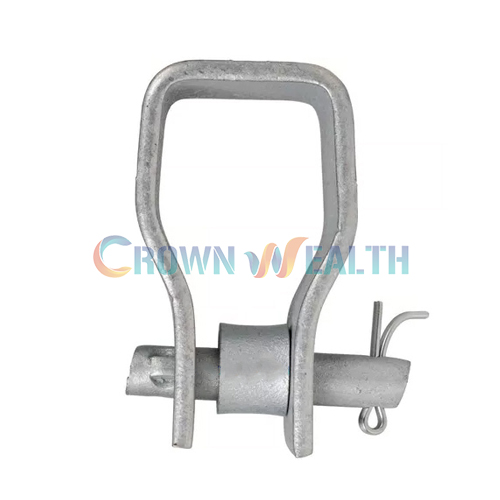

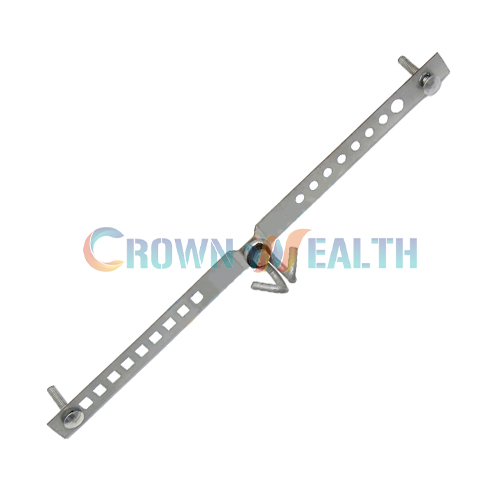

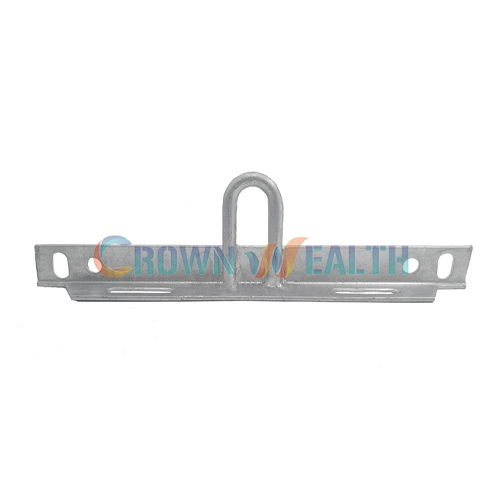

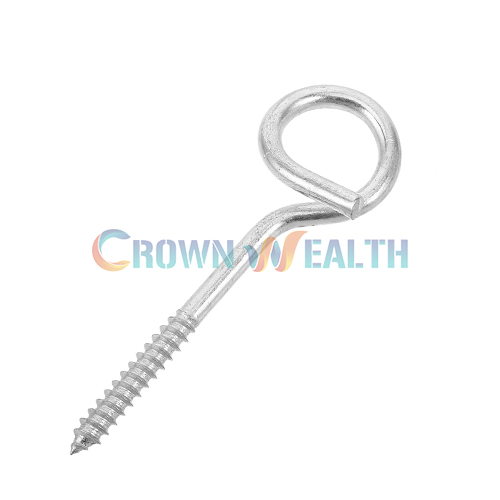

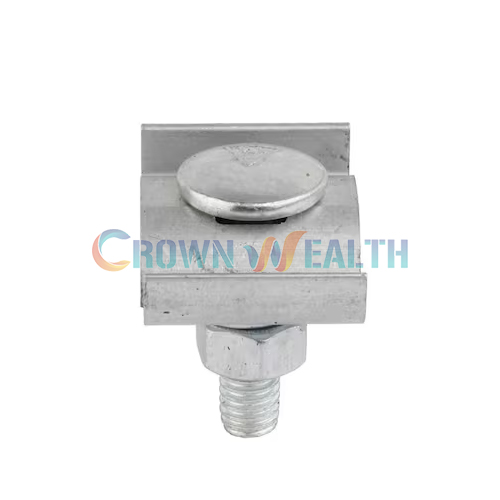

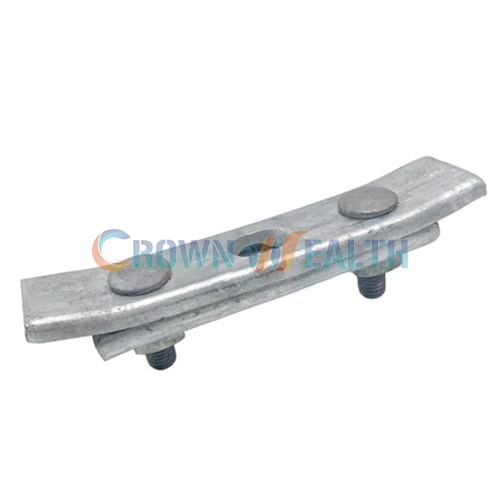

Acceptable Fittings for Guy Grips:

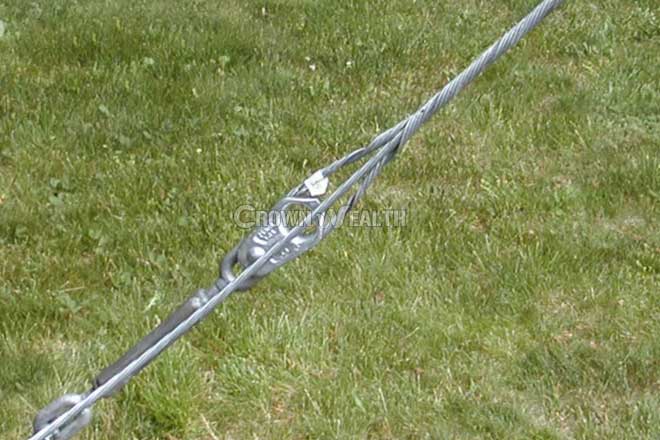

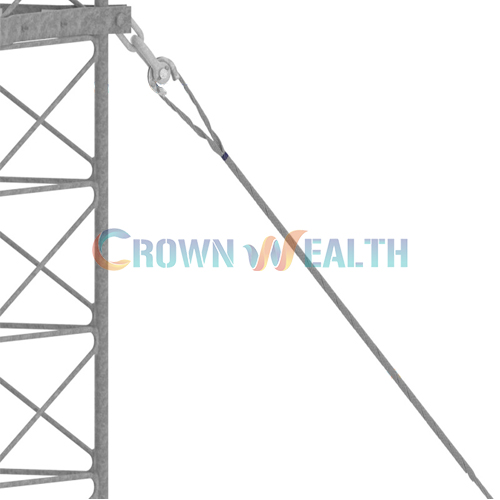

Guy grips, also known as preformed dead end grips, are used to secure and terminate guy wires or stranded wires. They are specifically designed to form a safe and secure connection between the guy wire and an anchor point or structure. Guy grips are commonly used to secure guy wires that support utility poles, such as those used for power, telecommunications, and other overhead line systems. Guy grips are also found on guy wires on communication towers, radio masts, and other tall structures, keeping them upright and secure.

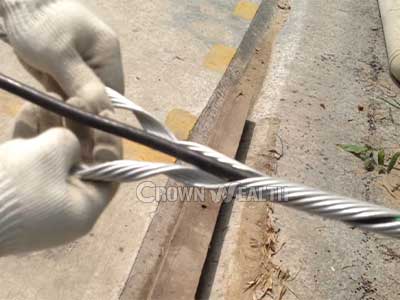

Guy grips are very simple to install and can be operated without any tools:
- Make sure your connection extends to the area with the bend.
- Install the target conductor along the strands of the guy grip.
- Make sure the conductor fits perfectly with the strands of the guy grip.
- Install the conductor to the end of the guy grip and then use the other side of the guy grip to cover the strands so that they overlap each other.

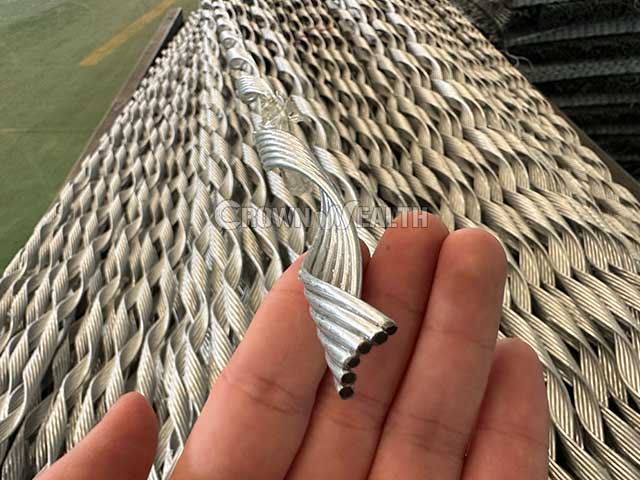

Wrap the guy grips' spiral bends tightly around the cable and they apply pressure to the wire and friction between the cable and the inert grit in the spiral bends. This force load holds the wire securely in place where you need it. The spiral design evenly distributes tension without concentrated stress points, reducing the risk of the cable slipping or breaking. Guy grips are for single use only, but can be reinstalled twice within 90 days.

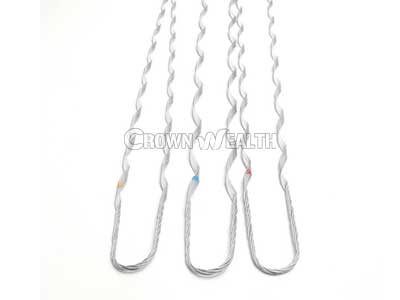

Preformed guy grips are often color-coded to help users quickly identify the appropriate size or type for specific applications. This color-coding system is particularly useful in the field, where visual identification can save time and reduce errors.
Common guy grips color codes are Red, Blue, Yellow, Green, Orange, Black. Hebei Crown Wealth can also customize color codes for your specific projects or target customers to differentiate guy grips for unique applications or environments.
