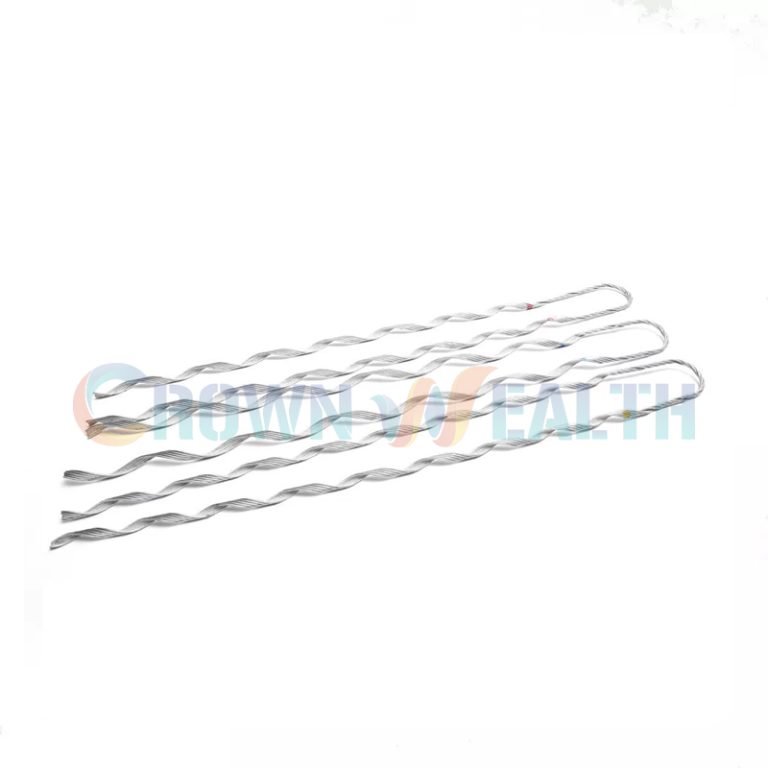

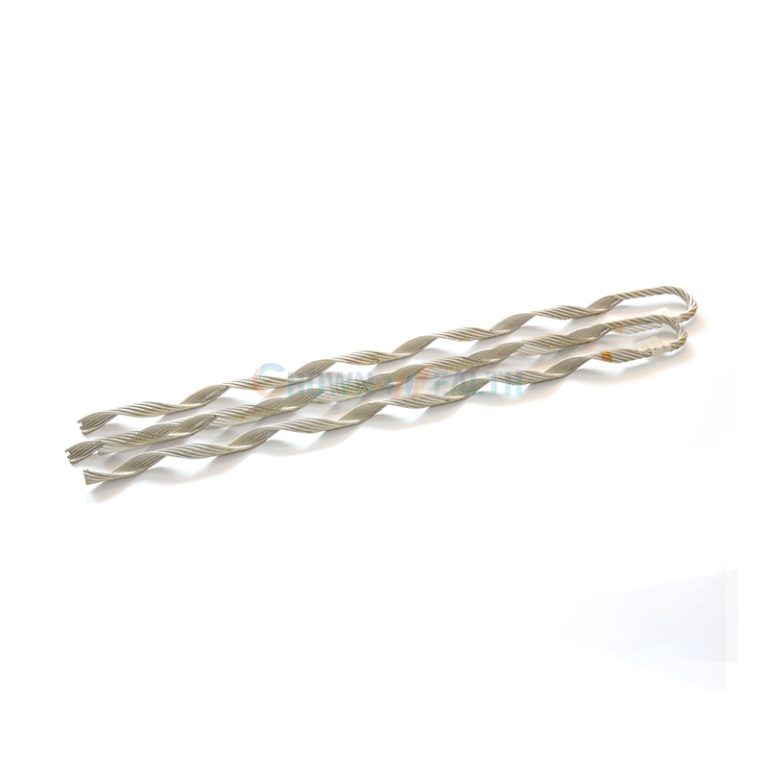

CW-GUYTA: Preformed Guy Grip Tension Clamp For ADSS

Preformed tension clamp is used in the installation of the exposed conductor, in the electric network transmission and distribution, and overhead insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type tension set which now is being widely used in the line.

CW-GUYTA: Preformed Guy Grip Tension Clamp For ADSS

Preformed tension clamp is used in the installation of the exposed conductor, in the electric network transmission and distribution, and overhead insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type tension set which now is being widely used in the line.

Description

Preformed tension clamp is used in the installation of the exposed conductor, in the electric network transmission and distribution, and overhead insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type tension set which now is being widely used in the line.

Support full tension strength for ADSS cable, connect the ADSS cable to the pole tower, corner pole tower and terminal pole tower with larger differences in terms of height.



Features:

1. Materials are aluminium clad steel wire or galvanized steel wire.

2. Different span distance:0-100m, 101-200m, 201-300m, 301-400m, etc.

3. The preformed guy grip for span more than 200m, is composed of inner rods and outer rods.

4. Marked with various code colour: yellow, red, green, blue, black, orange.

5. Grip strength can be over 95% RTS or customization.

6. Installation with other hardware: thimble, U-shackle, extension link, entensive-link, straps, etc.

7. Saving metal material and reduce the cost of line.

8. Aging resistance.

9. Packing with carton box or wooden pallet.

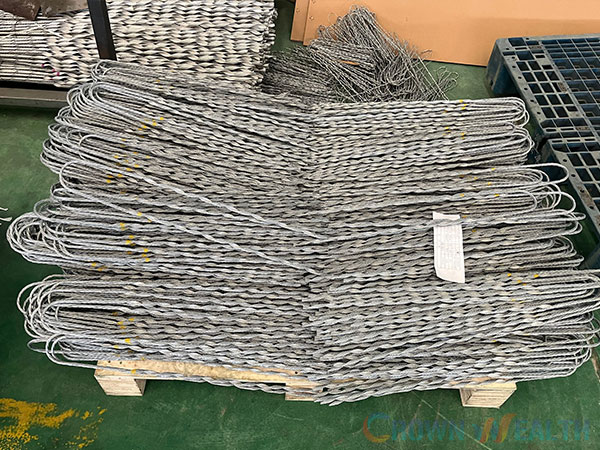

Preformed Tension Clamp For ADSS



Parameters

Parts No. Dia. Cable /mm Length /mm Weight /kg Code Color
CW-GUYTA-O1OXXXX 9.0-10.4 780-830 0.3-0.4 Yellow
10.5-13.4 880-980 0.43-0.59 Red
13.5-16.9 1020-1140 0.72-0.92 Blue
CW-GUHA-020XXXX 8.6-10.7 800/1100 0.88-1.06 Green
10.8-12.9 1.08-1.38 Orange
13.0-14.6 1.54-1.57 Black
14.7-15.5 1.6 White
CW-GUYTA-O3OXXXX 8.6-10.7 1100/1400 1.17-1.4 Yellow
10.8-12.9 1.43-1.84 Red
13.0-14.6 2.04-2.08 Blue
14.7-15.5 2.12 Green



FAQ

What is a guy grip dead end?

A guy grip is also known as the guy grip dead end or a preformed guy grip. The guy grip dead end has helically formed legs with inert grits on every turn. Proven and reliable prefabricated cable clamp dead ends for connections that holds the messenger wire, conductor, or fiber optic cable securely. Also, the strand is tacked together on the bent part of the guy grip.

What material is the guy grip made of?

The raw materials of the preformed guy grip are made of high quality and durable steel wire, aluminum wire, galvanized steel wire or aluminum clad steel wire.

What are the span distance dimensions for guy grip application?

The guy grip by Hebei Crown Wealth has a variety of different span distances, including 0-100m, 101-200m, 201-300m, 301-400m, etc. The preformed guy grip for span more than 200m, is composed of inner rods and outer Rods. Marked with yellow, red, green, blue, black, orange and other colors, it is easy to distinguish the size of these guy grips dead end.

What hardware accessories can the guy grip be used with?

The guy grip generally used in conjunction with thimble, U-shackle, extension link, entensive-link, straps, etc. Responsible to grip the conductor, ground the wire, and application for optical fiber.

How does the guy grip work?

The guy grip is applied by simply wrapping the legs of the guy grip on the conductor, grounding wire or cable by hand. The guy grip two helical legs wrap into an empty tube, the preform grip head will be closed as a circle.

When the guy grips dead end wrap on the conductor or stay wire, there will be strong grip strength to avoid the slip between guy grip and conductors.
The closed circle will be joined with anchor rod or insulators on pole or tower.

According to the application, guy grip dead end clamps are used to connect the anchor rod on the pole end or wrap the conductor on the tower or join the grounding wire.

What packaging does guy grip use?

Packing with carton box or wooden pallet or as your request.

Preformed Guy Grip Dead End Manufacturer Factory in China

Hebei Crown Wealth was established in 2011 in Hebei Province. It is the most important hardware manufacturing center in northern China. Hebei Crown Wealth is leading manufacturer of electrical hardwares in China, Supplier of famous American hardware distributors.

CW-GUYTA: Preformed Guy Grip Tension Clamp For ADSS

Parts No. Dia. Cable /mm Length /mm Weight /kg Code Color
CW-GUYTA-O1OXXXX 9.0-10.4 780-830 0.3-0.4 Yellow
10.5-13.4 880-980 0.43-0.59 Red
13.5-16.9 1020-1140 0.72-0.92 Blue
CW-GUHA-020XXXX 8.6-10.7 800/1100 0.88-1.06 Green
10.8-12.9 1.08-1.38 Orange
13.0-14.6 1.54-1.57 Black
14.7-15.5 1.6 White
CW-GUYTA-O3OXXXX 8.6-10.7 1100/1400 1.17-1.4 Yellow
10.8-12.9 1.43-1.84 Red
13.0-14.6 2.04-2.08 Blue
14.7-15.5 2.12 Green

Description

Preformed tension clamp is used in the installation of the exposed conductor, in the electric network transmission and distribution, and overhead insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type tension set which now is being widely used in the line.

Support full tension strength for ADSS cable, connect the ADSS cable to the pole tower, corner pole tower and terminal pole tower with larger differences in terms of height.



Features:

1. Materials are aluminium clad steel wire or galvanized steel wire.

2. Different span distance:0-100m, 101-200m, 201-300m, 301-400m, etc.

3. The preformed guy grip for span more than 200m, is composed of inner rods and outer rods.

4. Marked with various code colour: yellow, red, green, blue, black, orange.

5. Grip strength can be over 95% RTS or customization.

6. Installation with other hardware: thimble, U-shackle, extension link, entensive-link, straps, etc.

7. Saving metal material and reduce the cost of line.

8. Aging resistance.

9. Packing with carton box or wooden pallet.

Preformed Tension Clamp For ADSS



Parameters

Parts No. Dia. Cable /mm Length /mm Weight /kg Code Color
CW-GUYTA-O1OXXXX 9.0-10.4 780-830 0.3-0.4 Yellow
10.5-13.4 880-980 0.43-0.59 Red
13.5-16.9 1020-1140 0.72-0.92 Blue
CW-GUHA-020XXXX 8.6-10.7 800/1100 0.88-1.06 Green
10.8-12.9 1.08-1.38 Orange
13.0-14.6 1.54-1.57 Black
14.7-15.5 1.6 White
CW-GUYTA-O3OXXXX 8.6-10.7 1100/1400 1.17-1.4 Yellow
10.8-12.9 1.43-1.84 Red
13.0-14.6 2.04-2.08 Blue
14.7-15.5 2.12 Green



FAQ

What is a guy grip dead end?

A guy grip is also known as the guy grip dead end or a preformed guy grip. The guy grip dead end has helically formed legs with inert grits on every turn. Proven and reliable prefabricated cable clamp dead ends for connections that holds the messenger wire, conductor, or fiber optic cable securely. Also, the strand is tacked together on the bent part of the guy grip.

What material is the guy grip made of?

The raw materials of the preformed guy grip are made of high quality and durable steel wire, aluminum wire, galvanized steel wire or aluminum clad steel wire.

What are the span distance dimensions for guy grip application?

The guy grip by Hebei Crown Wealth has a variety of different span distances, including 0-100m, 101-200m, 201-300m, 301-400m, etc. The preformed guy grip for span more than 200m, is composed of inner rods and outer Rods. Marked with yellow, red, green, blue, black, orange and other colors, it is easy to distinguish the size of these guy grips dead end.

What hardware accessories can the guy grip be used with?

The guy grip generally used in conjunction with thimble, U-shackle, extension link, entensive-link, straps, etc. Responsible to grip the conductor, ground the wire, and application for optical fiber.

How does the guy grip work?

The guy grip is applied by simply wrapping the legs of the guy grip on the conductor, grounding wire or cable by hand. The guy grip two helical legs wrap into an empty tube, the preform grip head will be closed as a circle.

When the guy grips dead end wrap on the conductor or stay wire, there will be strong grip strength to avoid the slip between guy grip and conductors.
The closed circle will be joined with anchor rod or insulators on pole or tower.

According to the application, guy grip dead end clamps are used to connect the anchor rod on the pole end or wrap the conductor on the tower or join the grounding wire.

What packaging does guy grip use?

Packing with carton box or wooden pallet or as your request.

Preformed Guy Grip Dead End Manufacturer Factory in China

Hebei Crown Wealth was established in 2011 in Hebei Province. It is the most important hardware manufacturing center in northern China. Hebei Crown Wealth is leading manufacturer of electrical hardwares in China, Supplier of famous American hardware distributors.

CW-GUYTA: Preformed Guy Grip Tension Clamp For ADSS

Parts No. Dia. Cable /mm Length /mm Weight /kg Code Color
CW-GUYTA-O1OXXXX 9.0-10.4 780-830 0.3-0.4 Yellow
10.5-13.4 880-980 0.43-0.59 Red
13.5-16.9 1020-1140 0.72-0.92 Blue
CW-GUHA-020XXXX 8.6-10.7 800/1100 0.88-1.06 Green
10.8-12.9 1.08-1.38 Orange
13.0-14.6 1.54-1.57 Black
14.7-15.5 1.6 White
CW-GUYTA-O3OXXXX 8.6-10.7 1100/1400 1.17-1.4 Yellow
10.8-12.9 1.43-1.84 Red
13.0-14.6 2.04-2.08 Blue
14.7-15.5 2.12 Green
