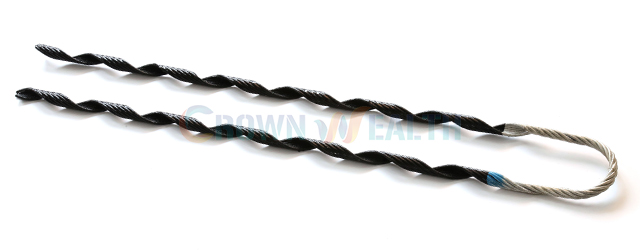

CW-GUYIC: Preformed Guy Grip Dead End Clamps with Insulation Coating

Aluminum alloy dead end grip with insulation coating for telecom cable, insulator conductor, fiber cable, TV cable, Digital cable.

CW-GUYIC: Preformed Guy Grip Dead End Clamps with Insulation Coating

Aluminum alloy dead end grip with insulation coating for telecom cable, insulator conductor, fiber cable, TV cable, Digital cable.

Description

Aluminum alloy dead end grip with insulation coating for telecom cable, insulator conductor, fiber cable, TV cable, Digital cable

The aluminum alloy dead end grip with insulation coating has the main function to fix a pole/tower the cables, conductors, strands, structures

The area of the loop always must be protect with a suitable thimble, pulley, insulator etc.

Preformed Guy Grip Dead End Clamps with Insulation Coating

Parts. No.  Guy Wire (mm)  Applicable conductor size

(Guy strand, mm2)

Length(mm )    Weight (kg)    Color Code
CW-GUYIC-25 6.60 25 635 0.2 Yellow
CW-GUYIC-35 7.65~7.95 35 711 0.3 Black
CW-GUYIC-50 8.95~9.30 50 901 0.5 Orange
CW-GUYIC-70 10.82~11.10 70 1016 0.8 Green
CW-GUYIC-95 12.50 95 1333 1.7 Orange
CW-GUYIC-100 13.00 100 1333 1.7 Blue
CW-GUYIC-120 14.00 120 1460 2.2 Yellow

Description

Aluminum alloy dead end grip with insulation coating for telecom cable, insulator conductor, fiber cable, TV cable, Digital cable

The aluminum alloy dead end grip with insulation coating has the main function to fix a pole/tower the cables, conductors, strands, structures

The area of the loop always must be protect with a suitable thimble, pulley, insulator etc.

Preformed Guy Grip Dead End Clamps with Insulation Coating

Parts. No.  Guy Wire (mm)  Applicable conductor size

(Guy strand, mm2)

Length(mm )    Weight (kg)    Color Code
CW-GUYIC-25 6.60 25 635 0.2 Yellow
CW-GUYIC-35 7.65~7.95 35 711 0.3 Black
CW-GUYIC-50 8.95~9.30 50 901 0.5 Orange
CW-GUYIC-70 10.82~11.10 70 1016 0.8 Green
CW-GUYIC-95 12.50 95 1333 1.7 Orange
CW-GUYIC-100 13.00 100 1333 1.7 Blue
CW-GUYIC-120 14.00 120 1460 2.2 Yellow
