The Straight Thimble Eye Bolt provides a secure attachment point for guy strands used in utility pole support systems.
Its integrated thimble-shaped eye creates a smooth, rounded bearing surface for the strand, while the straight threaded shank allows direct through-pole installation. This simple configuration makes the bolt practical for overhead power, telecom, and other pole line construction projects.
Hbcrownwealth supplies galvanized straight thimble eye bolts in several standard bolt sizes and supports customized specifications for bulk and project orders.
The Straight Thimble Eye Bolt provides a secure attachment point for guy strands used in utility pole support systems.
Its integrated thimble-shaped eye creates a smooth, rounded bearing surface for the strand, while the straight threaded shank allows direct through-pole installation. This simple configuration makes the bolt practical for overhead power, telecom, and other pole line construction projects.
Hbcrownwealth supplies galvanized straight thimble eye bolts in several standard bolt sizes and supports customized specifications for bulk and project orders.

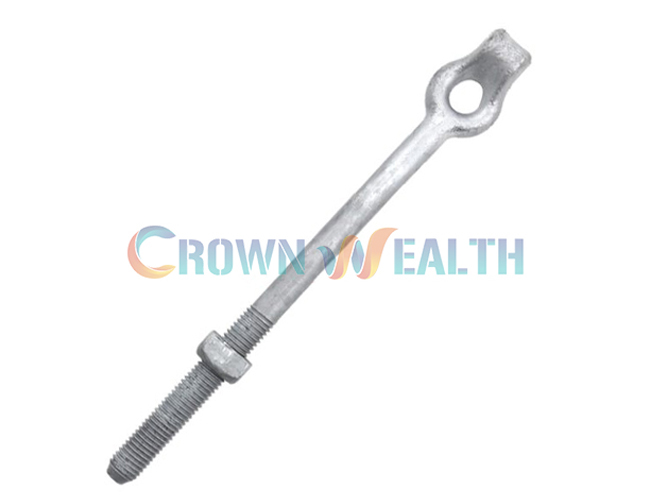

A straight thimble eye bolt combines a threaded pole bolt with a formed thimble eye at one end.
During installation, the bolt passes through a prepared hole in the utility pole. Nuts and washers secure the threaded end, while the thimble eye remains outside the pole to provide a connection point for the guy strand.
Unlike a conventional round eye, the thimble profile offers a wider curved contact surface around the strand connection.
This makes the product especially useful in utility pole guying systems where a simple, direct attachment point is required.
The thimble eye and bolt form one practical fastening component.
Therefore, you can create a guy wire attachment point without adding a separate eye fitting at the pole connection.
The rounded thimble profile gives the strand a smooth bearing surface around the connection area.
This design helps the strand follow the eye curvature instead of contacting a narrow or sharp edge.
The straight shank is suitable for direct installation through compatible utility poles.
Installers can position the bolt, add the required nuts and washers, and secure the assembly from the opposite side of the pole.
The galvanized steel surface makes the bolt suitable for outdoor pole line installations where hardware remains exposed to weather during service.
CW-TNR is available in three standard bolt sizes:
This allows you to select a size according to the pole structure, guying arrangement, and technical specification of your project.
Product Name: Straight Thimble Eye Bolt
Model: CW-TNR
Material: Galvanized Steel
Bolt Sizes: 5/8″, 3/4″, 1″
Eye Type: Straight Thimble Eye
Mounting Method: Through-Pole Installation
Typical Connection: Guy Strand / Guy Wire
Application: Overhead Power and Telecom Pole Systems
OEM: Available according to drawing or specification
For customized orders, you can provide the required bolt diameter, overall length, thread length, thimble dimensions, nut and washer configuration, coating requirement, and order quantity.
You can use the straight thimble eye bolt to create a guy strand attachment point on poles used in overhead distribution systems.
The bolt can also form part of guying arrangements for telecom and communication pole infrastructure.
Utility poles located at line ends, corners, or other positions may require additional guying hardware. A straight thimble eye bolt provides a practical pole-side connection point for the supporting strand.
The simple through-pole configuration makes the product suitable for utility and telecom construction projects where installers need straightforward field assembly.
You can also use compatible specifications when replacing or upgrading existing guy wire attachment hardware.
Before ordering, check the technical requirements of your complete guying system rather than selecting the bolt only by appearance.
Consider:
If you already have an existing drawing or sample, send it to us. Our team can compare the dimensions before quotation and production.
Pole line specifications vary between utilities, contractors, and national markets.
For this reason, Hbcrownwealth supports drawing-based production for straight thimble eye bolts.
You can request changes to dimensions, thread configuration, accessories, surface treatment, packaging, or other agreed product details.
This service is suitable for distributors, utility contractors, infrastructure companies, and wholesalers that require consistent specifications across repeat orders.
For a through-pole bolt, dimensional accuracy affects both installation and compatibility with related hardware.

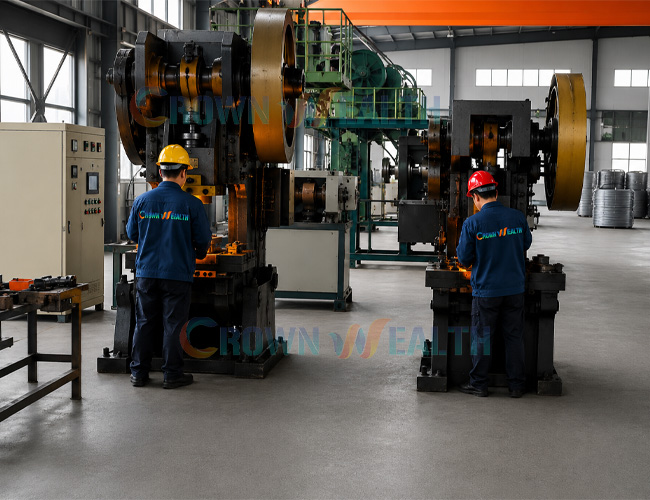

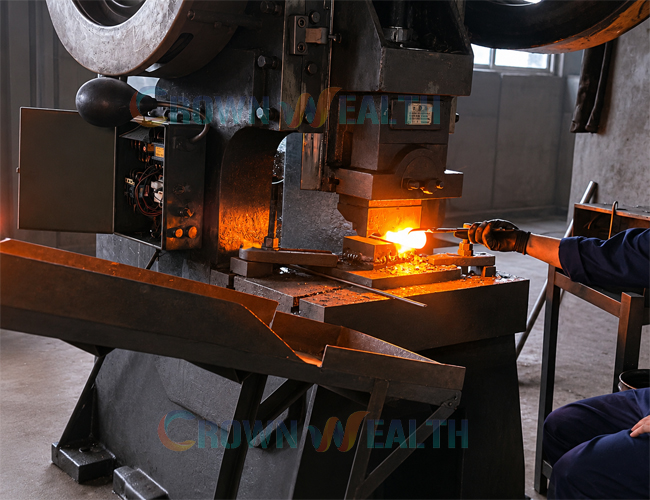

During production, we check important product details such as bolt dimensions, thread formation, thimble eye shape, surface condition, and matching accessories.
We also inspect finished products against the confirmed order requirements before packaging.
This helps you maintain more consistent specifications when purchasing in bulk or placing repeat orders.
A straight thimble eye bolt normally works as one part of a larger utility pole guying system.
Therefore, you can source it together with related hardware such as guy grips, guy clamps, stay rods, anchors, and other pole line fittings.
Combining compatible products with one supplier can simplify purchasing, shipment preparation, and supplier management for project and distribution orders.
Hbcrownwealth supports bulk supply, OEM manufacturing, export packaging, and repeat purchasing for international pole line hardware customers.
It provides an attachment point for guy strands used to support and stabilize utility poles in power and telecom line systems.
A thimble eye has a broader curved profile designed to provide a smooth bearing surface around the guy strand connection.
The standard CW-TNR range includes 5/8″, 3/4″, and 1″ bolt sizes.
Yes. Its straight threaded shank is designed for installation through a compatible utility pole and securing with suitable nuts and washers.
Yes. You can provide your drawing or technical specification for customized bolt diameter, length, thread, eye dimensions, and related requirements.
Yes. You can combine straight thimble eye bolts with guy grips, guy clamps, stay hardware, anchors, and other pole line products in one purchasing plan.
| Parts No. | Descripton | Material | Bolt Size |
| CW-TNR | Straight Thimble Eye Bolt | Galvanized Steel | 5/8″,3/4″,1″ |
