CW-CS: Fiber Cable Storage Bracket

Key Features & Product Advantages

• Heavy-Duty Galvanized Construction: Manufactured from high-tensile carbon steel and treated with hot-dip galvanization, guaranteeing excellent rust protection and weather resistance in coastal or industrial zones.

• Large Slack Storage Capacity: Accommodates up to 50 meters of surplus OPGW or ADSS fiber optic cable, effectively preventing loose or tangled cable lines.

• High Mechanical Strength: The rigid cross-frame handles heavy wind loading and cable weight without bending or deforming.

• Versatile Mounting Options: Compatible with stainless steel banding straps, pole bands, or mounting bolts for easy installation on wooden poles, concrete poles, steel poles, and lattice towers.

• Compact & Transport-Friendly: Designed for quick assembly and disassembly, saving warehouse storage space and reducing international shipping costs.

• Optimal Fiber Protection: Maintains the minimum required cable bending radius, eliminating micro-bending signal loss and physical jacket wear.

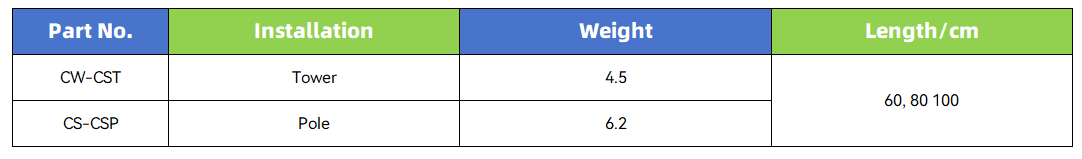

Technical Specifications & Dimensions

Note: Custom lengths (e.g., 400mm, 600mm, 800mm, 1000mm) and custom hole configurations are fully supported upon request.

Application Scenarios

You can deploy the CW-CS fiber cable storage bracket across various high-voltage and overhead telecommunication network environments:

• High-Voltage Power Transmission Lines: Secure excess OPGW (Optical Ground Wire) and ADSS (All-Dielectric Self-Supporting) cables near high-voltage power transmission towers.

• FTTx Overhead Infrastructure: Manage spare fiber loops at critical junction points on concrete or wooden utility poles along suburban and rural distribution grids.

• Substation & Power Plant Networks: Store extra fiber optic lines near junction boxes inside power substations, preventing loose cables from interfering with electrical gear.

• Railway & Highway Telecom Networks: Secure communications cables along railway signal poles and highway monitoring systems for quick maintenance access.

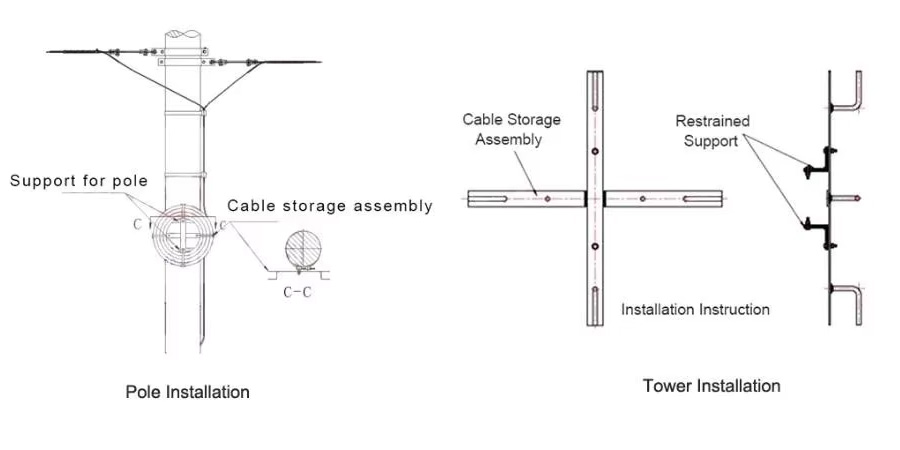

Step-by-Step Installation Guide

Installing the CW-CS galvanized steel bracket is quick and straightforward. Follow these four simple steps:

1. Assemble the Cross Frame: Unpack the bracket components and join the two carbon steel flat bars into a cross-shape using the included galvanized center bolts.

2. Mount the Bracket to the Pole or Tower:

   • For Lattice Towers (CW-CST): Fasten the bracket arms directly to the tower angle steel using heavy-duty mounting bolts and nuts.

   • For Utility Poles (CW-CSP): Thread Stainless Steel Banding Straps through the bracket base slots, wrap them around the concrete or wooden pole, and lock tightly using a banding tool and buckles.

3. Coil the Surplus Optical Cable: Carefully loop the extra ADSS or OPGW cable into a neat figure-8 or circular coil over the four outer bracket arms, ensuring you respect the cable’s minimum bending radius.

4. Secure the Cable Coil: Fasten the coiled optical cable firmly to the four U-shaped retaining arms using outdoor-rated stainless steel cable ties or weather-resistant nylon ties.

Why Choose Hbcrownwealth for Your Cable Storage Solutions?

When you source pole line hardware for international telecommunication and power distribution projects, Hbcrownwealth (Hebei Crown Wealth) stands out as a trusted manufacturing partner.

• Direct Factory Wholesale: As an established manufacturer in China, we offer competitive B2B pricing with no middleman markups.

• Full OEM/ODM Capabilities: We accept custom drawings, specialized dimensions, unique hole patterns, and custom packaging to meet your specific project requirements.

• Strict Quality Control: Every galvanized steel bracket undergoes rigorous tensile tests and zinc coating thickness inspections to guarantee long maintenance-free service lives.

• Complete Hardware Ecosystem: We provide one-stop procurement! You can source matching Stainless Steel Banding Straps, L-Type Buckles, Suspension Clamps, and Down Lead Clamps directly from our product lines.

Frequently Asked Questions (FAQ)

1. What is the primary purpose of a fiber cable storage bracket?

A fiber cable storage bracket safely holds and organizes excess ADSS or OPGW optical cables along overhead lines. By storing slack cables neatly near joint boxes or on poles, it ensures field technicians have enough spare cable for future fusion splicing, emergency repairs, or line relocations.

2. Can I install this cable storage bracket on both utility poles and steel towers?

Yes! The CW-CS series is designed for both pole and tower applications. The CW-CSP model includes mounting hardware for utility poles (using stainless steel banding straps or pole clamps), while the CW-CST model is optimized for direct bolt mounting onto steel lattice towers.

3. How does hot-dip galvanizing protect the bracket from rust?

Hot-dip galvanizing coats the carbon steel with a thick, durable layer of zinc. Consequently, it creates a metallurgical barrier against moisture, UV radiation, and atmospheric corrosion, ensuring a service life of 15 to 25+ years even in harsh environments.

4. What length of surplus fiber optic cable can this bracket hold?

Depending on the outer diameter of your ADSS or OPGW cable, the CW-CS bracket can securely coil and store between 30 to 50 meters of extra cable without exceeding the safe bending radius.

5. Does the bracket come pre-assembled or flat-packed?

We ship these brackets flat-packed in heavy-duty export cartons. This flat-pack design minimizes package volume, significantly lowering your ocean freight charges. Field crews can easily assemble the cross-bracket in minutes using standard bolts.

6. What is the Minimum Order Quantity (MOQ) and sample lead time?

We offer flexible MOQs tailored for regional distributors, contractors, and utility suppliers. In addition, we provide free product samples so you can test the mechanical fit, zinc coating quality, and pole compatibility before placing bulk orders.
