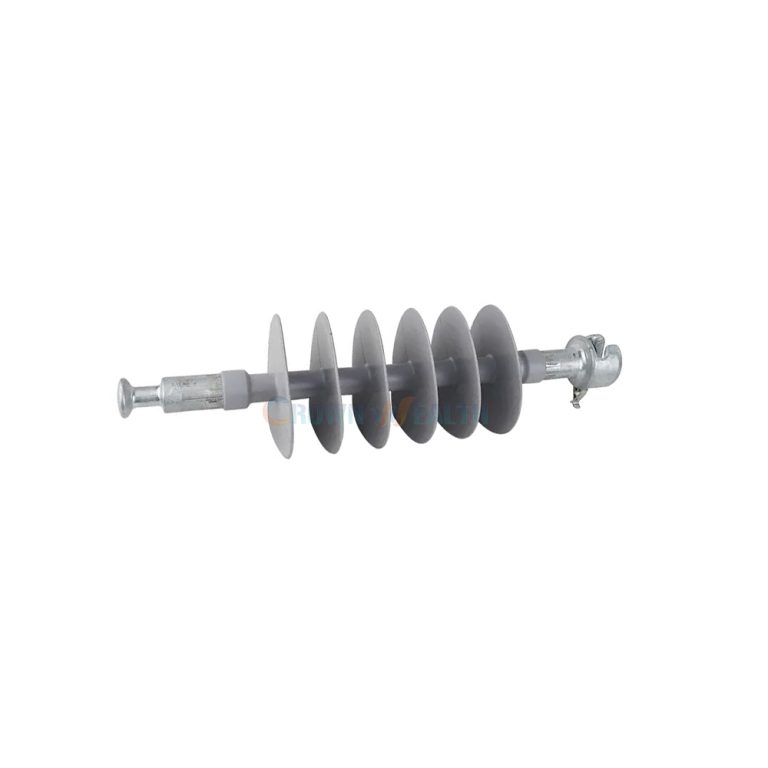

CW-CSI: Composite Tension Suspension Insulators

The composite tension suspension insulator specially suits for polluted area, where there has high mechanical load, large span and compact line, with advantages of light weight, small size, not easy broken. Our composite tension suspension insulator is in line with the stringent quality standards. The price is more favorable than other products in the industry and the cost performance is relatively high.

CW-CSI: Composite Tension Suspension Insulators

The composite tension suspension insulator specially suits for polluted area, where there has high mechanical load, large span and compact line, with advantages of light weight, small size, not easy broken. Our composite tension suspension insulator is in line with the stringent quality standards. The price is more favorable than other products in the industry and the cost performance is relatively high.

Description

Composite tension suspension insulators the silicon rubber rain shed, designed according to the aerodynamics principle, use the whole-moulding method, to make sure the validity of total creepage distance under every climate and nasty conditions, as well as improved the pollution discharge of the insulators. The fiber rod uses the glass-fiber reinforced epoxy resin high-temperature and acid-proof material. The end fitting connection adopts the galvanized steel cover protection, supersonic monitor and coaxial constant compression controlled by computer, finished with good appearance and high quality.

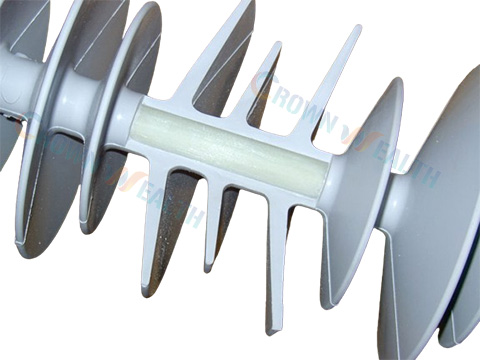

Composite tension suspension insulator mainly consists of a core rod (ECR type or FRP type), silicone rubber housing and metal end fittings. Corona ring made of high grade aluminum alloy, which is suitable for insulators voltage above 110 kV.

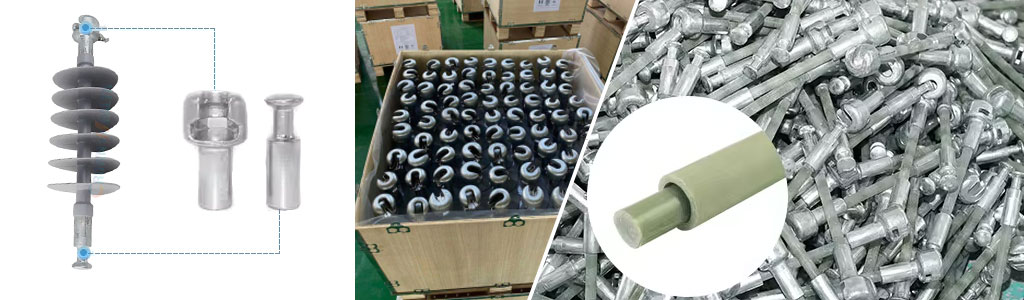

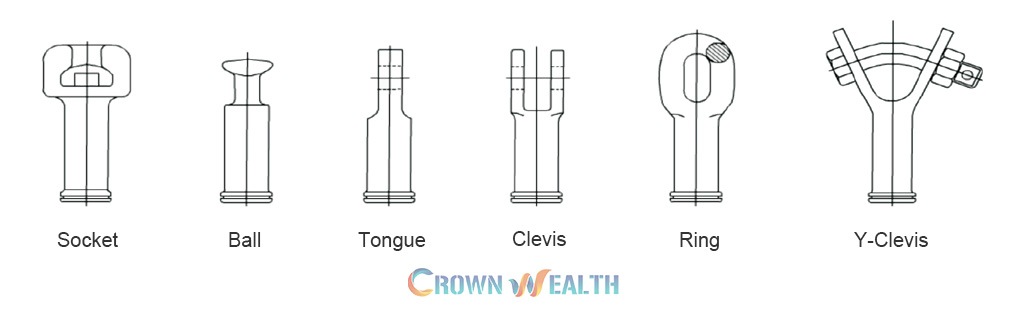

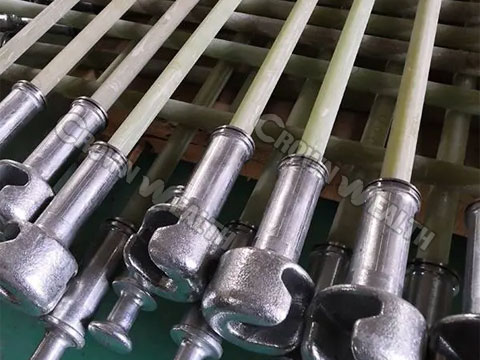

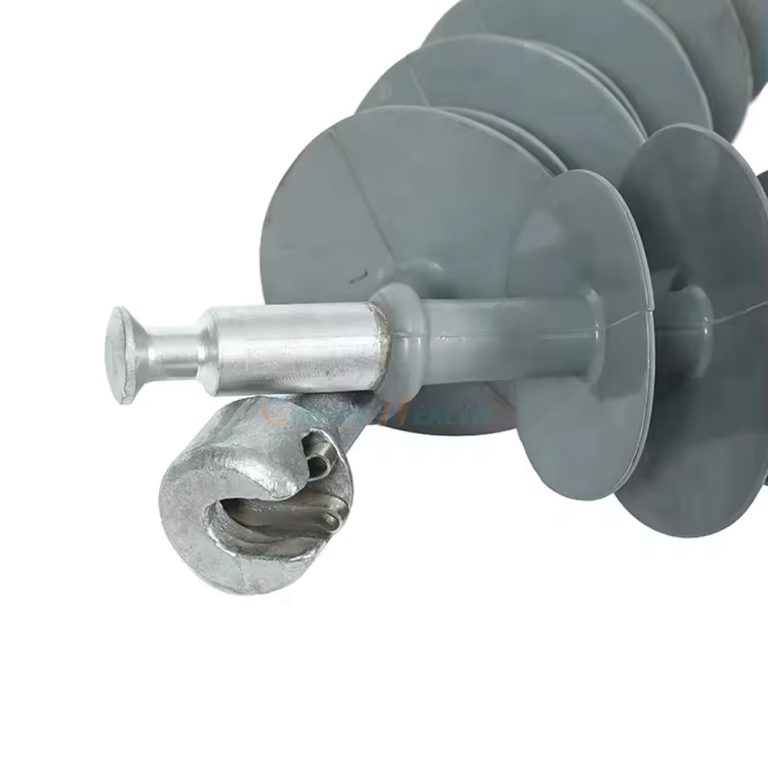

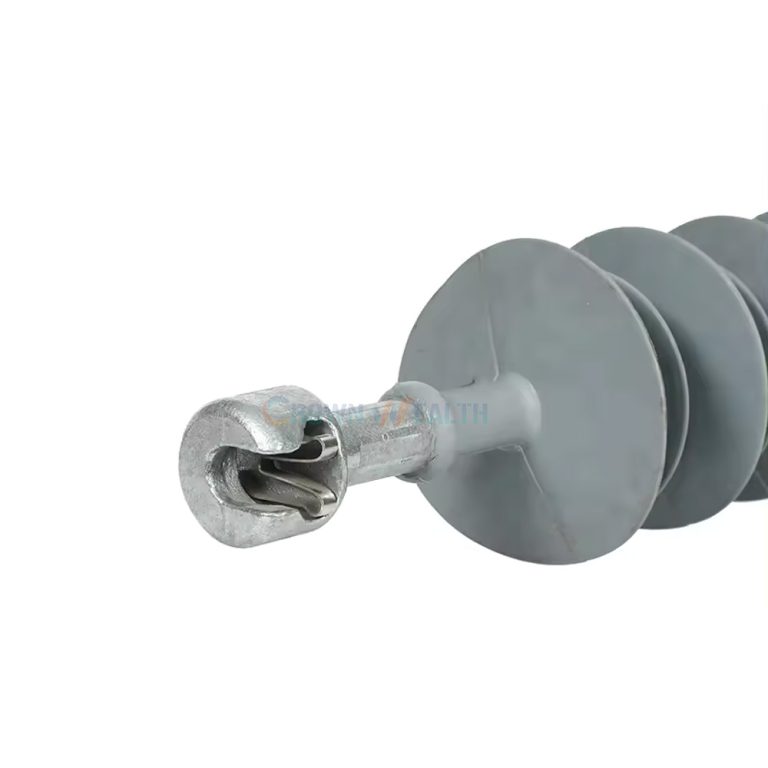

Different metal end fitting show, Suspension Insulator, Long Rod Insulator, Polymer Insulator, Cap and Pin Insulator, Isolator Insulators.

Composite Tension Suspension Insulators



Composite Tension Suspension Insulators

Feature

– Silicon Rubber for sheds/ housing

– Glass-fiber reinforced epoxy resin rod (ECR type) for core

– Hop dip galvanized steel for metal fittings

– Rated voltage:10KV~220KV

– 5000hours aging test.

– IEC Standard.



Parameters

Parts No. Rated Voltage (KV) Specifified Mechanical load (kN) Section Length (mm) Min Arc Distance (mm) Leakage Distance (mm) Lightning Impulse Withstand BIL(KV) Power Frequency Withstand (wet) (KV)
CW-CSI-01 24 70 450 277 625 190 110
CW-CSI-02 25 70 460 315 635 125 55
CW-CSI-03 27 70 455 255 825 180 85

* We can customize products according to the parameters and drawings required by customers.



Composite Tension Suspension Insulators

Conditions of Use

Ambient temperature: -40°C to +40°C

Altitude: no higher than 1500 meters

AC power frequency: no more than 100HZ

Maximum wind speed: no more than 35 m/s

Earthquake intensity: no more than eight levels



We have experienced engineers and professional QC to ensure your product better. Our company with strong strength, reasonable price, good service and a number of enterprises to establish a long-term partnership. Contact us and work together to create a brilliant future.

Composite Tension Suspension Insulators

Description

Composite tension suspension insulators the silicon rubber rain shed, designed according to the aerodynamics principle, use the whole-moulding method, to make sure the validity of total creepage distance under every climate and nasty conditions, as well as improved the pollution discharge of the insulators. The fiber rod uses the glass-fiber reinforced epoxy resin high-temperature and acid-proof material. The end fitting connection adopts the galvanized steel cover protection, supersonic monitor and coaxial constant compression controlled by computer, finished with good appearance and high quality.

Composite tension suspension insulator mainly consists of a core rod (ECR type or FRP type), silicone rubber housing and metal end fittings. Corona ring made of high grade aluminum alloy, which is suitable for insulators voltage above 110 kV.

Different metal end fitting show, Suspension Insulator, Long Rod Insulator, Polymer Insulator, Cap and Pin Insulator, Isolator Insulators.

Composite Tension Suspension Insulators



Composite Tension Suspension Insulators

Feature

– Silicon Rubber for sheds/ housing

– Glass-fiber reinforced epoxy resin rod (ECR type) for core

– Hop dip galvanized steel for metal fittings

– Rated voltage:10KV~220KV

– 5000hours aging test.

– IEC Standard.



Parameters

Parts No. Rated Voltage (KV) Specifified Mechanical load (kN) Section Length (mm) Min Arc Distance (mm) Leakage Distance (mm) Lightning Impulse Withstand BIL(KV) Power Frequency Withstand (wet) (KV)
CW-CSI-01 24 70 450 277 625 190 110
CW-CSI-02 25 70 460 315 635 125 55
CW-CSI-03 27 70 455 255 825 180 85

* We can customize products according to the parameters and drawings required by customers.



Composite Tension Suspension Insulators

Conditions of Use

Ambient temperature: -40°C to +40°C

Altitude: no higher than 1500 meters

AC power frequency: no more than 100HZ

Maximum wind speed: no more than 35 m/s

Earthquake intensity: no more than eight levels



We have experienced engineers and professional QC to ensure your product better. Our company with strong strength, reasonable price, good service and a number of enterprises to establish a long-term partnership. Contact us and work together to create a brilliant future.

Composite Tension Suspension Insulators
