CW-OPP: Fiber Optic Patch Panel

The Fiber Optic Patch Panel is a wiring device used to terminate, protect and organize the fiber optic, used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. Standard size, easy install, easy for management and operation.

100% ISO IEC Certificated Manufacturer, Help You Save Purchase Cost ! Click send inquiry to get best offer and free sample now !

CW-OPP: Fiber Optic Patch Panel

The Fiber Optic Patch Panel is a wiring device used to terminate, protect and organize the fiber optic, used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. Standard size, easy install, easy for management and operation.

100% ISO IEC Certificated Manufacturer, Help You Save Purchase Cost ! Click send inquiry to get best offer and free sample now !

Description

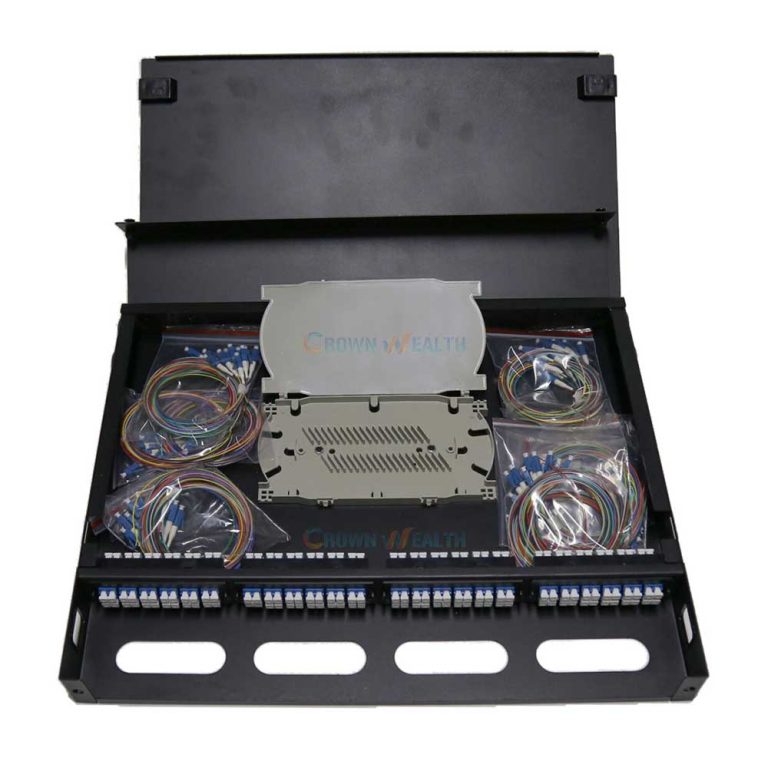

Fiber Optic Patch Panel is usually a metal enclosure that houses adapter panels, fiber splicing trays and space for excess fiber storage. Its basic construction consists of an array of ports where each port interfaces with another patch cable which is connected with optical equipment located elsewhere in the building. The adaptor panel provides an interface for both outside and inside ports to the enclosure. The inside ports are fixed as the cables are not meant to be disconnected at any point, whereas the outside ports are for fiber patching cables that can be plugged and unplugged for connections as required.

The splicing trays are neatly embedded in the enclosure to provide fusion with fiber optics pigtails which in turn plug into the fixed inside adapter ports of the adapter panel.

* We can also supply you with other combinations on request.



Parameters

Part No. Material Type Fibre Capacity
CW-OPP Coated Galvanized Steel Type A 12, 24, 48, 72, 96, 144 (Cores)
Type B 12, 24, 48, 72, 96, 144 (Cores)
Type C 12, 24, 48, 72 (Cores)

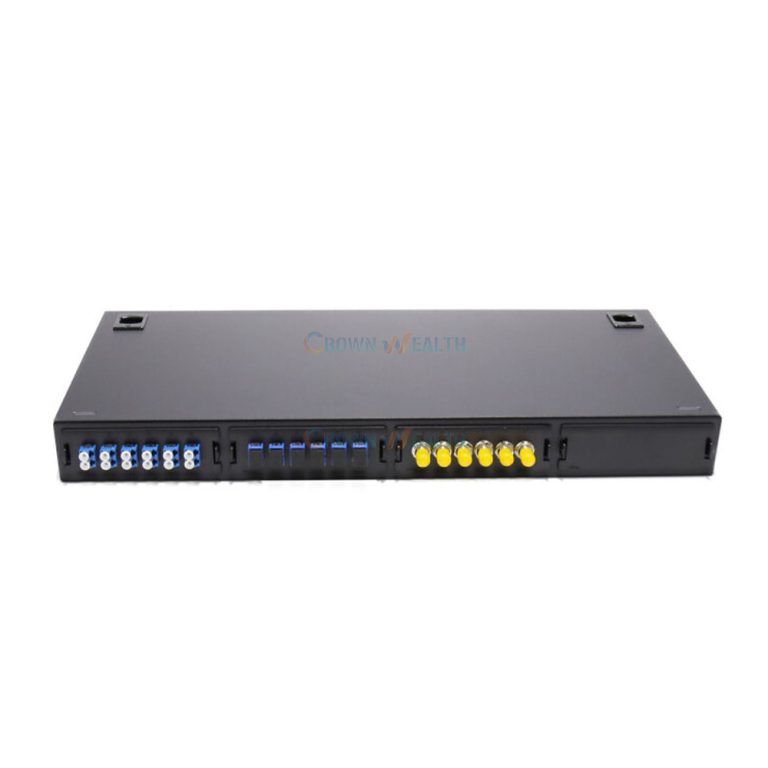

Fiber Optic Patc Panel

Features

– Standard size, easy install, Easy for management and operation

– Light weight, strong strength, good anti-shocking and dustproof

– Well cable management, cable can be distinguished easily

– Roomy space ensure fiber bent ratio

– Adapter fence can be installed or uninstalled

– Drawer with guild rail

– Splice tray inside changeable

– Suitable for ribbon and single fiber

– Simplex and duplex FC, LC, SC, ST adapters optional

– 12, 24, 48, 72 cores available

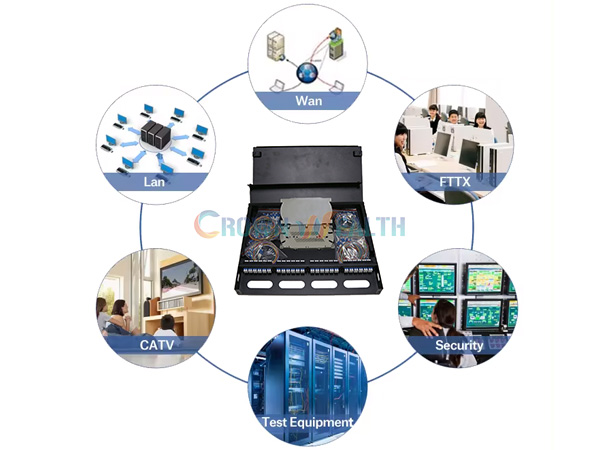

Application

1. Telecommunications Subscriber Loop

2. Fiber to The Home (FTTH)

3. LAN/WAN applications

4. CATV – Cable television

6. FTTH, FTTB, FTTP, FTTX



Fiber Optic Patch Panel Manufacturer in China

Hebei Crown Wealth Metal Products CO., LTD. is a high-tech enterprise integrating R&D, production, sales and service. Specializing in the manufacturing and sales services of products in the field of optical fiber communications. The company has successively passed the ISO9001 quality management system, ISO14001 environmental management system and occupational health and safety management system OHSAS18001 certification. And it has passed the strict testing of the Communication Product Protection Performance Supervision and Testing Center of the Ministry of Information Industry. We focus on providing innovative connection solutions, site solutions, and data center solutions to domestic and foreign operators, ICT equipment vendors, and network integrators and professional services.

Our company has strong technical force and advanced production equipment, mainly producing Fiber Optical Splice Closures, Fiber Optical junction boxes, Fiber Optical terminal boxes, Fiber Optical fiber optical splitting boxes, optical splitter fiber splitting, fiber optical distribution unit box, integrated distribution box, communication outdoor cabinet, integrated container rack, ODF distribution box, cable transfer box, network cabinet, fiber distribution , multimedia information boxes, electronic chassis cabinets, optical communication supporting products.

Optical Fiber Distribution Frames Factory
