6 Pair Drop Wire Clamp for Aerial Telecom Installations

Choose the Correct 6 Pair Drop Wire Clamp

Selecting a clamp involves more than matching a product name. You need to check how the cable fits, how the shim interacts with its outer surface, and whether the complete assembly meets your project’s mechanical requirements.

Before ordering, provide:

• Cable width and thickness, or outside diameter where applicable.
• Cable cross-section and outer sheath material.
• Required holding performance and acceptance criteria.
• Installation location and supporting hardware.
• Required material grades and environmental conditions.

Do not use the “6 pair” designation alone to determine cable compatibility or the number of separate cables an assembly can hold. Confirm the intended cable arrangement against the approved drawing.

For other cable constructions, explore our drop wire clamp range to compare alternatives.

How Does a Drop Wire Clamp Work?

A drop wire clamp provides a mechanical attachment between a compatible telecom drop cable and its supporting hardware. The gripping surfaces retain the cable and transfer the applicable tension to the attachment point.

The shim forms part of the cable-contact arrangement. Its design therefore matters when you assess cable retention and the condition of the cable after loading.

For your project, assess the clamp and cable together. A clamp that fits physically still needs to satisfy the specified retention and cable-integrity requirements.

Penetrating vs. Non-Penetrating Shim: Which Should You Choose?

You can identify the two versions by their model numbers:

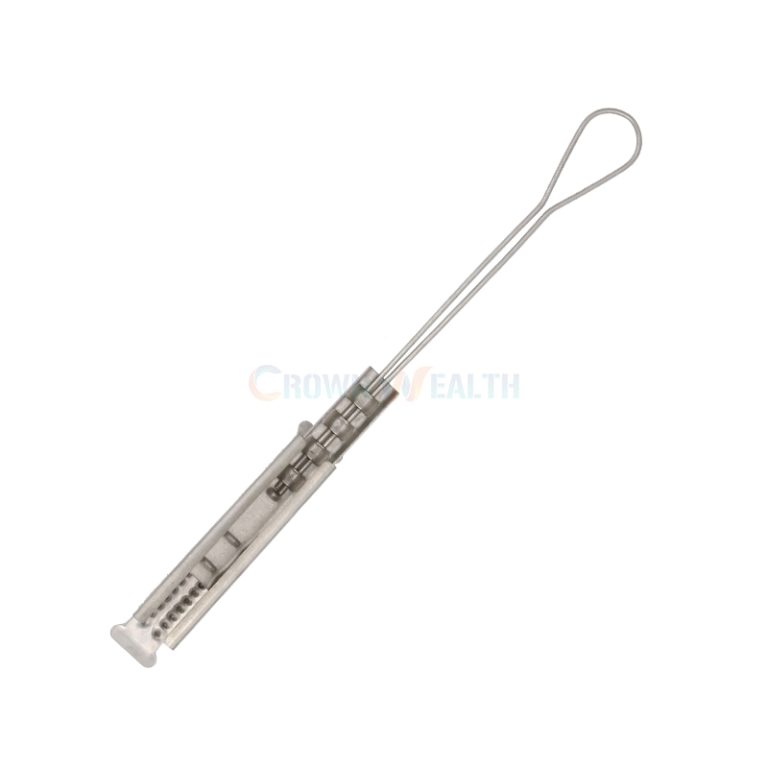

• CWC-6PRXP: Penetrating shim.
• CWC-6PRXN: Non-penetrating shim.

Choose the shim specified or approved for your cable construction. Do not assume that one version is suitable for every cable, or that the two versions are interchangeable.

When comparing samples, check whether the selected assembly holds the cable as required and leaves it in an acceptable condition after testing. If your specification limits sheath penetration or surface marking, include that requirement in your inquiry.

Sending a cable sample or cross-section drawing helps you resolve these questions before placing a bulk order.

Applications and Compatibility

Consider this product when sourcing hardware for compatible aerial telephone and telecom drop installations, replacement work, or distributor inventory.

For a replacement order, compare the existing part number, cable-contact arrangement, attachment dimensions, and material specification. A similar appearance does not establish equivalent performance.

If your project uses optical fiber cable, request a separate compatibility review. Fiber cable construction and allowable loading must be considered before selecting this clamp for an FTTH installation.

Installation Planning and Inspection

Use the installation instructions approved for the exact clamp and cable combination. The following checks help you prepare the work and inspect the finished installation.

1. Check the supplied model. Confirm the part number, shim type, and material configuration against your order.
2. Inspect the components. Look for missing parts, deformation, damaged contact surfaces, or other defects.
3. Verify the attachment point. Check that the supporting hardware matches the assembly and project requirements.
4. Install to the approved instructions. Follow the specified component orientation, cable placement, and loading procedure.
5. Inspect the completed assembly. Confirm correct seating, secure attachment, and acceptable cable condition.

Do not substitute components between versions unless the resulting assembly has been approved.

Maintenance for Outdoor Installations

Include the clamp and attachment point in your network inspection schedule. Check for cable movement, loose or displaced components, deformation, corrosion, and changes in the cable sheath near the gripping area.

Inspect affected installations after severe weather or abnormal loading, in accordance with your maintenance procedures.

If you find slippage or damage, investigate the cable fit, installation method, and loading conditions before replacing the assembly. This helps you address the cause and reduce repeat failures.

Wholesale Supply and OEM / ODM Support

Hbcrownwealth works with overseas importers, distributors, and contractors sourcing aerial telecom and pole line hardware.

For a repeat purchasing program, define the approved model, materials, inspection criteria, and packaging requirements at the start. A clear specification helps your purchasing team, warehouse, and installation crews identify the correct product.

You can discuss OEM / ODM requirements such as:

• Dimensions based on your drawing.
• Specified component materials.
• Product identification and private labeling.
• Packaging quantities and carton markings.
• Related hardware for the same procurement package.

Customization is subject to technical review and agreement on the final specification.

Quality Requirements for Your Order

Make acceptance criteria part of your inquiry so that quality requirements are clear before you compare quotations.

Depending on your project, request confirmation of:

• Dimensions and tolerances against the approved drawing.
• Component material identification.
• Assembly condition and workmanship.
• Cable retention testing with the specified cable.
• Cable condition after testing.
• Packaging, labeling, and quantity checks.

If your customer requires a particular standard or test report, send the document name, test method, and acceptance limits. Ask us to confirm the available documentation and any additional testing needed for your selected configuration.

Frequently Asked Questions

1. Can I order a sample before purchasing in bulk?

Contact us with the required model and cable details to discuss sample availability. Use the sample to assess fit, installation, and performance against your acceptance criteria before approving the bulk specification.

2. Can you quote both shim versions?

Yes. Specify CWC-6PRXP and CWC-6PRXN in your inquiry and provide the quantity required for each. Keep the material, packaging, and testing requirements consistent if you want a direct price comparison.

3. What determines the minimum order quantity and lead time?

The selected configuration, order quantity, material requirements, and customization scope affect the quotation and production schedule. Send your required delivery date so these details can be confirmed together.

4. Can you match a clamp from another supplier?

Send the original drawing, specification, or a sample for comparison. Include the required cable compatibility and performance criteria; a photograph alone may not show the differences that matter.

5. Can the cartons carry my item codes and branding?

You can discuss private labeling and carton identification as part of your OEM / ODM requirements. Provide your artwork, item codes, packing quantities, and labeling instructions when requesting a quotation.

6. What should I include in an RFQ?

Include the model number, quantity, cable dimensions, preferred materials, required testing, packaging instructions, and destination. If you are unsure which version to select, attach your cable drawing and describe the installation.

Request Your 6 Pair Drop Wire Clamp Quotation

Send Hbcrownwealth your cable specification and purchasing requirements to discuss model selection, material configuration, sample requirements, and wholesale pricing.

Contact our team to request a quotation for your next telecom hardware order.

6 Pair Drop Wire Clamp Specifications

The listed material grades for this product range include aluminum 5052 and stainless steel SS201/SS304. Ask us to identify the material of each component in your quotation and approved drawing, so you can compare offers on the same basis.

Cable dimensions, holding performance, and material configuration should be agreed before production.
