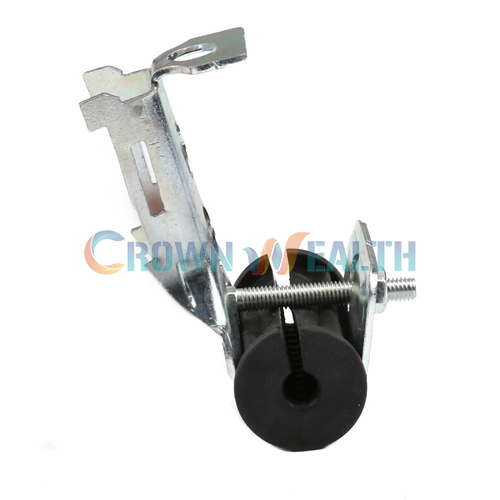

- CW-SCT: ADSS J Hook Suspension Clamp for FTTX
This J hook suspension clamps are widely application in ADSS cable connecting fittings, to support wire, conductor, cable in utility pole span transmission line. The J hook body can be used as support when deploying the overhead line. Compact and versatile design, it can be fitted a electrical cross arm or on pole by steel banding strap or bolt.
This J hook suspension clamps are widely application in ADSS cable connecting fittings, to support wire, conductor, cable in utility pole span transmission line. The J hook body can be used as support when deploying the overhead line. Compact and versatile design, it can be fitted a electrical cross arm or on pole by steel banding strap or bolt.
Description
We this ADSS suspension clamps is compose of neoprene inserts and stainless steel J hook shell.The special wire clamping method of soft glue makes the cable stable and safe.
The resistance archived by wide product range, we can provide you with different sizes of neoprene inserts.The J-shape metal hook of suspension clamp allows installation on the pole by using stainless steel banding strap and pigtail hook or pole brackets.The hook of suspension clamp our can be produced form stainless steel or galvanized steel materials according to you request.
The ADSS suspension clamp is used for the direct suspension of fiber optic ADSS round cables with 3 to 20 mm on short spans (max 150m) at intermediate ulitity poles on straight routes. You can choose the type according to the diameter of ADSS cable.
Our this ADSS suspension clamps passed the tensile tests, operation experience, temperature cycling test,aging test , Corrosin resistant test with temperatures ranging form -40℃ up to 60℃.
J Hook Suspension Clamp Features
◇ High tensile strength and stability
◇ Effective cable clamping due to special fixing method of soft rubber (TPR)
◇ Strong corrosion resistance, acid resistance and alkalinity in the area scenarios
◇ Suitable for a full range of round cable diameters from 3-20mm
◇ Small diameter optical cable can clamp N roots
◇ Wide grip and mechanical resistance
◇ Easy to install, as long as only stainless steel J hook or pigtail hooks or brackets can be installed to the rod or wall
◇ High quality with Competitive price
J Hook Suspension Clamp Parameters
Parts No. | Description | Material | ADSS Cable Diameter |
CW-SCT | ADSS Cable J Hook Suspension Clamp for FTTX | Stainless Steel + Rubber Insert | 3-20 mm |
Description
We this ADSS suspension clamps is compose of neoprene inserts and stainless steel J hook shell.The special wire clamping method of soft glue makes the cable stable and safe.
The resistance archived by wide product range, we can provide you with different sizes of neoprene inserts.The J-shape metal hook of suspension clamp allows installation on the pole by using stainless steel banding strap and pigtail hook or pole brackets.The hook of suspension clamp our can be produced form stainless steel or galvanized steel materials according to you request.
The ADSS suspension clamp is used for the direct suspension of fiber optic ADSS round cables with 3 to 20 mm on short spans (max 150m) at intermediate ulitity poles on straight routes. You can choose the type according to the diameter of ADSS cable.
Our this ADSS suspension clamps passed the tensile tests, operation experience, temperature cycling test,aging test , Corrosin resistant test with temperatures ranging form -40℃ up to 60℃.
J Hook Suspension Clamp Features
◇ High tensile strength and stability
◇ Effective cable clamping due to special fixing method of soft rubber (TPR)
◇ Strong corrosion resistance, acid resistance and alkalinity in the area scenarios
◇ Suitable for a full range of round cable diameters from 3-20mm
◇ Small diameter optical cable can clamp N roots
◇ Wide grip and mechanical resistance
◇ Easy to install, as long as only stainless steel J hook or pigtail hooks or brackets can be installed to the rod or wall
◇ High quality with Competitive price
J Hook Suspension Clamp Parameters
Parts No. | Description | Material | ADSS Cable Diameter |
CW-SCT | ADSS Cable J Hook Suspension Clamp for FTTX | Stainless Steel + Rubber Insert | 3-20 mm |
