- PA16-95W Plastic Anchor Tension Clamp

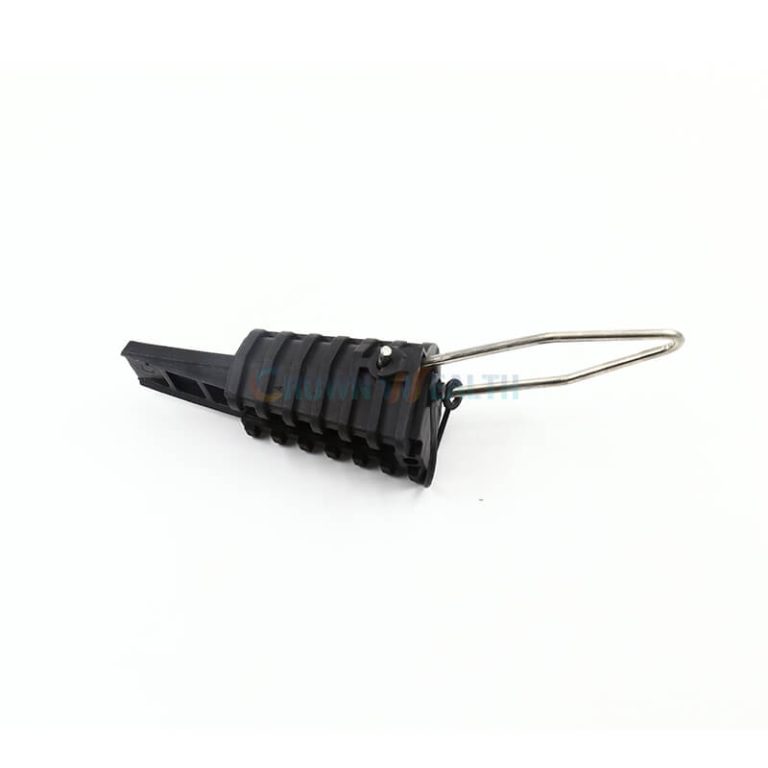

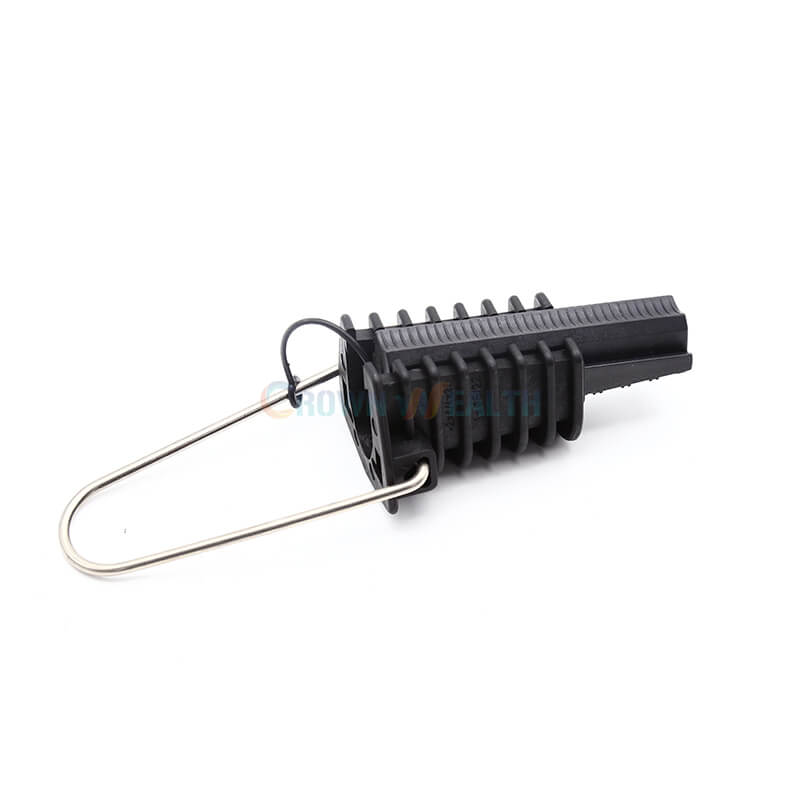

The PA16-95W Plastic Anchor Tension Clamp anchors compatible insulated overhead cables in low-voltage and ABC distribution systems. Model CW-PA16-95W has a listed cross-section range of 4–120 mm², messenger diameter range of 4–16 mm and breaking load of 2.5 kN.
Its UV-stabilized thermoplastic body and internal gripping system are designed for outdoor cable anchoring. Send Hbcrownwealth your cable drawing and load requirements to confirm fit, hardware configuration and bulk-order options.
The PA16-95W Plastic Anchor Tension Clamp anchors compatible insulated overhead cables in low-voltage and ABC distribution systems. Model CW-PA16-95W has a listed cross-section range of 4–120 mm², messenger diameter range of 4–16 mm and breaking load of 2.5 kN.
Its UV-stabilized thermoplastic body and internal gripping system are designed for outdoor cable anchoring. Send Hbcrownwealth your cable drawing and load requirements to confirm fit, hardware configuration and bulk-order options.
The PA16-95W plastic anchor tension clamp anchors compatible insulated overhead cables in low-voltage and aerial bundled cable (ABC) distribution systems. Check the following parameters against your cable drawing before selection.
| Specification | CW-PA16-95W |
|---|---|
| Cross-section range | 4–120 mm² |
| Messenger diameter | 4–16 mm |
| Breaking load | 2.5 kN |
| Body material | UV-stabilized engineering thermoplastic |
Selection note: Cross-section and diameter describe different cable characteristics. Confirm both, together with the member being gripped. The 2.5 kN breaking load is not an allowable working load or installation tension.
The UV-stabilized engineering plastic body is designed for outdoor cable anchoring. Tell us your installation environment and any required weathering test criteria so you can confirm suitability for your project.
The internal gripping system is designed to hold compatible insulated cables while limiting insulation damage. Correct fit remains essential: check the insulation construction, outside diameter and load-bearing member together.
The listed cross-section, messenger diameter and breaking load help you compare this model with your project requirements. Use the complete part number CW-PA16-95W on your purchase inquiry to avoid confusion with similarly named clamps.
The existing product specification describes hot-dip galvanized steel or stainless steel hardware. Confirm the supplied configuration, grade and finish in your quotation, especially for coastal, humid or corrosive locations.
For telecom or fiber-related installations, send your cable construction and load-bearing member details for review. A dimensional match alone does not establish suitability for optical cable. Do not select this clamp as a universal FTTH or ADSS fitting.
To check fit, provide the conductor cross-section, messenger outside diameter, insulation details and required mechanical performance. Also identify your pole or wall attachment arrangement.
Obtain the installation instructions for your exact clamp and cable combination before site work. Use this checklist to prepare your installation:
This checklist does not replace the approved installation procedure. Confirm allowable loads and the applicable design margin with your project engineer. No universal torque, span length or tool-free installation procedure is specified here.
Hbcrownwealth supplies this clamp with quality control and offers OEM/ODM support. Specify your required dimensions, hardware material, inspection criteria and documentation when requesting a quotation.
Share your drawings or customization brief for feasibility review. Available changes, samples, test documentation, minimum order quantity and lead time must be confirmed for your order. Include a particular certification or test report in your approval package only after its availability and scope have been verified.
Hbcrownwealth is a manufacturer, supplier and wholesaler of overhead cable hardware for power and telecommunications systems. You can source the PA16-95W clamp for project or wholesale requirements and discuss OEM/ODM needs against your specification.
For an effective comparison between offers, ask us to identify the part number, cable compatibility, metal hardware configuration and required documentation in your quotation. This helps you assess the proposed supply against your drawings and purchasing requirements.
The published ranges are 4–120 mm² cross-section and 4–16 mm messenger diameter. Confirm both against your cable construction and the member being gripped. Do not infer the range from the model name alone.
No. The specified 2.5 kN is the breaking load. Allowable working load and installation tension must be established separately for the complete cable and anchorage arrangement under your project requirements.
No. Compatibility depends on cable construction, grip diameter, insulation and mechanical requirements. Send your cable datasheet or drawing for review; a matching nominal cross-section alone does not confirm suitability.
The product information lists hot-dip galvanized steel or stainless steel hardware. Confirm the actual material, grade and finish for your order before purchasing, particularly if your project has specific corrosion-resistance requirements.
Confirm the tools required for your exact assembly. Even where clamp engagement is simple, fitting the support hardware and tensioning the cable may require separate equipment and an approved procedure.
Yes, Hbcrownwealth offers OEM/ODM support and wholesale supply. Send your drawings, quantity and acceptance requirements so available customization, MOQ, sample arrangements and delivery schedule can be confirmed.
Send CW-PA16-95W, your cable datasheet, conductor cross-section, messenger diameter, quantity and installation environment. Include your attachment drawing, hardware material preference and any required tests or documents. Use the inquiry form below to discuss your requirements with Hbcrownwealth.
| Part number | Cross-section (mm²) | Messenger diameter (mm) | Breaking load (kN) |
|---|---|---|---|
| CW-PA16-95W | 4–120 | 4–16 | 2.5 |
Confirm compatibility against your cable drawing and the member being gripped. Breaking load is not the allowable working load or installation tension.
