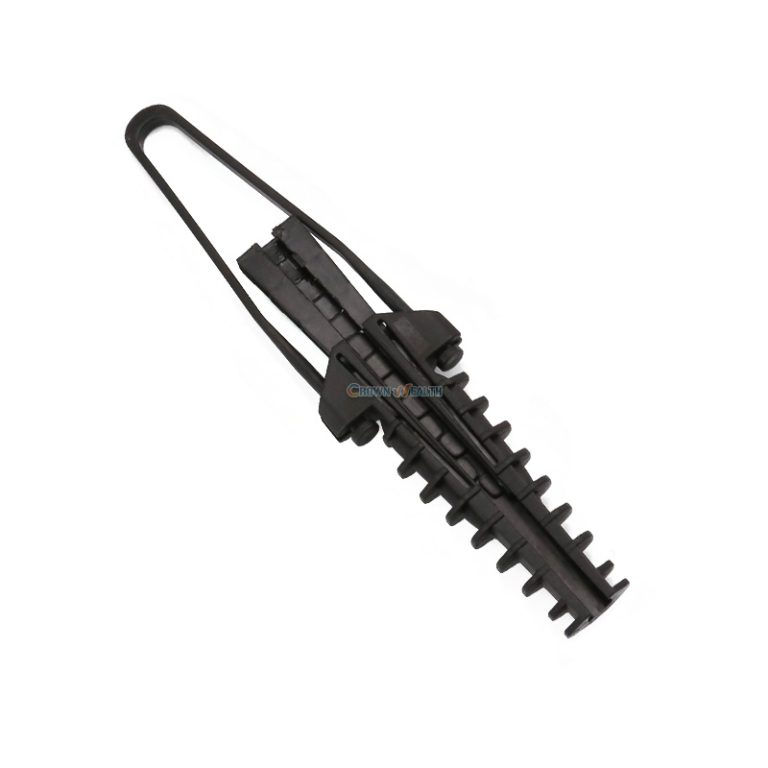

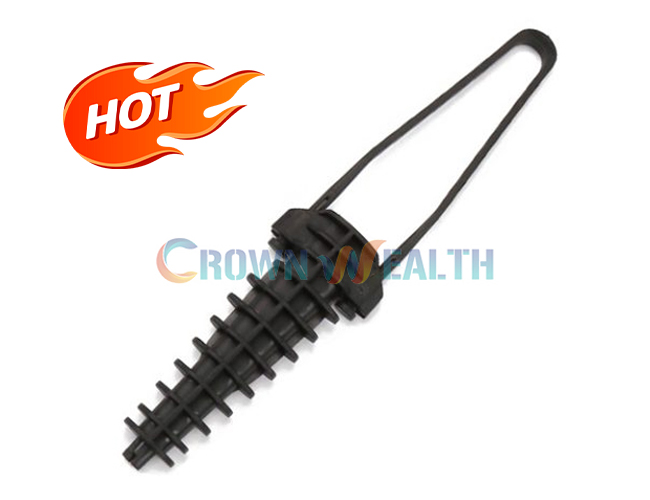

PA560 Plastic Anchor Clamp for 5–6 mm FTTH Drop Cable

PA560 Plastic Anchor Clamp for Round FTTH Drop Cable

When you source anchoring hardware for a fiber access network, cable fit and consistent assembly quality matter as much as unit price. The CW-PA560 is designed for short-span aerial drop installations using round cables within its specified diameter range.

Its compact body helps you plan installations where several customer drops share limited mounting space. Before selecting the clamp, check your cable construction, bracket arrangement, and required mechanical performance.

How the Enveloping Wedge Design Works

The paired wedges surround the compatible cable and retain it within the clamp body. The body and bail then transfer the applicable cable tension to the supporting attachment.

This enveloping arrangement is designed to grip a round cable. However, a secure mechanical fit must also preserve the cable’s required optical performance. Assess the clamp with your actual cable rather than relying on outside diameter alone.

Use the assembly within the limits approved for your project. The published breaking load is a test-related strength value, not permission to overload the clamp or cable.

Product Features That Matter in Your Installation

Compact Body for Limited Mounting Space

The product description lists a body width of 53 mm and thickness of 23 mm. Use the dimension drawing to check clearances around adjacent clamps and attachment hardware. The number of clamps you can install on one bracket depends on its layout and load capacity.

Plastic Bail and UV-Resistant Construction

The PA560 uses a plastic bail, alongside its plastic body and wedges. Its UV-resistant thermoplastic construction is intended for outdoor use. If your specification requires a defined temperature range or weathering test, include those requirements when requesting technical documentation.

Defined Cable Range for Easier Purchasing

The 5–6 mm range helps your purchasing team identify a candidate for round FTTH drop cable. Confirm sheath material, dimensional tolerances, and cable strength-member construction before approving a sample for repeated orders.

Where Can You Use the PA560 Anchor Clamp?

• Short-span aerial FTTH customer drop installations with compatible round cable.
• Subscriber connections using approved pole or building attachment hardware.
• Replacement work where the existing cable and mounting arrangement match the approved specification.
• Distributor stock for defined round-drop cable installation programs.

This model is specified here for FTTH round drop cable. For electrical distribution conductors, flat drop cable, or other cable constructions, select hardware specifically approved for that application.

Browse our anchoring clamp range or drop wire clamps to discuss alternatives.

How to Select the Correct FTTH Anchor Clamp

1. Check the cable profile. Confirm that you are using round drop cable and provide its cross-section drawing.
2. Measure the outside diameter. Include the minimum and maximum production tolerances, not just the nominal size.
3. Review mechanical requirements. Provide the design tension, installation conditions, and acceptance criteria.
4. Check the attachment. Compare bail clearance, bracket geometry, and load direction with the approved installation drawing.
5. Evaluate a sample. Check cable retention, sheath condition, and optical performance under the agreed test conditions.

For repeat orders, retain the approved drawing and sample reference in your purchasing specification. This helps keep deliveries consistent across projects.

Installation Preparation and Final Checks

Follow the installation instructions approved for the CW-PA560 and your cable. The following checklist supports preparation and inspection; the approved instructions determine the exact assembly sequence.

1. Inspect the clamp. Check that the body, both wedges, and plastic bail are complete and free from visible cracks or deformation.
2. Check the cable. Confirm the cable type and diameter, and inspect the intended gripping area for damage.
3. Verify the support. Confirm that the bracket or hook fits the bail and is suitable for the planned loading.
4. Assemble as instructed. Follow the approved cable position, wedge orientation, and attachment procedure.
5. Control the tension. Respect the cable manufacturer’s limits and the project installation specification.
6. Inspect and test. Check seating, cable movement, sheath condition, and the optical checks required by your network acceptance procedure.

Do not substitute wedges or force an incompatible cable into the clamp. If fit is uncertain, resolve the cable and hardware specification before installation.

Maintenance and Replacement

During routine network inspections, look for cable slippage, damaged plastic components, displaced wedges, and wear at the bail or attachment point. Also check the cable sheath near the gripping area.

After severe weather or abnormal loading, inspect affected assemblies according to your maintenance plan. If you find cracking, deformation, or unexplained cable movement, have the installation assessed before continued service.

When replacing a clamp, check the supporting hardware and cable as well. Replacing the clamp alone may leave the original cause of damage unresolved.

Wholesale Purchasing, Quality Review, and OEM / ODM

You can discuss bulk supply, private labeling, packaging, and technical customization with Hbcrownwealth. For importers and distributors, agree on product identification and carton quantities so your warehouse can distinguish models clearly.

Before placing an order, specify the checks your customer requires:

• Dimensions and assembly condition against the approved drawing.
• Material specification and relevant supporting documentation.
• Mechanical test method, cable sample, and acceptance limits.
• Cable sheath condition and optical performance after testing.
• Required weathering tests, labeling, and export packaging.

Request confirmation of the available product test reports and any additional testing needed for your market. Test coverage, sampling, and documentation should match the agreed configuration. Custom design changes require technical review before production.

Frequently Asked Questions

1. Can I request samples before a bulk order?

Yes, contact us to discuss sample availability for CW-PA560. Send your cable drawing or sample details so you can evaluate the intended cable-and-clamp combination before approving production.

2. Can I choose PA560 from a photograph alone?

A photograph can help identify the model, but it cannot confirm cable fit or load performance. Include the cable dimensions, mounting requirements, and any existing part specification in your inquiry.

3. What is the maximum span length?

A universal span length is not specified here. Your cable construction, sag, loading conditions, supporting hardware, and design limits determine whether a proposed span is suitable. Send the project details for review.

4. Can you supply custom packaging and labels?

You can discuss carton markings, item codes, private labeling, and packing quantities. Include your artwork and packaging requirements with the quotation request so they can be reviewed together.

5. What determines the MOQ and delivery time?

Order quantity, stock availability, customization, and testing requirements affect the minimum order and schedule. Tell us your destination and required delivery date when requesting a quotation.

6. What information helps you prepare an accurate quotation?

Provide CW-PA560, the order quantity, cable cross-section, outside diameter, required tests, packaging instructions, and delivery destination. For a repeat order, include the approved drawing or sample reference.

Request a PA560 Plastic Anchor Clamp Quotation

Hbcrownwealth is a professional manufacturer and wholesale supplier of power and telecommunications overhead line hardware in China. We support distributors, importers, and contractors with product selection, OEM / ODM customization, and bulk supply. Contact us with your PA560 cable specifications and order quantity to request a quotation.

CW-PA560 Technical Specifications

Selection note: Breaking load is not the allowable working load. Confirm the test conditions, project design limits, cable compatibility, and dimensions against the approved drawing before ordering.
