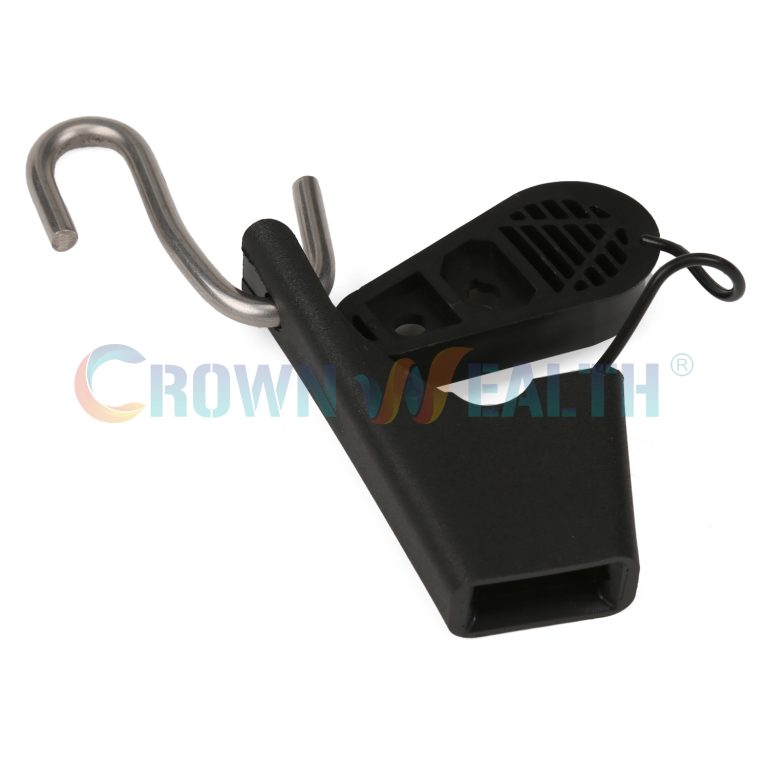

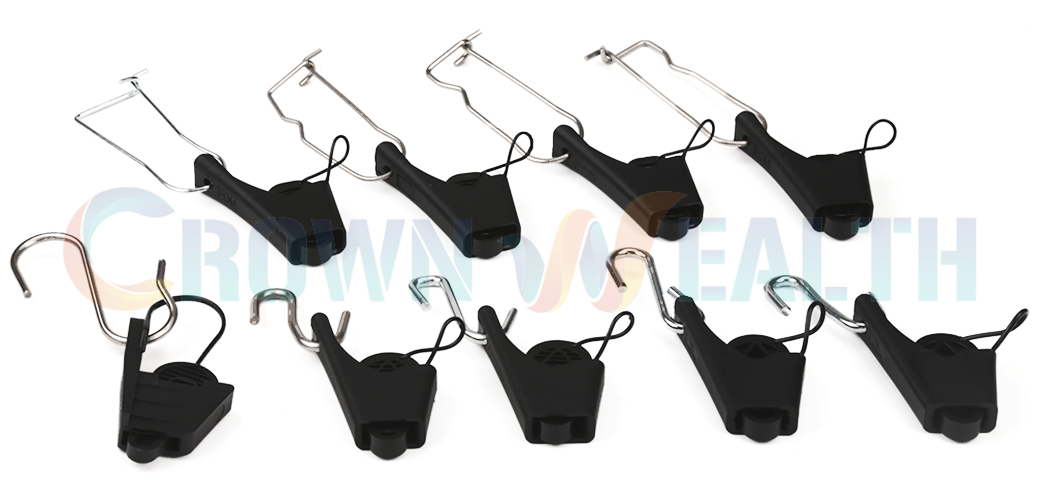

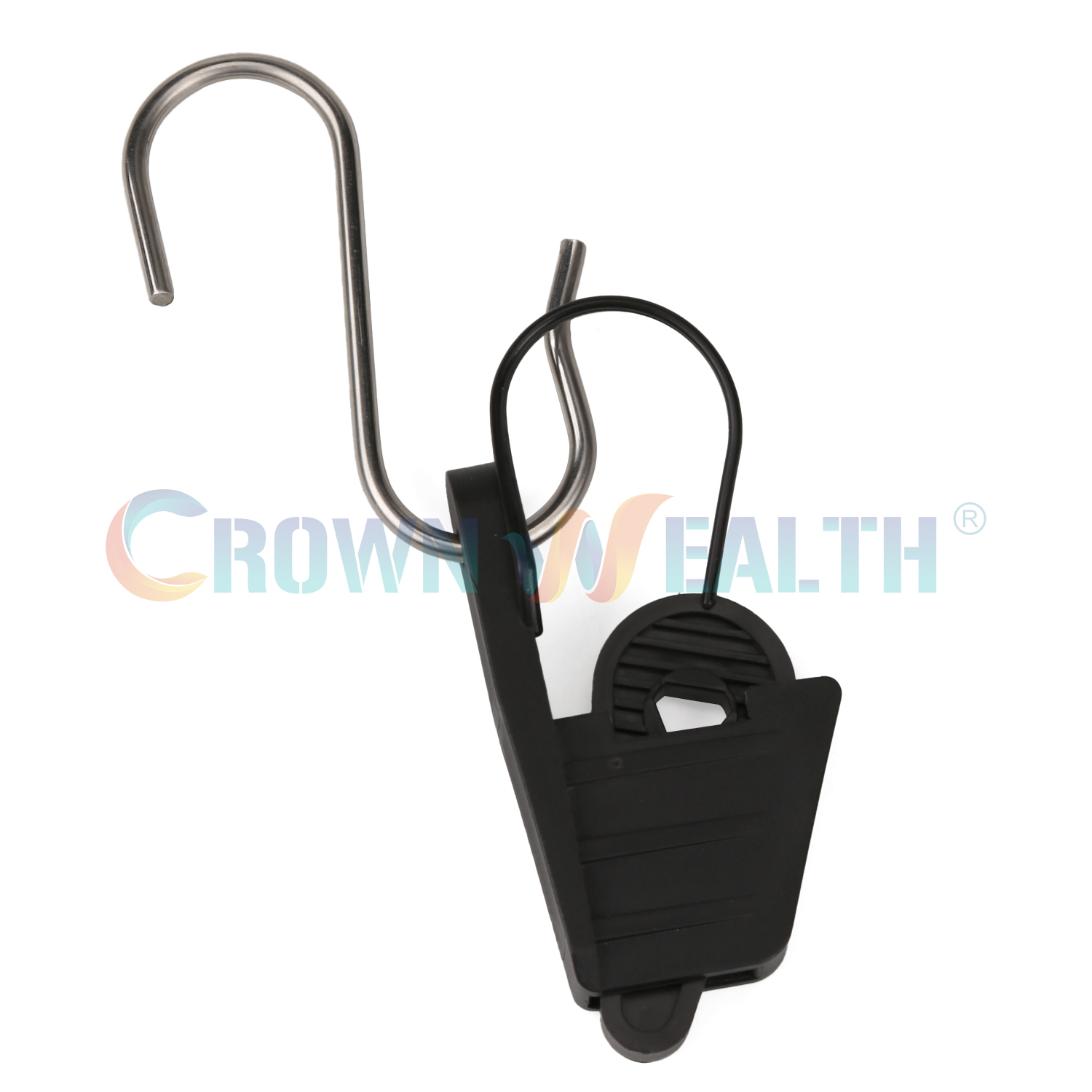

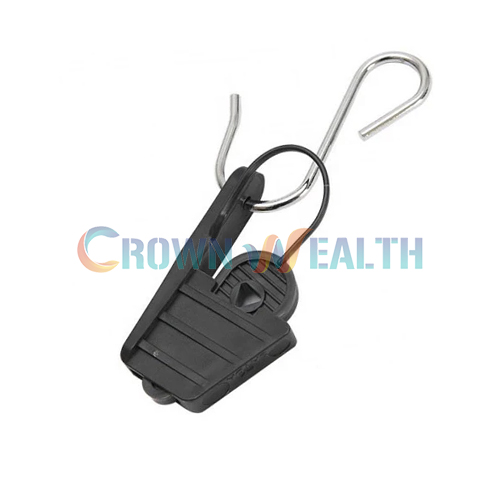

Plastic Drop Wire Clamp with S-Hook | S-Hook Tension Clamp for Drop Fiber Cable

S-hook FTTH cable tension clamps are used for fiber optic cable in FTTX and for telephone drop wire cable, both for round type and flat type. The variety of hook combinations makes the clamp more widely applicable to various installation occasions.

Characteristics:

  • The combination with special hook ensures installation stability.
  • Material with excellent UV resistance.
  • Applied for flat cable 5×2 mm and round cable diameter 2.5-5 mm.
  • Used with telephone drop wire cable.
  • Used with fiber optic cable in FTTH, FTTX, FTTB solutions.
  • No need additional tools, simple installation.
  • Provide excellent adherence with cable, making sure reliable fixation.
  • Max breaking load from 800N to 2000N.

Plastic Drop Wire Clamp with S-Hook | S-Hook Tension Clamp for Drop Fiber Cable

S-hook FTTH cable tension clamps are used for fiber optic cable in FTTX and for telephone drop wire cable, both for round type and flat type. The variety of hook combinations makes the clamp more widely applicable to various installation occasions.

Characteristics:

  • The combination with special hook ensures installation stability.
  • Material with excellent UV resistance.
  • Applied for flat cable 5×2 mm and round cable diameter 2.5-5 mm.
  • Used with telephone drop wire cable.
  • Used with fiber optic cable in FTTH, FTTX, FTTB solutions.
  • No need additional tools, simple installation.
  • Provide excellent adherence with cable, making sure reliable fixation.
  • Max breaking load from 800N to 2000N.

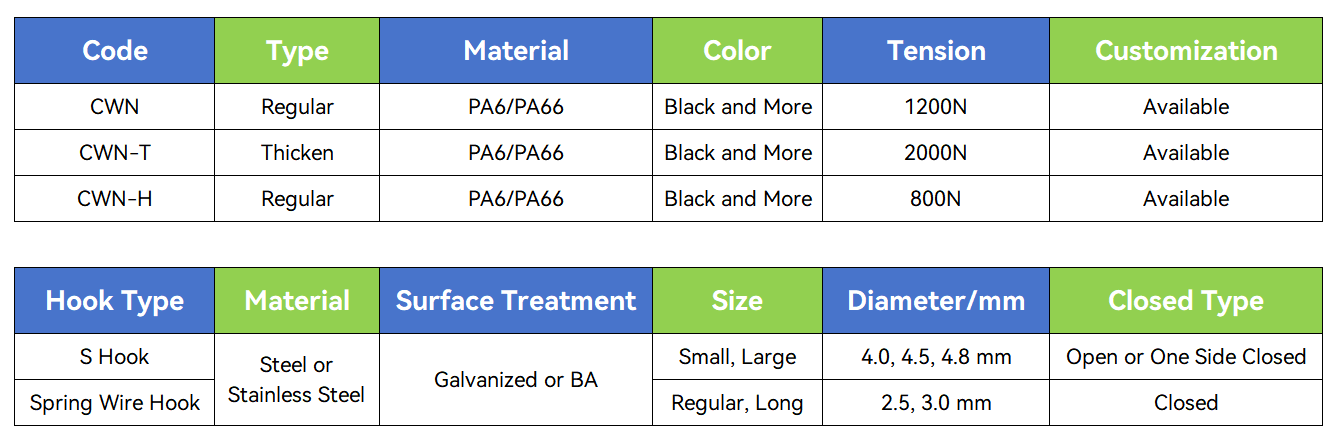

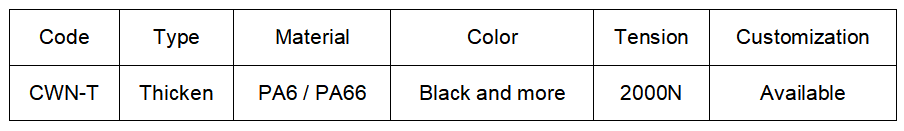

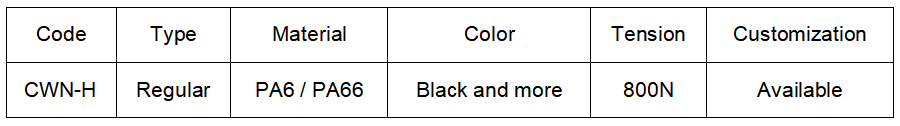

Technical Specifications:

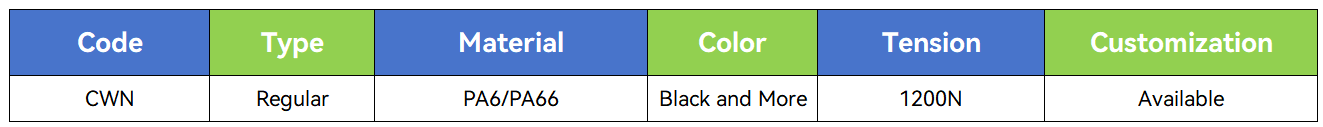

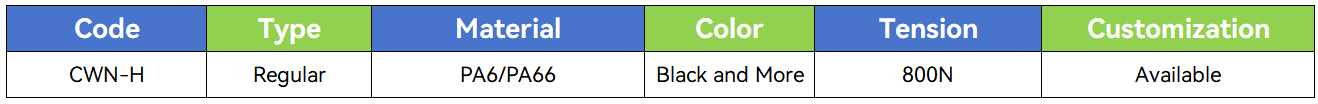

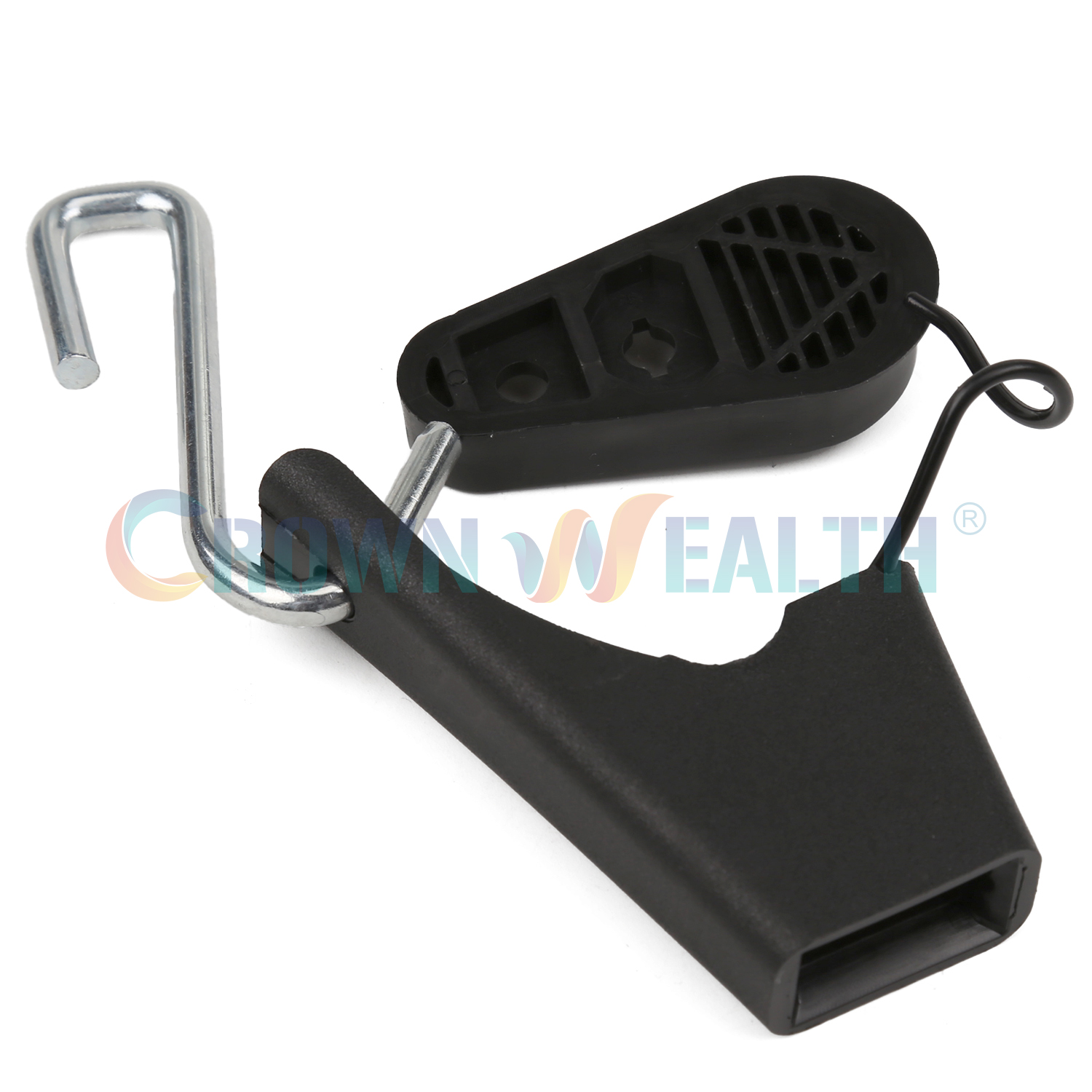

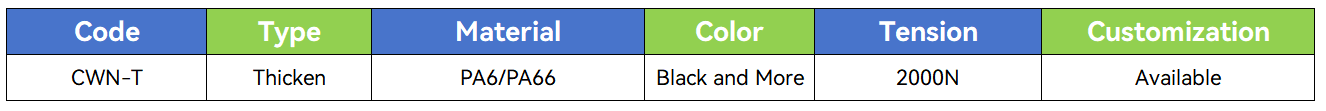

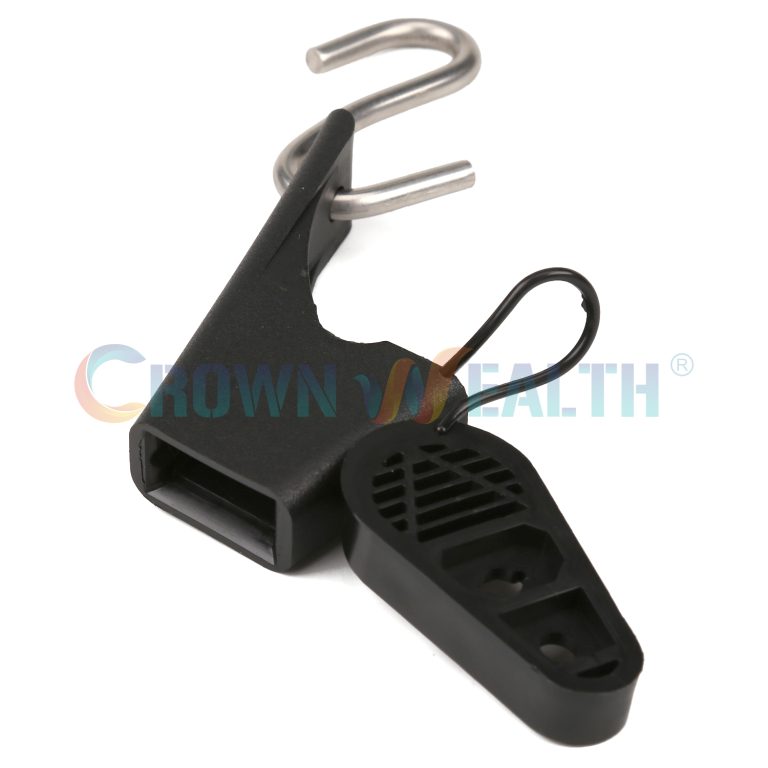

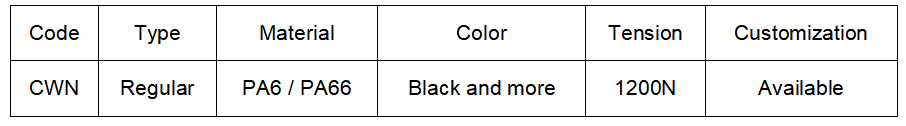

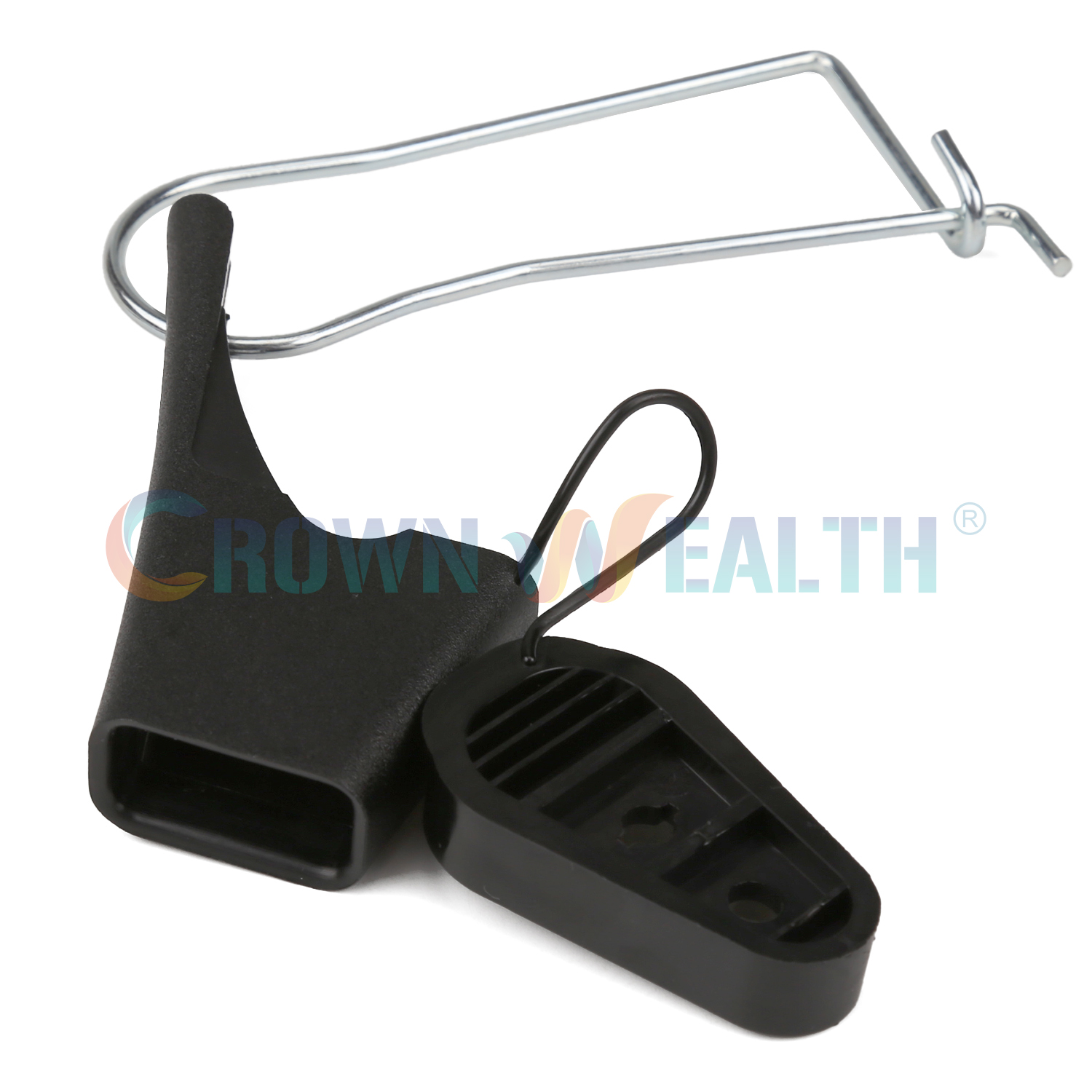

Plastic Cable Clamp Body Type:

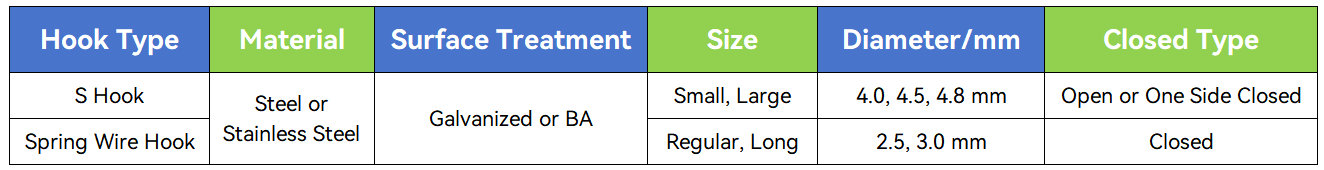

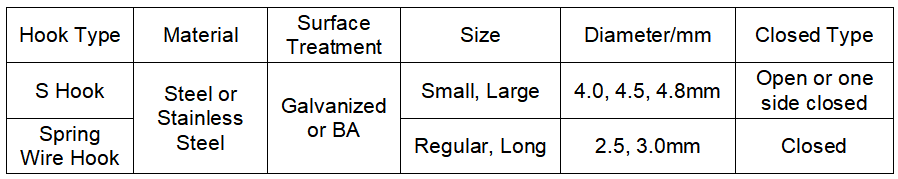

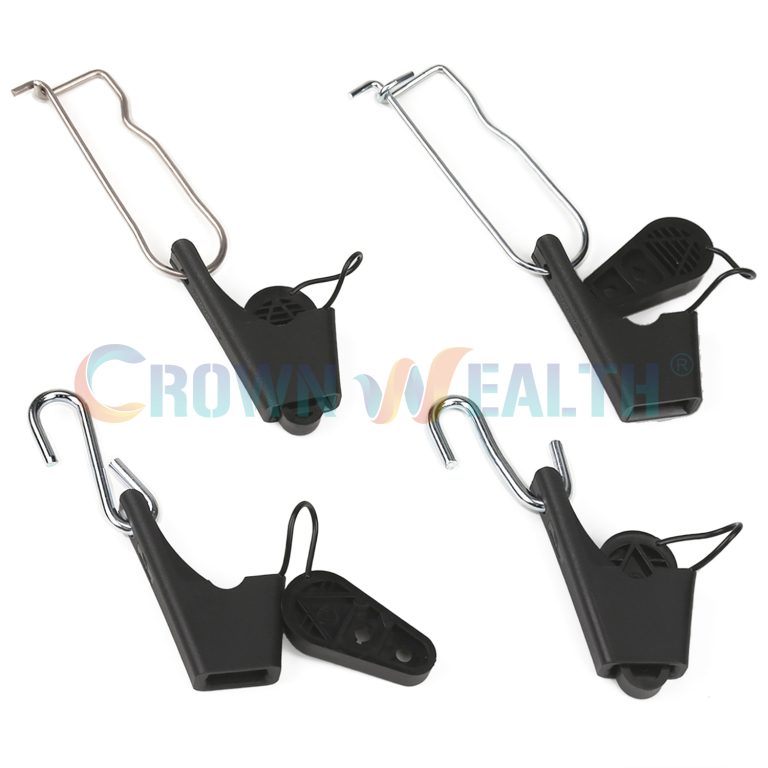

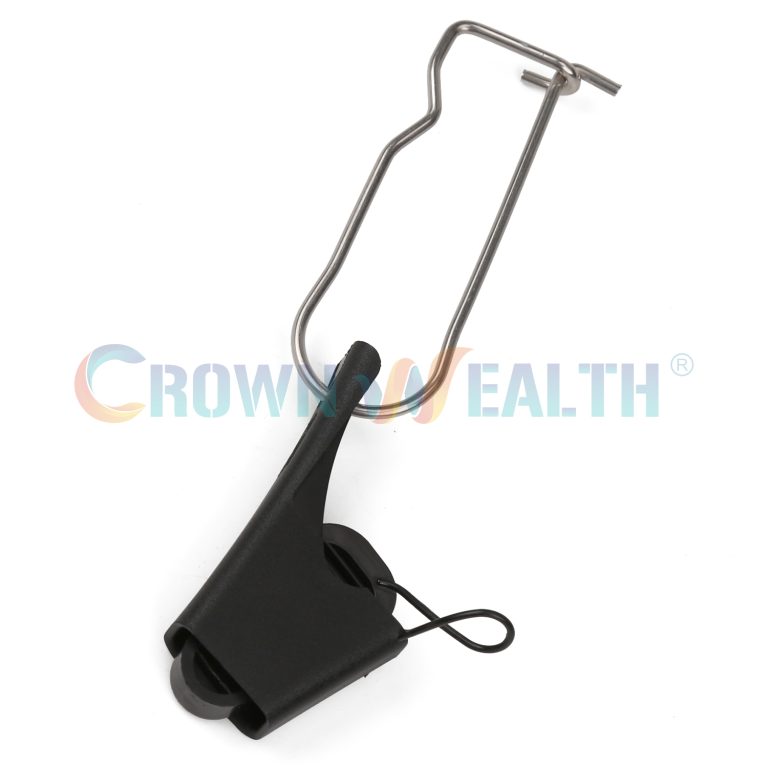

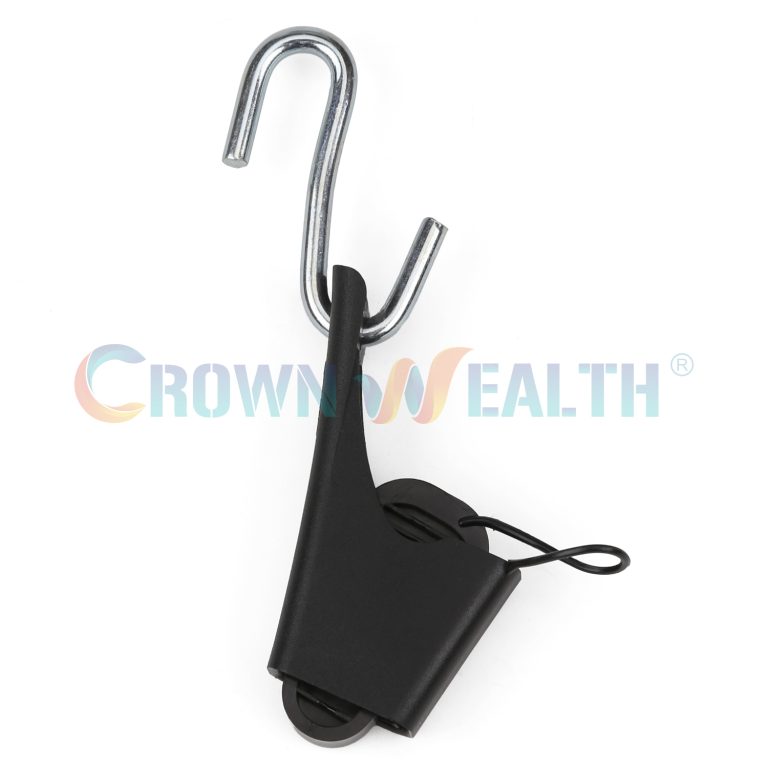

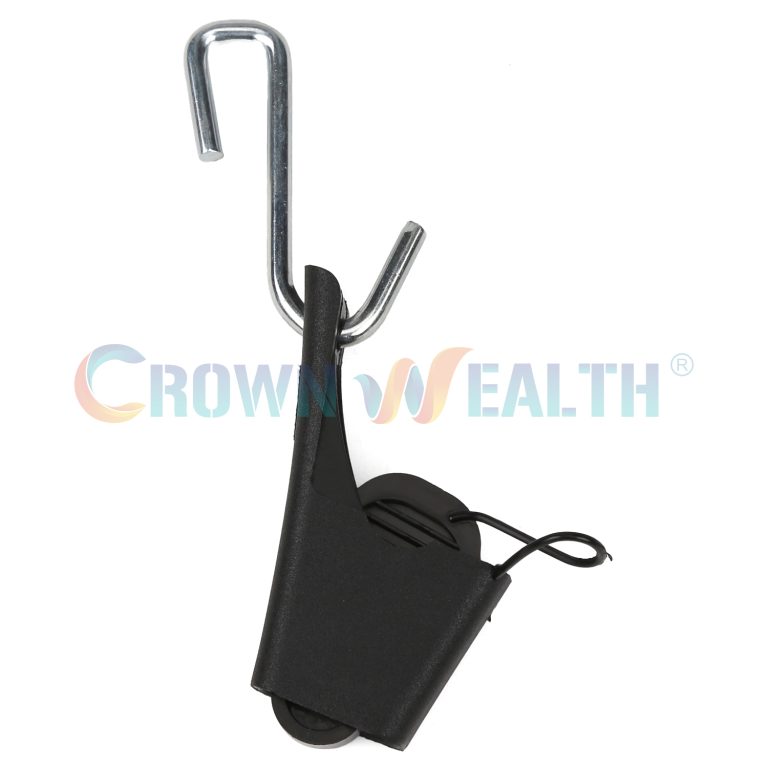

Metallic Hooks Type:



Application:

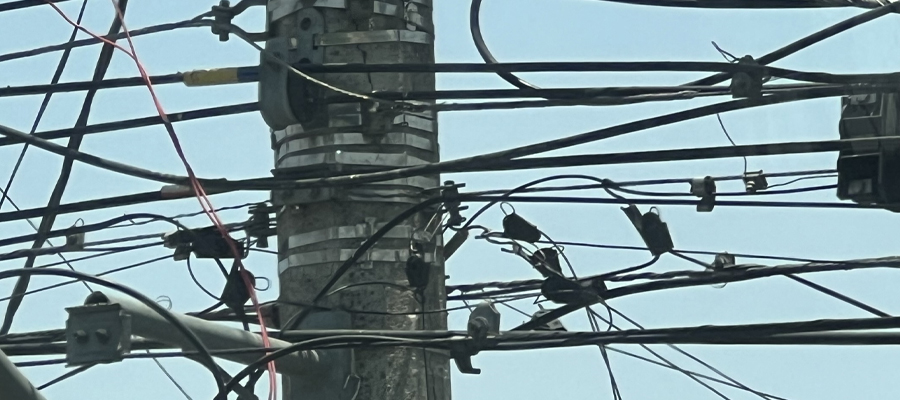

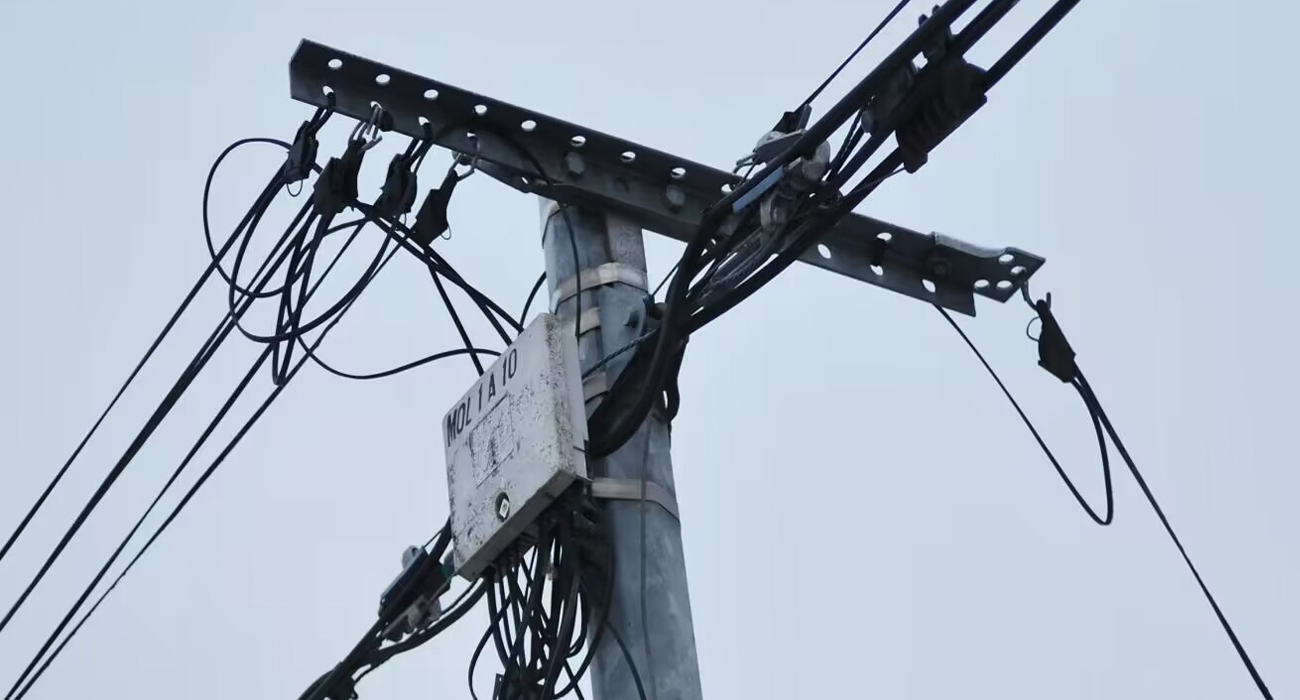

                                                                               S-hook plastic drop wire clamp usage scenario diagram

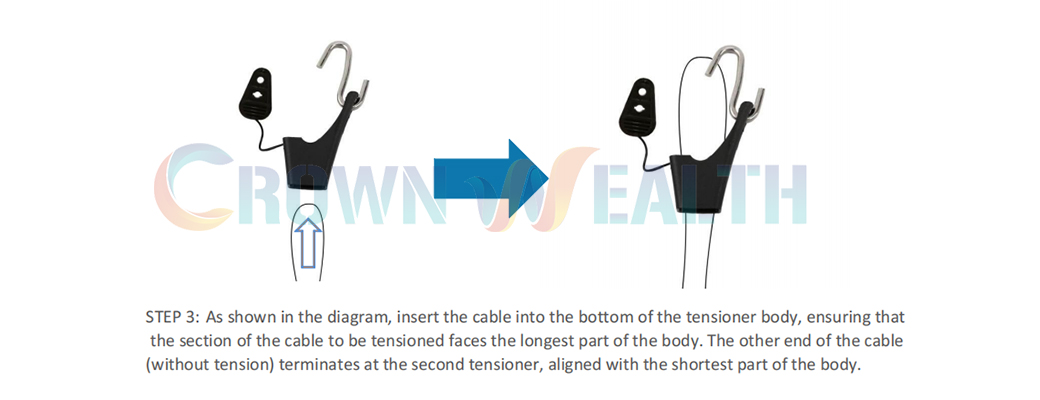

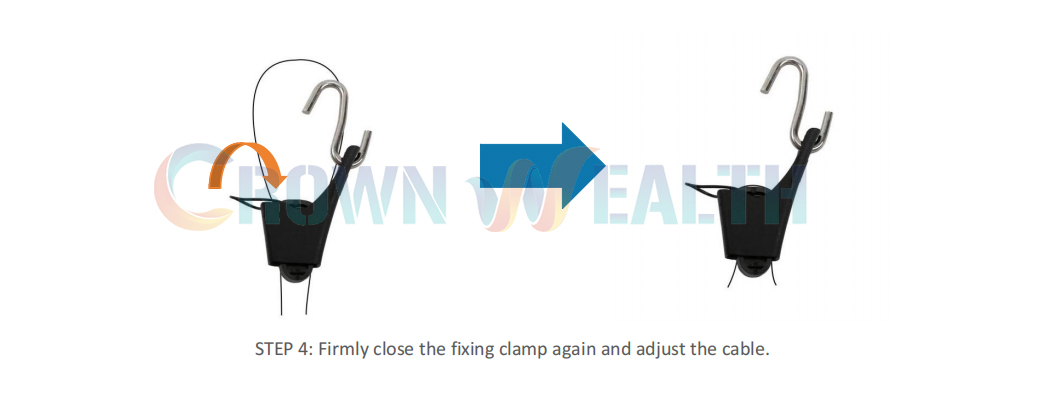

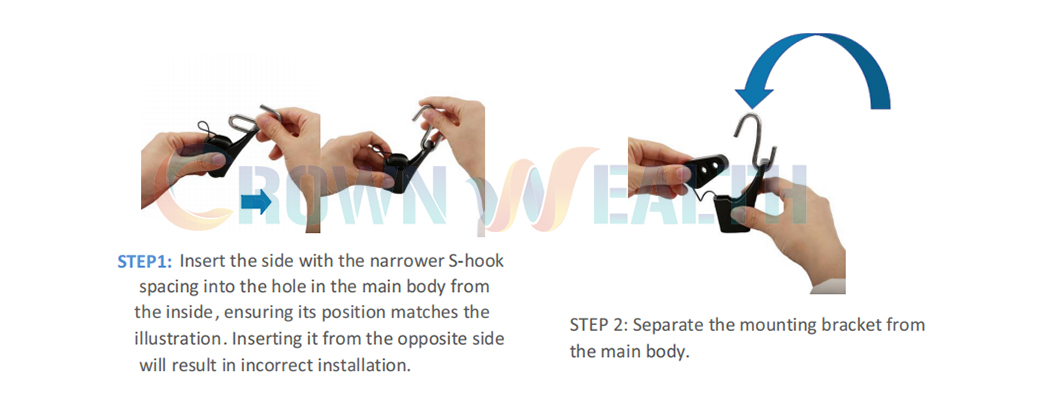

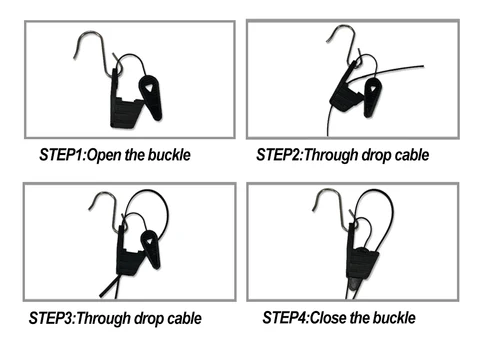

Installation Method



Testing:

This series of S-hook plastic drop wire clamps are made of stainless steel/galvanized steel and UV-resistant plastic, making it sturdy, durable. This product can be used reliably in a variety of harsh environments, reducing maintenance requirements. Our testing includes salt spray testing and UV anti-aging testing, and ultimate tensile strength testing.

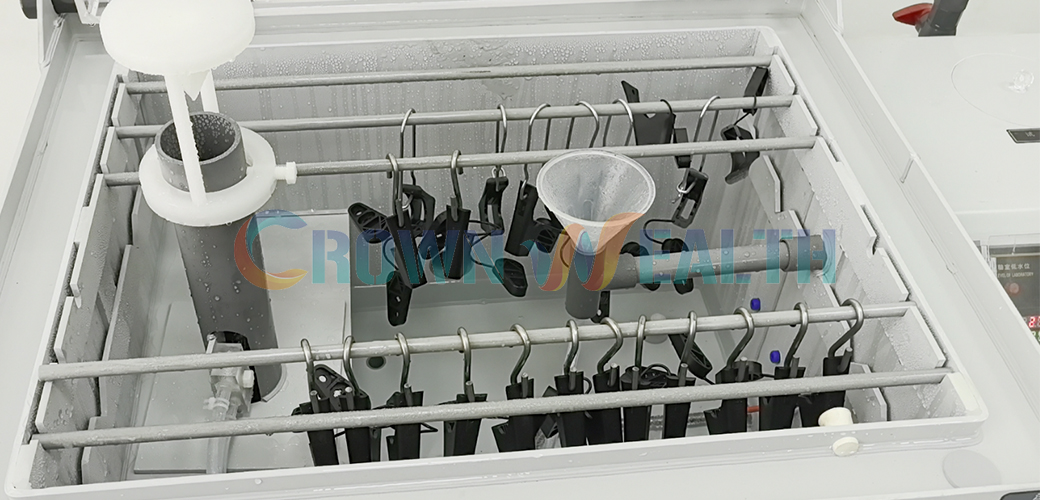

Salt spray testing:

                                               The S-hook fiber optic drop cable clamp is undergoing salt spray testing

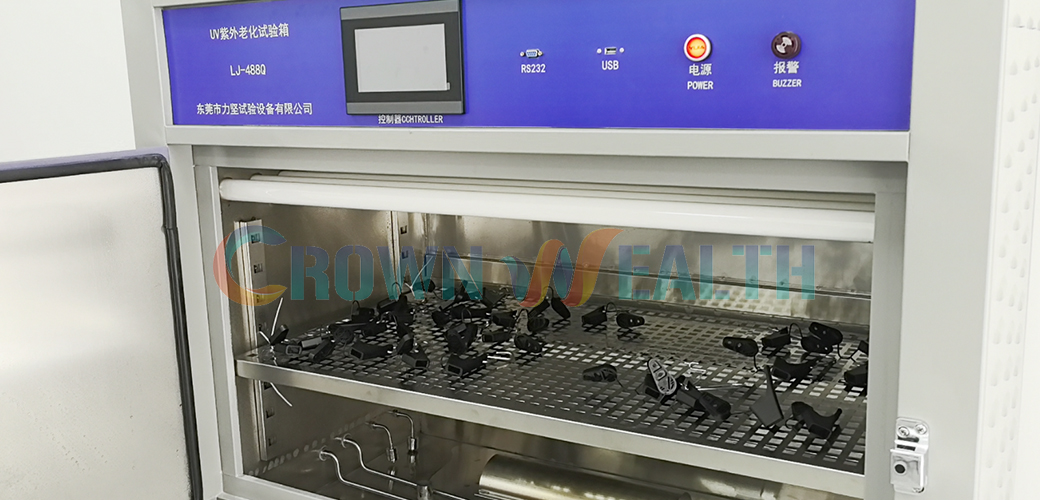

UV anti-aging testing:

                                                        S-hook tension clamp is undergoing anti-aging testing

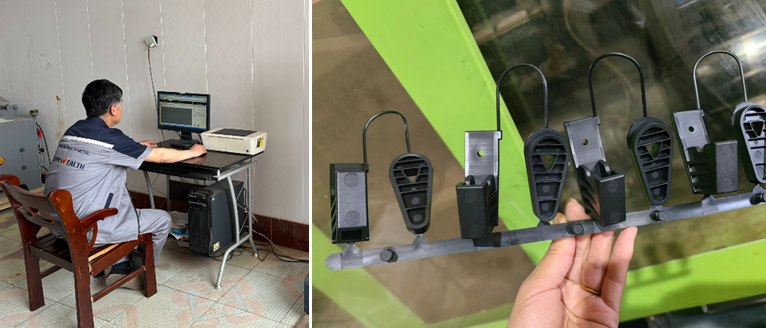

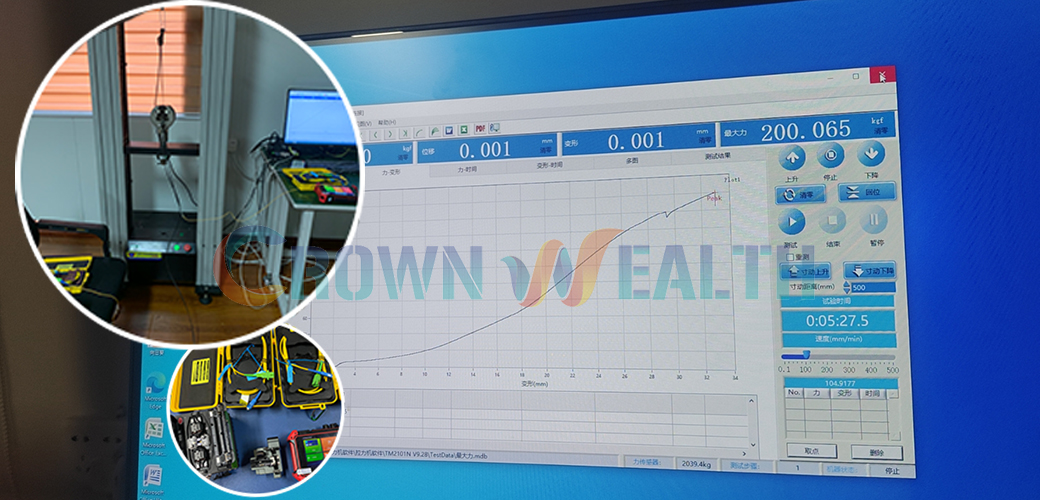

Ultimate tensile strength testing:

                                  FTTH drop cable suspension tension clamp S hook is undergoing tensile testing



Large plastic drop cable clamp test

Why choose Hebei Crown Wealth?

As a leading manufacturer of  S-hook fiber optic drop cable clamp in China, we have 15 years of experience in production and export. We also offer customized services, direct from the factory at reasonable prices. We control all details of products, keeping the good quality, to meet the clients’ requirements!





Technical Specifications:

Plastic Cable Clamp Body Type:



Metallic Hooks Type:



Application:

                                                                               S-hook plastic drop wire clamp usage scenario diagram

Installation Method



Testing:

This series of S-hook plastic drop wire clamps are made of stainless steel/galvanized steel and UV-resistant plastic, making it sturdy, durable. This product can be used reliably in a variety of harsh environments, reducing maintenance requirements. Our testing includes salt spray testing and UV anti-aging testing, and ultimate tensile strength testing.

Salt spray testing:

                                               The S-hook fiber optic drop cable clamp is undergoing salt spray testing

UV anti-aging testing:

                                                        S-hook tension clamp is undergoing anti-aging testing

Ultimate tensile strength testing:

                                  FTTH drop cable suspension tension clamp S hook is undergoing tensile testing



Large plastic drop cable clamp test

Why choose Hebei Crown Wealth?

As a leading manufacturer of  S-hook fiber optic drop cable clamp in China, we have 15 years of experience in production and export. We also offer customized services, direct from the factory at reasonable prices. We control all details of products, keeping the good quality, to meet the clients’ requirements!
