Plastic Drop Wire Clamp for Flat Fiber Optic Cable | CWPDC-001

Plastic Drop Wire Clamp for Your FTTH Cable Installation

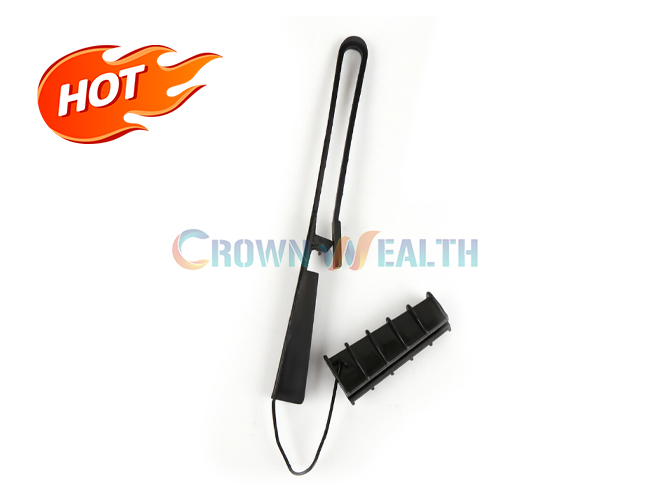

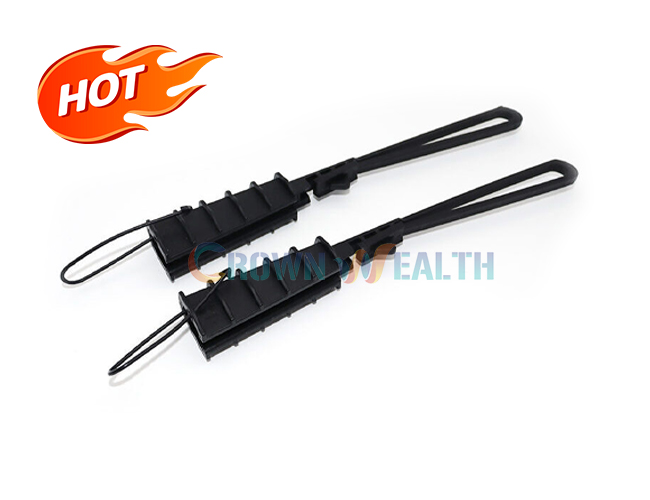

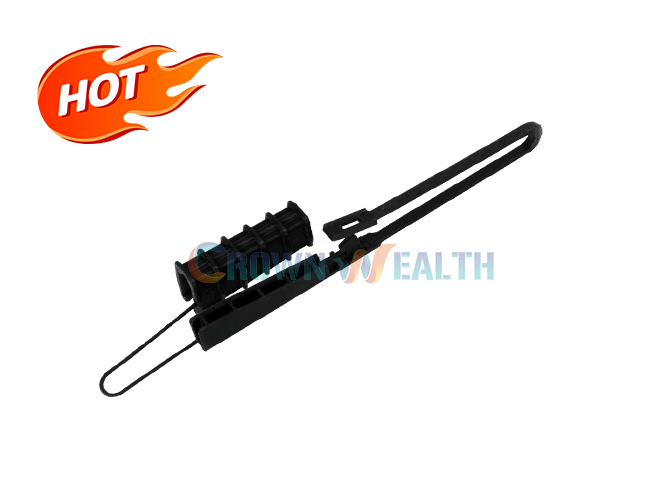

The CWPDC-001 plastic drop wire clamp secures and tensions compatible flat fiber optic drop cables in aerial telecom networks. You can use its wedge grip and hanging tail to connect your cable to suitable support hardware.

Start your selection with the product specifications, then check your cable drawing and installation conditions. Cable fit, mounting compatibility, and the required tension all affect your choice.

Product Advantages

Match Your Flat Fiber Cable

This model is designed for flat optical cable. To confirm the fit, provide your cable width, thickness, jacket details, and cross-sectional drawing. This helps you avoid selecting a clamp by appearance alone.

Hold Your Cable with a Wedge Grip

The plastic wedge structure grips a compatible drop cable. Correct positioning and cable fit help the clamp perform as intended, so follow the instructions for your selected cable and clamp combination.

Choose UV-Resistant Plastic for Outdoor Routes

The CWPDC-001 uses UV-resistant plastic for outdoor FTTH applications. If your project requires a specific temperature range or weathering test, include those requirements in your inquiry for confirmation.

Check the Hanging Tail Connection

The hanging tail connects the clamp to suitable support hardware. Before ordering, compare your hook or bracket dimensions with the clamp connection so both parts fit your installation.

Applications

• FTTH service drops: Secure compatible flat fiber drop cables on the final connection to residential or commercial buildings.
• Aerial telecom routes: Use the clamp at suitable support points where the cable profile and design loads match the installation requirements.
• Broadband installation and replacement: Specify CWPDC-001 when your project requires this plastic wedge design and compatible hanging connection.

The listed span is less than 70 m. However, span length alone does not establish suitability: confirm your cable, tension requirements, mounting arrangement, and site conditions together.

Before You Install

1. Confirm your cable dimensions. Send a cable datasheet or drawing to clarify the listed size notation before selecting this model.
2. Check your support hardware. Verify that the hook or bracket fits the hanging tail.
3. Review the design requirements. Confirm your proposed span and allowable installation tension for the complete cable and hardware arrangement.
4. Follow model-specific instructions. Obtain the installation guidance for your clamp and cable before field use.

The listed MBL is 1.0 kN. Do not treat this breaking-load figure as an allowable working tension; request the applicable selection and test information for your project.

OEM/ODM and Wholesale Supply

Hbcrownwealth offers OEM/ODM service for this product. Send your customization requirements and any relevant drawings to confirm which options are available for your order.

For wholesale purchasing, specify CWPDC-001, your quantity, and delivery destination. Request the current minimum order quantity, lead time, packing details, and any technical documentation your project requires.

Why Choose Hbcrownwealth?

Hbcrownwealth is a manufacturer, supplier, and wholesaler of hardware for aerial cable, power, and telecom systems. You can source this flat cable clamp as part of your FTTH hardware requirements and compare other designs in our drop wire clamp range.

To make your inquiry precise, identify your cable profile and support connection alongside the model number. If your project requires inspection records or test reports, state the relevant requirements when requesting a quotation.

Frequently Asked Questions

How do you confirm whether CWPDC-001 fits your cable?

Send your flat cable datasheet or cross-sectional drawing for compatibility confirmation. The existing specification lists “Maximum Size: 2–3 × 4 × 8 mm”; confirm how this notation applies to your cable width and thickness before ordering. Do not assume that round cables or all flat cable sizes will fit.

Can you use this clamp for a 70 m span?

The listed range is less than 70 m, so you should not specify a 70 m span from this figure alone. Confirm the proposed span together with your cable, tension requirements, support hardware, and environmental conditions.

What does the listed 1.0 kN MBL mean for your selection?

It is the listed breaking-load figure, not an allowable working tension. Ask for the applicable test conditions and selection guidance before using it in your installation design.

Is this plastic drop wire clamp suitable for outdoor use?

Yes, it is intended for outdoor aerial FTTH installations and uses UV-resistant plastic. However, confirm any project-specific temperature range, exposure conditions, or weathering-test requirements before purchase.

Can you request a customized version?

Yes, you can submit an OEM/ODM inquiry. Describe your requested changes and provide drawings where relevant; confirm feasibility, specifications, and order terms before approving production.

What information should you send for a quotation?

Send the CWPDC-001 model number, quantity, cable dimensions, and delivery destination. Also include your proposed span, mounting details, installation environment, and any required tests or customization.

Request a Quote for Your Project

Contact Hbcrownwealth with your CWPDC-001 requirements and cable drawing to discuss your order. Include the support hardware, intended span, quantity, and technical requirements so you can confirm the product fit and supply terms before purchase.

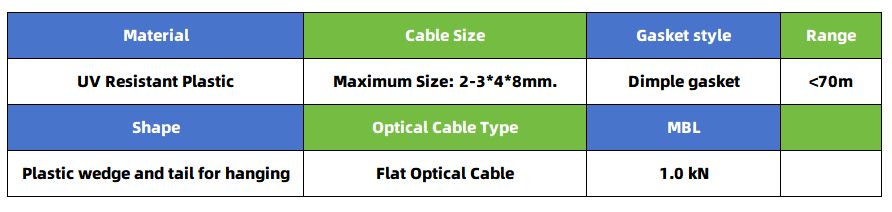

Product Specifications

Selection note: Confirm cable compatibility, support hardware, design loads, and site conditions before specifying this clamp. Request the relevant test information if your project requires it.
