- Tangent Clamp for ADSS Cable | CW-TCAD-010

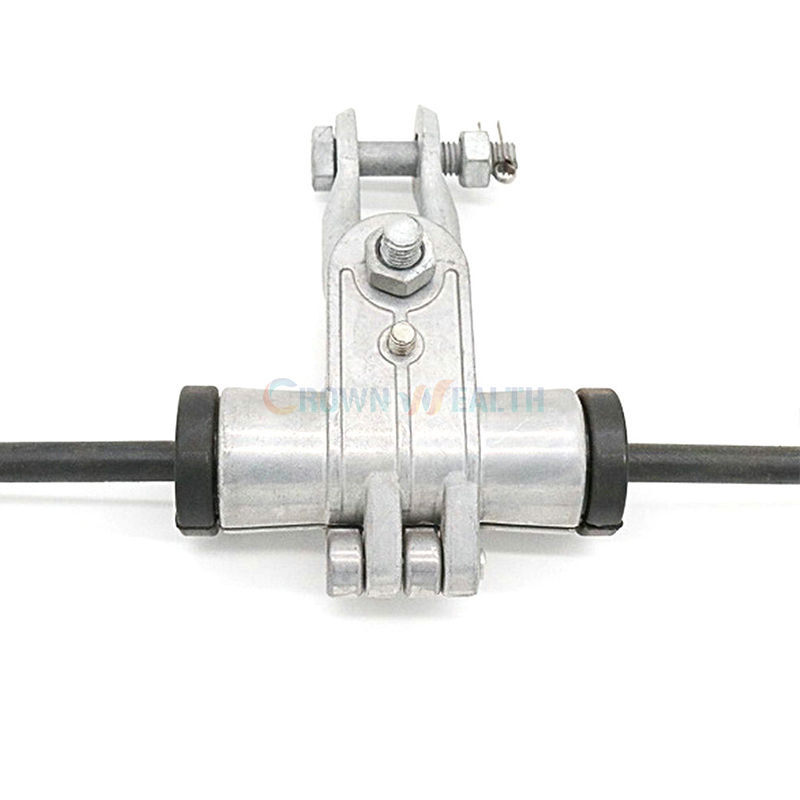

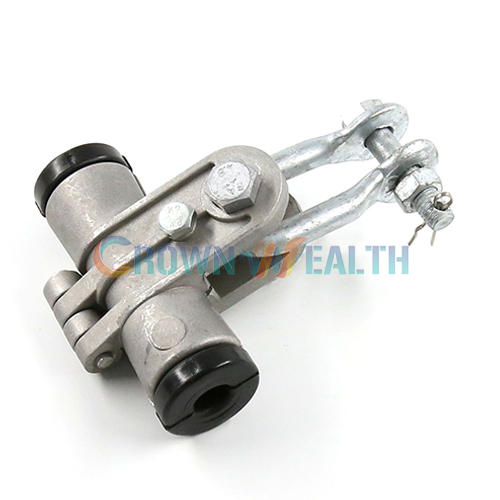

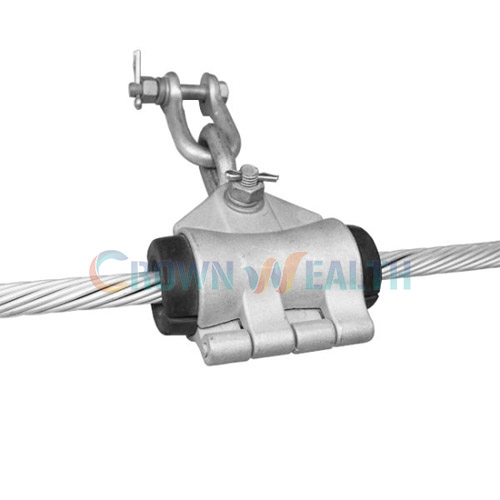

The Hbcrownwealth CW-TCAD-010 tangent clamp for ADSS cable supports aerial fiber optic cables at intermediate poles and towers. Its metal-and-rubber assembly provides a cushioned cable contact area for straight routes and small line-angle applications.
Send your cable specifications and required quantity to Hbcrownwealth for model selection and a quotation.
The Hbcrownwealth CW-TCAD-010 tangent clamp for ADSS cable supports aerial fiber optic cables at intermediate poles and towers. Its metal-and-rubber assembly provides a cushioned cable contact area for straight routes and small line-angle applications.
Send your cable specifications and required quantity to Hbcrownwealth for model selection and a quotation.
The CW-TCAD-010 tangent clamp for ADSS cable provides suspension support at intermediate poles and towers. You can use this model on straight routes and at small line angles below 15°, with spans up to 100 m (≤100 m).
Choose the clamp according to your cable’s outside diameter, then check the route conditions and attachment arrangement. The three model options help you match the fitting to your ADSS cable specifications.
| Product Code | Cable Diameter | Span |
|---|---|---|
| CW-TCAD-010 1110 | 9.0–11.1 mm | ≤100 m |
| CW-TCAD-010 1330 | 11.2–13.3 mm | ≤100 m |
| CW-TCAD-010 1550 | 13.4–15.9 mm | ≤100 m |
Match the specified diameter range to your cable’s outside diameter and manufacturing tolerance. If your cable is close to a range boundary or falls between the listed ranges, send the cable datasheet for selection advice.
The rubber insert provides a cushioned interface between the cable and the metal assembly. When correctly selected and installed, it helps reduce localized contact stress at the support point.
Separate diameter ranges make it easier to specify the required model in your purchasing documents. Include the complete product code in your inquiry so your team can compare the quotation against the cable specification.

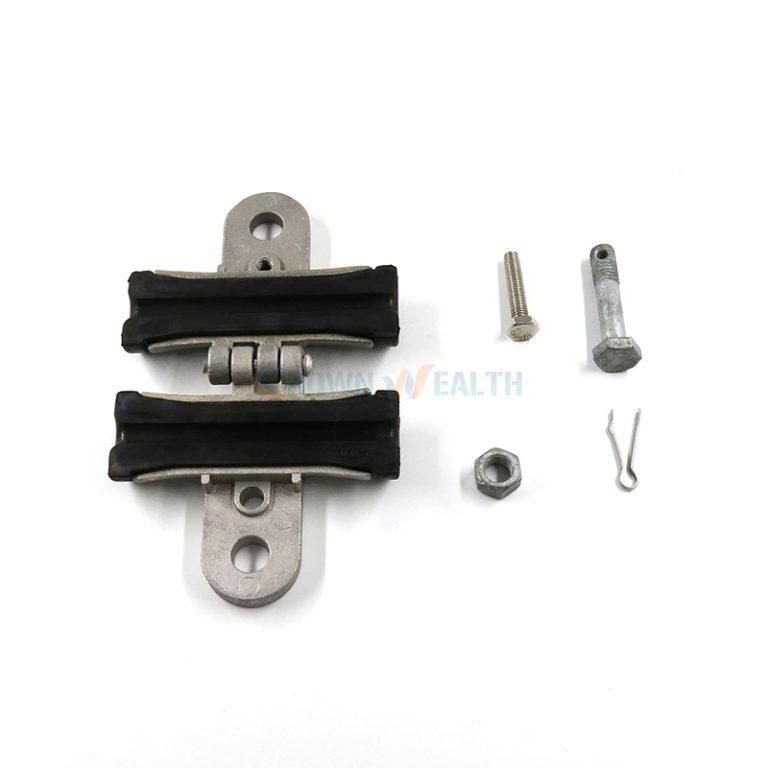

The clamp is designed for suspension points along straight routes and small changes in line direction. Its assembly includes a rubber insert, cover shell, U-shaped hanging loop, bolts, and nuts.
You can select this ADSS cable suspension clamp for intermediate supports in:
For other support arrangements, explore our ADSS suspension clamps and compare the model requirements.
Before installation, check the following points against your project requirements:
Hbcrownwealth is a manufacturer, supplier, and wholesaler of hardware for overhead power and telecommunications systems. You can discuss this tangent clamp alongside the related cable fittings required for your project.
For a clear quotation, send your cable datasheet, selected model, quantity, and delivery destination. Packing options include carton boxes and wooden pallets; specify your preferred arrangement when you inquire.
The three model ranges are 9.0–11.1 mm, 11.2–13.3 mm, and 13.4–15.9 mm. Select the appropriate product code from the specification table and account for your cable’s diameter tolerance.
The specified span is up to 100 m (≤100 m), and the line angle must be below 15°. Also check the cable requirements and site loads when selecting the fitting for your route.
This model is intended for intermediate suspension support. For cable termination, review our preformed guy grip tension clamp for ADSS and confirm the fitting required for your installation.
The assembly includes a rubber insert, cover shell, U-shaped hanging loop, bolts, and nuts. Check the pole or tower attachment arrangement separately when planning your installation.
Send the product code, cable diameter, quantity, span, line angle, and delivery destination. You can also attach a cable datasheet or project drawing to make your requirements clear.
Send Hbcrownwealth your cable specifications and required quantity to discuss the CW-TCAD-010 tangent clamp for ADSS. Contact us for model selection and a quotation.
| Product Code | Cable Diameter (mm) | Span (m) |
|---|---|---|
| CW-TCAD-010 1110 | 9.0–11.1 | ≤100 |
| CW-TCAD-010 1330 | 11.2–13.3 | ≤100 |
| CW-TCAD-010 1550 | 13.4–15.9 | ≤100 |
| Product type | Tangent suspension clamp |
|---|---|
| Cable application | ADSS fiber optic cable |
| Materials | Metal and rubber |
| Main components | Rubber insert, cover shell, U-shaped hanging loop, bolts, and nuts |
| Installation location | Intermediate poles and towers |
| Line angle | Below 15° |
| Packing options | Carton box or wooden pallet |
