The CW-UB U Bolt is a galvanized steel fastening component used to secure brackets, crossarm hardware, pole fittings, and other accessories to compatible utility poles and support structures. Its U-shaped body wraps around a pole, pipe, bracket, or structural member while the two threaded legs pass through the mating hardware. Nuts and washers then tighten the assembly into position.
Hbcrownwealth supplies U bolts for overhead power distribution, telecom infrastructure, utility pole construction, and customized pole line hardware projects.
The CW-UB U Bolt is a galvanized steel fastening component used to secure brackets, crossarm hardware, pole fittings, and other accessories to compatible utility poles and support structures. Its U-shaped body wraps around a pole, pipe, bracket, or structural member while the two threaded legs pass through the mating hardware. Nuts and washers then tighten the assembly into position.
Hbcrownwealth supplies U bolts for overhead power distribution, telecom infrastructure, utility pole construction, and customized pole line hardware projects.
A U bolt is a bent steel fastener with two parallel threaded legs.
Instead of passing through the center of a structure like a conventional straight bolt, the U-shaped section fits around the outside of a pole, pipe, crossarm, or bracket.
This design allows you to clamp or support a component without creating an additional central fastening point.
For utility applications, the dimensions of the U bolt should match both the supporting structure and the hardware being mounted.
Two U bolts may look similar but still fit completely different assemblies.
Therefore, selecting a U bolt only by rod diameter is not enough.
Several dimensions affect installation:
For repeat or replacement orders, we recommend providing a dimensional drawing whenever possible.
The bent body surrounds the mounting structure and distributes the fastening points across two threaded legs.
This configuration makes the bolt useful for holding compatible brackets and fittings against utility poles or other support members.
Both ends provide threaded fastening positions.
As a result, installers can adjust and tighten the assembly from both sides of the mounted component.
CW-UB uses galvanized steel for pole line applications.
The protective surface helps make the product suitable for outdoor utility installations where hardware remains exposed after assembly.
The current CW-UB range covers bolt diameters from 1/2″ to 4″.
Different dimensions can be selected according to the pole, bracket, clamp, or structural member used in the project.
U bolts are often application-specific.
You can customize the inside width, leg length, thread length, diameter, bend geometry, accessories, and other agreed dimensions according to your drawing.
Product Name: U Bolt
Model: CW-UB
Material: Galvanized Steel
Bolt Diameter: 1/2″–4″
Shape: U-Shaped
Threaded Ends: Double
Typical Use: Pole and Bracket Fastening
Application: Power and Telecom Pole Line Hardware
Accessories: Nuts and Washers Available
OEM: Available according to drawing or specification
For accurate quotation, please provide the required bolt diameter, inside dimensions, leg length, thread length, and quantity.
Different mounting surfaces may require different U bolt profiles.

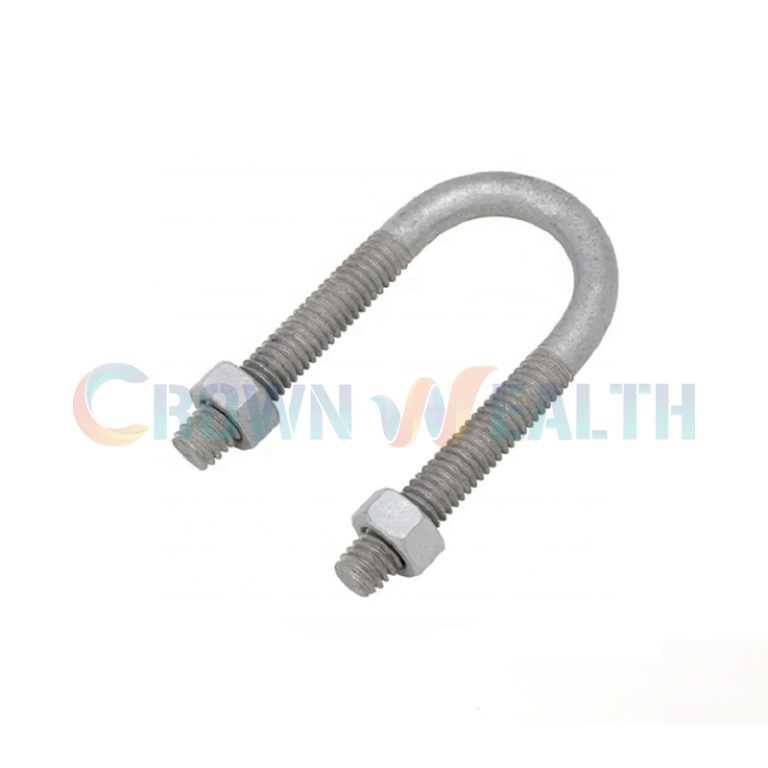

A round-profile U bolt is suitable for mounting around compatible round poles, pipes, or cylindrical structures.

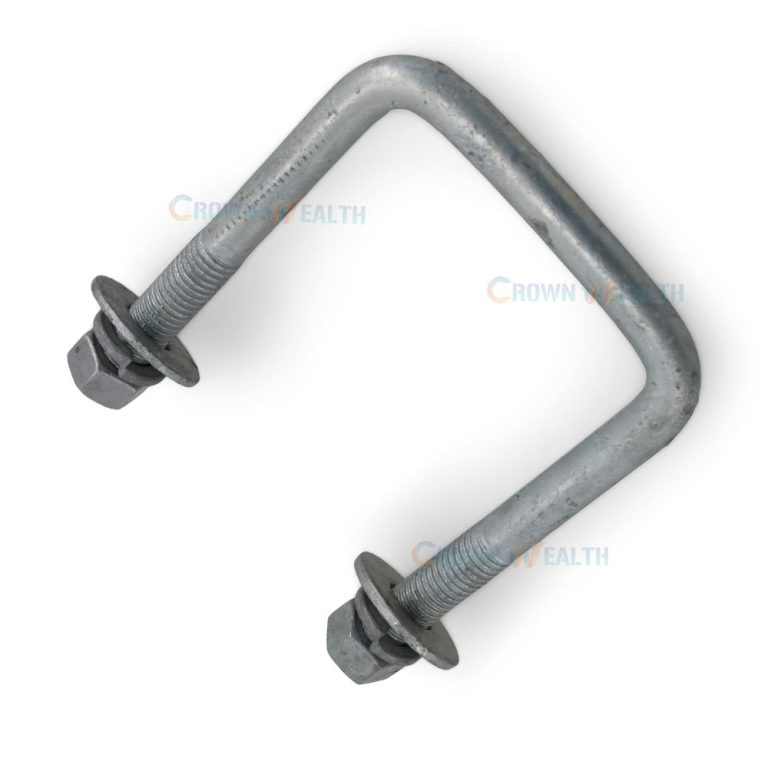

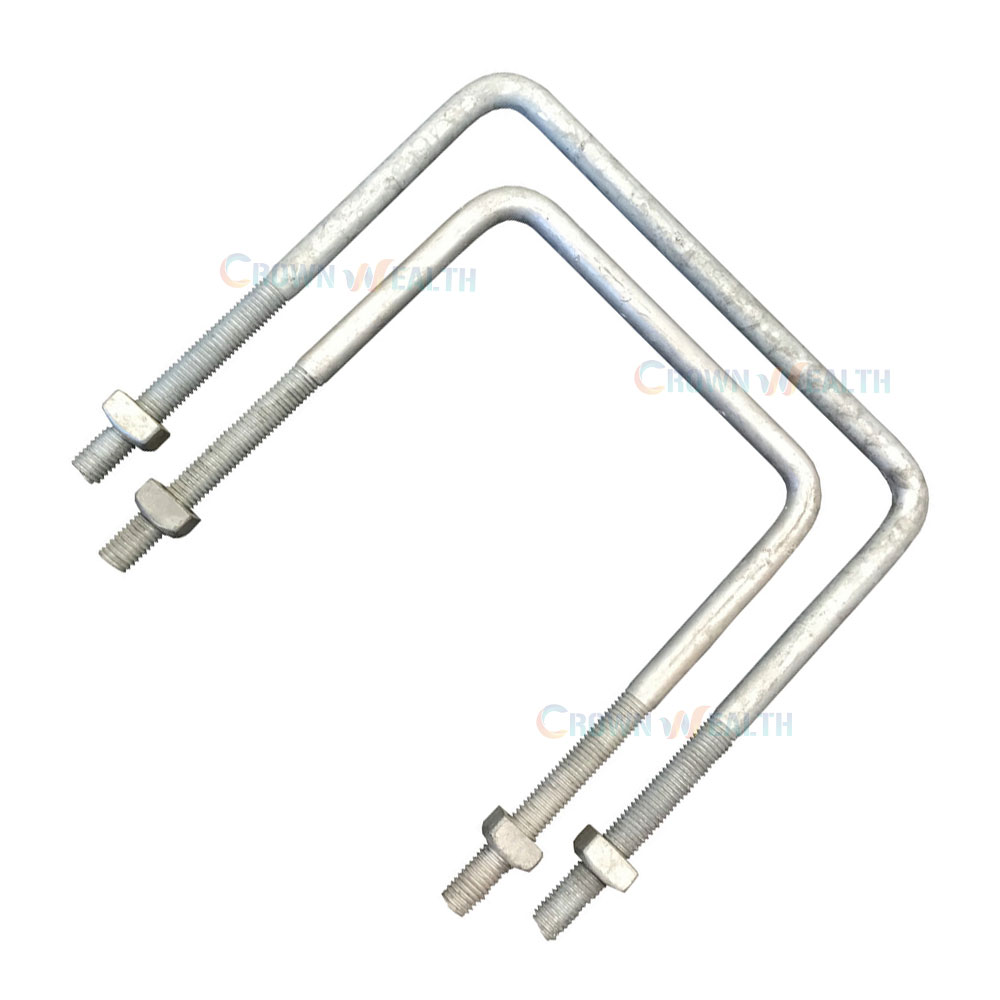

A square-profile U bolt provides a flatter internal shape for suitable rectangular or square structural members.
Some pole line assemblies require a special bend profile to match the bracket or pole geometry.
If your product does not match a standard round or square U bolt, send us your drawing or sample for evaluation.
U bolts can also be used to secure compatible cross-head brackets and pole-mounted fittings.
In this type of assembly, the U bolt wraps around the supporting structure while the threaded legs pass through the bracket holes.
The final fit depends on several dimensions working together:
Therefore, we recommend confirming the bracket drawing together with the U bolt specification before mass production.
U bolts can secure suitable brackets and mounting hardware to wooden, concrete, or steel pole systems when the mounting design permits this fastening method.
They can connect compatible support brackets and pole fittings used around overhead power line structures.
Customized U bolts can be used in aerial telecom infrastructure where clamps, brackets, or supporting hardware need to be mounted to poles.
Depending on the dimensions and engineering requirements, U-shaped fasteners can also secure compatible pipes, supports, and structural components.
For maintenance projects, U bolts can be produced according to an existing sample or technical drawing when the original dimensions need to be maintained.
For buyers, measuring a U bolt correctly can prevent many specification mistakes.
Before sending an inquiry, confirm the following dimensions.
Measure the diameter of the steel rod itself.
Measure the clear distance between the two legs.
This dimension usually needs to match the outside width or diameter of the component being clamped.
Measure from the inside of the curved section to the required reference point along the legs.
Confirm the total length required to pass through the mounting hardware and leave enough thread for fastening.
The threaded portion must provide sufficient adjustment for the nut and washer arrangement.
Specify whether you need a round, square, semi-round, or customized internal shape.
A simple dimensional sketch can often provide enough information for us to evaluate the correct production specification.
Before ordering, consider the complete mounting assembly rather than the bolt alone.
You should confirm:
If you already have a bracket or pole fitting drawing, send it together with the U bolt requirement. This makes dimensional matching easier.
Standard U bolts do not fit every utility project.
Therefore, Hbcrownwealth supports custom production based on drawings, samples, and technical specifications.
You can specify:
For repeated B2B orders, drawing-based manufacturing also helps maintain consistent dimensions between different production batches.
For a U bolt, correct fit is often more important than appearance alone.
During production and final inspection, key checkpoints can include:
When the U bolt is intended for a specific bracket, we can also confirm critical matching dimensions according to the approved drawing.
Hbcrownwealth supplies U bolts for overseas utility hardware distributors, telecom buyers, contractors, wholesalers, and infrastructure projects.
You can source standard CW-UB products or send us your bracket and mounting specifications for customized production.
In addition, you can combine U bolts with pole bands, crossarm brackets, suspension fittings, machine bolts, and other pole line hardware in one purchasing plan.
This helps you manage related components and specifications through fewer suppliers.
A U bolt wraps around a pole, pipe, bracket, or other compatible structural member and uses two threaded legs to secure mounting hardware in position.
The current CW-UB product range lists bolt diameters from 1/2″ to 4″. Other dimensions can be evaluated according to your drawing.
Please provide the rod diameter, inside width, inside height or leg length, thread length, bend shape, and required quantity.
Different U bolt profiles can be evaluated according to the mounting structure and technical drawing.
Yes. Send us the bracket drawing, mounting hole spacing, pole dimensions, and required U bolt specification so that we can check the fit.
Yes. Matching nuts and washers can be supplied according to the confirmed U bolt specification.
Yes. We support custom U bolts based on drawings, samples, dimensional requirements, and project specifications.
| Parts No. | Descripton | Material | Bolt Dia. |
| CW-UB | U Bolt | Galvanized Steel | 1/2″ to 4″ |
| CW-UBA | U Bolt for Holding Cross-Head Bracket | 1/2″, 5/8″, 3/4″ | |
| CW-UBB |
