- CW-RPA 450 4 Conductor Anchoring Clamp for ABC Cable
Anchor your insulated ABC cable with the CW-RPA 450 4 conductor anchoring clamp for 4 × 50 mm² to 4 × 120 mm² configurations. Aluminum alloy and plastic construction, shear-head nut fastening, tool-free installation and a 40 kN breaking load help you assess its fit for your project.
Anchor your insulated ABC cable with the CW-RPA 450 4 conductor anchoring clamp for 4 × 50 mm² to 4 × 120 mm² configurations. Aluminum alloy and plastic construction, shear-head nut fastening, tool-free installation and a 40 kN breaking load help you assess its fit for your project.

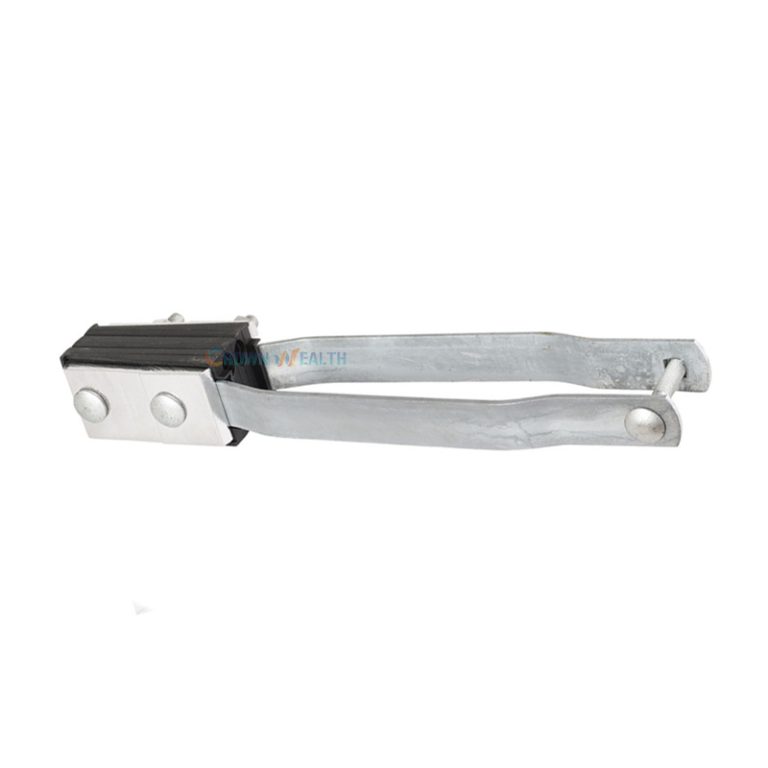

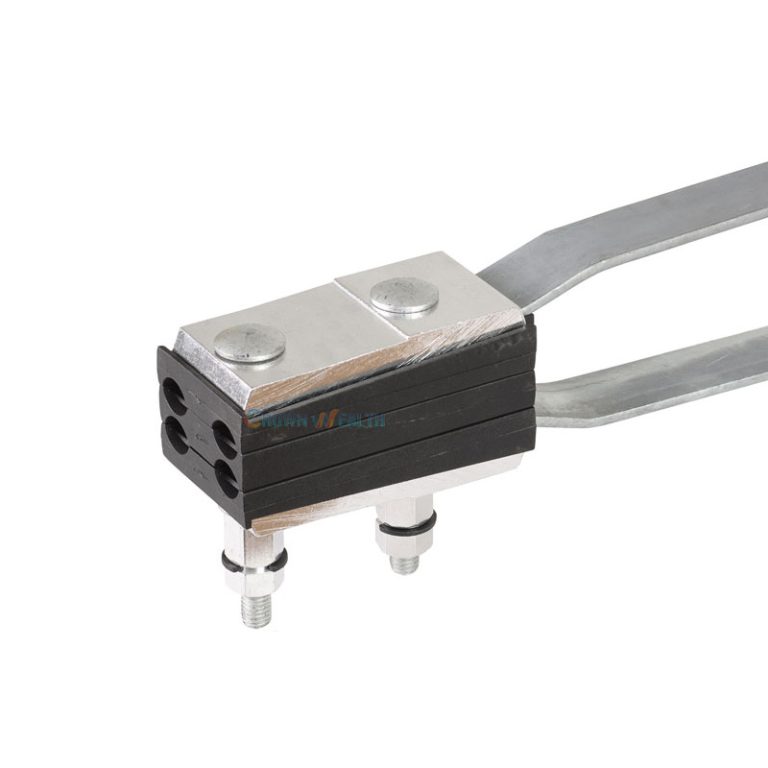

Choose the CW-RPA 450 4 conductor anchoring clamp to anchor your insulated aerial bundled cable (ABC) to compatible pole or wall attachment hardware. The listed section range is 4 × 50 mm² to 4 × 120 mm², with aluminum alloy and plastic components.
This clamp serves overhead power cable anchoring applications. To select it correctly, check your four-conductor cable construction, insulation dimensions and required service load. The clamp uses shear-head nuts for fastening and supports tool-free installation. Confirm the attachment arrangement for your project.
| Specification | CW-RPA 450 |
|---|---|
| Product | 4 conductor anchoring clamp |
| Cable application | Insulated aerial bundled cable (ABC) |
| Conductor configuration | 4 conductors |
| Section range | 4 × 50 mm² to 4 × 120 mm² |
| Materials | Aluminum alloy and plastic |
| Fastening | Shear-head nuts |
| Installation | Tool-free installation |
| Breaking load | 4000 daN (40 kN) |
| Attachment application | Compatible utility pole or wall attachment hardware |
Section range: The first number indicates four conductors. The mm² value is the cross-sectional area of each conductor, not the cable diameter or the total area of the bundle.
Use this model for anchoring compatible four-conductor insulated overhead power cables at the required support points. For pole-mounted main lines or wall-mounted service connections, confirm the cable construction and support arrangement before selection.
Do not select solely by conductor cross-section. Two cables with the same nominal area may have different insulation dimensions and bundle arrangements. Therefore, include your cable datasheet and insulated conductor diameters in your inquiry.
If your project uses a two-conductor service cable or a system that anchors only the neutral messenger, request a separate compatibility review. The published CW-RPA 450 section range identifies a four-conductor configuration.
The CW-RPA 450 has a breaking load of 4000 daN (40 kN). Request the installation instructions and any required test documentation for your supplied configuration.
The breaking load does not establish your allowable working load or installation tension. In addition, your cable and supporting hardware must meet the project’s service requirements.
Before installation, provide or confirm the following information:
The clamp uses shear-head nuts and supports tool-free installation. Follow the supplied fastening procedure; request the installation guide before your crew starts. Do not infer a tightening setting from the breaking load.
Hbcrownwealth is a professional manufacturer, supplier and wholesaler of aerial cable hardware in China. As an anchoring clamp manufacturer, we help you source hardware for power and telecommunications overhead systems. For your CW-RPA 450 order, we focus on matching the cable specification and attachment requirements.
The listed application is insulated ABC cable with four conductors from 50 to 120 mm² per conductor. Send the cable datasheet to confirm the insulation dimensions and bundle fit.
No. It means four conductors, each with a cross-section of 50 mm². You should provide the insulated conductor diameters separately when requesting compatibility confirmation.
Do not assume compatibility. The published model range is for four conductors, so send your two-conductor cable details for selection review or an alternative recommendation.
No. 4000 daN (40 kN) is the breaking load. Confirm the allowable working load and installation tension for your cable and complete supporting assembly separately.
Yes. This model supports tool-free installation and uses shear-head nuts for fastening. Follow the model-specific instructions for the supplied assembly; separate cable tensioning or support installation may require project equipment.
Yes, you can submit these requirements with your inquiry. Hbcrownwealth will review customization feasibility and confirm the available documentation for your selected configuration. State any required standard explicitly.
Contact Hbcrownwealth with your cable datasheet, conductor count, section size, insulated diameters, quantity and delivery destination. Also include the required service load, attachment drawing and any testing requirements.
For other cable configurations, explore our anchoring clamp range. You can also review pole line hardware for your support arrangement, subject to fit and load confirmation.
| Specification | CW-RPA 450 |
|---|---|
| Product | 4 conductor anchoring clamp |
| Cable application | Insulated aerial bundled cable (ABC) |
| Conductor configuration | 4 conductors |
| Section range | 4 × 50 mm² to 4 × 120 mm² |
| Materials | Aluminum alloy and plastic |
| Fastening | Shear-head nuts |
| Installation | Tool-free installation |
| Breaking load | 4000 daN (40 kN) |
| Attachment application | Compatible utility pole or wall attachment hardware |
Read the section range correctly: 4 × 50 mm² means four conductors, each with a 50 mm² cross-section. The range describes conductor cross-section, not cable outside diameter.
Load terminology: 4000 daN equals 40 kN and is the breaking load. It is not an allowable working load or an installation tension.
Provide your cable datasheet, insulated conductor diameters, bundle arrangement and service load requirements. Confirm attachment compatibility and follow the supplied shear-head nut fastening instructions. State any required standard or test documentation in your inquiry.
