CW-PA300 Anchor Clamp for Round Cables, 4–8 mm

Secure your 4–8 mm round fiber optic cables with the CW-PA300 anchor clamp. Its twin wedges grip automatically inside a conical body, with no specific installation tools required. The listed breaking load is 2.5 kN; confirm your cable and project conditions before selection.

CW-PA300 Anchor Clamp for Round Cables, 4–8 mm

Secure your 4–8 mm round fiber optic cables with the CW-PA300 anchor clamp. Its twin wedges grip automatically inside a conical body, with no specific installation tools required. The listed breaking load is 2.5 kN; confirm your cable and project conditions before selection.

Anchor Clamp for Round Cables: CW-PA300

The CW-PA300 anchor clamp for round cables helps you dead-end 4–8 mm fiber optic cables on aerial access networks. A pair of wedges grips your cable automatically inside a conical body. As a result, you can secure a compatible cable without specific installation tools.

Product Specifications

CW-PA300 specifications
Model CW-PA300
Product type Anchor clamp for round cables
Cable diameter 4–8 mm
Breaking load 2.5 kN
Gripping mechanism Pair of wedges within a conical body
Application Dead-ending fiber optic cables on access networks
Published span guidance Up to 100 m, subject to your cable and project requirements

Use the breaking-load figure for specification comparison. It does not establish your allowable working tension. Before selection, confirm the cable construction, installation loads and required safety factors with your project engineer.

Product Advantages

  • Defined cable range: You can check the 4–8 mm range against your round cable’s outside diameter before requesting a quotation.
  • Automatic wedge grip: The two wedges grip the cable within the conical body, providing the anchoring mechanism for your dead-end connection.
  • No specific installation tools: You can simplify clamp fitting because the published design does not require dedicated tools. However, your overall cable installation may still require equipment and approved procedures.
  • Clear model identification: Specify CW-PA300 in your purchasing documents so you can distinguish it from clamps for other cable profiles and diameters.

Applications and Cable Selection

Use this model for compatible round fiber optic cables at dead-end points in aerial access networks. First, check your cable diameter. Then confirm its sheath, construction and permitted installation tension; diameter alone does not prove compatibility.

The published application covers spans up to 100 m. However, you should confirm the actual span against your cable data and site conditions before ordering. Do not treat this figure as a guarantee for every route.

If your cable has a different profile or falls outside the specified range, compare our anchoring clamp range before choosing a model.

Installation Planning

The CW-PA300 uses two wedges to grip the cable automatically inside its conical body. Before your team starts installation, confirm the following:

  1. Your round cable measures 4–8 mm and is compatible with the clamp.
  2. Your attachment hardware and support point suit the proposed connection.
  3. Your project instructions define cable tension, span and installation checks.

Request the applicable installation instructions for your cable and support arrangement. Follow those instructions for assembly and tensioning; the specifications above do not define an installation sequence or allowable working load.

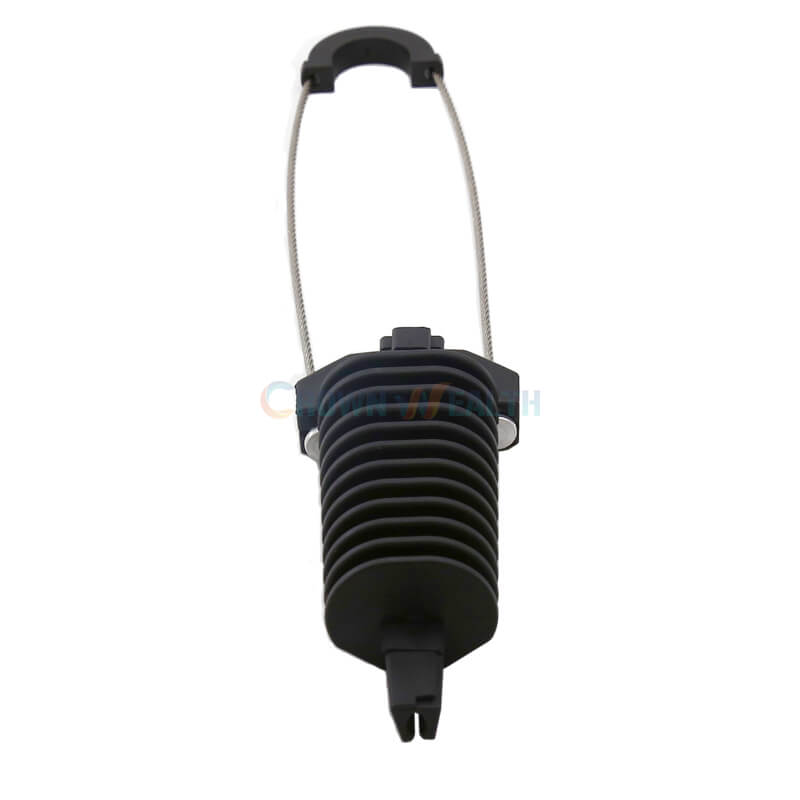

CW-PA300 anchor clamp for round cables

Source Your Clamps from Hbcrownwealth

Hbcrownwealth is a manufacturer, supplier and wholesaler of aerial cable hardware. You can request CW-PA300 pricing for your project or wholesale requirements using the model and cable specifications shown here.

For special requirements, include your drawings and acceptance criteria in your inquiry. Confirm available options, inspection documents, minimum order quantity and delivery timing before placing your order.

Frequently Asked Questions

What cable diameter does the CW-PA300 fit?

The CW-PA300 fits round cables with a diameter of 4–8 mm. You should also confirm the cable construction and sheath compatibility before selecting it for your network.

What is the breaking load?

The listed breaking load is 2.5 kN. This is not a stated working-load limit, so your project engineer must determine the allowable installation and service loads.

Can you use it for a 100 m span?

The published application includes access-network spans up to 100 m. Nevertheless, you need to confirm suitability for your cable, route and loading conditions before using that span.

Do you need special tools to install the clamp?

No specific tools are required for the clamp’s published installation design. The wedge pair grips the cable automatically; however, you still need to follow the approved procedures for your complete cable installation.

Can you use it with flat or figure-8 cable?

This model is specified for round cables. If you use flat or figure-8 cable, ask for a clamp matched to that profile instead of assuming the same diameter range makes it suitable.

What should you send for a quotation?

Send the CW-PA300 model number, cable diameter, cable datasheet and required quantity. Also include your span, attachment arrangement and delivery destination so your inquiry covers the key selection and supply requirements.

Request Your CW-PA300 Quotation

Ready to source an anchor clamp for round cables? Contact Hbcrownwealth with your cable details and order quantity. If you have a project drawing or specific inspection requirements, include them with your request.

Parts No. Description Cable Diameter/mm Breaking Load/KN
CW-PA300 Anchor Clamp for Round Cables 4-8 2.5

Anchor Clamp for Round Cables: CW-PA300

The CW-PA300 anchor clamp for round cables helps you dead-end 4–8 mm fiber optic cables on aerial access networks. A pair of wedges grips your cable automatically inside a conical body. As a result, you can secure a compatible cable without specific installation tools.

Product Specifications

CW-PA300 specifications
Model CW-PA300
Product type Anchor clamp for round cables
Cable diameter 4–8 mm
Breaking load 2.5 kN
Gripping mechanism Pair of wedges within a conical body
Application Dead-ending fiber optic cables on access networks
Published span guidance Up to 100 m, subject to your cable and project requirements

Use the breaking-load figure for specification comparison. It does not establish your allowable working tension. Before selection, confirm the cable construction, installation loads and required safety factors with your project engineer.

Product Advantages

  • Defined cable range: You can check the 4–8 mm range against your round cable’s outside diameter before requesting a quotation.
  • Automatic wedge grip: The two wedges grip the cable within the conical body, providing the anchoring mechanism for your dead-end connection.
  • No specific installation tools: You can simplify clamp fitting because the published design does not require dedicated tools. However, your overall cable installation may still require equipment and approved procedures.
  • Clear model identification: Specify CW-PA300 in your purchasing documents so you can distinguish it from clamps for other cable profiles and diameters.

Applications and Cable Selection

Use this model for compatible round fiber optic cables at dead-end points in aerial access networks. First, check your cable diameter. Then confirm its sheath, construction and permitted installation tension; diameter alone does not prove compatibility.

The published application covers spans up to 100 m. However, you should confirm the actual span against your cable data and site conditions before ordering. Do not treat this figure as a guarantee for every route.

If your cable has a different profile or falls outside the specified range, compare our anchoring clamp range before choosing a model.

Installation Planning

The CW-PA300 uses two wedges to grip the cable automatically inside its conical body. Before your team starts installation, confirm the following:

  1. Your round cable measures 4–8 mm and is compatible with the clamp.
  2. Your attachment hardware and support point suit the proposed connection.
  3. Your project instructions define cable tension, span and installation checks.

Request the applicable installation instructions for your cable and support arrangement. Follow those instructions for assembly and tensioning; the specifications above do not define an installation sequence or allowable working load.

CW-PA300 anchor clamp for round cables

Source Your Clamps from Hbcrownwealth

Hbcrownwealth is a manufacturer, supplier and wholesaler of aerial cable hardware. You can request CW-PA300 pricing for your project or wholesale requirements using the model and cable specifications shown here.

For special requirements, include your drawings and acceptance criteria in your inquiry. Confirm available options, inspection documents, minimum order quantity and delivery timing before placing your order.

Frequently Asked Questions

What cable diameter does the CW-PA300 fit?

The CW-PA300 fits round cables with a diameter of 4–8 mm. You should also confirm the cable construction and sheath compatibility before selecting it for your network.

What is the breaking load?

The listed breaking load is 2.5 kN. This is not a stated working-load limit, so your project engineer must determine the allowable installation and service loads.

Can you use it for a 100 m span?

The published application includes access-network spans up to 100 m. Nevertheless, you need to confirm suitability for your cable, route and loading conditions before using that span.

Do you need special tools to install the clamp?

No specific tools are required for the clamp’s published installation design. The wedge pair grips the cable automatically; however, you still need to follow the approved procedures for your complete cable installation.

Can you use it with flat or figure-8 cable?

This model is specified for round cables. If you use flat or figure-8 cable, ask for a clamp matched to that profile instead of assuming the same diameter range makes it suitable.

What should you send for a quotation?

Send the CW-PA300 model number, cable diameter, cable datasheet and required quantity. Also include your span, attachment arrangement and delivery destination so your inquiry covers the key selection and supply requirements.

Request Your CW-PA300 Quotation

Ready to source an anchor clamp for round cables? Contact Hbcrownwealth with your cable details and order quantity. If you have a project drawing or specific inspection requirements, include them with your request.

Parts No. Description Cable Diameter/mm Breaking Load/KN
CW-PA300 Anchor Clamp for Round Cables 4-8 2.5
