CW-PA2000 Anchor Clamp for ABC Cable, 70–150 mm²

CW-PA2000 Anchor Clamp for ABC Cable, 70–150 mm²

Select the CW-PA2000 anchor clamp for ABC cable when your low-voltage aerial bundled cable system uses an insulated neutral messenger. This ABC version has a listed cross-section range of 70–150 mm² and a 15 kN breaking load.

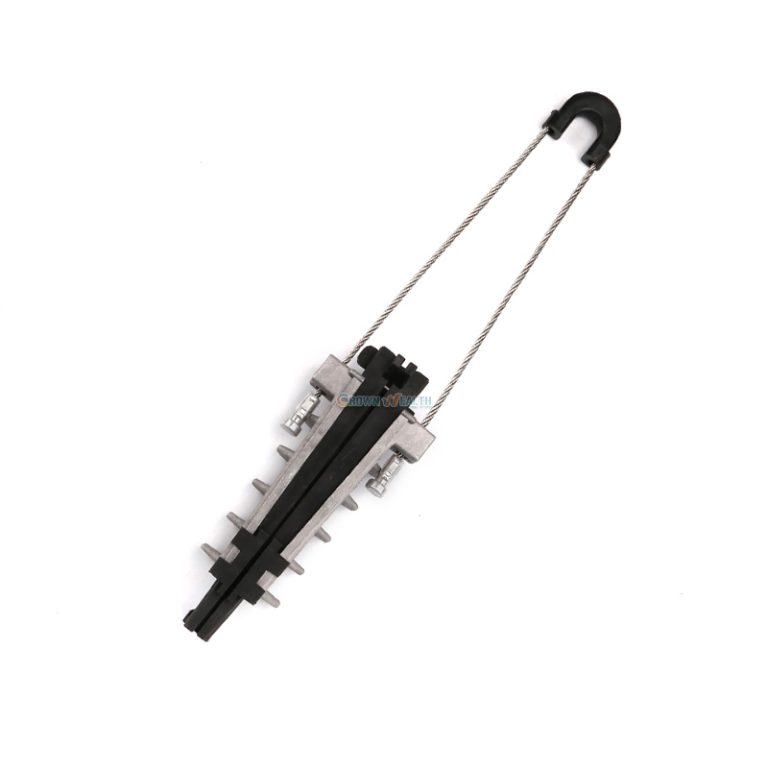

You get a cast aluminum alloy body, UV- and weather-resistant engineering-plastic wedges and a flexible stainless steel bail. Pair the clamp with compatible pole or wall hardware. You can also request separate brackets or an agreed factory-assembled set from Hbcrownwealth.

Product Specifications

The cross-section range does not describe the insulated outside diameter. Send your messenger datasheet and dimensions so we can confirm that the wedges fit your cable.

Also, distinguish breaking load from service load. The 15 kN figure does not set your allowable working load or installation tension; confirm these values for the cable, clamp, bracket and support together.

PA2000 and PA1500 ABC Model Comparison

Compare the listed specifications below when you prepare your cable hardware schedule:

PA2000 covers a larger cross-section range, but both listed breaking loads are 15 kN. At 70 mm², the ranges meet. Therefore, send the insulated messenger diameter and cable construction for selection confirmation rather than choosing by the model number alone.

Product Advantages

• 70–150 mm² selection range: You can assess this model for messenger sections above the PA1500 ABC range, subject to grip compatibility.
• Cast aluminum body: The metal housing supports the wedge assembly in your selected anchoring arrangement.
• Outdoor gripping components: UV- and weather-resistant engineering plastic suits outdoor cable hardware applications when correctly matched to the insulation.
• Flexible stainless steel bail: The corrosion-resistant wire rope connects your clamp to compatible support hardware.
• Captive components: Retained parts help you handle and position the clamp during installation.
• Coordinated bracket supply: Order the clamp alone, separate compatible brackets or factory assembly as agreed.

Applications and Installation Planning

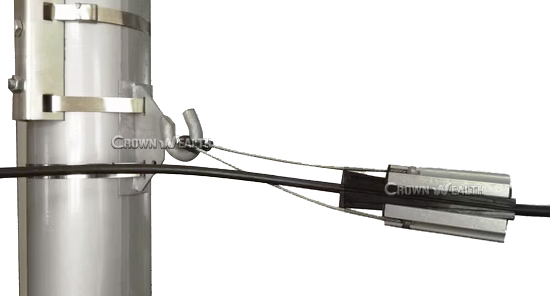

Use this PA2000 ABC anchor clamp at tension-support or anchoring points in compatible insulated neutral messenger systems. You can plan attachments on wooden or other utility poles and facility walls with suitable supporting hardware.

This model grips the insulated messenger. If your design anchors all four conductors together, request a clamp for that configuration instead. Likewise, identify the ABC version in your inquiry because the PA2000 name also appears on an ADSS optical cable product.

Before installation, confirm these points:

1. Check the messenger cross-section, insulated outside diameter and insulation compatibility.
2. Confirm the required service load, route span and line angle.
3. Match the bail and bracket to your support drawing and attachment requirements.
4. Follow the supplied instructions for wedge seating, connection and controlled cable tensioning.

For angle or multiple-clamp arrangements, request a reviewed assembly layout. Use the approved limits for your ABC project rather than applying span or angle figures from a different cable system.

Source Your Clamps from Hbcrownwealth

Hbcrownwealth is a professional manufacturer, supplier and wholesaler of aerial cable hardware in China. As an anchoring clamp manufacturer, we help you coordinate ABC cable clamps and compatible supporting hardware for overhead power projects.

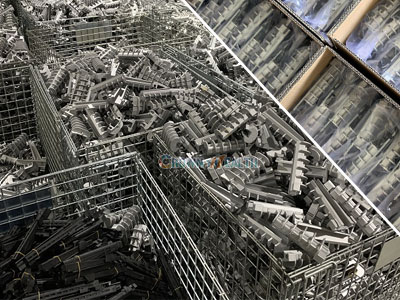

• Efficient production: Provide your quantities and purchasing schedule so we can confirm the supply plan.
• Strict quality control: Include your acceptance criteria and inspection documentation requirements in the quotation.
• OEM/ODM support: Submit drawings and customization requirements for feasibility review.
• Fast, reliable logistics: Share your delivery destination and target date for shipment planning and confirmation.
• 24-hour one-to-one service: Discuss messenger compatibility, bracket supply and order coordination with your dedicated contact.

Frequently Asked Questions

What cable range does the PA2000 ABC anchor clamp cover?

The listed range is 70–150 mm². Confirm your insulated neutral messenger construction and outside diameter as well, because cross-section alone does not establish grip compatibility.

How does it differ from the PA1500 ABC model?

PA2000 lists 70–150 mm², while PA1500 lists 50–70 mm². Both have a 15 kN breaking load. At 70 mm², request selection confirmation using your cable datasheet.

Is 15 kN the working load?

No. It is the breaking load. Confirm the allowable working load and installation tension for the complete cable and supporting assembly separately.

Can you use this product in place of the PA2000 ADSS clamp?

Do not assume interchangeability. This page covers the cast-aluminum ABC model for an insulated neutral messenger, while the ADSS product serves a different cable application.

Can you order a matching bracket or assembled set?

Yes. Clamps and compatible brackets can be supplied separately or factory-assembled as agreed. Send the support drawing and specify the components you need.

Can you request customization or test documents?

Yes. Include your OEM/ODM requirements, drawings and required test documentation with your inquiry. We will confirm feasible options and available documents for the selected configuration.

Request Your PA2000 ABC Clamp Quotation

Contact Hbcrownwealth with your messenger datasheet, cross-section, insulated diameter, quantity and delivery destination. Also include your service loads, span, line angle and bracket requirements.

For smaller listed cross-sections, review the PA1500 anchor clamp for ABC cable. For other configurations, explore our anchoring clamp range and confirm the appropriate model for your cable system.

CW-PA2000 ABC Cable Clamp Parameters

Selection note: 70–150 mm² is the listed conductor cross-sectional range, not the insulated outside diameter. Provide your neutral messenger datasheet and insulated diameter for grip confirmation.

Load note: 15 kN is the breaking load. It does not define the allowable working load or installation tension of your complete system.

Order Details

Specify the ABC cable version, cable construction, messenger cross-section and insulated diameter, service load, quantity and bracket requirements. Include your route span, line angle and support drawing so we can review the attachment arrangement.
