CW-PA2000 ADSS Tension Clamp for 10–15 mm Cable

CW-PA2000 ADSS Tension Clamp for 10–15 mm Cable

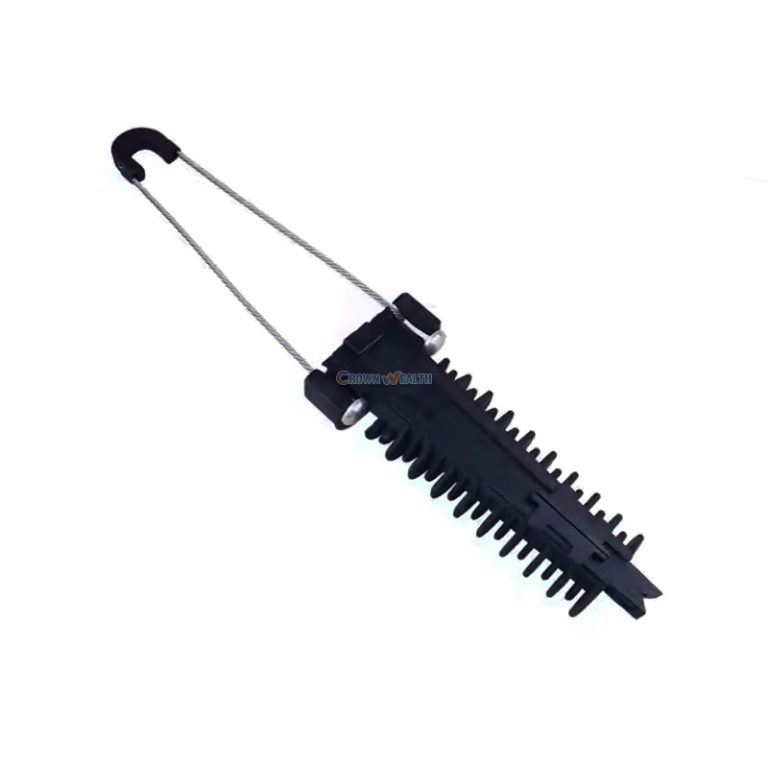

Choose the CW-PA2000 ADSS tension clamp to anchor your round all-dielectric self-supporting fiber optic cable on aerial network routes. This wedge-type clamp fits 10–15 mm cable and has a 15 kN breaking load. It combines a weather- and UV-resistant plastic body, extended nylon wedges and a stainless steel wire-rope bail.

The removable, adjustable bail connects your clamp to compatible pole line hardware. In addition, retained parts and tool-free clamp assembly help simplify handling during installation. Match the clamp to your cable construction and support arrangement before ordering.

Product Specifications

Load selection: 15 kN is the breaking load, not the working load or installation tension. Use the approved service limits for your cable, clamp and supporting hardware.

Product Advantages

• Extended nylon wedges: The longer grip design helps protect your cable during anchoring when you select and install the clamp correctly.
• Stainless steel bail: The wire rope provides the connection to your compatible support hardware.
• Removable and adjustable connection: You can arrange the bail for the selected attachment. Check the opening, dimensions and load capacity of your hardware first.
• Retained components: Anti-drop parts help you keep the clamp components together while handling the assembly.
• Tool-free clamp assembly: You can assemble the clamp without tools. However, cable tensioning and bracket installation may still require equipment specified for your project.
• Outdoor polymer body: Weather and UV resistance support use on aerial telecommunications routes.

Applications and Selection

Use the PA2000 ADSS tension clamp at tensioning and dead-end points on aerial fiber optic networks. You can connect it to suitable pole or wall attachment hardware, subject to compatibility confirmation.

Start with your cable outside diameter: this model covers 10–15 mm. Next, check the sheath construction, required service load and attachment dimensions. Cable diameter alone does not establish compatibility.

The stated span reference is up to 100 m, depending on fiber optic cable configuration. Therefore, send your cable datasheet and route loading requirements before specifying a 100 m span. Do not treat this figure as a universal rating.

Installation Planning

Plan your installation around the approved instructions for the cable and selected clamp configuration:

1. Verify that your cable diameter is within 10–15 mm and confirm sheath compatibility.
2. Check the bracket, support and bail connection against the required service load.
3. Confirm the permitted cable tension and span for your route.
4. Follow the installation instructions for wedge seating, bail closure and controlled tensioning.

Request configuration-specific guidance before installation. Tool-free clamp assembly does not replace your project’s cable tensioning procedure or the cable manufacturer’s limits.

Source Your Clamps from Hbcrownwealth

Hbcrownwealth is a professional manufacturer, supplier and wholesaler of aerial cable hardware in China. As an anchoring clamp manufacturer, we supply products for power and telecommunications overhead systems. For your PA2000 order, we focus on cable fit, specification confirmation and coordinated supply.

• Efficient production: Share your order quantity and procurement schedule so we can confirm production arrangements.
• Strict quality control: Tell us your acceptance criteria and inspection requirements when requesting a quotation.
• OEM/ODM service: Submit your drawings or customization requirements for feasibility review before confirming your order.
• Fast, reliable logistics: Provide your delivery destination and target date so we can plan and confirm shipping arrangements.
• 24-hour one-to-one support: Discuss product selection, quotations and order coordination with your dedicated contact.

Frequently Asked Questions

What cable size does the PA2000 ADSS tension clamp fit?

It fits round ADSS cable with an outside diameter of 10–15 mm. Also send your cable datasheet so we can confirm the sheath and cable construction suit the wedge grip.

Does 15 kN mean the working load?

No. The specified 15 kN is the breaking load. Your allowable working load and installation tension depend on the approved cable and attachment configuration.

Can you install the clamp without tools?

Yes, the clamp supports tool-free assembly. However, your crew may need separate equipment to install support hardware and tension the cable according to the project procedure.

Can you use PA2000 for a 100 m span?

Only if your cable configuration and project requirements support that span. The stated reference is up to 100 m; provide the cable datasheet and loading conditions for confirmation.

What should you compare before replacing another clamp with PA2000?

Compare cable range, grip compatibility, service load and attachment dimensions. A higher breaking load alone does not make the PA2000 interchangeable with another model.

Can you request customized or wholesale supply?

Yes. Hbcrownwealth supports wholesale orders and OEM/ODM inquiries. Send your quantity, drawings and requirements so we can confirm feasible options, pricing and delivery.

Request Your PA2000 Quotation

Contact Hbcrownwealth with your cable diameter, datasheet, quantity, proposed span, service load requirements and delivery destination. Also include bracket details or drawings if you need compatibility review.

You can compare the CW-PA1500 ADSS tension clamp or explore our anchoring clamp range for other cable requirements. Check each model’s specifications before selecting an alternative.

CW-PA2000 Technical Parameters

Breaking load is not working load: The 15 kN value does not define your allowable service load or installation tension. Confirm these limits for your cable and complete attachment assembly.

Before You Order

Provide your cable datasheet, outside diameter, proposed span, loading requirements and bracket details. Although your cable may fall within 10–15 mm, its construction and sheath must also suit the wedge grip. Confirm the permitted span for your specific configuration.
