CW-PA1500 ADSS Tension Clamp, 6–20 mm Series

CW-PA1500 ADSS Tension Clamp for Aerial Fiber Networks

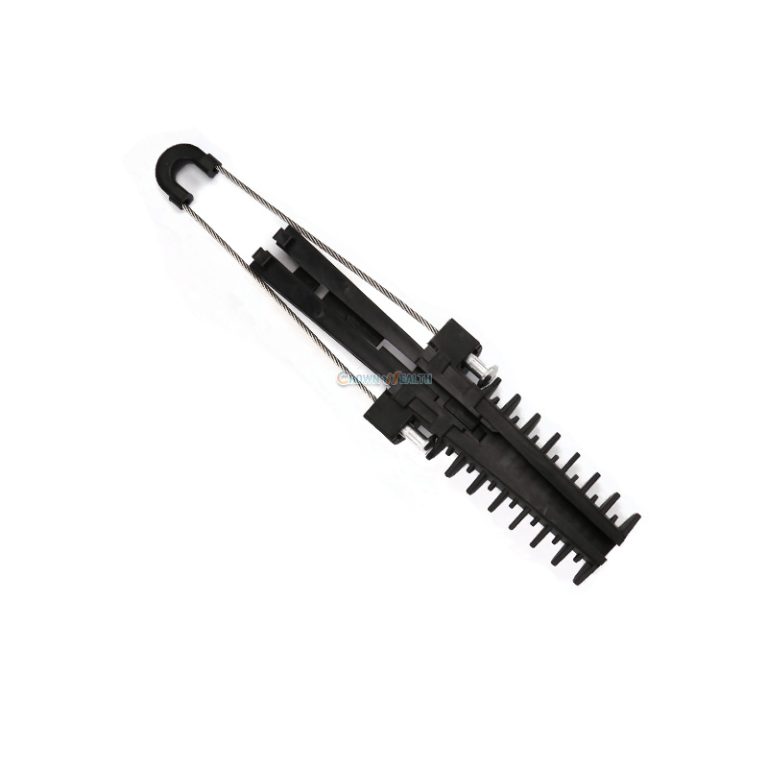

Use the CW-PA1500 ADSS tension clamp to anchor your round all-dielectric self-supporting fiber optic cable on aerial network routes. Its wedge design grips the cable, while a removable, adjustable wire-rope bail connects the assembly to compatible support hardware.

You can choose from six cable diameter options covering 6–20 mm. Each option combines UV-protected thermoplastic components with a stainless steel bail and a 6 kN breaking load. Before ordering, match the option to your cable datasheet and route requirements.

Product Specifications

The 6 kN value is a breaking load. It does not specify your allowable working load or installation tension. Confirm these limits for the complete cable and attachment arrangement.

Product Advantages

• Six diameter options: You can select a grip range that matches your cable, rather than treating the full 6–20 mm series as one universal size.

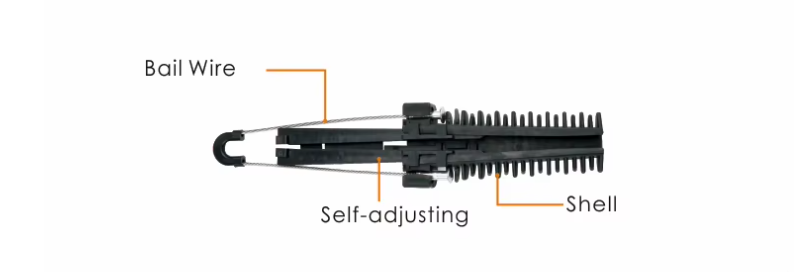

• UV-protected thermoplastic: The body, wedges and thimble use this material for outdoor aerial applications.
• Stainless steel bail: The wire-rope connection links your clamp to compatible attachment hardware.
• Removable, adjustable connection: The bail design helps you arrange the connection to your selected support.
• Wedge-type grip: The clamp provides an anchoring point for compatible round ADSS cable.

Applications and Cable Selection

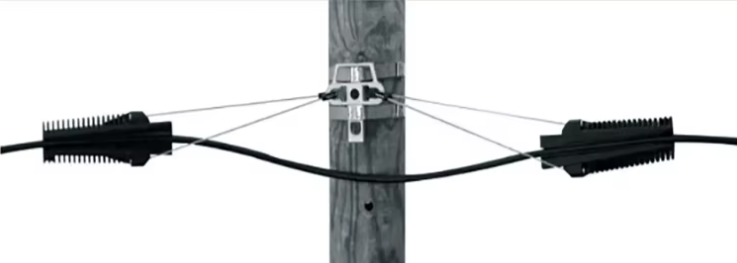

Choose this clamp for ADSS cable tensioning and dead-end points on aerial telecommunications routes. You can plan pole or wall attachments with compatible brackets and connecting hardware. However, confirm the complete assembly for your installation before ordering.

The stated span is up to 100 m, depending on the fiber optic cable configuration. Your cable characteristics, route loads and attachment arrangement determine whether a proposed span is suitable. Therefore, do not use 100 m as an unconditional rating for every cable.

Some diameter options overlap. For example, a 9 mm cable falls within both the 6–10 mm and 8–12 mm ranges. Send your cable datasheet so we can review the correct option for its construction and service conditions.

Installation Planning

Before your crew installs the clamp, confirm these points with the project specification and the applicable installation instructions:

1. Check your cable outside diameter, sheath construction and allowable tension.
2. Confirm the selected clamp option and the permitted span and service load.
3. Check that your bracket, connection and support suit the complete assembly.
4. Follow the approved procedure for seating the wedges, securing the bail and applying cable tension.

Request the installation instructions for your selected configuration. Do not infer a tightening torque, tension setting or release procedure from the breaking load.

Source Your Clamps from Hbcrownwealth

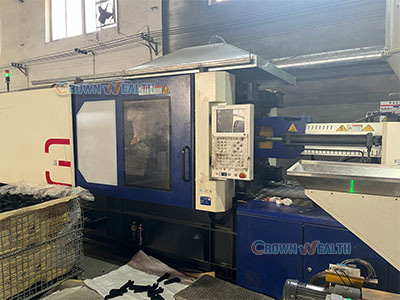

Hbcrownwealth is a professional manufacturer, supplier and wholesaler of aerial cable hardware in China. As an anchoring clamp manufacturer, we help you source CW-PA1500 clamps for telecommunications projects and wholesale supply.

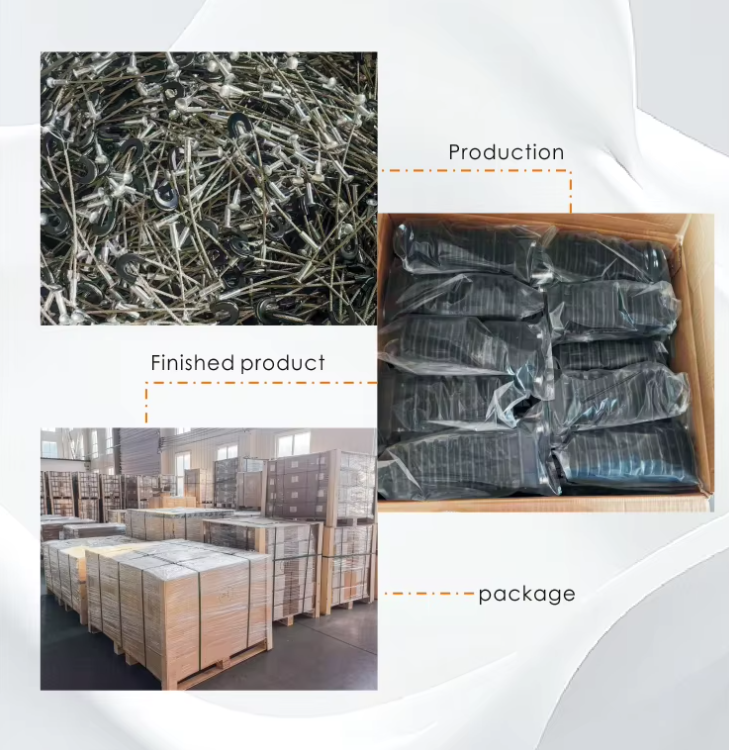

• Efficient production: Share your quantities and delivery plan so we can coordinate your supply requirements.
• Strict quality control: Specify your acceptance criteria and inspection requirements during the quotation stage.
• OEM/ODM support: Send your drawings and project requirements for feasibility review and confirmation of available customization.
• Fast, reliable logistics: Provide your destination and required delivery date so we can confirm shipment arrangements.
• 24-hour one-to-one service: You can discuss selection, quotations and order coordination with a dedicated contact.

Frequently Asked Questions

Which cable sizes can you use with the PA1500 ADSS tension clamp?

You can choose 6–10, 8–12, 10–14, 12–16, 14–18 or 16–20 mm options. Select the individual range for your cable; one clamp does not automatically cover the entire series.

Is 6 kN the working load?

No. The specified 6 kN is the breaking load. Your allowable working load and installation tension require confirmation for the cable, clamp and supporting hardware.

Can you use this clamp on a 100 m span?

Only after confirming your cable configuration and project conditions. The stated maximum is up to 100 m, so send your cable datasheet, proposed span and loading requirements for review.

What materials does the clamp use?

The body, wedges and thimble use UV-protected thermoplastic, and the bail uses stainless steel. If you need a specific material grade or supporting documentation, include that requirement in your inquiry.

How do you choose between overlapping diameter options?

Choose with reference to your cable datasheet and application requirements. Outside diameter is the starting point; also provide cable construction and the required service load for selection confirmation.

Can you request OEM/ODM supply?

Yes. Hbcrownwealth offers OEM/ODM support. Send your drawings, quantity and requirements so we can confirm feasible changes, pricing and delivery arrangements.

Request Your CW-PA1500 Quotation

Contact Hbcrownwealth with your cable diameter, datasheet, quantity, proposed span, load requirements and delivery destination. If you need a custom configuration, also include your drawings.

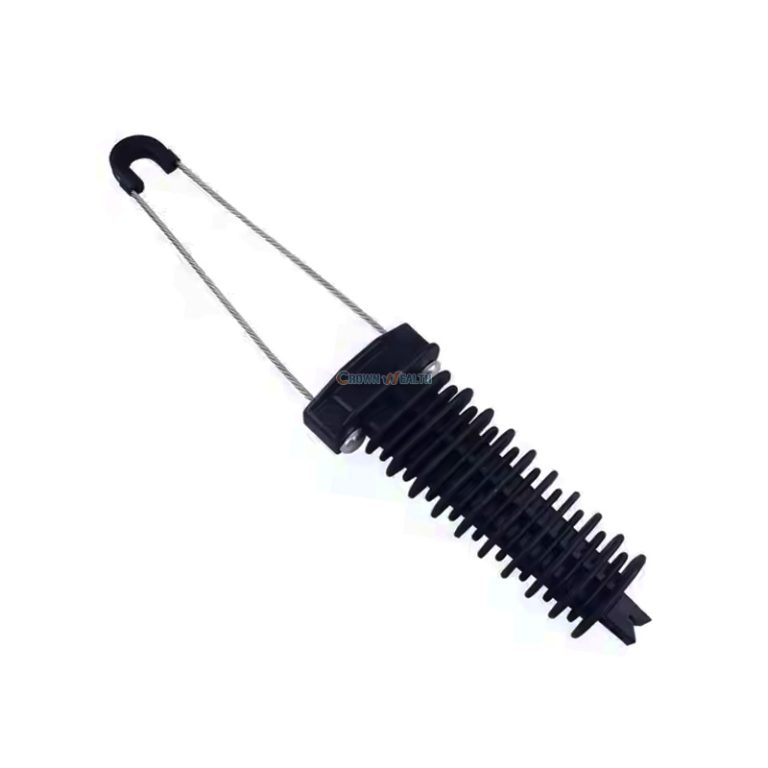

For other options, explore our anchoring clamp range or review the CW-PA2000 ADSS tension clamp. Confirm each model’s specifications before substituting it in your project.

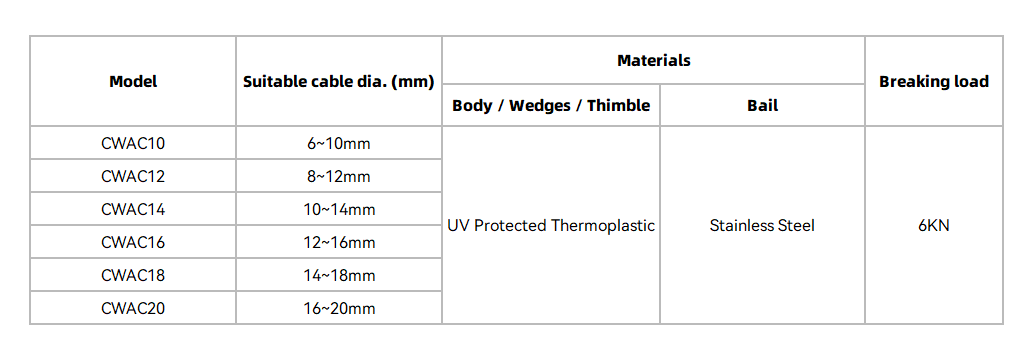

CW-PA1500 Technical Specifications

Select your cable diameter option from the table below. The six options cover 6–20 mm overall; each clamp must match its specified range.

Load terminology: 6 kN is the breaking load, not the working load or installation tension. Confirm the permitted service load for your cable and project.

Selection and Attachment

• Application: tensioning and anchoring round ADSS fiber optic cable on aerial routes.
• Design: wedge-type clamp with a removable, adjustable wire-rope bail.
• Span: up to 100 m, subject to cable configuration and project confirmation.
• Attachment: confirm compatibility with your pole or wall bracket and connecting hardware.

Send your cable datasheet, outside diameter, proposed span and load requirements so we can confirm the appropriate option before you order.
