CW-PA600 Anchor Clamp for ADSS Cable, 6–20 mm Series

Choose the CW-PA600 anchor clamp for ADSS cable to dead-end your round aerial fiber optic cables. Six models cover 6–20 mm cable diameters, each with thermoplastic wedges, a stainless steel bail and a 6 kN breaking load. Match the model to your cable and attachment requirements.

CW-PA600 Anchor Clamp for ADSS Cable, 6–20 mm Series

Choose the CW-PA600 anchor clamp for ADSS cable to dead-end your round aerial fiber optic cables. Six models cover 6–20 mm cable diameters, each with thermoplastic wedges, a stainless steel bail and a 6 kN breaking load. Match the model to your cable and attachment requirements.

Anchor Clamp for ADSS Cable: CW-PA600 Series

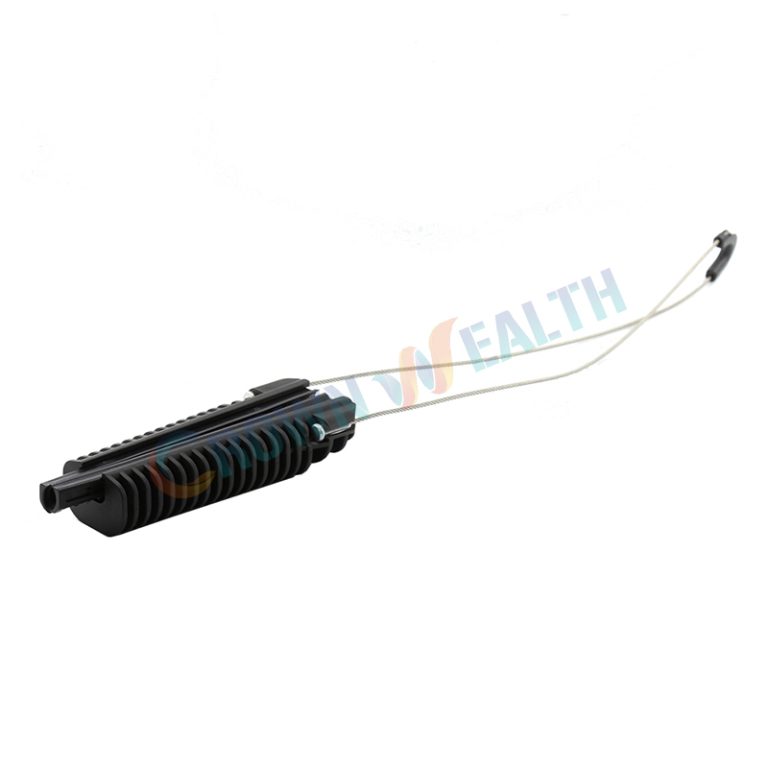

The CW-PA600 anchor clamp for ADSS cable helps you dead-end round aerial fiber optic cables on access networks. You can choose from six sizes covering cable diameters from 6 to 20 mm. Each listed model uses thermoplastic wedges and a stainless steel bail, with a 6 kN breaking load.

Two wedges grip your cable inside an open conical body. In addition, the flexible bail incorporates a thimble for the attachment connection. The retained parts help you avoid losing components during installation.

Product Specifications

Part number Cable diameter Wedge material Bail material Breaking load
CW-600-10 6–10 mm Thermoplastic Stainless steel 6 kN
CW-600-12 8–12 mm Thermoplastic Stainless steel 6 kN
CW-600-14 10–14 mm Thermoplastic Stainless steel 6 kN
CW-600-16 12–16 mm Thermoplastic Stainless steel 6 kN
CW-600-18 14–18 mm Thermoplastic Stainless steel 6 kN
CW-600-20 16–20 mm Thermoplastic Stainless steel 6 kN

Selection note: Choose the part number for your actual cable diameter and construction. The 6 kN breaking load is not a working-load rating. Confirm your allowable loads, attachment hardware and span before ordering.

Product Advantages

  • Six cable ranges: You can match the clamp size to your cable instead of treating one clamp as suitable for the entire 6–20 mm range.
  • Thermoplastic wedge grip: Two wedges form the gripping assembly inside the conical body.
  • Flexible stainless steel bail: You can connect the clamp to compatible pole hardware using the bail and thimble arrangement.
  • Retained components: The parts remain secured together, reducing the risk of loose components during handling.
  • UV-resistant plastic parts: The plastic components provide UV resistance for outdoor applications. Confirm any specific test requirements for your project.

Applications and Model Selection

Use this anchor clamp for ADSS cable dead-ending on compatible cross-arms or pole brackets in aerial access networks. First, check your cable’s outside diameter. Then confirm its sheath, construction and allowable installation tension.

Some model ranges overlap. For example, a 10 mm cable falls within more than one listed range. Therefore, send your cable datasheet so we can confirm the appropriate wedge size for your application.

Confirm the permitted span for your selected model and cable before ordering. Your cable characteristics, route loads and attachment arrangement determine the permitted span.

For other cable profiles, compare our anchoring clamp range before choosing your hardware.

Attachment and Installation Planning

The bail passes through compatible attachment hardware and locks onto the clamp body. Before installation, confirm these points:

  1. Match your cable diameter and construction to the selected part number.
  2. Check the bracket, cross-arm or eye-bolt connection. The published guidance specifies a minimum eye diameter of 15 mm; also verify fit and load capacity.
  3. Confirm the required thimble option and applicable assembly instructions.
  4. Follow your approved cable tensioning and inspection procedure.

The bail allows manual reopening for access to the connection. Before releasing it, follow your approved unloading and installation procedure.

Thimble Options

The series description lists a 4 kV thimble as standard and an 11 kV option. Confirm the supplied configuration and test conditions for your order. These thimble figures do not establish a voltage rating for the complete cable installation.

Source Your Clamps from Hbcrownwealth

Hbcrownwealth is a professional aerial cable hardware manufacturer, supplier and wholesaler in China. As an anchoring clamp manufacturer, wholesaler and supplier, we support your project purchasing and bulk supply requirements.

  • Efficient production: We organize production around your confirmed models and quantities to support efficient order fulfillment.
  • Strict quality control: We apply strict quality control during manufacturing. Share your inspection and acceptance requirements with your inquiry.
  • OEM/ODM service: You can submit drawings and customization requirements. We confirm feasible options before production.
  • Fast, reliable logistics: We coordinate shipping for your destination and order size. Confirm delivery arrangements with your quotation.
  • 24-hour one-to-one service: You can contact us for dedicated assistance with selection, order details and shipment coordination.

Frequently Asked Questions

Which cable diameters does the CW-PA600 series cover?

The six models collectively cover 6–20 mm cables. Choose the specific part number from the table; no single listed model covers that entire range.

What is the breaking load?

Every model in the table has a listed breaking load of 6 kN. This is not an allowable working load, so use your project design and safety factors to determine service limits.

How do you choose between overlapping sizes?

Choose with reference to your cable diameter, sheath and construction. If more than one range includes your cable, send its datasheet for selection confirmation before ordering.

Can you use it on a 100 m span?

You need model-specific confirmation before specifying a 100 m span. Send your cable datasheet and site loading requirements so we can review the proposed span.

What is the difference between the thimble options?

The published options are a standard 4 kV thimble and an available 11 kV thimble. Confirm availability and test conditions for your selected model rather than treating these as complete-system voltage ratings.

Can you request customized supply?

Yes, Hbcrownwealth offers OEM/ODM support. Send your drawings, cable data and quantity so we can confirm feasible options and order requirements.

Request Your CW-PA600 Quotation

Contact Hbcrownwealth with your selected part number, cable datasheet, quantity and delivery destination. Also include your span, attachment drawing and thimble requirements so we can review your application.

CW-PA600 Model Selection and Technical Parameters

Part number Cable diameter Wedge material Bail material Breaking load
CW-600-10 6–10 mm Thermoplastic Stainless steel 6 kN
CW-600-12 8–12 mm Thermoplastic Stainless steel 6 kN
CW-600-14 10–14 mm Thermoplastic Stainless steel 6 kN
CW-600-16 12–16 mm Thermoplastic Stainless steel 6 kN
CW-600-18 14–18 mm Thermoplastic Stainless steel 6 kN
CW-600-20 16–20 mm Thermoplastic Stainless steel 6 kN

Selection note: Choose the part number for your actual cable diameter and construction. The 6 kN breaking load is not a working-load rating. Confirm your allowable loads, attachment hardware and span before ordering.

Attachment and Configuration

  • Gripping design: two wedges in an open conical body.
  • Attachment: flexible bail with thimble; confirm compatibility with your bracket or cross-arm.
  • Published minimum attachment eye diameter: 15 mm; verify fit and load capacity.
  • Plastic parts: UV resistant.
  • Thimble options listed for the series: 4 kV standard; 11 kV available. Confirm configuration and test conditions for your order.
  • Permitted span: confirm for your model, cable and site conditions.
