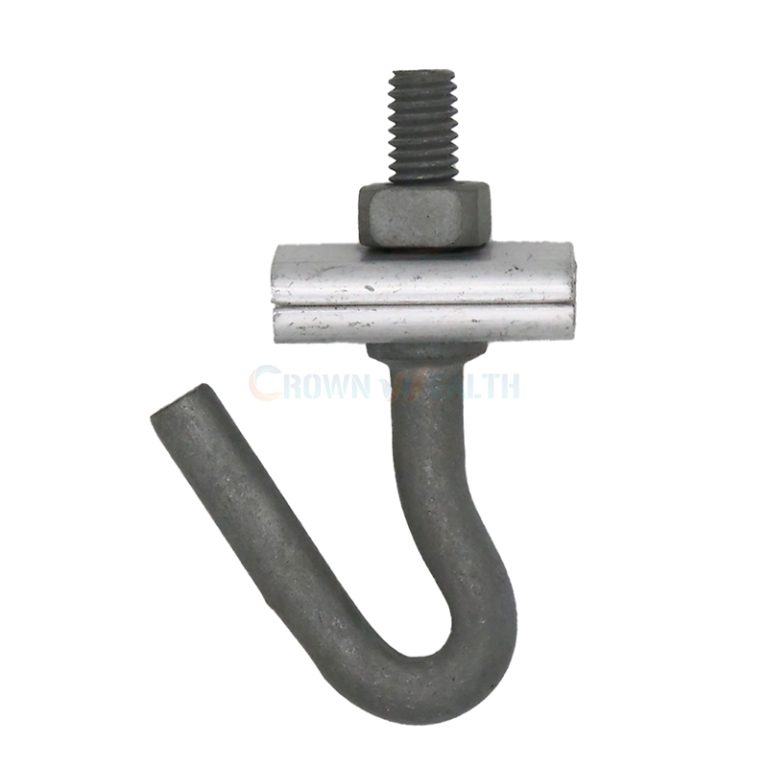

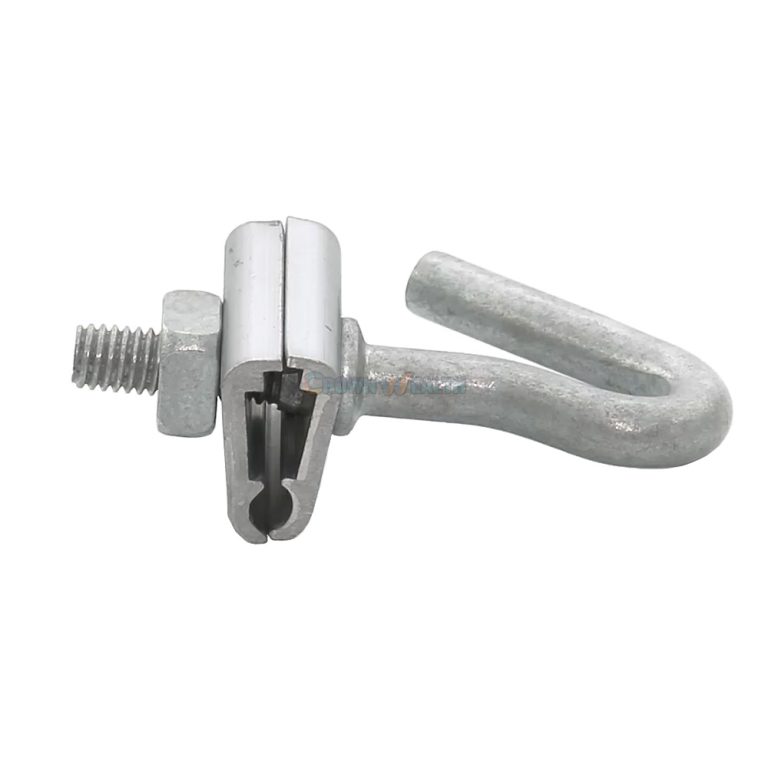

CW-CSC: Span Clamp Type C

The “C” Span Clamp is recognized in the communications industry for its quality and dependability. The clamping plates are made of 1/4” thick, high-grade aluminum alloy to prevent distortion of the plates while being fastened on the messenger strand. The hook is formed with a deep bend and an extended shank to prevent the wire loop of the drop wire clamp or wire grip form disengaging. All Steel parts are corrosion resistant due to the controlled galvanizing process.

CW-CSC: Span Clamp Type C

The “C” Span Clamp is recognized in the communications industry for its quality and dependability. The clamping plates are made of 1/4” thick, high-grade aluminum alloy to prevent distortion of the plates while being fastened on the messenger strand. The hook is formed with a deep bend and an extended shank to prevent the wire loop of the drop wire clamp or wire grip form disengaging. All Steel parts are corrosion resistant due to the controlled galvanizing process.

Description

C Span Clamp is used in CATV and telephone drop installations to provide drop wire takeoffs along the span and relieve tension on the drop wire at this point; The “C” is also used as a pull to hold cable away from obstacles in the line of aerial construction. This application eliminates the use of tree guards.



Main Features:

● Hook and nut are made of high quality steel.

● Clamping plates are made of high grade aluminum alloy, with a tensile strength of 45,000 P.S.I.

● Tensile strength of the steel hook is 75,000 P.S.I.

● Hook is a full 3/8” body and thread diameter, to eliminate nut stripping and snapping of hook.

● Through controlled galvanizing, threads are sharp and clean, allowing the nut to turn easily.

● Clamping range is 1/4” (6.6M) to 3/8” (10M) messenger strand.

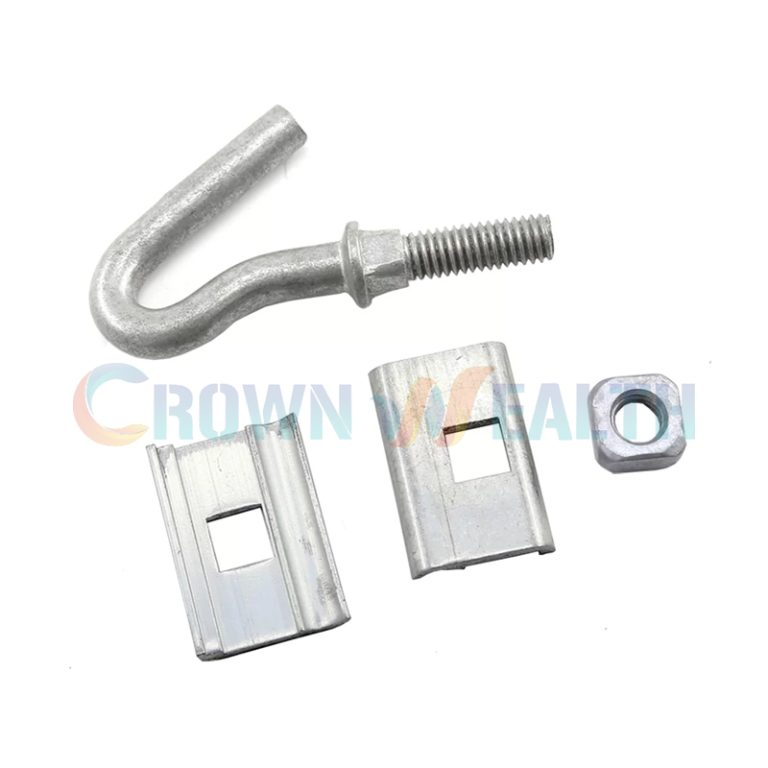

● Clamp is manufactured so the square shank on the stud fits a square hole in the clamping plates to prevent rotation when the nut is tightened.

● Clamp hook will accommodate multiple drops.

● R.E.A. accepted



Parameters

Parts No. Description Material Strand Size
CW-CSC C Span Clamp Galvanized Steel 1/4″-3/8″
Parts No. Description Material Strand Size
CW-CSC C Span Clamp Galvanized Steel 1/4″-3/8″

Description

C Span Clamp is used in CATV and telephone drop installations to provide drop wire takeoffs along the span and relieve tension on the drop wire at this point; The “C” is also used as a pull to hold cable away from obstacles in the line of aerial construction. This application eliminates the use of tree guards.



Main Features:

● Hook and nut are made of high quality steel.

● Clamping plates are made of high grade aluminum alloy, with a tensile strength of 45,000 P.S.I.

● Tensile strength of the steel hook is 75,000 P.S.I.

● Hook is a full 3/8” body and thread diameter, to eliminate nut stripping and snapping of hook.

● Through controlled galvanizing, threads are sharp and clean, allowing the nut to turn easily.

● Clamping range is 1/4” (6.6M) to 3/8” (10M) messenger strand.

● Clamp is manufactured so the square shank on the stud fits a square hole in the clamping plates to prevent rotation when the nut is tightened.

● Clamp hook will accommodate multiple drops.

● R.E.A. accepted



Parameters

Parts No. Description Material Strand Size
CW-CSC C Span Clamp Galvanized Steel 1/4″-3/8″
Parts No. Description Material Strand Size
CW-CSC C Span Clamp Galvanized Steel 1/4″-3/8″
