CW-PCS01: 1/2″ Bell Cable Spacers for Lashing Support

Cable Spacers are used in lashed cable construction providing a separation between cable and strand. The lower concave surface bears against the cable upper concave surface bears against the underside of the strand.

CW-PCS01: 1/2″ Bell Cable Spacers for Lashing Support

Cable Spacers are used in lashed cable construction providing a separation between cable and strand. The lower concave surface bears against the cable upper concave surface bears against the underside of the strand.

Description

Modular cable spacers for coaxial cables. Made of high-density polyethylene, it is weatherable, rain and UV resistant, ensuring its longevity even in harsh weather conditions.

Perfect for coaxial, fiber optic, and all other communication and electrical conducting cables.

Made of high-quality weatherable polyethylene, offering superior resistance to sunlight, moisture, and salt environments.

Used with Lashing Strap

Height: 1/2″

Type: Bell Type

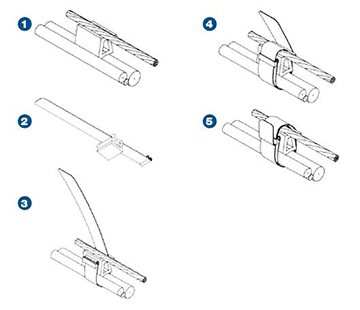

install bell cable spacers

Installation:

  1. Measure the diameter or circumference of the bundle. Use the table to determine strap length.
  2. Thread strap through spacer slot.
  3. Wrap the strap around the bundle (strand, spacer, cables) then through the buckle twice, pulling each wrap tight.
  4. Strap end should be doubled under itself (about 1.5″) before making a final pass through the buckle. Trim off excess.
  5. Bend doubled thickness over the top of the buckle to prevent unraveling.



Note: In cable installation, straps should not be too tight as they may restrict cable movement during contraction and expansion and possibly damage the cable.



Parameters

Parts No. Description Material Height
CW-PCS01 1/2″ Bell Cable Spacers for Lashing Support Polyethylene 1/2″
Parts No. Description Material Height
CW-PCS01 1/2″ Bell Cable Spacers for Lashing Support Polyethylene 1/2″

Description

Modular cable spacers for coaxial cables. Made of high-density polyethylene, it is weatherable, rain and UV resistant, ensuring its longevity even in harsh weather conditions.

Perfect for coaxial, fiber optic, and all other communication and electrical conducting cables.

Made of high-quality weatherable polyethylene, offering superior resistance to sunlight, moisture, and salt environments.

Used with Lashing Strap

Height: 1/2″

Type: Bell Type



install bell cable spacers

Installation:

  1. Measure the diameter or circumference of the bundle. Use the table to determine strap length.
  2. Thread strap through spacer slot.
  3. Wrap the strap around the bundle (strand, spacer, cables) then through the buckle twice, pulling each wrap tight.
  4. Strap end should be doubled under itself (about 1.5″) before making a final pass through the buckle. Trim off excess.
  5. Bend doubled thickness over the top of the buckle to prevent unraveling.



Note: In cable installation, straps should not be too tight as they may restrict cable movement during contraction and expansion and possibly damage the cable.



Parameters

Parts No. Description Material Height
CW-PCS01 1/2″ Bell Cable Spacers for Lashing Support Polyethylene 1/2″
Parts No. Description Material Height
CW-PCS01 1/2″ Bell Cable Spacers for Lashing Support Polyethylene 1/2″
