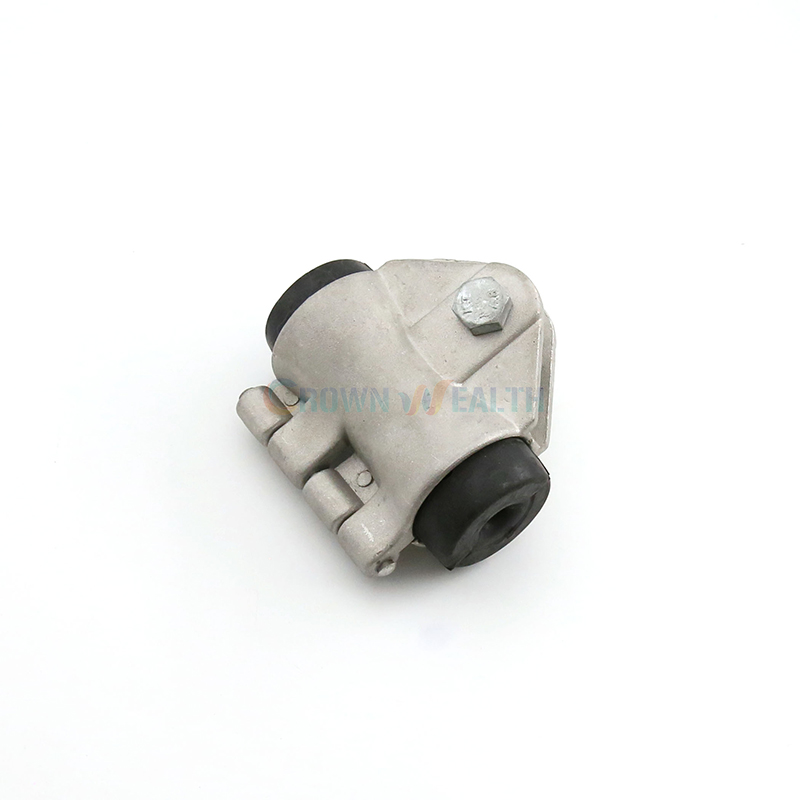

CW-SC: ADSS Aluminum Pre-Insulation Cable Suspension Clamp

Suspension Clamp is composed of high-quality rubber and aluminum composite plate reinforcement. In the use of the tension value, it is necessary to ensure that the ADSS optical cable and the wire do not whip, and the load on the tower is as small.

CW-SC: ADSS Aluminum Pre-Insulation Cable Suspension Clamp

Suspension Clamp is composed of high-quality rubber and aluminum composite plate reinforcement. In the use of the tension value, it is necessary to ensure that the ADSS optical cable and the wire do not whip, and the load on the tower is as small.

Description

1.Rubber clamp: It is composed of high-quality rubber and aluminum composite plate reinforcement, with chemical resistance, ozone resistance, weather resistance, aging resistance, high and low temperature performance, high strength and elasticity, and can withstand less pressure. The compression deformation.

2.Metal sheath: It is made of high-quality high-strength aluminum alloy casting material, which has stable chemical properties, good atmospheric corrosion resistance and good mechanical properties.

3.U-shaped ring, right-angle hanging ring, bolts, nuts, washers: hot-dip galvanized power standard parts. 4. Internal and external protection lines: The suspension line clamp protection line has strong elasticity and toughness. Compared with the ordinary rigid duralumin protection line, it also has excellent anti-aging performance and anti-looseness, so it can be used safely.

Safety Note:

It must be ensured that the extreme contact pressure under the fitting does not exceed the extrusion design limit of the ADSS optical cable. In the use of the tension value, it is necessary to ensure that the ADSS optical cable and the wire do not whip, and the load on the tower is as small as possible to avoid safety problems.

ADSS Aluminum Pre-Insulation Cable Suspension Clamp

Parts No. Latex Pad Weight /kg Failing Load /KN
CW-SC-95 XJ1754 1.28 70
XJ1906
CW-SC-114 XJ21O6 1.7 100
XJ235O
CW-SC-125 XJ254O 1.97 120
XJ27OO
CW-SC-135 XJ2840 2.6 130
XJ3O69

Description

1.Rubber clamp: It is composed of high-quality rubber and aluminum composite plate reinforcement, with chemical resistance, ozone resistance, weather resistance, aging resistance, high and low temperature performance, high strength and elasticity, and can withstand less pressure. The compression deformation.

2.Metal sheath: It is made of high-quality high-strength aluminum alloy casting material, which has stable chemical properties, good atmospheric corrosion resistance and good mechanical properties.

3.U-shaped ring, right-angle hanging ring, bolts, nuts, washers: hot-dip galvanized power standard parts. 4. Internal and external protection lines: The suspension line clamp protection line has strong elasticity and toughness. Compared with the ordinary rigid duralumin protection line, it also has excellent anti-aging performance and anti-looseness, so it can be used safely.

Safety Note:

It must be ensured that the extreme contact pressure under the fitting does not exceed the extrusion design limit of the ADSS optical cable. In the use of the tension value, it is necessary to ensure that the ADSS optical cable and the wire do not whip, and the load on the tower is as small as possible to avoid safety problems.

ADSS Aluminum Pre-Insulation Cable Suspension Clamp

Parts No. Latex Pad Weight /kg Failing Load /KN
CW-SC-95 XJ1754 1.28 70
XJ1906
CW-SC-114 XJ21O6 1.7 100
XJ235O
CW-SC-125 XJ254O 1.97 120
XJ27OO
CW-SC-135 XJ2840 2.6 130
XJ3O69
