CW-DS: Dielectric Plastic Suspension Clamp

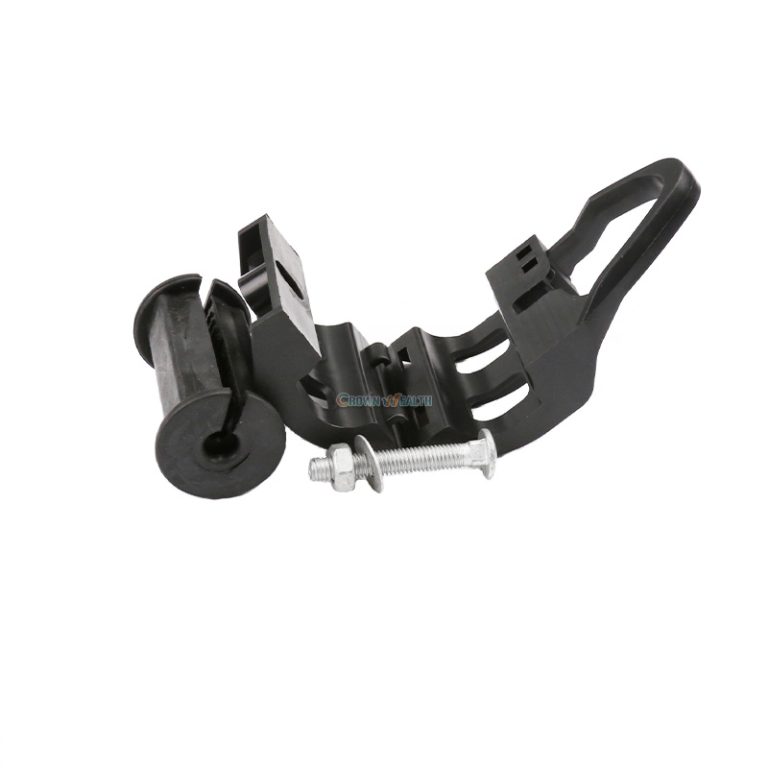

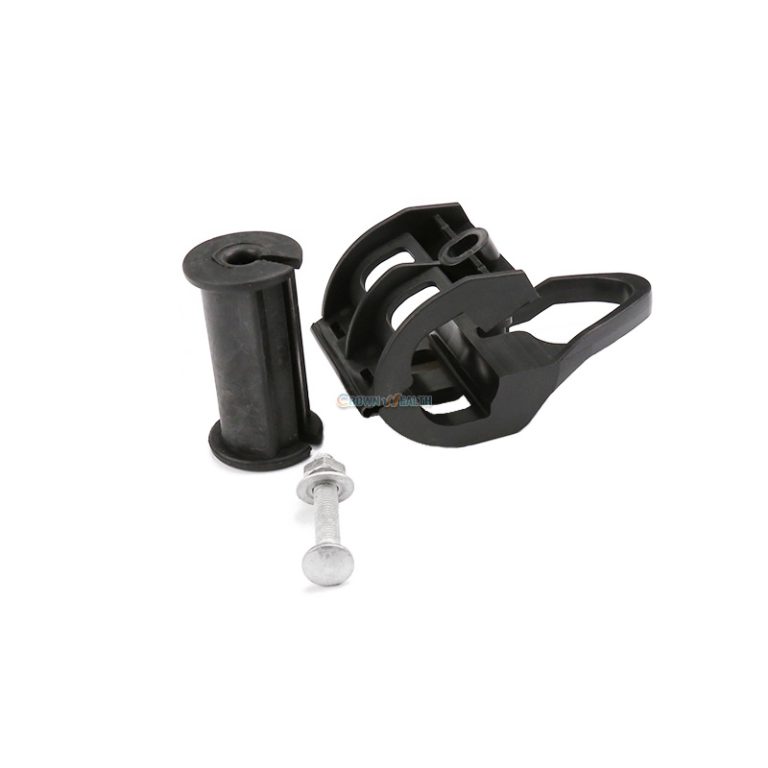

Our suspension clamps included within the CW-DS family are designed with a hinged nylon plastic shell equipped with an elastomer neoprene protective insert and an opening bail. You to secure the clamp body by tightening the integrated bolts.

This mobile hanging clamp can enhance the protection of your overhead cables from wind vibration.

CW-DS: Dielectric Plastic Suspension Clamp

Our suspension clamps included within the CW-DS family are designed with a hinged nylon plastic shell equipped with an elastomer neoprene protective insert and an opening bail. You to secure the clamp body by tightening the integrated bolts.

This mobile hanging clamp can enhance the protection of your overhead cables from wind vibration.

Description

This dielectric suspension clamp is made of thermoplastic nylon plastic with high strength, UV resistance, and reinforced fiber. The manufacturing process is injection molding technology, which is very suitable for outdoor overhead ADSS cables suspension devices.

The ring of the dielectric suspension clamp can be easily installed on the cross arm, banding bracket and FTTH hooks in the Hbcrownwealth product series.

All components of this plastic suspension clamp have passed international standard tests, including +70℃ ~ -40℃ temperature and humidity cycle, traction test, wear test, corrosion resistance test, etc.

Our nylon FTTH drop wire suspension clamp allows you to suspend 5 to 16 mm round or flat cables without damage on intermediate poles of distribution networks with spans up to 70 meters.

Warm Tips: For angles greater than 20°, it is recommended to install a double anchor.

If you want to purchase plastic pendant for ADSS cables, then Hbcrownwealth will be your ideal partner, contact us now to get the best ex-factory price.



Dielectric Suspension Clamp

Dielectric Plastic Suspension Clamp Features

◇ Light weight and compact design

◇ Suitable for all Roundcables from 12 mm to 16mm

◇ Quick installation in seconds, no installation tools required

◇ Mounting on all pole line hardware with closed eye and min. Ø10mm

◇ Provide increased cable protection against wind vibrations



Dielectric Plastic Suspension Clamp Parameters

Parts No. Description Clamp Body Sleeve Insert Bolt Breaking Load
CW-DS Dielectric Plastic Suspension Clamp for ADSS Cables UV Resistant Nylon Plastic Neoprene Hot Galvanized Steel 1.5KN

Description

This dielectric suspension clamp is made of thermoplastic nylon plastic with high strength, UV resistance, and reinforced fiber. The manufacturing process is injection molding technology, which is very suitable for outdoor overhead ADSS cables suspension devices.

The ring of the dielectric suspension clamp can be easily installed on the cross arm, banding bracket and FTTH hooks in the Hbcrownwealth product series.

All components of this plastic suspension clamp have passed international standard tests, including +70℃ ~ -40℃ temperature and humidity cycle, traction test, wear test, corrosion resistance test, etc.

Our nylon FTTH drop wire suspension clamp allows you to suspend 5 to 16 mm round or flat cables without damage on intermediate poles of distribution networks with spans up to 70 meters.

Warm Tips: For angles greater than 20°, it is recommended to install a double anchor.

If you want to purchase plastic pendant for ADSS cables, then Hbcrownwealth will be your ideal partner, contact us now to get the best ex-factory price.



Dielectric Suspension Clamp

Dielectric Plastic Suspension Clamp Features

◇ Light weight and compact design

◇ Suitable for all Roundcables from 12 mm to 16mm

◇ Quick installation in seconds, no installation tools required

◇ Mounting on all pole line hardware with closed eye and min. Ø10mm

◇ Provide increased cable protection against wind vibrations



Dielectric Plastic Suspension Clamp Parameters

Parts No. Description Clamp Body Sleeve Insert Bolt Breaking Load
CW-DS Dielectric Plastic Suspension Clamp for ADSS Cables UV Resistant Nylon Plastic Neoprene Hot Galvanized Steel 1.5KN
