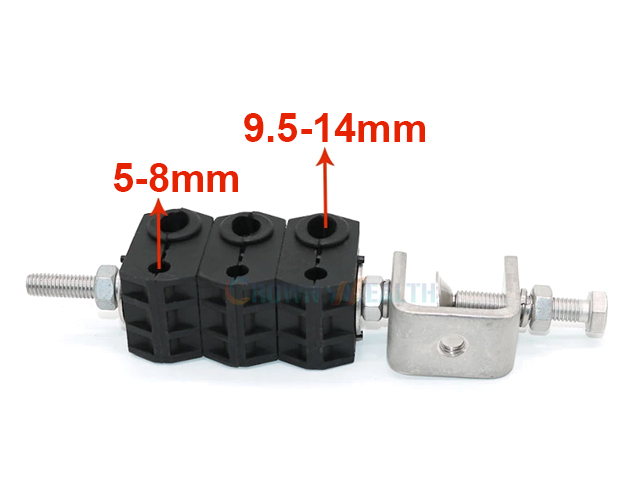

CW-FFC: Fiber Feeder Cable Clamp

Fiber feeder cable clamp is the main part of whole antenna feeder accessories, used to fix rru cable 5-8mm and power cable diameter range from 9.5-14mm.

CW-FFC: Fiber Feeder Cable Clamp

Fiber feeder cable clamp is the main part of whole antenna feeder accessories, used to fix rru cable 5-8mm and power cable diameter range from 9.5-14mm.

Description

Fiber feeder cable clamp is the main part of whole antenna feeder accessories, used to fix rru cable 5-8mm and power cable diameter range from 9.5-14mm. Each unit of the plastic hanger holds one run of 5-8mm rru cable and one run of power cable. We provide single stack, double stack and triple stack for different installation options.

The metallic parts of fiber feeder cable clamp are made from 304 stainless steel and the plastic parts are made from improved polypropylene (PP). The improved PP is to improve the properties of flame retardancy, heat resistance, temperature resistance, dimensional stability and rigidity.

The rubber inserts inside the cable clip are made from EPDM rubber, which has excellent UV resistance, weather resistance and heat resistance. The rubber inserts are pre-attached to each half of hanger, installers don’t need to waste any time in taking out rubber, just place cable inside the hanger, which is more convenient & time saving during the procedure of installation.

Fiber Feeder Cable Clamp

Parts No. Description Material Cable Range
CW-FFC Fiber Feeder Cable Clamp Stainless Steel+ Epdm Rubber 5-8 mm & 9.5-14 mm

Description

Fiber feeder cable clamp is the main part of whole antenna feeder accessories, used to fix rru cable 5-8mm and power cable diameter range from 9.5-14mm. Each unit of the plastic hanger holds one run of 5-8mm rru cable and one run of power cable. We provide single stack, double stack and triple stack for different installation options.

The metallic parts of fiber feeder cable clamp are made from 304 stainless steel and the plastic parts are made from improved polypropylene (PP). The improved PP is to improve the properties of flame retardancy, heat resistance, temperature resistance, dimensional stability and rigidity.

The rubber inserts inside the cable clip are made from EPDM rubber, which has excellent UV resistance, weather resistance and heat resistance. The rubber inserts are pre-attached to each half of hanger, installers don’t need to waste any time in taking out rubber, just place cable inside the hanger, which is more convenient & time saving during the procedure of installation.

Fiber Feeder Cable Clamp

Parts No. Description Material Cable Range
CW-FFC Fiber Feeder Cable Clamp Stainless Steel+ Epdm Rubber 5-8 mm & 9.5-14 mm
