A No-Wrench Screw Anchor is a ground anchoring device used to secure guy wires and stabilize utility poles. The anchor features a helical plate welded to a steel rod, allowing it to screw directly into the ground.
Unlike traditional anchors that require special wrenching tools, the no-wrench design allows for easier installation using standard anchor rods and drive tools.
The upper eye section connects directly with guy wire assemblies and utility fittings, helping you create a secure and reliable anchoring system.
A No-Wrench Screw Anchor is a ground anchoring device used to secure guy wires and stabilize utility poles. The anchor features a helical plate welded to a steel rod, allowing it to screw directly into the ground.
Unlike traditional anchors that require special wrenching tools, the no-wrench design allows for easier installation using standard anchor rods and drive tools.
The upper eye section connects directly with guy wire assemblies and utility fittings, helping you create a secure and reliable anchoring system.

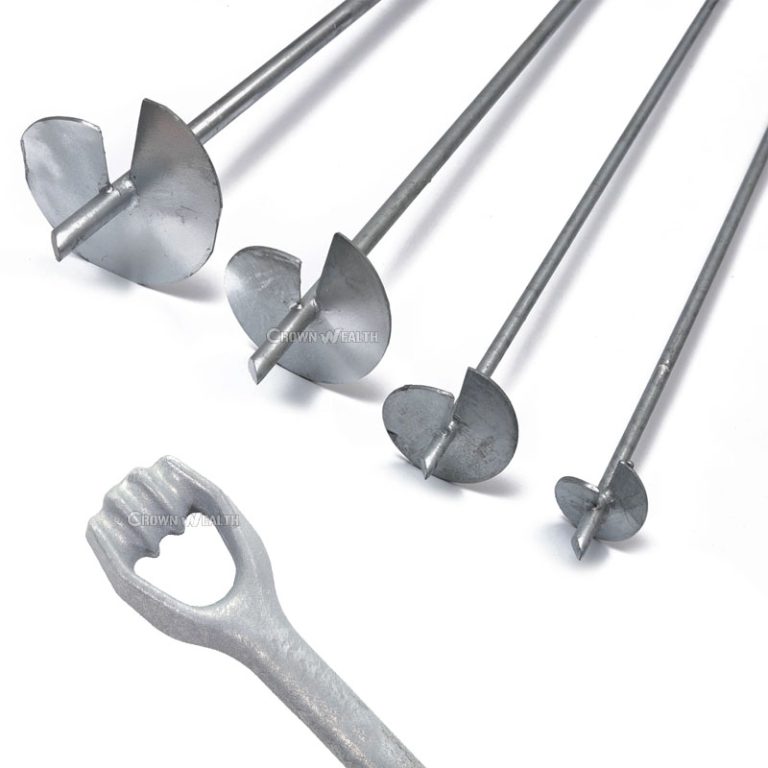

The No-Wrench Screw Anchor is a helical ground anchor designed to create a stable anchoring point for guy wires used in utility pole and overhead line systems.
It combines a solid steel rod, welded helical plate, pointed lower end, and upper eye connection in one compact assembly. During installation, the helix rotates into the soil and transfers guy wire loads into the surrounding ground.
Hbcrownwealth supplies galvanized no-wrench screw anchors for power distribution, telecom construction, utility pole guying, and infrastructure projects. You can choose standard sizes or send us your drawing and technical requirements for OEM production.
A no-wrench screw anchor is a type of helical ground anchor used to secure guyed utility structures.
Instead of excavating a large foundation, installers rotate the anchor directly into suitable soil. The welded helix advances into the ground as the rod turns, while the upper eye remains accessible for connection with guy wire hardware.
Depending on the anchor design and available equipment, this type of anchor can be installed manually or with suitable powered installation equipment.
The performance of a screw anchor comes from the interaction between the helix and the surrounding soil.
As you rotate the anchor downward, the helical plate cuts into the ground and advances along the rod axis. Once installed to the required depth, the helix provides resistance against the tension transferred from the guy wire.
Therefore, correct anchor selection should consider more than rod diameter alone.
Important factors include:
For critical utility projects, always select the final anchor specification according to the engineering design and required load criteria.

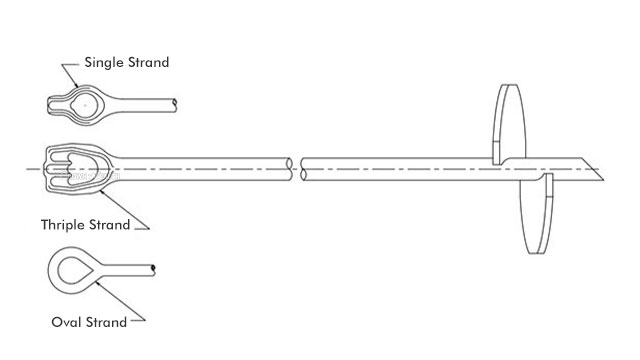

Thimble eye include oval, single and thriple strand
Excellent tensile strength and corrosion resistance
Solid rod that is forged and hot-dip galvanized
Anchors can be installed by simply rotating them into the ground
Thimble eye dimensions is the same as the rod
The final height of the exposed anchor should be 8-12 inches
Accommodates from 6,000# in Class 7 soils to 12,000# in Class 5 soils
Product Name: No-Wrench Screw Anchor
Model: CW-WSA
Material: Steel
Surface Finish: Hot-Dip Galvanized
Rod Diameters: 3/4″, 1″, 1-1/4″
Available Lengths: 54″, 66″, 96″
Eye Options: Single, Multiple-Strand and Oval Eye Configurations
Anchor Type: Single Helix
Typical Application: Utility Pole Guying
Installation: Manual or Suitable Mechanical Installation
OEM: Available according to drawing or project specification
Custom rod length, rod diameter, helix diameter, eye configuration, coating, and packaging can be evaluated according to your order requirements.
Different guying systems may require different connection arrangements.
Therefore, you can select the upper eye according to the guy wire or fitting used in your project.
Suitable for straightforward guy wire attachment where one primary connection point is required.
Provides additional connection positions for compatible guying arrangements and project requirements.
The oval-shaped opening provides an alternative connection geometry for suitable guy wire hardware.
If you are replacing an existing anchor, sending us a drawing or sample is the safest way to confirm the correct eye dimensions.
The anchor provides an underground reaction point for guy wires that help stabilize utility poles.
You can use suitable screw anchors in guying systems for line-end poles, angle poles, and other structures that require additional support.
No-wrench anchors can also be used in suitable aerial telecom and communication infrastructure.
The compact anchor configuration is useful for utility construction projects where traditional large concrete anchoring may not be the preferred solution.
Customized anchor specifications may also be evaluated for selected towers, small structures, and related ground anchoring applications according to engineering requirements.
Choosing the correct anchor requires matching the product to the actual installation environment.
Before requesting a quotation, we recommend providing:
If you already use an existing model, send us the product drawing or sample dimensions. This helps us compare the design more accurately.
A screw anchor should follow the direction required by the guying design and be installed into suitable undisturbed soil.
During installation, the anchor should continue advancing as it rotates. If deeper installation is required to reach stronger soil, the anchoring system and extension method must be suitable for that design.
Final installation depth and angle should follow the project specification and site conditions rather than using one fixed value for every application.
The anchor must maintain reliable geometry because the rod, helix, weld, and eye work together as one load-transfer assembly.

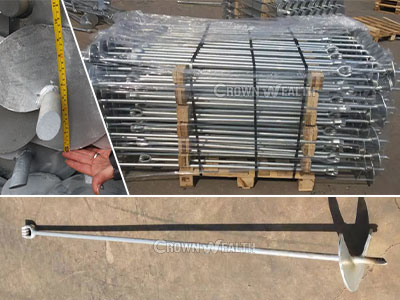

During manufacturing, we can inspect key details such as:
For project orders, you can also provide specific inspection criteria or drawing tolerances before production.
Utility specifications vary between countries, contractors, and power companies.
Therefore, Hbcrownwealth supports customized screw anchor production according to drawings and agreed technical specifications.
You can customize:
Send us your drawing, sample, or existing specification, and we can evaluate the production requirements before quotation.
A ground anchor normally works together with several other pole line components.
You can combine the No-Wrench Screw Anchor with:
Sourcing compatible components together can simplify purchasing and help you manage project hardware more efficiently.
It creates a ground anchoring point for guy wires that support utility poles, telecom poles, and related overhead line structures.
The anchor rotates into suitable soil. Depending on the model, size, site conditions, and available equipment, installation can be performed manually or with suitable mechanical tools.
The CW-WSA range includes 3/4″, 1″, and 1-1/4″ rod diameters with 54″, 66″, and 96″ lengths. Customized sizes can also be evaluated.
Helix selection depends on soil conditions, required load, anchor depth, rod dimensions, and engineering requirements. Send us your project specifications for evaluation.
Yes, hot-dip galvanized versions are available for outdoor applications. Specific coating standards or thickness requirements should be confirmed when ordering.
Yes. We support OEM production based on drawings, samples, and project specifications for bulk and customized orders.
| Parts No. | Description | Material | Type | Dia | Length |
| CW-WSA | No-Wrench Screw Anchor | Galvanized Steel | Single Strand, Thriple Strand, Oval Strand | 3/4″, 1″, 1-1/4″ | 54″, 66″, 96″ |
