Products


CW-PH
: P House Hook

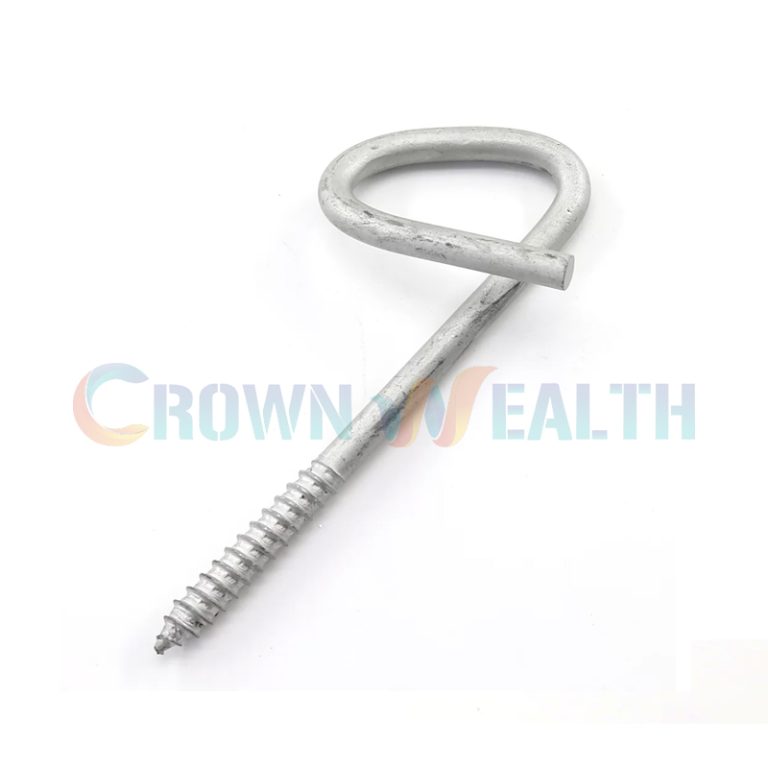

P House Hook wasdesigned to secure CATV drop cable to the side of a subscriber’s house by either accepting the bail of drop wire clamps or by wrapping the support wire of drop cable around the screw eye.


CW-PH
: P House Hook

P House Hook wasdesigned to secure CATV drop cable to the side of a subscriber’s house by either accepting the bail of drop wire clamps or by wrapping the support wire of drop cable around the screw eye.

Description

P House Hook was designed to secure CATV drop cable to the side of a subscriber’s house by either accepting the bail of drop wire clamps or by wrapping the support wire of drop cable around the screw eye.



Main Features:

● Used to support drop wire clamps, dead end clamps, and service drops on utility poles and buildings.

● Manufactured with curved upward “fetter” type thread that can be either wrenched or driven.

● The knurled ring was provided to ensure proper driving depth.

● Support wire of drop cable around the screw eye.

● Formed from AISI 1016 Steel.

● P House Hooks are mechanically galvanized to meet ASTM Specification B695, Class 50, Type 1.

PARTS NO. DESCRIPTION MATERIAL SIZE
CW-PH P House Hook Galvanized Steel 3/16″x3-3/4″
3/16″x4-1/2″
1/4″x4-1/2″
5/16″x5-1/2″

Description

P House Hook was designed to secure CATV drop cable to the side of a subscriber’s house by either accepting the bail of drop wire clamps or by wrapping the support wire of drop cable around the screw eye.



Main Features:

● Used to support drop wire clamps, dead end clamps, and service drops on utility poles and buildings.

● Manufactured with curved upward “fetter” type thread that can be either wrenched or driven.

● The knurled ring was provided to ensure proper driving depth.

● Support wire of drop cable around the screw eye.

● Formed from AISI 1016 Steel.

● P House Hooks are mechanically galvanized to meet ASTM Specification B695, Class 50, Type 1.

PARTS NO. DESCRIPTION MATERIAL SIZE
CW-PH P House Hook Galvanized Steel 3/16″x3-3/4″
3/16″x4-1/2″
1/4″x4-1/2″
5/16″x5-1/2″
