ArabicWhat is a pole band？
The pole band is also called a pole band clamp or pole wire bracket. It is responsible for securing or connecting the other pole line hardware to the utility pole.
The bolts and nuts keep the pole band wrapped tightly around the pole, which gives you more stability when connecting other equipment.
What are the types of pole bands？
There are many people who want to know about the different types and shapes of pole bands. Below, I will highlight their unique features for you.
With this information, you can quickly choose the right pole band for your project.

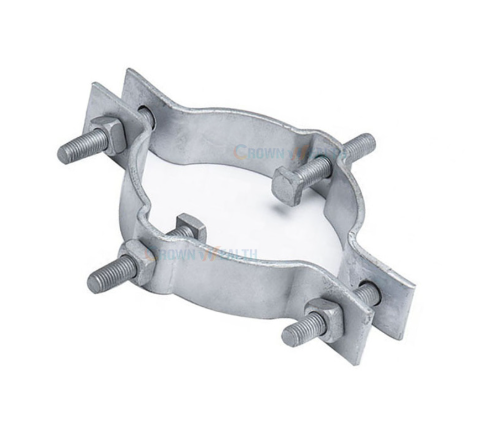

1. Single Offset Pole Band
The single offset pole band is made up of three parts: a long band and two shorter bands. The long band has a hole in the middle and two holes at both ends.
Offset pole bands are mounting secondary racks on utility poles, pipe masts, or pipelines.

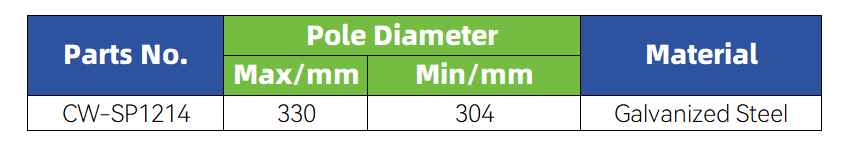

Specifications of Single Offset Pole Band

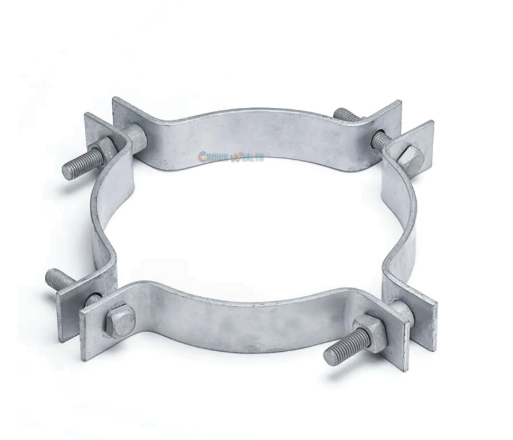

2. Double Offset Pole Band
The Double Offset Pole Band is a galvanized steel band that is used to reinforce a utility pole. It consists of two long bands with a hole in the middle and one hole at each end.

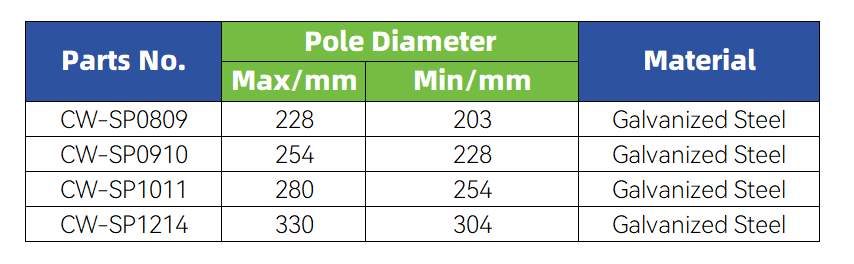

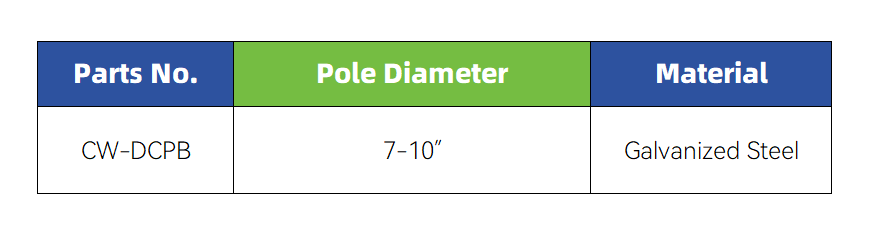

Specifications of Double Offset Pole Band

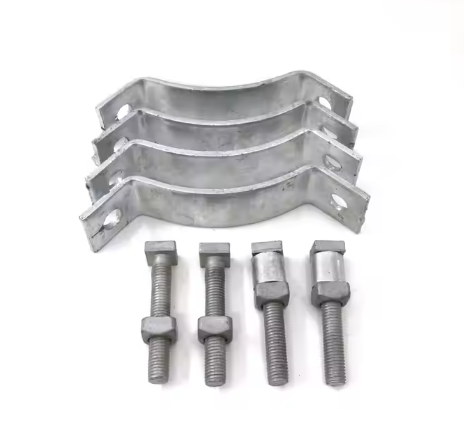

3. Adjustable Pole Band
The adjustable pole band consists of four shorter bands with a hole at each end.Four bands allow for better adjustment of the pole band size to accommodate different types of pole diameters.

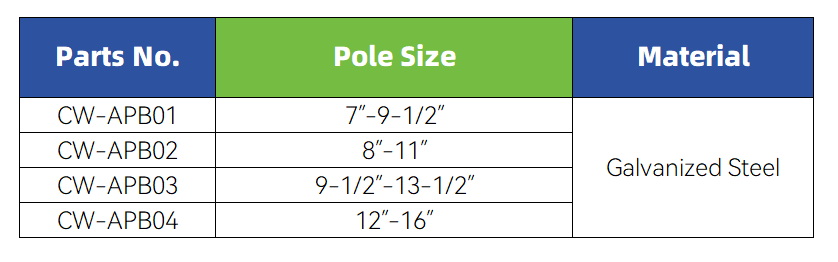

Specifications of Adjustable Pole Bands

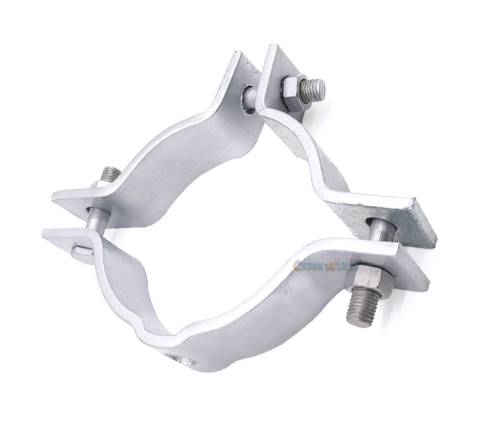

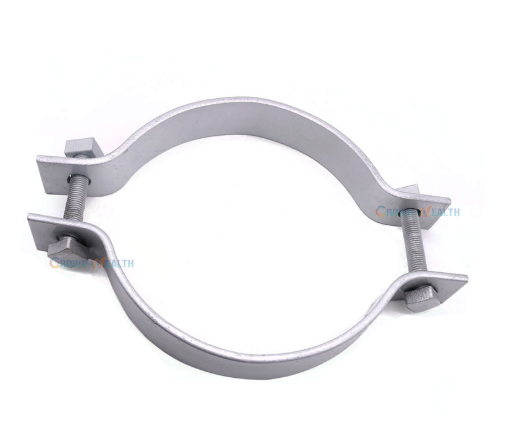

4. Utility Pole Band Clamp
The utility pole band clamp consists of two bands with two holes at each end. Its raw material is galvanized steel, with tensile strength up to 560N/mm².
It can be used to support other accessories or even cables.
Specifications of Utility Pole Band Clamp

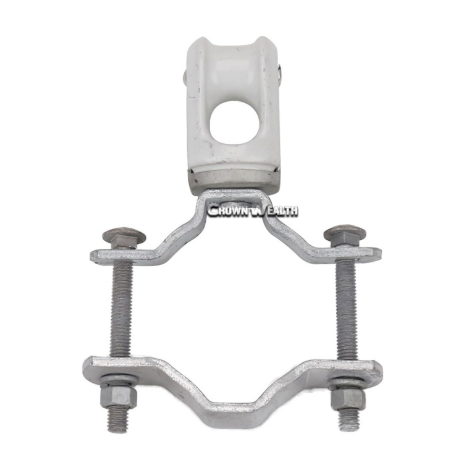

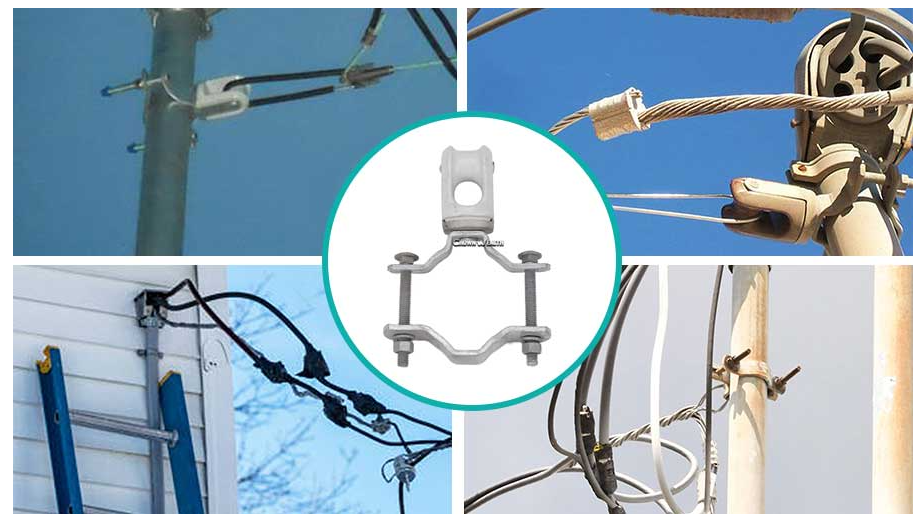

5. Porcelain Wire Holder with Service Mast Mounted
A porcelain wire holder with service mast mounted is a hardware used to support and fix overhead lines. It consists of two heavy-duty bands and an insulator porcelain body holder. Used to connect drop wire clamps or guy grips.

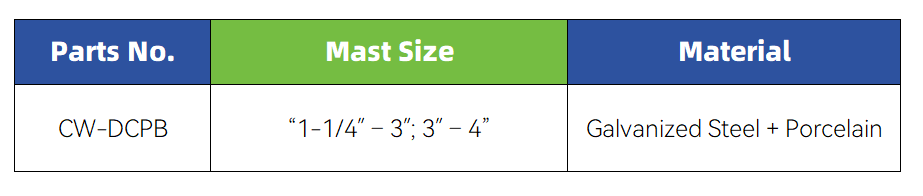

Specifications of Porcelain Wire Holder with Service Mast Mounted
Components of Pole Bands
As we all know, the pole band is assembled from various accessories.
These sections include:
Galvanized steel band – Two or more bands connected and wrapped around a pole
Fasteners (bolts and nuts) – They are used to hold the band together
Hook – Used to insert bolts or fix other pole band accessories
How to Install Pole Bands？
Step 1: You need to prepare tools for tightening the pole band, such as wrenches, pliers, etc.
Step 2: Choose the right pole band (long or short bands) and fasteners.
Step 3: Tie together whatever you want to attach to the pole using pole bands.
Step 4: Fasten with bolts and nuts.
Step 5: Use a wrench to tighten the bolts and nuts of the pole band again, check if they are loose, and the installation is complete.
Technical specifications of the pole band
When you buy a pole band, you still need to pay attention to its craftsmanship, tensile grade, and specifications.
Raw materials – The pole band raw material is flat carbon steel, not slitting steel.
Hot dip galvanizing process – Made of hot-dip galvanized steel, it has strong corrosion resistance and a long service life, and meets ASTM Specification A153.
Customizable – Provide OEM and ODM support to customize products in different sizes according to your specific needs and preferences.
Tensile strength grade – The carbon steel tensile strength is up to 560N/mm².
Frequently Asked Questions (FAQ)
What is a pole band?
The pole band is made of two or more steel strips and is widely used in power transmission lines to ensure tight connections between hardware.
What is the raw material of the pole band?
The pole band raw material is flat carbon steel, not slitting steel.
What are pole bands primarily used for?
Pole bands are primarily used to secure pole-line hardware on poles and connect other accessories or cables.
Conclusion
The pole band is an important piece of hardware. With it, you can fix anything you want on the pole.
If you want to buy it, please contact us. Hebei Crown Wealth is a leading distributor of pole bands in China. Our products are of high quality, we can customize them, and the production time is short, saving you time and cost.
