CW-SCP: Short Shank Crossarm Pins

A short shank crossarm pin is a pole line fitting that provides a mounting point for a compatible pin-type or spindle-threaded insulator on a steel crossarm.

The pin does not connect two crossarms together.

Instead, you mount the pin to the crossarm, then install the compatible insulator onto the threaded upper section. The insulator supports and electrically separates the overhead conductor from the crossarm structure.

Therefore, the mechanical load path typically follows:

Conductor → Insulator → Crossarm Pin → Steel Crossarm → Utility Pole

You may also see this product described as a short shank insulator pin, nylon crossarm pin, steel crossarm pin, cross arm pin, or pole line insulator pin.

Although these names describe similar fittings, you should always confirm the pin dimensions and insulator thread before ordering.

What Is a Short Shank Crossarm Pin Used For?

The main purpose of a short shank crossarm pin is to mount an insulator directly onto a steel crossarm.

You can commonly use it in overhead electrical distribution networks, rural electrification projects, utility pole construction, replacement projects, and other pole line systems that use steel crossarms with pin-type insulators.

Because steel crossarms normally require less mounting depth than thick wood crossarms, the short shank design provides a more suitable installation geometry.

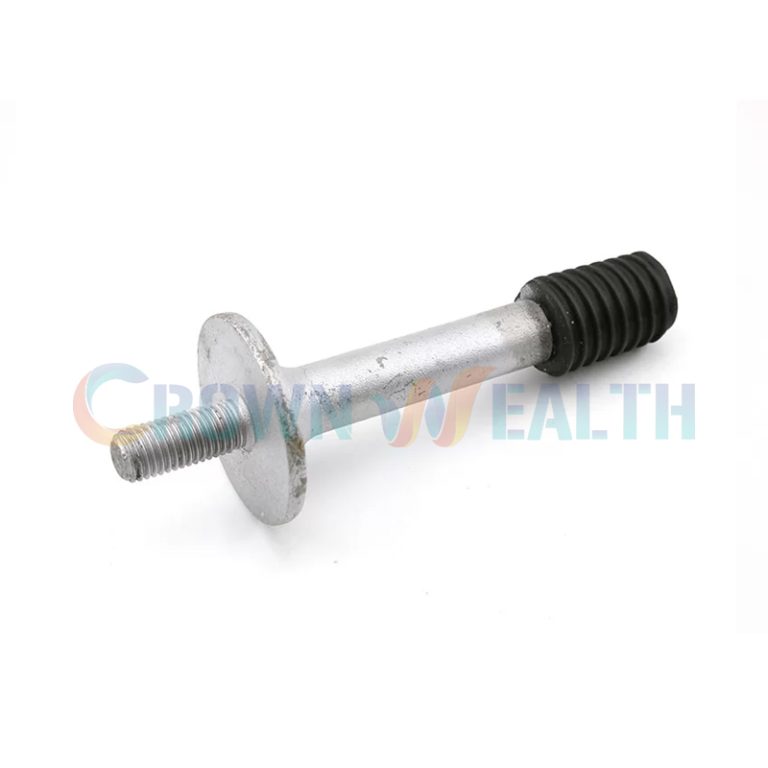

Key Features of the CW-SCP Short Shank Crossarm Pin

One-Piece Steel Pin

The main pin uses an integral steel construction rather than a multi-piece welded load-bearing structure.

This design provides a stable support for the insulator and helps maintain consistent dimensions during production.

For utility projects, you should confirm the required steel grade and mechanical performance according to your drawing or specification.

Nylon Alloy Insulator Thread

The upper section uses a nylon alloy thread designed to fit a compatible spindle-threaded insulator.

The nylon interface provides a defined seating surface between the steel pin and the insulator.

However, not every pin-type insulator uses the same thread dimensions.

Therefore, you should provide your insulator drawing, threaded-hole specification, or sample before placing a large order.

Designed for Steel Crossarms

The key difference between this product and a long shank crossarm pin is the mounting arrangement.

A short shank crossarm pin is typically used with steel crossarms, while a long shank pin is normally used where the pin must pass through a thicker wood crossarm.

This distinction helps you select the correct mounting depth and fastening hardware.

Broad Supporting Base

The pin includes a broad base that sits against the crossarm surface.

The base helps distribute mechanical force around the mounting point and provides a stable seat for the pin.

Correct base dimensions are particularly important because the pin must remain correctly aligned after you install the insulator and conductor.

Square Wrenching Shoulder

A square shoulder above the base allows installers to hold or rotate the pin during installation.

As a result, you can position the insulator groove according to the line direction before completing the installation.

Hot-Dip Galvanized Metal Components

The steel pin and corresponding metal fastening hardware receive a hot-dip galvanized finish.

The zinc coating helps protect the steel against outdoor corrosion caused by moisture, rain, condensation, and environmental exposure.

For utility tenders, send your specified galvanizing standard and coating requirements before production.

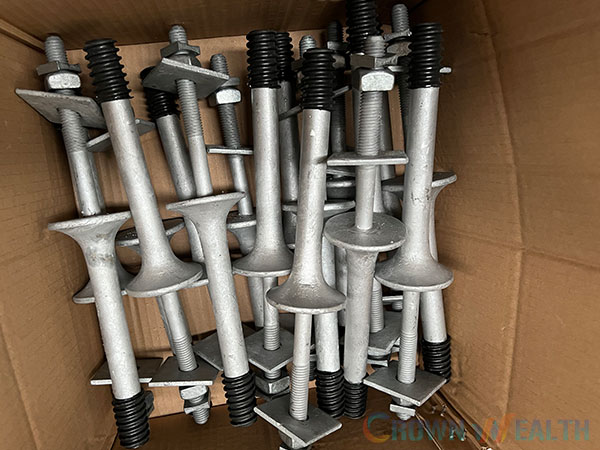

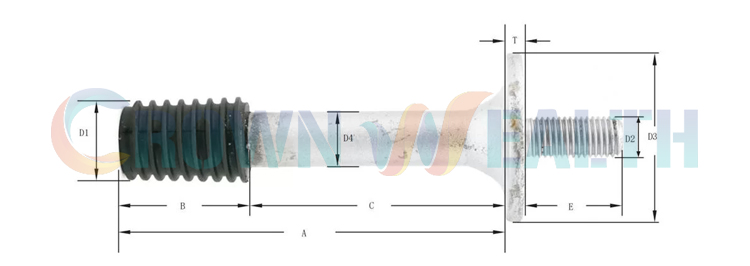

Short Shank Crossarm Pin Specifications

Important: Final shank length, height above the crossarm, insulator thread dimensions, base dimensions, and fastening hardware should be confirmed according to your drawing or utility specification.

Short Shank vs. Long Shank Crossarm Pin

Short and long shank crossarm pins perform the same basic job: they support an insulator on an overhead line crossarm.

However, you normally use them with different crossarm structures.

Therefore, you should not choose between short and long shank pins only according to price or appearance.

Start with the crossarm type and project drawing.

Why Is a Short Shank Pin Better Suited to Steel Crossarms?

Steel crossarms normally use thinner mounting sections than wood crossarms.

As a result, you do not need the long lower shank required to pass through a thick wood crossarm.

A shorter shank can provide a more compact installation while still leaving enough threaded engagement for the specified nut and locking hardware.

However, steel crossarm designs vary.

Therefore, you should confirm the crossarm plate thickness, hole diameter, mounting arrangement, and required shank length before ordering.

How Do You Choose the Right Short Shank Crossarm Pin?

Confirm the Shank Diameter

CW-SCP models can be supplied in 5/8″ and 3/4″ shank diameters.

Your required diameter depends on the steel crossarm mounting hole, utility specification, mechanical requirement, and existing hardware.

Do not substitute the diameter without confirming the engineering drawing.

Check the Short Shank Length

The lower shank must pass through the steel crossarm and provide sufficient engagement for the nut and lockwasher.

Therefore, provide the actual crossarm thickness and required mounting dimensions.

Short shank dimensions should not be copied directly from long shank models because the two products use different mounting geometries.

Confirm the Height Above the Crossarm

The upper height determines the final position of the insulator and conductor.

This dimension can influence phase spacing and conductor clearance.

Therefore, always follow your utility construction drawing.

Match the Nylon Insulator Thread

The nylon thread must fit your pin-type insulator correctly.

Before you request a quotation, confirm the insulator threaded-hole size, thread profile, thread height, and overall insulator interface.

If you already use an existing insulator, sending a drawing or sample is the safest option.

Check the Fastening Hardware

Short shank crossarm pins are commonly supplied with a square nut and split coil lockwasher.

However, project requirements may vary.

Confirm the required nut size, lockwasher type, thread specification, and any additional washer requirements before production.

Provide the Utility Standard

Different utilities may specify requirements for dimensions, steel material, mechanical strength, galvanizing, nylon thread, fastening hardware, testing, inspection, and identification.

If your tender references ANSI C135.17 or another utility standard, send the complete project specification with your RFQ so the manufacturer can confirm the required configuration.

How Do You Install a Short Shank Crossarm Pin?

A typical steel crossarm installation starts by checking that the crossarm mounting hole matches the specified shank diameter.

Next, insert the short shank pin into the mounting position and seat the pin base correctly against the crossarm.

Then install the required lockwasher and nut and tighten the assembly according to the project procedure.

After the pin is secure, install the compatible pin-type insulator onto the nylon alloy thread.

Finally, verify that the pin remains correctly aligned, the fastening hardware is fully engaged, the insulator seats properly, and no component shows visible damage.

Do not force an incompatible insulator onto the nylon thread.

Why Does Hot-Dip Galvanizing Matter?

Crossarm pins remain exposed outdoors for long periods.

Without suitable corrosion protection, moisture and environmental conditions can damage untreated steel.

Hot-dip galvanizing creates a zinc coating on the steel surface and improves its resistance to outdoor corrosion.

ASTM A153/A153M is commonly used for hot-dip galvanized iron and steel hardware. If your project specifies this or another galvanizing requirement, confirm the exact coating category and inspection requirements before mass production.

Quality Control for Short Shank Crossarm Pins

Because a short shank crossarm pin must match both the steel crossarm and the insulator, dimensional consistency is important.

During production, Hbcrownwealth can control the steel material, shank diameter, shank length, height above the crossarm, base dimensions, square shoulder, nylon thread dimensions, thread fit, galvanized surface, nut compatibility, pin straightness, assembly, and packaging according to the approved product specification.

For tender or customized orders, you can also provide a technical drawing or approved sample before mass production.

OEM & Bulk Short Shank Crossarm Pin Supply

Hbcrownwealth manufactures and wholesales pole line hardware for utilities, distributors, wholesalers, importers, EPC contractors, and overhead line construction companies.

You can customize the CW-SCP according to your shank diameter, shank length, pin height, nylon thread dimensions, steel crossarm design, fastening hardware, galvanizing requirement, part number, packaging, and project specification.

You can also combine short shank crossarm pins with long shank crossarm pins, steel crossarms, machine bolts, double arming bolts, spool bolts, eye bolts, square nuts, washers, braces, and other pole line hardware in the same purchasing program.

Why Choose Hbcrownwealth as Your Short Shank Crossarm Pin Manufacturer?

Hbcrownwealth manufactures and supplies overhead electrical, telecom, and pole line hardware for international infrastructure markets.

When you source short shank crossarm pins from Hbcrownwealth, you can send your crossarm drawing, insulator specification, pin dimensions, quantity, surface requirements, and packaging directly to the manufacturing team.

We support standard production, drawing-based customization, OEM/ODM requirements, hot-dip galvanized pole line hardware, bulk orders, customized packaging, and mixed hardware shipments.

If you purchase for a utility project or tender, send the complete specification before ordering so our team can confirm the correct crossarm pin configuration.

Frequently Asked Questions About Short Shank Crossarm Pins

What is a short shank crossarm pin?

A short shank crossarm pin is a pole line fitting designed to mount a compatible spindle-threaded insulator directly onto a crossarm, particularly a steel crossarm.

What is a short shank crossarm pin used for?

You use it as the mechanical support and threaded mounting point for a pin-type insulator in an overhead distribution line.

Does a crossarm pin connect two crossarms together?

No. A crossarm pin primarily supports an insulator. Bolts and braces perform the main structural crossarm connection functions.

Are short shank crossarm pins used on steel or wood crossarms?

Short shank pins are typically used on steel crossarms. Long shank pins are generally more suitable for thicker wood crossarms.

What is the difference between short and long shank crossarm pins?

The main difference is mounting depth. Short shank pins suit thinner steel crossarm structures, while long shank pins provide the extra length required for wood crossarms.

What materials are used in the CW-SCP?

The main pin uses carbon steel, while the upper insulator thread uses nylon alloy.

What shank diameters are available?

Hbcrownwealth can supply CW-SCP short shank crossarm pins in 5/8″ and 3/4″ diameters.

What fastening hardware is used?

A short shank pin is commonly installed with a square nut and split coil lockwasher. Final hardware should follow your project specification.

Are short shank crossarm pins hot-dip galvanized?

Yes. The steel components can receive a hot-dip galvanized finish for outdoor corrosion protection.

Can Hbcrownwealth manufacture custom short shank pins?

Yes. Send your crossarm drawing, insulator specification, required shank diameter, dimensions, material requirements, quantity, and packaging for OEM or ODM production.
