CW-QJC02 Q Type Large Jaw Span Clamp

CW-QJC02 Large Jaw Span Clamp for Messenger Wire

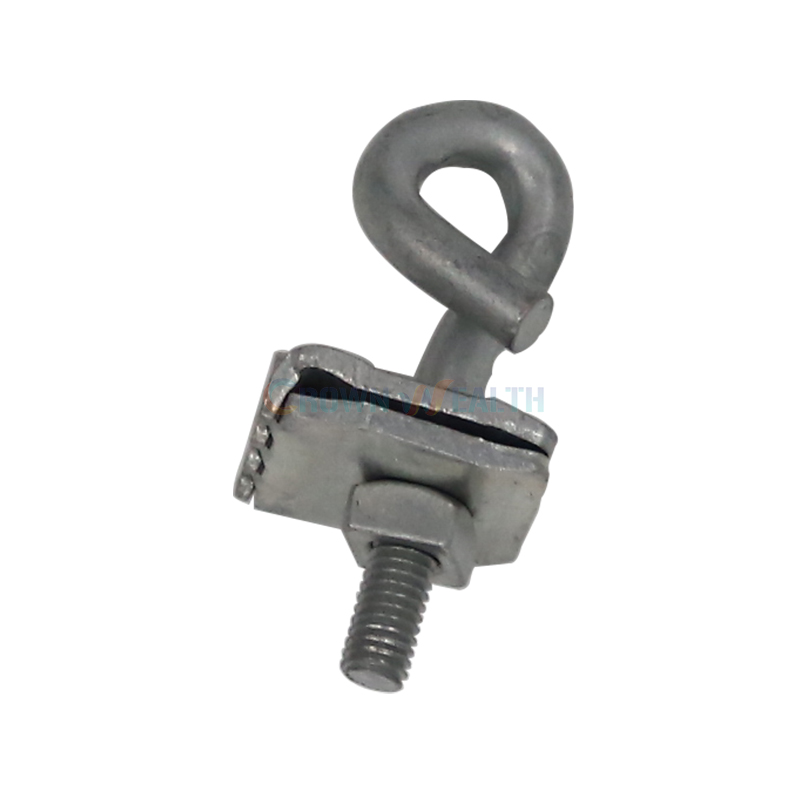

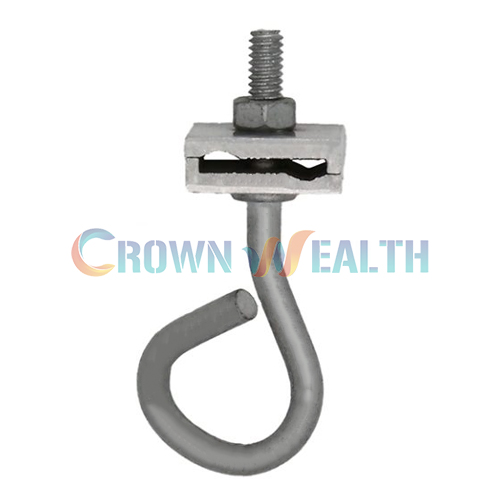

The CW-QJC02 large jaw span clamp is a galvanized steel Q type fitting with jaw plates for messenger wire. Its large jaw bypass configuration and pigtail attachment give you a distinct option when your aerial hardware specification calls for this assembly. You can identify it by model when sourcing new fittings or replacing existing hardware.

First, match the clamp to your messenger wire and connecting hardware. The term “large jaw” identifies the configuration; it does not establish a cable diameter range or a higher load rating. Send us your dimensions so we can review the fit before you place a bulk order.

Product Specifications

What the Large Jaw Design Offers You

• Defined jaw-plate configuration: You can compare the large jaw bypass assembly with your project drawing instead of choosing by the general Q clamp name alone.
• Visible connection layout: The pigtail attachment, plates and threaded fastener help you check the interface with your mating fitting.
• Galvanized steel construction: You can specify the listed material clearly in your purchasing documents. For exposure-sensitive projects, request the applicable coating details before approval.
• Model-based ordering: Referencing CW-QJC02 helps you distinguish this item from other messenger wire clamps in a mixed hardware order.

Applications and Model Selection

Consider this Q type span clamp for aerial messenger-wire hardware assemblies that specify a large jaw bypass fitting. It is also a candidate for replacement purchasing when you can match the original component’s geometry and approved duty. However, a similar appearance alone does not confirm interchangeability.

CW-QJC02 or the Gripper Finger Version?

Choose by the required structure. CW-QJC02 uses the large jaw bypass configuration shown here. By comparison, the CW-QSCF Q span clamp with gripper finger is a different version. Do not transfer its published strand range to CW-QJC02.

If your bill of materials includes several connection styles, review our span clamp range for aerial hardware. Then identify each model separately in your inquiry to avoid mixing specifications.

Plan Your Installation Before Ordering

Confirm the assembly drawing and installation requirements before field use. Use the following checklist to prepare your technical review:

1. Record the messenger wire diameter, construction and surface condition.
2. Check the jaw geometry and available space against the intended mounting position.
3. Provide the dimensions of the fitting that will connect to the pigtail attachment.
4. Confirm the required load rating, tightening instructions and inspection criteria with your project engineer and supplier.

Finally, follow the approved installation procedure for your assembly. This product listing does not specify tightening torque, working load or breaking load.

Frequently Asked Questions

What is the CW-QJC02 used for?

It is a Q type jaw-plate span clamp for messenger wire. Select it when your assembly requires a large jaw bypass configuration and confirm the mating hardware before purchase.

What material is this messenger wire clamp made from?

The listed material is galvanized steel. If your purchase specification requires a particular steel grade, coating process or coating thickness, include those requirements in your inquiry.

Which messenger wire diameter will it fit?

The published specifications do not state a diameter range. Send your messenger dimensions and a drawing or sample reference so we can review compatibility.

Does “large jaw” mean a higher breaking load?

No. The name describes the jaw configuration, not a verified load capacity. Request the applicable load data and supporting documentation for your intended assembly.

Can you source this model for a replacement project?

Yes, you can request CW-QJC02 for a replacement review. Include photos, dimensions and the original specification so we can assess the match before you approve the order.

Can you request OEM/ODM supply?

Yes, Hbcrownwealth offers OEM/ODM support. Share your drawing and purchasing requirements; we will review feasibility and confirm the agreed scope before production.

Production, Quality Control and Delivery

Hbcrownwealth combines efficient production with strict quality control for your overhead hardware orders. For CW-QJC02 procurement, define the approved specification and acceptance requirements early. This gives your purchasing and inspection teams a clear basis for reviewing the supplied clamps.

You can also request information about relevant tests and available reports. We will confirm the applicable documentation for your order rather than assume that one test covers every configuration.

For OEM/ODM projects, we review your requirements before agreeing on production details. In addition, our team coordinates packing and logistics to support prompt, reliable delivery. Confirm the production schedule and shipping arrangement with your quotation.

Your Span Clamp Supplier and Wholesaler in China

Hbcrownwealth is a professional Chinese manufacturer, supplier and wholesaler of span clamps and overhead cable hardware. You receive one-to-one purchasing support, with 24-hour service available for your inquiries.

To source your CW-QJC02 large jaw span clamp, request a quotation from Hbcrownwealth with your quantity, messenger dimensions, mating fitting details and delivery destination. Also include any drawing, coating requirement or test requirement so we can prepare a more precise proposal.
