ArabicA J hook suspension clamp supports round ADSS fiber optic cables at intermediate poles along an overhead cable route. Its J-shaped metal body provides the mounting structure, while a correctly sized insert supports the cable at the contact area.
When choosing a clamp for your network, you need to consider cable diameter, route alignment, span conditions, and pole attachment. Matching these details helps you avoid unsuitable hardware and unnecessary installation rework.
This guide explains how a J hook suspension clamp works, where you can use it, and what to confirm before ordering.
What Is a J Hook Suspension Clamp?
A J hook suspension clamp is an overhead cable fitting named after its J-shaped body. In ADSS installations, it provides a suspension point for the cable on intermediate poles.
ADSS stands for All-Dielectric Self-Supporting. Although the cable supports itself between poles, it still requires suitable hardware at suspension and termination points.
A suspension clamp supports the cable along the route. A dead-end or anchoring assembly secures the cable at a termination or another point requiring tension restraint. You should select each fitting according to its intended function.

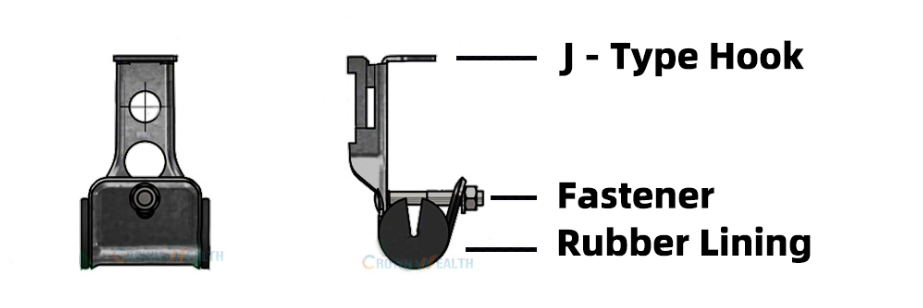

Main Components and Their Functions
Understanding the clamp’s structure helps you compare models and check whether the supplied assembly matches your project.
J-Shaped Metal Body
The metal body connects the cable-supporting assembly to the pole attachment.
Hbcrownwealth lists galvanized steel for the standard CW-SC J hook suspension clamp. The product page also identifies stainless steel as an option available on request. Confirm the material and finish for the version you intend to purchase.
Cable-Supporting Insert
The insert sits between the cable and the metal body. A correctly selected insert helps cushion the contact area and limit direct contact between the cable jacket and metal.
Insert size matters. A clamp that looks suitable externally may still have the wrong insert for your cable diameter. Confirm the exact gripping range when selecting your assembly.
Closing and Mounting Hardware
Closing hardware retains the cable within the clamp assembly. Pole-mounting hardware attaches the clamp to the supporting structure.
Depending on the configuration, mounting may use bolts, banding, or a compatible hook arrangement. Confirm which components are included in your quotation and which must be ordered separately.
Where Can You Use a J Hook Suspension Clamp?
Intermediate Poles on Straight ADSS Routes
The CW-SC product description identifies intermediate poles on straight routes as its intended application.
This makes it relevant when you need to support a compatible round ADSS cable between termination points. Check the proposed assembly against your cable data and the approved line design.
Short-Span Aerial Fiber Networks
J hook suspension clamps can be considered for short-span ADSS routes in access networks and local fiber infrastructure.
The CW-SC description lists spans up to 100 m. However, this figure should not be treated as approval for every cable or loading condition. Confirm suitability for your cable weight, route geometry, and relevant wind or ice loads.
FTTx Projects Using ADSS Cable
Where your FTTx network uses round ADSS cable on intermediate poles, a suitable J hook clamp may provide the required suspension arrangement.
FTTx describes the network architecture, not a single cable type. Flat drop cables, figure-eight cables, and other constructions require hardware selected for their specific design.
Applications Requiring a Different Assembly
Do not assume that an ADSS J hook suspension clamp is suitable for OPGW, power conductors, or indoor cable bundles.
Similarly, termination points and significant route changes require a review of the appropriate suspension or anchoring arrangement. Select hardware for the actual application rather than the hook shape alone.
How to Choose the Right J Hook Suspension Clamp
Start with your cable datasheet and route requirements. Then compare the proposed clamp against the following checklist.
| Selection factor | What you should confirm |
|---|---|
| Cable type | Compatibility with round ADSS cable and its jacket construction |
| Outside diameter | The exact range covered by the selected insert |
| Cable quantity | Whether the assembly is designed for one or more cables |
| Span conditions | Suitability for the project’s span and loading requirements |
| Route alignment | Whether the support is on a straight route or at a change in direction |
| Mechanical performance | Applicable load ratings and their definitions |
| Body and insert materials | Suitability for the operating environment |
| Pole attachment | Compatible bolts, banding, hooks, or brackets |
| Supplied components | What is included with each clamp |
| Installation requirements | Instructions, tools, and specified tightening requirements |
A series diameter range does not mean that one insert fits every cable in that range.
For example, the CW-SC product page lists multiple sizes covering 5–20 mm across the series, while its introductory description refers to 10–20 mm cables. Confirm the exact variant and insert range before ordering.
You can review the CW-SC J Hook Suspension Clamp for the published product details, or explore the wider ADSS suspension clamp range when comparing support arrangements.
Practical Benefits for Your Installation
Defined Cable Support
The clamp provides a designated support point at an intermediate pole. Selecting the correct insert helps the assembly accommodate the cable as intended.
A Cushioned Contact Area
The insert separates the cable from the metal body at the support interface. Its effectiveness depends on correct sizing, assembly, and installation.
Mounting Options for Different Pole Arrangements
Bolt, banding, and hook mounting options allow you to select an attachment arrangement compatible with your pole design. Confirm the approved configuration before purchasing accessories.
More Consistent Procurement
Recording the clamp model, insert size, and mounting hardware helps you repeat an approved specification across comparable locations. It also makes future replacement orders easier to identify.
Installation time and maintenance needs depend on site conditions and the selected assembly. Evaluate these factors using your project requirements rather than a universal savings percentage.
Installation Overview
Use the following sequence as a planning overview. The instructions for the exact clamp and pole attachment take priority.
- Verify the assembly. Check the model, insert size, cable diameter, and required mounting hardware. Inspect components for visible damage.
- Prepare the pole attachment. Position and secure the approved mounting arrangement according to the line design and hardware instructions.
- Seat the cable. Place the cable in the specified insert and confirm that it is correctly positioned.
- Secure and inspect. Close the assembly and tighten its fasteners as instructed. Check insert seating, cable alignment, and attachment security.
Do not assume installation is tool-free. The CW-SC product page specifies a 13 mm standard six-point spanner, and the selected pole attachment may require additional tools.
Mounting height, clearances, tightening torque, and support spacing must follow the applicable project requirements. They should not be taken from a generic article.
Inspection and Maintenance
Include the clamp and its pole attachment in your network inspection program.
Check for visible cable-jacket wear, displaced or deteriorated inserts, damaged hardware, corrosion, and changes in the assembly’s position. Record findings so your team can compare the condition at later inspections.
Set inspection intervals using the network owner’s procedures, manufacturer guidance, and operating conditions. Outdoor cable hardware should not be described as maintenance-free for life.
Frequently Asked Questions
What is a J hook suspension clamp used for?
It supports compatible overhead cable at an intermediate support point. The CW-SC model is described for round ADSS fiber optic cable on short, straight routes.
Can one clamp fit every cable from 5 to 20 mm?
Do not assume that it can. The published range covers multiple sizes within the series. Confirm the insert and gripping range for your exact cable diameter.
Can a J hook suspension clamp replace a dead-end clamp?
No. Suspension and dead-end assemblies perform different functions. Use the specified anchoring assembly where the line design requires termination or tension restraint.
Is installation tool-free?
Not for the CW-SC configuration described on the product page. It specifies a 13 mm six-point spanner. Bolted or banded pole attachments may also require tools.
Can you use this clamp for OPGW or power cables?
Only if the exact model is expressly specified for that application. Compatibility with ADSS cable does not establish compatibility with OPGW or power conductors.
What should you provide when requesting a quotation?
Provide your cable type, outside diameter, cable datasheet, quantity, span information, route alignment, and preferred pole attachment. Include drawings or photographs when replacing an existing assembly.
