7 Types of Cross Arms in Transmission Lines

The cross arm is an indispensable hardware accessory in the infrastructure of overhead transmission lines, providing essential support and spacing for the transmission lines. Cross arms are typically installed on utility poles or towers to ensure the stability and reliability of the transmission lines. Understanding the different types of cross arms can contribute to the safe and reliable implementation of your transmission line projects. This article will introduce the 8 common types of cross arms used in transmission lines, hoping to assist you in the application of your transmission line projects.

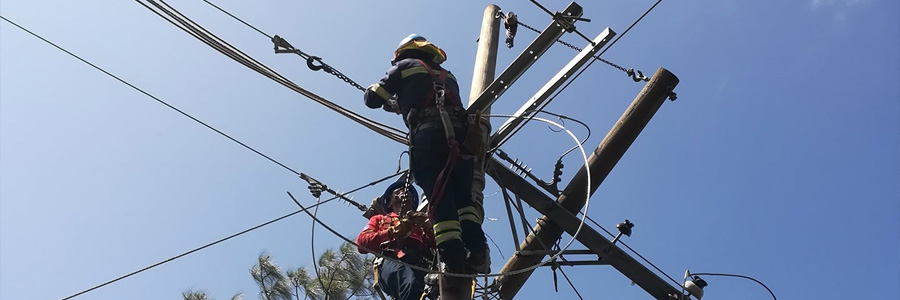

cross arms in transmission lines

Common Types of Cross Arms

There are several types of cross arms used in power transmission and distribution systems. Here are some of the most common types:

Wood Cross Arms

Wood cross arms are widely used traditional components in overhead power transmission and distribution systems, primarily made from natural pine, chestnut, mahogany, and oak. Each type of wood exhibits unique advantages under different environmental conditions. Wood crossarms possess natural insulation properties, reducing the risk of electrical faults and short circuits caused by conduction through the cross arm. The cost of using wood cross arms is relatively low, and with proper maintenance, they can ensure the stability of transmission lines for several years. Although wood cross arms are more susceptible to weathering, rot, and damage from pests compared to other materials, leading to a shorter lifespan, they remain a popular choice for many utility companies. They are commonly found in low-voltage distribution applications, telecommunication lines, rural or remote areas, and temporary installations.

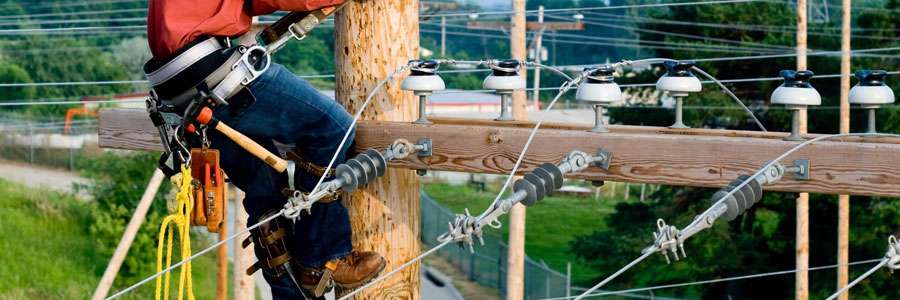

wooden cross arms in transmission lines

Stainless Steel Cross Arms

Stainless steel cross arms are becoming an increasingly popular choice in the construction of modern overhead transmission line infrastructure. The benefits of stainless steel are its strength, durability and corrosion resistance, which are superior to wood materials. They provide long-lasting and reliable support for conductors, even in challenging environments such as coastal areas, industrial zones, and regions with extreme weather conditions (such as heavy snow, strong winds, and salty air). Although the initial cost of stainless steel cross arms is relatively high, they maintain structural integrity, durability, and corrosion resistance throughout their lifespan with minimal maintenance, ensuring the safety and stability of transmission lines. Since stainless steel cross arms can be heavier and conductive compared to other materials, appropriate insulation design should be considered when choosing stainless steel cross arms to ensure the safety of your transmission line projects.

stainless steel cross arms in transmission lines

Galvanized Steel Cross Arms

In the construction and maintenance of overhead transmission line infrastructure, choosing the appropriate material for cross arms is crucial to ensuring the stability, lifespan, and safety of your transmission line projects. Galvanized cross arms are steel with a layer of zinc applied to them, which can prevent rust and corrosion even in harsh environments with high exposure to salt, humidity or industrial pollutants. This makes galvanized steel cross arms particularly suitable for use in coastal areas, industrial zones, and extreme weather conditions. In the long run, the long lifespan and low maintenance costs of galvanized steel cross arms can make them more cost-effective. Your transmission line projects will benefit from lower operational costs and fewer interruptions in the transmission network. Galvanized steel is non-combustible and retains its structural integrity even at high temperatures, adding an extra layer of safety to your transmission lines by protecting them from fire hazards. With its strength, durability, and corrosion resistance, galvanized steel cross arms provide a reliable and long-lasting solution for your transmission line infrastructure.

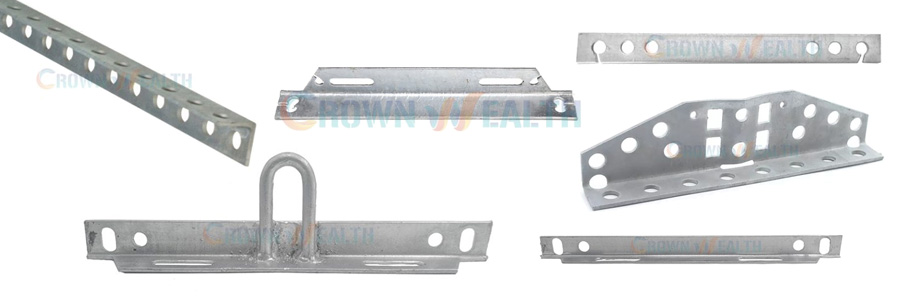

galvanized steel cross arms in transmission lines

Powder Coated Cross Arms

Powder coated cross arms provide a durable and aesthetically pleasing solution for supporting conductors in overhead power transmission lines. These arms feature a resilient powder coating applied by dry powder deposition, which is then cured at high temperatures to form a tough protective layer. This coating enhances resistance to corrosion, UV damage, and abrasion, making them suitable for urban and rural environments alike. Powder coated cross arms come in various colors, allowing customization to blend with the surroundings of your transmission line project or meet specific design preferences. Whether in urban settings, rural landscapes, or coastal areas, powder coated arms offer reliable support while maintaining high performance and longevity. Choosing powder coated cross arms ensures you benefit from robust protection, versatile aesthetics, and environmental responsibility, making them an ideal solution for meeting your transmission line infrastructure needs.

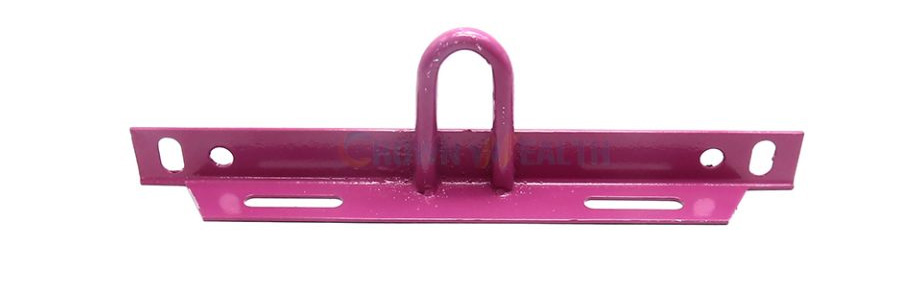

powder-coated cross arms in transmission lines

Composite Cross Arms

Composite cross arms are a new material used in the infrastructure of overhead power lines, made from high-quality fiber-reinforced polymer materials. They are lightweight yet strong, durable, and reliable, capable of supporting heavy conductors. Fiber-reinforced polymer materials are highly environmentally friendly, often produced using recyclable components and having minimal impact on the environment during manufacturing. Composite cross arms also offer excellent corrosion resistance, ensuring a long service life under various environmental conditions. The material of composite cross arms is inherently non-conductive, providing excellent insulation, minimizing the risk of accidental contact with live conductors and improving the safety of transmission line projects. Available in various shapes and sizes, composite cross arms can be customized to meet your specific design requirements and aesthetic preferences, ensuring seamless integration into your projects. This makes them an ideal choice for upgrading or installing new transmission infrastructure.

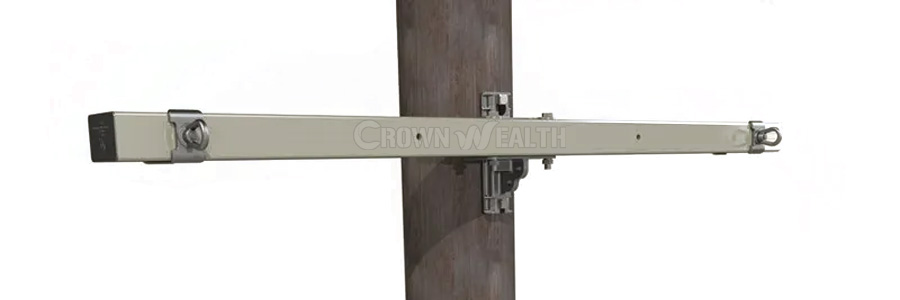

composite cross arms in transmission lines

Cross Arms with Insulator Pins

Cross arms with insulator pins are a crucial component for your overhead transmission lines, ensuring secure and stable support for electrical conductors. These cross arms, equipped with insulator pins, provide excellent mechanical strength and electrical insulation. The insulator pins help maintain proper spacing between conductors and prevent electrical faults. Designed for durability, these cross arms resist environmental wear and corrosion, ensuring long-lasting performance. Whether upgrading your existing transmission line infrastructure or installing new lines, cross arms with insulated pins are a reliable and efficient solution for your transmission needs.

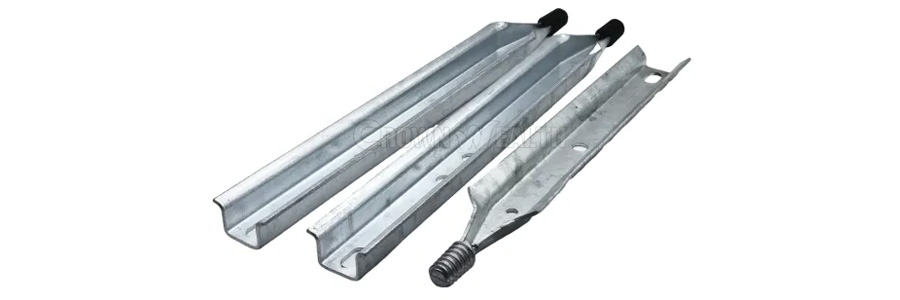

insulator pins cross arms in transmission lines

Concrete Cross Arms

Concrete cross arms are also a common choice in overhead transmission lines. Concrete provides strong support and long-lasting durability. These cross arms exhibit high weather resistance, corrosion resistance, and environmental wear resistance, ensuring reliable performance under various conditions. Despite their high compressive strength, concrete cross arms are prone to breaking under high tensile forces or other impact forces. This brittleness may be a crucial consideration for your transmission line in earthquake-prone areas or regions with frequent dynamic loads, as damaged concrete cross arms are difficult to repair. Additionally, compared to steel or composite cross arms, concrete cross arms have limitations in design flexibility and are heavy, making transportation and installation relatively complex. However, the substantial weight and strength of concrete cross arms can provide greater stability for your transmission lines, making them an ideal choice for heavy-duty transmission applications.

concrete cross arms in transmission lines

Conclusion

Cross arms prevent transmission lines from sagging and maintain proper spacing, reducing the risk of short circuits and helping to improve the overall performance and lifespan of the power line system. It is crucial to choose the type of cross arm based on supporting insulators and conductors, bearing mechanical loads, reducing conductor vibration, managing line angles, and enhancing system reliability. The selection of cross arm types in transmission and distribution lines also needs to consider various factors such as project cost, location, load requirements, and environmental conditions. Evaluating different options is essential before deciding on the most suitable type of cross arm for your transmission line application. If you would like to learn more about electrical cross arms and other pole line hardware, please feel free to contact us anytime.

FAQ

What is Cross Arm in the Transmission Line?

Cross arms is also called crossarm brace. Cross arms in transmission lines are crucial structural components used to support and separate conductors that transmit high-voltage electricity. They are mounted horizontally on transmission poles or towers and serve several key functions, including conductor support, conductor separation, insulation and safety, and mechanical stability. These functions ensure the safe, stable, and efficient operation of the power transmission system.

What Materials Are Commonly Used to Make Cross Arms Electrical?

Common materials used for cross arms include high-quality wood, stainless steel, galvanized steel, powder-coated metals, fiber-reinforced polymers, and concrete. The choice of materials for cross arms depends on various factors such as environmental conditions, mechanical load requirements, cost considerations, and maintenance capabilities. Therefore, it is essential to select the most suitable material based on your specific transmission line needs.

What is the Purpose of Cross Arms in Transmission Lines?

  1. Supporting conductors
  2. Conductor separation
  3. Insulation and safety
  4. Mechanical stability
  5. Enhanced system reliability

What are the Factors to Consider When Choosing a Cross Arm Supplier?

When selecting wholesale suppliers, consider factors such as product material quality, expertise and reputation in technical capabilities, manufacturing capacity, customization options, competitive pricing, delivery times, and quality assurance and testing. Hebei Crown Wealth is a professional and reliable supplier of power pole cross arm and electrical hardwares, offering the most competitive factory cross arm price. Known for its commitment to product quality and customer service over many years, offering you the best value for your investment choices. If you would like to learn more about electrical cross arms and other power line hardware, please feel free to contact us anytime.
