Types of Down Lead Clamps

Types of Down Lead Clamps

Down lead clamps are essential accessories in the electrical and communication fields. They are responsible for tapping and fixing cables on poles or towers.

Therefore, there are many different types of down lead clamps. In the following article, I will detail the functions and effects of different types of  clamps.

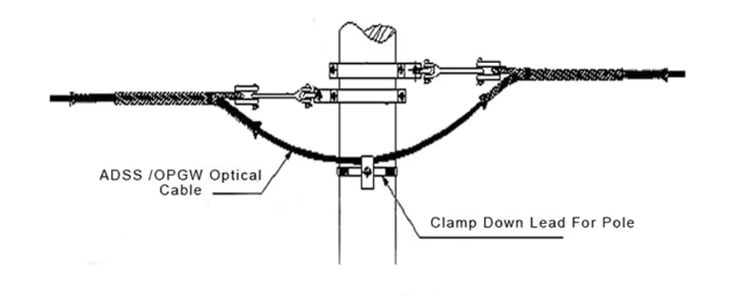

Down Lead Clamps of Pole

You only need to tie the stainless steel cable ties on the utility poles and then tighten them with the stainless steel cable tie tools to achieve a good fixing effect.

Stainless steel cable ties have strong corrosion resistance, can bear strong tension, and have a long service life.

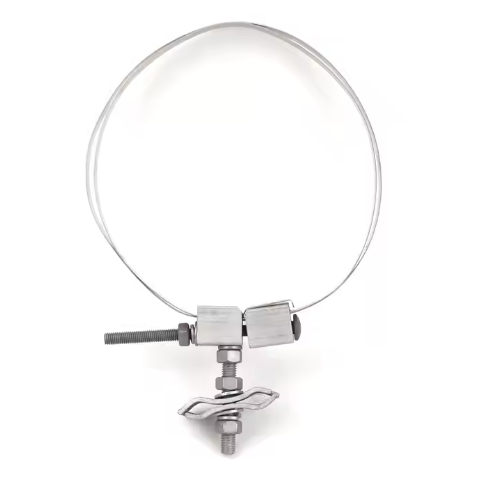

Rubber Cushion Down Lead Clamp of Pole

The down lead clamps of pole are made of stainless steel cable ties, nuts, bolts, and rubber pads.

Rubber pads are used to protect cables and reduce cable wear. They are suitable for fiber optic cables and cables with thin insulation covers.

Metal Down Lead Clamp of Pole

The down lead clamps are made of stainless steel cable ties, nuts, bolts, and metal clips.

Metal clips are used to clamp cables with thicker insulation sheaths, such as high-voltage cables, transmission cables, etc. Tightening the bolts and nuts can secure the cables.

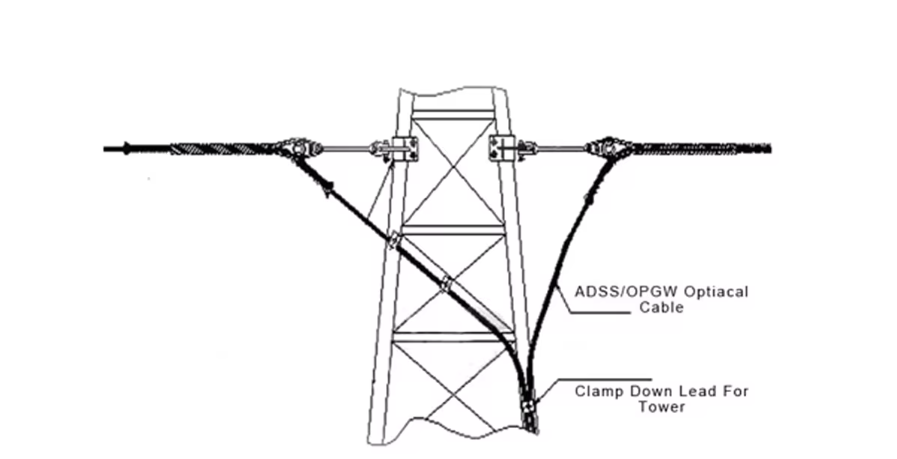

Down Lead Clamps of Tower

The down lead clamps of pole are fixed to the tower by tightening the bolts and nuts through the metal frame at the top, not easy to fall.

Galvanized steel down lead clamps can withstand strong pressure and tension and have a long use life.

Rubber Cushion Down Lead Clamp of Tower

The down lead clamps of tower are composed of C-shaped metal brackets, bolts and nuts, and rubber pads.

Rubber pads are used to protect cables, prevent them from being damaged due to wear and tear, and ensure the transmission of power or signals.

Metal Down Lead Clamp of Tower

The down lead clamps of tower are composed of C-shaped metal brackets, bolts and nuts, and metal clips.
