CW-PA500 Anchor Clamp for Round Cables, 4.5–9 mm

CW-PA500 Anchor Clamp for Round Cables

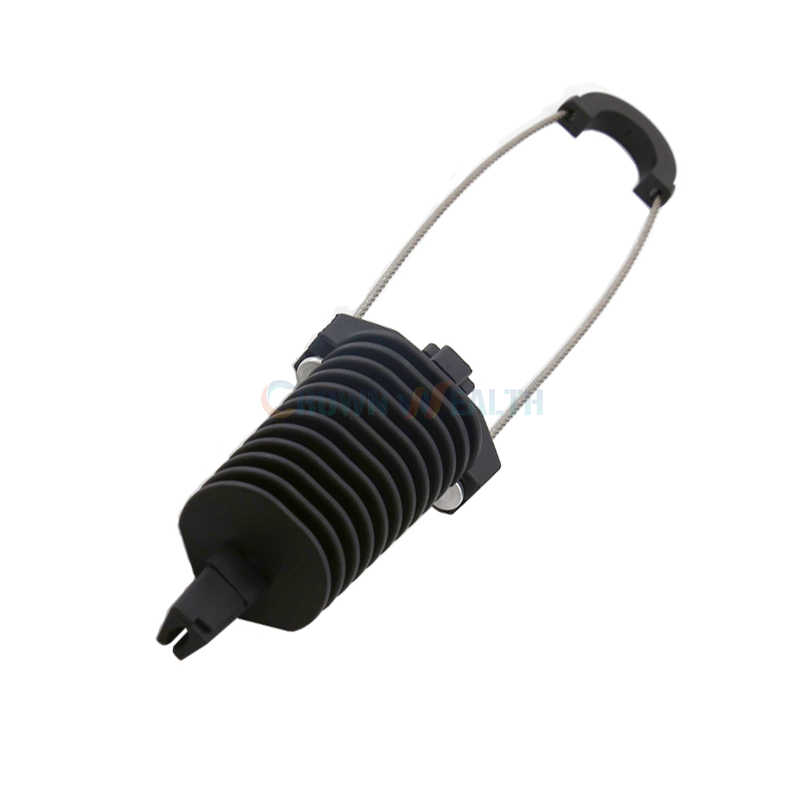

The CW-PA500 anchor clamp helps you dead-end compatible 4.5–9 mm round fiber optic cables on aerial access networks. Its polymer wedges grip your cable automatically inside a conical body. As a result, you can fit the clamp without dedicated installation tools.

Product Specifications

The 4 kN figure is the breaking load, not an allowable working-load rating. Confirm your design loads and safety factors before selection.

Product Advantages

• Automatic wedge grip: A pair of wedges grips your cable within the conical body, simplifying your dead-end connection.
• UV-resistant body: The plastic body provides UV resistance for outdoor use. For specific exposure requirements, confirm the applicable test criteria before ordering.
• Manual fitting: You can fit the clamp without dedicated tools. However, your complete cable installation may still require equipment and approved procedures.
• Defined temperature range: You can compare the −40°C to +60°C range with your site conditions.

Applications and Cable Selection

Use the CW-PA500 anchor clamp for compatible round fiber optic cables on aerial access and telecommunications networks. First, check the cable diameter. Then confirm the sheath, construction and permitted installation tension.

For ADSS or FTTH projects, select by your actual cable specification rather than the network name alone. For figure-8 cables, confirm the profile and gripping arrangement separately; the round-cable diameter range alone does not establish compatibility.

The published span guidance is up to 100 m. However, your actual span must suit the cable and site loading. Compare other options in our anchoring clamp range if your cable falls outside the specified range.

Installation Planning

The wedge pair grips your cable inside the conical body, while the wire tail connects to suitable attachment hardware. Before installation, check the following:

1. Confirm your cable diameter, sheath and construction.
2. Check that your hook or bracket suits the wire tail and project loads.
3. Obtain the applicable assembly and tensioning instructions for your cable and support arrangement.

Follow your approved installation procedure for final connection and inspection. Although clamp fitting requires no dedicated tools, you should not infer a working tension or installation sequence from the breaking load.

Source Your Clamps from Hbcrownwealth

Hbcrownwealth is a professional aerial cable hardware manufacturer, supplier and wholesaler in China. As an anchoring clamp manufacturer, wholesaler and supplier, we support your project purchasing and bulk supply requirements.

• Efficient production: We organize production around your confirmed specifications and order requirements to support efficient fulfillment.
• Strict quality control: We apply strict quality control during manufacturing. You can share your inspection and acceptance requirements with your inquiry.
• OEM/ODM support: Send your drawings and customization needs. We confirm feasible options before production.
• Fast, reliable logistics: We coordinate shipping for your destination and order size. Confirm the delivery schedule with your quotation.
• 24-hour one-to-one service: You can contact us for dedicated assistance with product selection, order details and shipment coordination.

Frequently Asked Questions

What cable size does the CW-PA500 fit?

The CW-PA500 fits compatible round cables measuring 4.5–9 mm in diameter. Also confirm your cable construction and sheath before selection.

Is 4 kN the working load or breaking load?

4 kN is the breaking load. Your allowable working load must follow the project design and required safety factors.

How does it differ from the CW-PA300?

The CW-PA500 covers 4.5–9 mm cables and has a 4 kN breaking load. By comparison, the CW-PA300 round cable anchor clamp covers 4–8 mm cables with a 2.5 kN breaking load.

Can you use it for a 100 m span?

The published span guidance is up to 100 m. However, you must confirm suitability for your cable, route and loading conditions before installation.

What materials does the clamp use?

It uses a UV-resistant plastic body, polymer wedges and a galvanized steel wire tail. If you need a particular material grade or test document, include that requirement in your inquiry.

Can you request OEM/ODM supply?

Yes, Hbcrownwealth offers OEM/ODM support. Send your drawings and requirements first so we can confirm feasible options and order details.

Request Your CW-PA500 Quotation

Send your cable datasheet, quantity and delivery destination to Hbcrownwealth. Also include your span, attachment arrangement and OEM/ODM requirements so we can discuss your order accurately.

CW-PA500 Technical Parameters

Selection note: The 4 kN figure is the breaking load, not an allowable working-load rating. Confirm your cable construction, design loads and required safety factors before selection. For figure-8 cables, confirm the profile and gripping arrangement separately.
