- Anchoring Clamp Manufacturer & Supplier | FTTH Anchor Clamp

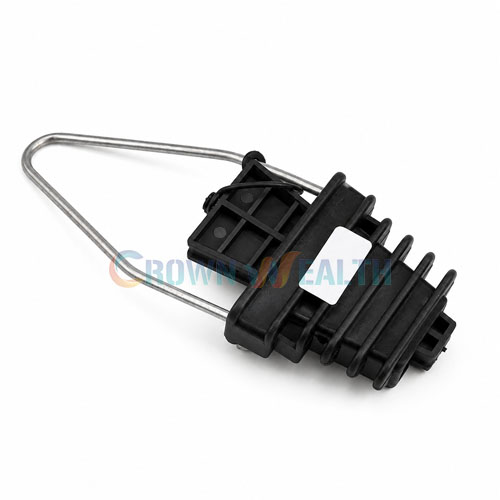

- CW-PA25: Plastic Anchor Clamp
The PA25 Anchor Clamp is a high-performance plastic tension clamp designed to securely anchor and tension insulated aerial cables in overhead distribution networks. Manufactured from UV-resistant engineering polymer with a stainless steel bail, the PA25 provides excellent mechanical strength, weather resistance, and long-term reliability for outdoor installations.
The PA25 Anchor Clamp is a high-performance plastic tension clamp designed to securely anchor and tension insulated aerial cables in overhead distribution networks. Manufactured from UV-resistant engineering polymer with a stainless steel bail, the PA25 provides excellent mechanical strength, weather resistance, and long-term reliability for outdoor installations.
The PA25 Anchor Clamp features a self-locking wedge mechanism. When you insert the cable into the clamp and apply tension, the internal wedges automatically tighten around the cable.
As the cable tension increases, the gripping force also increases. This self-tightening design prevents cable slippage while distributing pressure evenly across the cable sheath, helping to protect the insulation from damage.
The mechanical load is transferred through the stainless steel bail to the pole bracket or hook, ensuring a secure and reliable installation.
| Item No. | Cross section(mm2) | Material | Conductor(mm) | Breaking load |
| PA25 | 4X(16-25) | Nylon,Steel | 4-8 | 2KN |
The PA25 Anchor Clamp is suitable for a wide range of overhead cable installations, including:
Choosing the PA25 Anchor Clamp helps you improve both installation efficiency and long-term network reliability.
Fast Installation
The simple self-locking design allows you to install the clamp quickly without specialized tools, reducing labor time and installation costs.
Secure Cable Grip
The automatic wedge mechanism provides consistent gripping force, minimizing the risk of cable slippage under mechanical loads.
Cable Protection
The clamp distributes pressure evenly across the cable, reducing stress concentration and helping to preserve the cable’s insulation.
Excellent Weather Resistance
Manufactured from UV-stabilized polymer and stainless steel, the PA25 performs reliably in harsh outdoor environments, including areas with strong sunlight, rain, humidity, and temperature fluctuations.
Long Service Life
Premium materials and robust construction ensure dependable performance with minimal maintenance over many years.
The PA25 combines lightweight construction, reliable gripping performance, and outstanding weather resistance in one compact design. It is an excellent choice for installers looking for a durable and economical anchoring solution for fiber optic and aerial cable networks.
With its self-locking mechanism and corrosion-resistant materials, the PA25 helps reduce maintenance requirements while ensuring stable cable tension throughout the service life of the network.
Hbcrownwealth is a professional manufacturer of anchor clamps, suspension clamps, and pole line hardware with over 14 years of manufacturing experience. Our products are trusted by utility companies, telecommunications contractors, and distributors in more than 60 countries.
When you choose Hbcrownwealth, you benefit from:
Whether your project requires standard products or customized solutions, Hbcrownwealth is committed to providing reliable overhead line hardware that meets your performance and quality expectations.
| Item No. | Cross section(mm2) | Material | Conductor(mm) | Breaking load |
| PA25 | 4X(16-25) | Nylon,Steel | 4-8 | 2KN |
The PA25 Anchor Clamp features a self-locking wedge mechanism. When you insert the cable into the clamp and apply tension, the internal wedges automatically tighten around the cable.
As the cable tension increases, the gripping force also increases. This self-tightening design prevents cable slippage while distributing pressure evenly across the cable sheath, helping to protect the insulation from damage.
The mechanical load is transferred through the stainless steel bail to the pole bracket or hook, ensuring a secure and reliable installation.
| Item No. | Cross section(mm2) | Material | Conductor(mm) | Breaking load |
| PA25 | 4X(16-25) | Nylon,Steel | 4-8 | 2KN |
The PA25 Anchor Clamp is suitable for a wide range of overhead cable installations, including:
Choosing the PA25 Anchor Clamp helps you improve both installation efficiency and long-term network reliability.
Fast Installation
The simple self-locking design allows you to install the clamp quickly without specialized tools, reducing labor time and installation costs.
Secure Cable Grip
The automatic wedge mechanism provides consistent gripping force, minimizing the risk of cable slippage under mechanical loads.
Cable Protection
The clamp distributes pressure evenly across the cable, reducing stress concentration and helping to preserve the cable’s insulation.
Excellent Weather Resistance
Manufactured from UV-stabilized polymer and stainless steel, the PA25 performs reliably in harsh outdoor environments, including areas with strong sunlight, rain, humidity, and temperature fluctuations.
Long Service Life
Premium materials and robust construction ensure dependable performance with minimal maintenance over many years.
The PA25 combines lightweight construction, reliable gripping performance, and outstanding weather resistance in one compact design. It is an excellent choice for installers looking for a durable and economical anchoring solution for fiber optic and aerial cable networks.
With its self-locking mechanism and corrosion-resistant materials, the PA25 helps reduce maintenance requirements while ensuring stable cable tension throughout the service life of the network.
Hbcrownwealth is a professional manufacturer of anchor clamps, suspension clamps, and pole line hardware with over 14 years of manufacturing experience. Our products are trusted by utility companies, telecommunications contractors, and distributors in more than 60 countries.
When you choose Hbcrownwealth, you benefit from:
Whether your project requires standard products or customized solutions, Hbcrownwealth is committed to providing reliable overhead line hardware that meets your performance and quality expectations.
| Item No. | Cross section(mm2) | Material | Conductor(mm) | Breaking load |
| PA25 | 4X(16-25) | Nylon,Steel | 4-8 | 2KN |
