Drop Wire Clamp Manufacturer Selection Guide: How to Choose the Most Suitable Supplier Based on Cable Type and Gauge

Choosing the right drop wire clamp is crucial in the construction of FTTH (Fiber to the Home), CATV (Cable Television), and traditional telecommunications networks. Different cable types – whether flat fiber optic cables, round ADSS cables, or traditional copper telephone wires – require specific clamp sizes to ensure safe and stable installation. This article will explore how to select the appropriate drop wire clamp manufacturer based on cable type and gauge, helping you make informed purchasing decisions.

1.Understanding the matching relationship between cable type and cable clamp

1.1 Flat cables

Flat cables are the most common type of drop cable in FTTH networks, with the “butterfly-shaped” fiber optic cable being a typical example.

These cables have the following characteristics:

• Flat shape, typically 2.0×3.0mm or 2.0×5.2mm.
• Includes an FRP (fiberglass reinforced plastic) reinforcing core.
• Requires a wide slot design to avoid damaging the cable sheath.

Recommended cable clamp types:

• Plastic Flat Cable Clamps: Made of UV-protected nylon or ABS material, featuring wide flat slots and rubber pads.
• S-Type Clamps: Designed specifically for flat cables, supporting up to 2×5mm gauges.

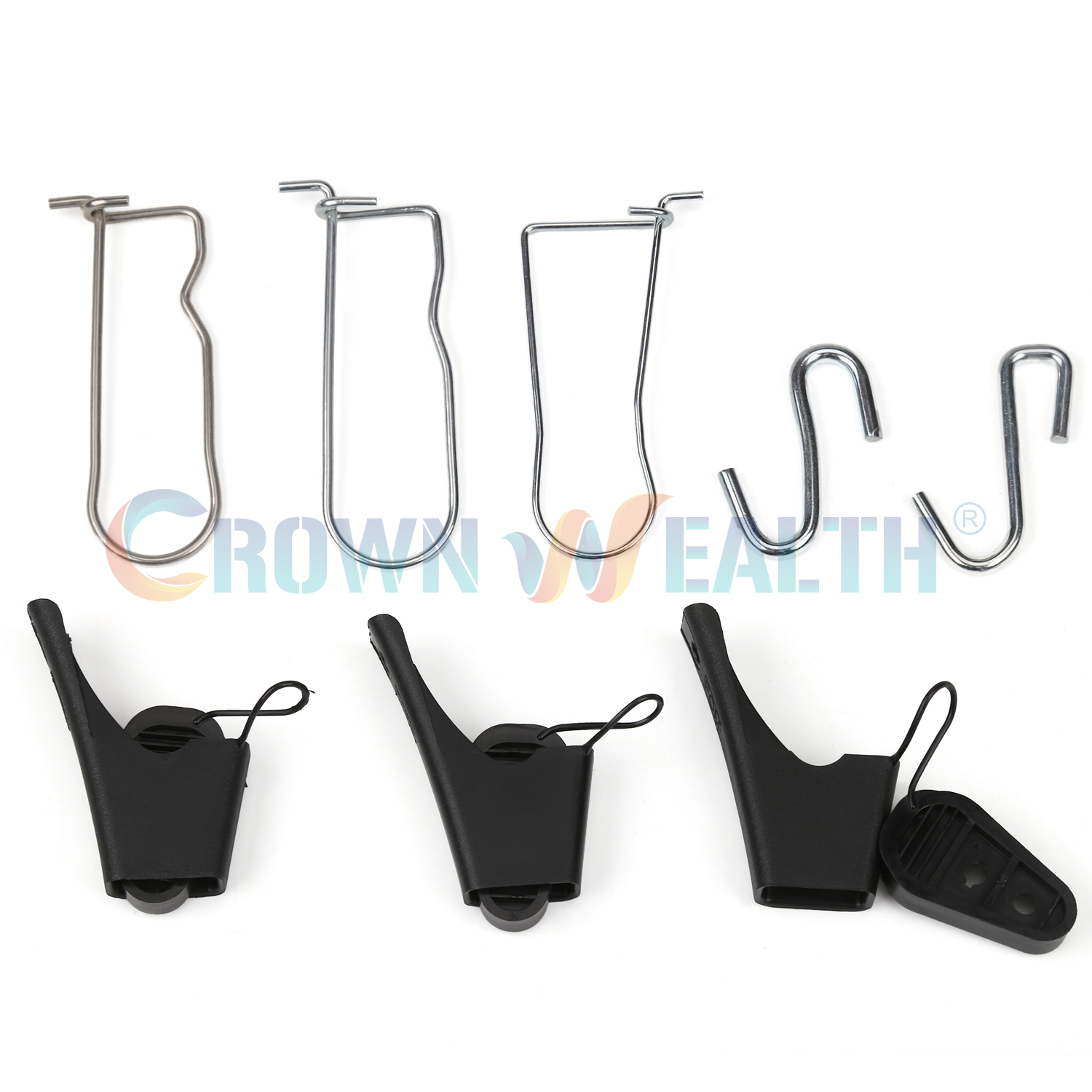

                              Plastic Flat Cable Clamp                                                                        S Type Clamp

1.2 Round Cables

Round cables include round fiber optic patch cords, ADSS fiber optic cables, and traditional copper cables:

• The diameter range is typically 2.5-8mm (FTTH small round cable) to 8-14mm (ADSS large span cable).
• A fully circular clamp is required to evenly distribute the clamping force.
• ADSS cables also need to consider non-metallic, all-dielectric characteristics.

Recommended cable clamp type:

• Wedge Anchor Clamp: Achieves self-locking via a tapered wedge; suitable for 2-7mm round cables.
• J Hook Suspension Clamp: Suitable for 3-20mm diameter ADSS round cables; uses rubber inserts for flexible securing.

                          Wedge Anchor Clamp                                                                         J Hook Suspension Clamp

1.3 Figure-8 Cables

Figure-8 cables integrate fiber optic cables and suspension wires, and are commonly found in CATV and early broadband networks:

• Both the cable body and the suspension wire need to be secured simultaneously.
• Typical sizes include diameters ranging from 3.76mm to 6.35mm.
• The clamps must have a detachable securing structure.

Recommended cable clamp type:

• Figure-8 Dedicated Span Clamp: Aluminum alloy jaws combined with steel hooks can simultaneously clamp the cable body and steel strand.
• S-Hook Plastic Drop Wire Clamp: Quickly installs on the suspension line, suitable for aerial CATV deployment.

                                       E Span Clamp                                                                       S-Hook Plastic Drop Wire Clamp

1.4 Telephone Drop Wires

• Traditional copper telephone lines include.
• 1-2 pairs of wires: Maximum height 5.08mm, maximum width 10.41mm.
• 6 pairs of wires: Maximum height 7.62mm, maximum width 12.7mm.

Recommended cable clamp type:

• Drop wire clamps: Made of aluminum or stainless steel, with serrated washers, suitable for 1-2 pair and 6 pair wire specifications.

                       1-2 Pair Drop Wire Clamp                                                              6 Pair Drop Wire Clamp

• CATV specific clamps: There are helical black drop wire clamps with a stainless steel tail, and Aluminum alloy wire clamp body and stainless steel 304 tail.

                       CATV Drop Wire Clamp                                                                        CATV Drop Wire Clamp

Common Errors and Solutions

Problem 1: Forcing a round cable into a flat cable clamp, or vice versa, can result in insecure clamping or damage to the cable sheath.

-Solution1: Strictly distinguish between flat clamps and round clamps; select universal wedge clamps when necessary.

Problem 2: The cable clamp is too large, causing it to slip, or too small, causing it to flatten the cable and increase signal attenuation.

-Solution 2: Accurately measure the cable’s outer diameter and select the model with the closest specification range. For example, a 4mm cable should be selected in the 4-6mm specification range, not the 6-8mm specification range.

Problem 3: The FRP reinforcing core of FTTH cables has different strengths than traditional steel wires, requiring different clamping forces.

-Solution 3: Confirm whether the wire clamp is optimized for FRP reinforced core, or select a tension clamp with adjustable wedges.

Problem 4: Using ordinary plastic clamps in frigid regions can cause them to become brittle, while using ordinary steel clamps in coastal areas can cause them to rust.

-Solution 4: For extremely cold regions (<-40℃): Select low-temperature toughness materials (such as special PA66); for coastal regions: 304/316 stainless steel must be used.

Problem 5: The ultimate breaking load of the clamp was mistakenly taken as the safe working load.

– Solution 5: Apply a safety factor (usually 2:1 or 3:1). For example, if a 2kN tension is required, a clamp with an ultimate strength ≥ 4-6kN should be selected.

Conclusion

Choosing the right drop wire clamp manufacturer involves more than just comparing prices; it requires a deep understanding of your cable characteristics and installation environment. This article provides a cable type and gauge comparison table, manufacturer product line analysis, and selection process to help you:

1. Precise Matching: Select the correct clamp type based on flat/round/figure-eight cable type.
2. Precise Selection: Choose the corresponding specification based on the wire diameter range of 2.5mm to 20mm.
3. Cost Optimization: Select the most cost-effective manufacturer while meeting technical requirements.
4. Ensuring Reliability: Avoid safety hazards such as slippage and cable breakage through correct selection.

Whether it is the delicate installation of FTTH small round cables or the high-strength requirements of ADSS long-span projects, there are professional manufacturers in the market that provide targeted solutions. We recommend that you request samples for on-site testing before making a formal purchase to ensure that the clamps perfectly match your cables.

Wholesale Drop Wire Clamp Manufacturer

Hebei Crown Wealth, as a leading professional drop wire clamp manufacturer in China. We have several production lines, can mass-produce clamps. We also have ample inventory.

We use high-quality plastic and stainless steel raw materials and injection molding machines and stamping machines to create a sturdy, durable product with excellent color and long service life.

OEM: We can also customize logos, sizes, and more to meet your specific needs.

We cooperate with many international logistics companies to ship products all over the world via air freight, sea freight, land freight, express delivery, etc., ensuring your products arrive on time.

If you are a drop wire clamp products wholesaler or have a huge project requiring the use of drop wire clamps, please contact us!
