How to Choose Pipe Clamps – Comprehensive Guide

Choosing the right pipe clamps may look simple, but the wrong clamp can cause loose pipes, vibration, noise, corrosion, premature wear, or installation problems.

To select a suitable pipe clamp, you need to consider more than the pipe diameter. You should also check the pipe material, load, mounting surface, installation direction, operating environment, temperature, vibration, and corrosion conditions.

In this guide, you will learn what pipe clamps are, the main types available, how different materials perform, and how to choose the right pipe clamp for your application.

What Are Pipe Clamps?

Pipe clamps are mechanical fixing components used to secure, support, guide, or suspend pipes, tubes, conduits, and sometimes cables to walls, ceilings, frames, strut channels, or other structures.

Depending on the design, a pipe clamp can:

• Hold a pipe against a wall or surface
• Suspend a pipe from a ceiling
• Support horizontal pipe runs
• Reduce unwanted pipe movement
• Help control vibration
• Maintain pipe alignment
• Protect pipes from direct contact with mounting surfaces
• Organize pipes, conduits, and cables

You can find pipe clamps in plumbing, HVAC, electrical, industrial, construction, telecommunications, and mechanical installations.

However, not every pipe clamp performs the same function. Therefore, you should first identify your application before choosing a clamp.

Pipe Clamp vs. Pole Band Clamp: What Is the Difference?

Pipe clamps and pole band clamps may look similar in some applications, but they serve different purposes.

A pipe clamp normally fits around or over a pipe, tube, conduit, or cable and secures it to another structure.

A pole band clamp, on the other hand, wraps around a utility pole and provides an attachment point for other pole line hardware.

The basic difference is:

Therefore, you should not select a pipe clamp simply because its shape resembles another type of clamp.

Instead, always check its intended load and installation method.

What Are the Main Types of Pipe Clamps?

You can choose from many pipe clamp designs. Each type works better for specific applications.

1. One Hole Saddle Clamp

A one hole saddle clamp, sometimes called a one-hole pipe strap, uses one fixing point to hold a pipe, tube, conduit, or cable against a surface.

Its simple construction makes installation quick.

You may use one-hole saddle clamps for:

• Electrical conduit
• Small pipes
• Tubing
• Cables
• Wall-mounted installations
• Light-duty fixing applications

Because the clamp uses only one mounting point, you should check the required load before choosing it for heavier pipe systems.

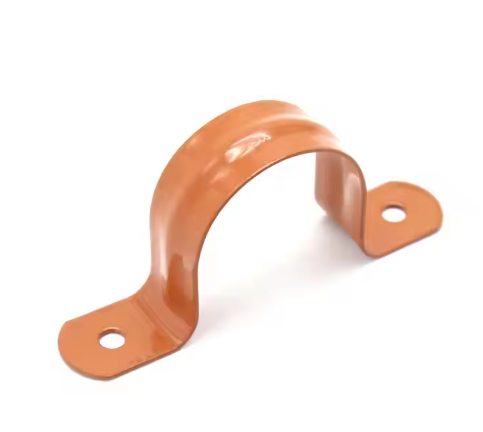

2. Two Hole Saddle Clamp

A two hole saddle clamp uses mounting holes on both sides of the pipe.

This design distributes the fixing force across two mounting points and provides greater installation stability than many single-hole designs.

You can use two-hole saddle clamps for:

• Conduit
• Water pipes
• Metal tubing
• Electrical installations
• Wall-mounted pipe systems
• Ceiling-mounted applications

When you need a more secure surface-mounted fixing point, a two-hole saddle clamp is often a practical choice.

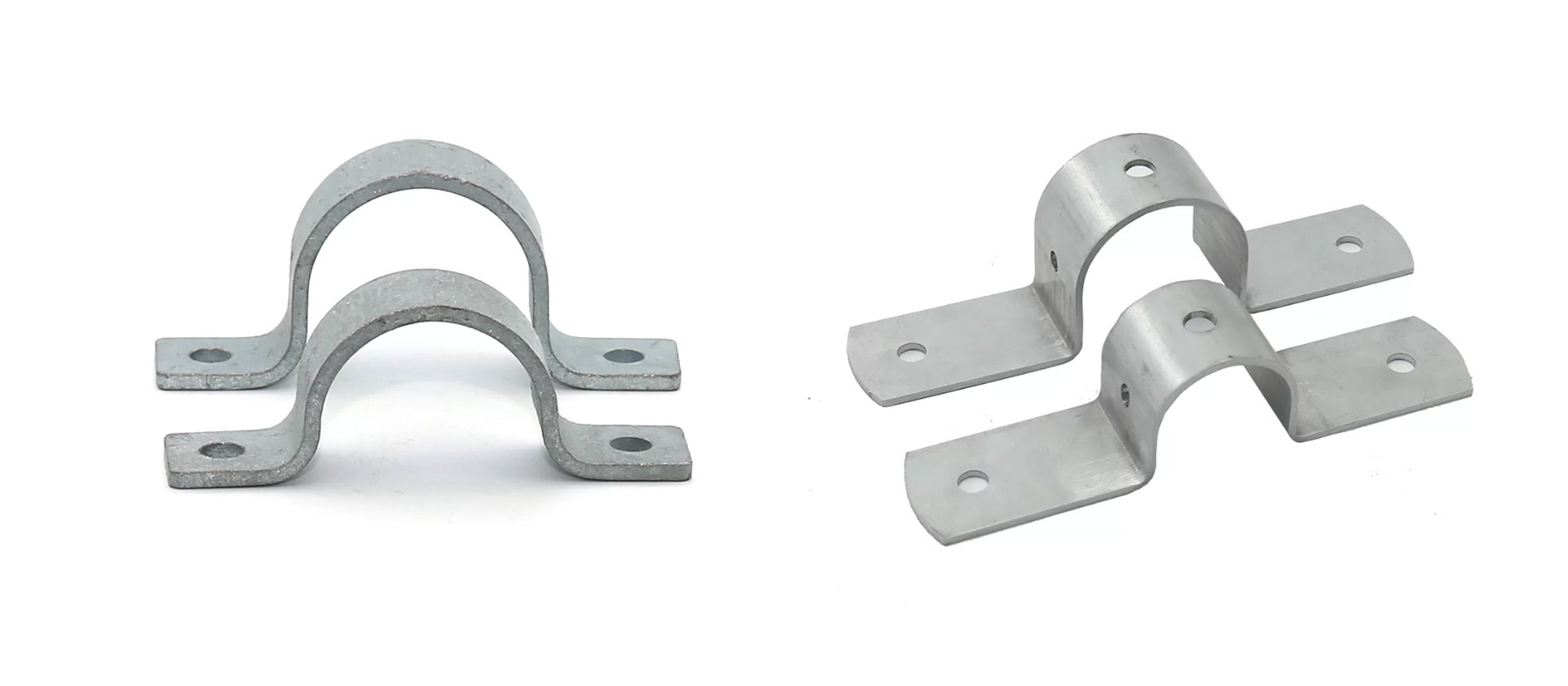

3. Heavy Duty Saddle Clamp

A heavy duty saddle clamp uses a stronger metal construction for applications that require greater mechanical support.

You can use these clamps when ordinary lightweight pipe straps do not provide enough strength.

Common applications include:

• Industrial piping
• Steel tubing
• Heavy conduits
• Mechanical installations
• Outdoor installations
• Equipment frames

You should check the clamp thickness, material, mounting bolt size, and rated load when selecting a heavy-duty model.

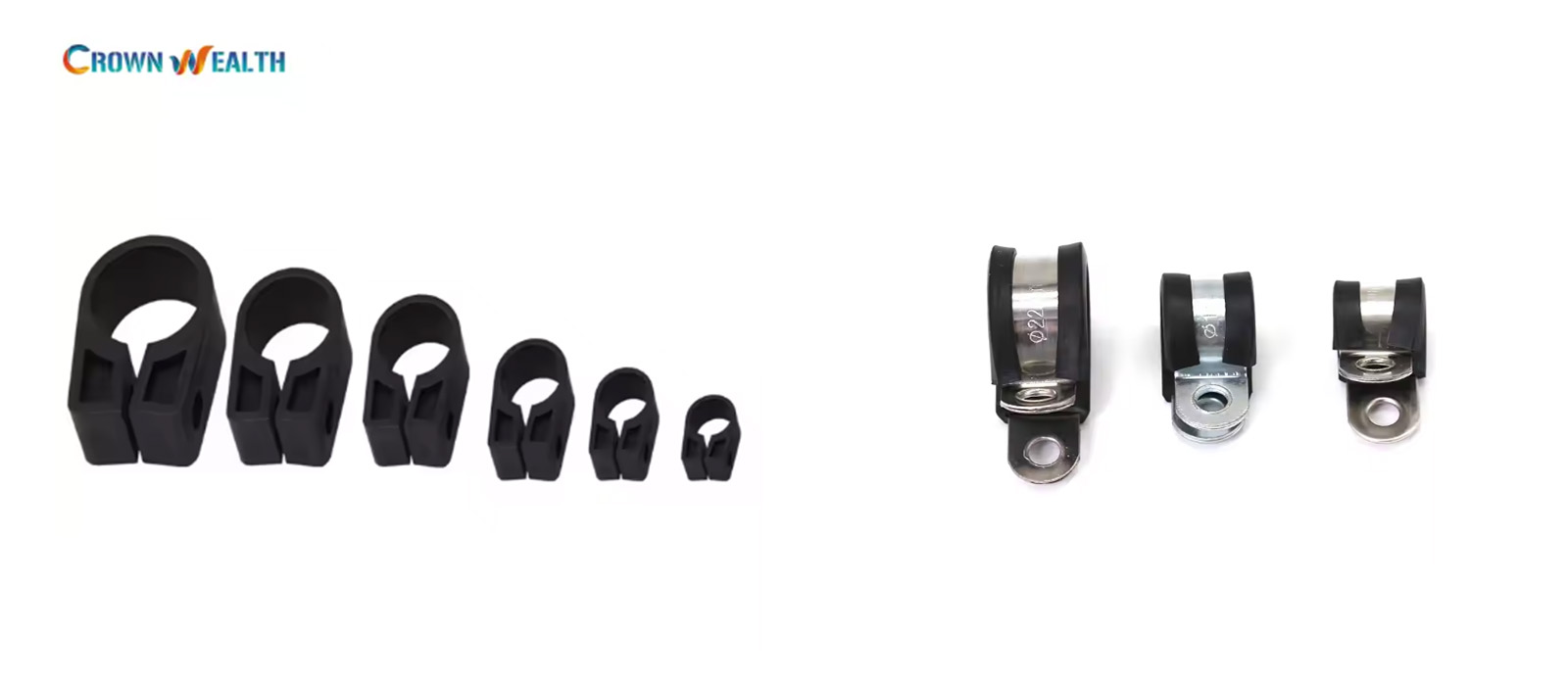

4. Rubber Lined Pipe Clamp or P Clip

A rubber lined pipe clamp combines a metal clamp with a rubber or elastomer liner.

The liner creates a softer contact surface between the metal clamp and the pipe.

This can help:

• Reduce vibration
• Reduce noise
• Prevent metal-to-metal contact
• Protect painted or finished surfaces
• Reduce abrasion
• Improve grip around the pipe

Rubber-lined P clips are widely used for pipes, hoses, tubes, wiring, and cables.

They can be especially useful in vehicles, machinery, HVAC systems, electrical installations, and industrial equipment where vibration occurs.

5. Clevis Hanger

A clevis hanger supports horizontal pipes from above.

Instead of fixing the pipe directly against a wall, you normally connect the hanger to a threaded rod suspended from a ceiling or structural support.

You can use clevis hangers for:

• Plumbing systems
• HVAC piping
• Industrial piping
• Fire protection piping
• Mechanical services
• Suspended horizontal pipe runs

Many clevis hanger designs also allow vertical adjustment through the threaded rod.

This helps you position the pipe at the required height during installation.

6. Strut Pipe Clamp

A strut pipe clamp secures pipes or conduit to a strut channel system.

You commonly find this type of clamp in commercial and industrial installations where technicians use modular strut framing.

Strut clamps make it easier to organize multiple pipe or conduit runs on the same support system.

How to Choose Pipe Clamps

When you select pipe clamps, consider the complete installation instead of focusing only on price.

Here are the most important factors.

1. Measure the Pipe Diameter

Start by confirming the outside diameter of the pipe.

This is one of the most important dimensions when selecting a clamp.

Do not assume that the nominal pipe size equals the actual outside diameter.

Depending on the pipe standard and material, these measurements may differ.

Therefore, measure or confirm:

• Pipe outside diameter
• Clamp inside diameter
• Pipe wall thickness if relevant
• Insulation thickness if the pipe is insulated

The clamp should fit securely without excessively compressing or deforming the pipe.

What Happens If the Clamp Is Too Large?

If the clamp is too large, the pipe may:

• Move
• Vibrate
• Make noise
• Shift out of alignment

What Happens If the Clamp Is Too Small?

If the clamp is too small, you may:

• Damage the pipe
• Deform the clamp
• Compress insulation
• Damage the pipe coating
• Fail to install the fasteners correctly

Therefore, always match the clamp size to the actual pipe dimensions.

2. Identify the Installation Method

Next, decide how you want to support the pipe.

Ask yourself:

Will you fix the pipe directly to a wall?

A saddle clamp or pipe strap may work well.

Will you suspend the pipe from a ceiling?

Consider a clevis hanger or another pipe hanger.

Will you install the pipe on strut channel?

Choose a compatible strut pipe clamp.

Does the installation experience vibration?

Consider a rubber-lined clamp or P clip.

By starting with the installation method, you can quickly narrow your choices.

3. Consider the Pipe Load

Not every clamp carries the same load.

A small electrical conduit requires very different support from a large steel pipe filled with water.

You should consider:

• Pipe weight
• Fluid weight
• Insulation weight
• Operating pressure where relevant
• Dynamic movement
• Vibration
• External loads
• Distance between support points

For heavier installations, choose a clamp with sufficient structural strength and suitable mounting hardware.

Never use a light-duty fixing clip simply because it fits around the pipe.

4. Choose the Right Material

Pipe clamps come in several materials.

Your choice affects strength, corrosion resistance, weight, cost, and service life.

Galvanized Carbon Steel Pipe Clamps

Galvanized steel combines mechanical strength with a protective zinc coating.

You can use galvanized pipe clamps in many:

• Construction projects
• Electrical conduit installations
• Plumbing systems
• HVAC systems
• General industrial applications

Galvanizing improves corrosion protection compared with uncoated carbon steel.

However, highly corrosive or marine environments may require a different material.

Stainless Steel Pipe Clamps

Stainless steel offers strong corrosion resistance and performs well in demanding environments.

You may choose stainless steel clamps for:

• Outdoor installations
• Coastal environments
• Food processing
• Chemical plants
• High-humidity areas
• Corrosive industrial environments

Common stainless steel grades include 304 and 316.

Generally, 316 stainless steel provides greater resistance in chloride-rich and marine environments, while 304 works well for many general-purpose applications.

Carbon Steel Pipe Clamps

Uncoated or coated carbon steel provides good mechanical strength and can offer an economical solution in suitable environments.

However, you should make sure the surface treatment matches the corrosion conditions.

Plastic Pipe Clamps

Plastic clamps are lightweight and corrosion resistant.

You may use them for lighter pipes, tubing, conduit, or cable installations.

However, always check their temperature range, UV resistance, mechanical strength, and environmental suitability.

5. Consider Corrosion and the Environment

The installation environment plays a major role in material selection.

Ask where you will install the clamp:

• Indoors
• Outdoors
• In a coastal region
• In a chemical facility
• In a humid environment
• Underground
• In a high-temperature location
• Near saltwater

For dry indoor environments, zinc-plated or galvanized steel may provide a practical solution.

For more aggressive environments, you may need stainless steel or another corrosion-resistant material.

Do not select the material based only on its appearance.

6. Decide Whether You Need a Rubber Liner

You do not need a rubber liner for every pipe clamp.

However, it can provide important benefits when your installation involves vibration, movement, noise, or sensitive surfaces.

Choose a rubber-lined clamp when you want to:

• Reduce vibration transfer
• Reduce rattling
• Protect the pipe surface
• Avoid direct metal-to-metal contact
• Add cushioning
• Improve sound isolation

You should also confirm that the rubber material is compatible with the temperature and operating environment.

For example, EPDM is widely used in many outdoor and industrial applications because of its environmental resistance.

7. Check the Operating Temperature

Temperature can affect both the pipe clamp and its liner.

Metal clamps generally tolerate higher temperatures than many plastics or elastomers, but the exact limit depends on the material and coating.

If you use a rubber-lined clamp, check the operating temperature range of the liner.

This is especially important for:

• Heating systems
• HVAC installations
• Hot-water piping
• Industrial process lines
• Machinery
• Outdoor installations with extreme temperatures

Pipe Clamp Material Comparison

The following table can help you make an initial material choice:

Always consider the complete operating environment before making your final selection.

How Do You Choose the Correct Pipe Clamp Size?

Choosing the correct size starts with the pipe’s actual outside diameter.

For example, if your pipe has an outside diameter of 25 mm, you should choose a clamp specifically designed to hold approximately that diameter.

However, also check:

• Clamp width
• Clamp thickness
• Mounting hole diameter
• Bolt size
• Fastener spacing
• Rubber liner thickness
• Required clearance
• Load capacity

If you are sourcing clamps for a commercial project, sending a technical drawing can eliminate many sizing errors.

Which Pipe Clamp Should You Choose?

Here is a simple selection guide:

This table provides a starting point. You should still verify the size, material, load, and installation requirements.

Hbcrownwealth Pipe Clamps

Hbcrownwealth manufactures and supplies pipe clamps, cable clamps, and hardware accessories for overseas distributors, wholesalers, contractors, and industrial buyers.

You can source different clamp designs for pipes, tubes, conduit, and cable applications, including:

• One Hole Saddle Clamps
• Two Hole Saddle Clamps
• Heavy Duty Saddle Clamps
• Stainless Steel Saddle Clamps
• Rubber Lined P Clips
• Clevis Hangers
• Cable Clamps
• Other customized metal clamps

Depending on your application, you can choose galvanized steel, stainless steel, carbon steel, rubber-lined, and other configurations.

If you require a special diameter, band thickness, mounting hole, material, coating, or packaging, you can send your drawing or sample for OEM and ODM evaluation.

Frequently Asked Questions About Pipe Clamps

What is a pipe clamp?

A pipe clamp is a mechanical fixing component that supports, secures, guides, or suspends pipes, tubes, conduit, and sometimes cables from walls, ceilings, frames, or other supporting structures.

How do I choose the right pipe clamp?

You should check the pipe outside diameter, pipe material, load, mounting method, environment, clamp material, corrosion resistance, temperature, vibration, and required movement before choosing a pipe clamp.

What size pipe clamp do I need?

Choose a clamp according to the actual outside diameter of the pipe rather than relying only on the nominal pipe size. You should also check the clamp thickness, width, mounting holes, and load requirements.

What is the difference between a saddle clamp and a P clip?

A saddle clamp normally secures a pipe directly to a wall or surface. A P clip wraps more fully around a pipe, tube, or cable and often includes a single mounting point. Rubber-lined P clips can also help reduce vibration and protect the pipe surface.

What is the advantage of a rubber-lined pipe clamp?

A rubber liner can reduce vibration, noise, abrasion, and direct metal-to-metal contact. It can also help protect coated or sensitive pipe surfaces.

Is stainless steel better than galvanized steel for pipe clamps?

It depends on the application. Galvanized steel offers good strength and economical corrosion protection for many installations. Stainless steel usually provides better corrosion resistance in humid, outdoor, coastal, or chemically demanding environments.

What pipe clamp should I use for suspended pipes?

Clevis hangers and other suspension-style pipe supports are commonly used for horizontal pipes suspended from threaded rods or overhead structures.

Can pipe clamps be customized?

Yes. Manufacturers can customize dimensions, materials, band thickness, surface treatment, mounting holes, rubber lining, and packaging according to drawings or project requirements.
