Pole Line Hardware Suitable for Overhead Power and Telecommunication Systems in Africa

Across Africa, reliable power distribution and telecommunication infrastructure are becoming increasingly important. As cities expand, rural electrification projects continue, and fiber optic networks reach more communities, utilities, telecom operators, contractors, and distributors need reliable hardware to build and maintain overhead networks.

In many African markets, overhead power and telecommunication systems offer a practical way to expand infrastructure. Compared with underground networks, overhead lines can often be installed more quickly, inspected more easily, and maintained with less complicated equipment.

However, a reliable overhead network depends on more than cables and poles. You also need the right pole line hardware to anchor, suspend, tension, support, and connect cables safely.

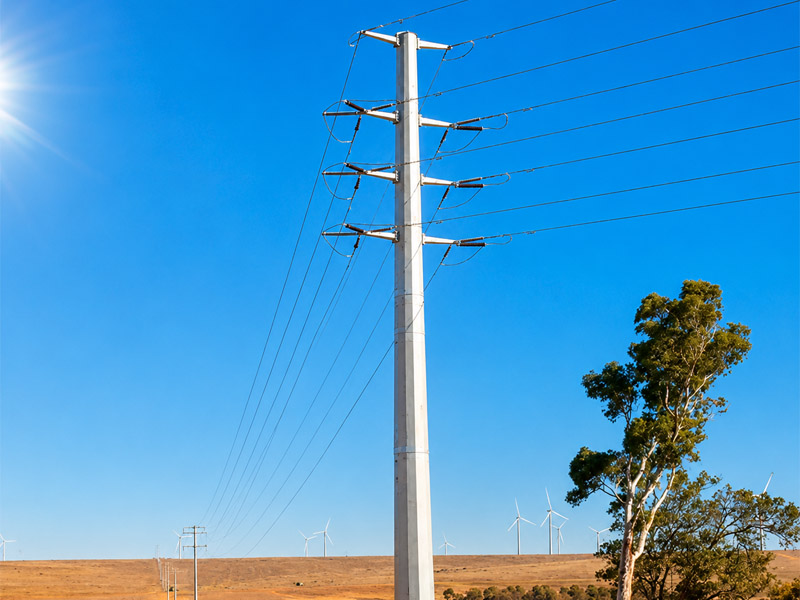

Products such as galvanized steel utility pole, drop wire clamps, anchoring clamps, guy grips, pole line bolts, house hooks, span clamps, andsuspension clamps can therefore play an important role in African power distribution, FTTH, fiber optic, and telecommunications projects.

Why Are Overhead Line Systems Important in Africa?

Africa is a large and geographically diverse continent. Infrastructure projects may pass through major cities, rural communities, coastal regions, dry inland areas, agricultural areas, mountains, and remote locations.

Because of these conditions, network construction requires solutions that balance installation efficiency, durability, maintenance, and overall project cost.

1. Diverse Climate Conditions Require Durable Hardware

Climate conditions vary considerably across Africa. Depending on the country and region, your overhead network may experience:

• Strong sunlight and UV exposure
• High temperatures
• Seasonal heavy rainfall
• High humidity
• Dust and dry conditions
• Coastal environments
• Strong winds
• Significant temperature changes

Therefore, when you select pole line hardware, material and surface treatment matter.

For steel components, hot-dip galvanizing can provide additional corrosion protection. For certain cable accessories, UV-resistant engineering plastics, stainless steel, and aluminum alloy can also provide practical solutions depending on the installation environment.

Selecting the appropriate material helps you extend service life and reduce unnecessary maintenance.

2. Africa’s Geography Favors Flexible Overhead Network Construction

Africa covers an enormous land area, and population density differs significantly between major urban centers and rural regions.

If you need to extend electricity or telecommunications across long distances, underground construction may require extensive excavation, civil engineering, and specialized equipment.

Overhead networks provide another option.

You can install cables on utility poles, extend networks along roads, connect communities over long distances, and access components more easily when maintenance is required.

This makes overhead infrastructure particularly relevant for:

Power distribution | Rural electrification | FTTH networks | Fiber optic networks | Telecom networks | Broadband expansion | Utility infrastructure

3. Cost and Installation Efficiency Matter

Infrastructure development continues across many African markets. At the same time, project owners and contractors need to control construction and maintenance costs.

Therefore, you need hardware that is not only strong but also practical to install.

Standardized pole line hardware and cable accessories can simplify installation, replacement, maintenance, and inventory management. This is especially valuable when your project includes thousands of poles or covers a large geographical area.

For distributors, keeping common pole line components in stock can also help you respond more quickly to local contractors, telecom installers, and utility companies.

Essential Pole Line Hardware for African Overhead Networks

Different sections of an overhead network require different mechanical functions. Some components anchor cables, while others suspend them, connect them to poles, or secure service drops.

Below are several important types of pole line hardware suitable for overhead power and telecommunication systems in Africa.

1. Drop Wire Clamps

Drop wire clamps are commonly used to secure drop cables in telecommunication and FTTH networks.

When a fiber or communication line runs from a distribution point toward a building or subscriber location, you need a reliable way to support and tension the final cable section.

A drop wire clamp can help you:

• Secure drop cables
• Maintain appropriate cable tension
• Reduce unwanted cable movement
• Connect service lines to poles or buildings
• Simplify FTTH installation

Depending on your cable type, you can select different clamp structures and materials.

For African telecom projects, drop wire clamps are particularly useful for FTTH deployment, last-mile fiber networks, CATV systems, and overhead communication lines.

2. Anchoring Clamps

When you need to tension and terminate an aerial cable, an anchoring clamp, also known as an anchor clamp or tension clamp, becomes an important component.

These clamps are widely used with aerial telecom cables, fiber optic cables, ADSS cables, and certain power distribution systems.

A suitable anchoring clamp helps hold the cable mechanically without requiring complicated installation procedures.

You can use anchoring clamps at:

• Cable termination points
• Pole-to-pole sections
• Network direction changes
• Distribution points
• Dead-end installations
• Tension sections

Because cable diameters and mechanical loads vary, you should always match the clamp to the cable diameter, structure, and required tensile load.

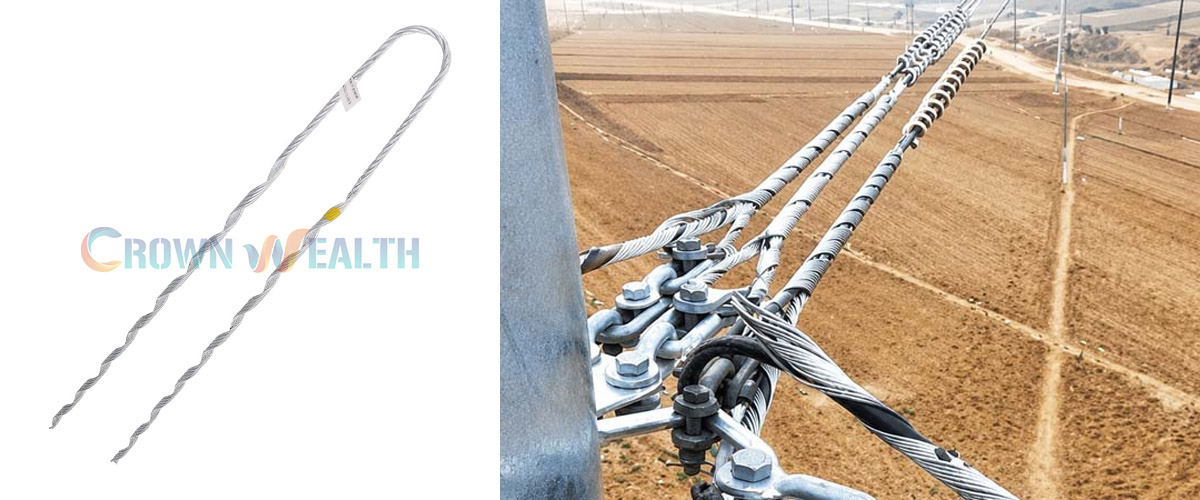

3. Guy Grips

Poles and overhead cables must withstand mechanical tension, especially at dead ends, corners, and other high-load locations.

This is where guy grips, also called preformed guy grips or dead-end grips, become useful.

Guy grips are designed to secure guy wires and help transfer mechanical loads effectively. Their preformed structure wraps around the wire, providing a secure connection without requiring complicated tools.

For large infrastructure networks, this simple installation method can improve field efficiency.

Guy grips are commonly used for:

• Utility pole guying
• Stay wire systems
• Power distribution lines
• Telecommunication poles
• Dead-end structures
• ADSS and OPGW applications with suitable designs

When selecting a guy grip, you should carefully match its size to the wire diameter and mechanical requirements of your project.

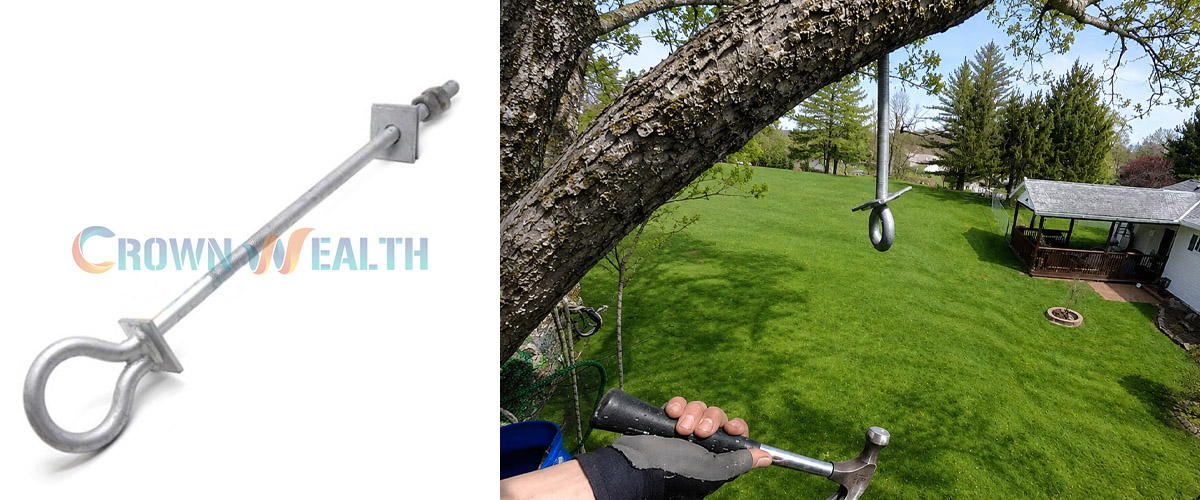

4. Pole Line Bolts

Bolts may look like simple components, but they are essential throughout overhead utility infrastructure.

Pole line bolts connect brackets, cross arms, clamps, supports, and other hardware to wooden, steel, or concrete pole structures.

Common products can include:

• Machine bolts
• Double arming bolts
• Eye bolts
• Thimble eye bolts
• Oval eye bolts
• Carriage bolts
• Other galvanized pole fasteners

Because these components remain outdoors for long periods, corrosion resistance is particularly important.

For this reason, hot-dip galvanized pole line bolts are widely considered for outdoor utility applications.

When sourcing bolts for African projects, you should check the diameter, length, thread specification, steel grade, coating, mechanical strength, and applicable standards before placing a bulk order.

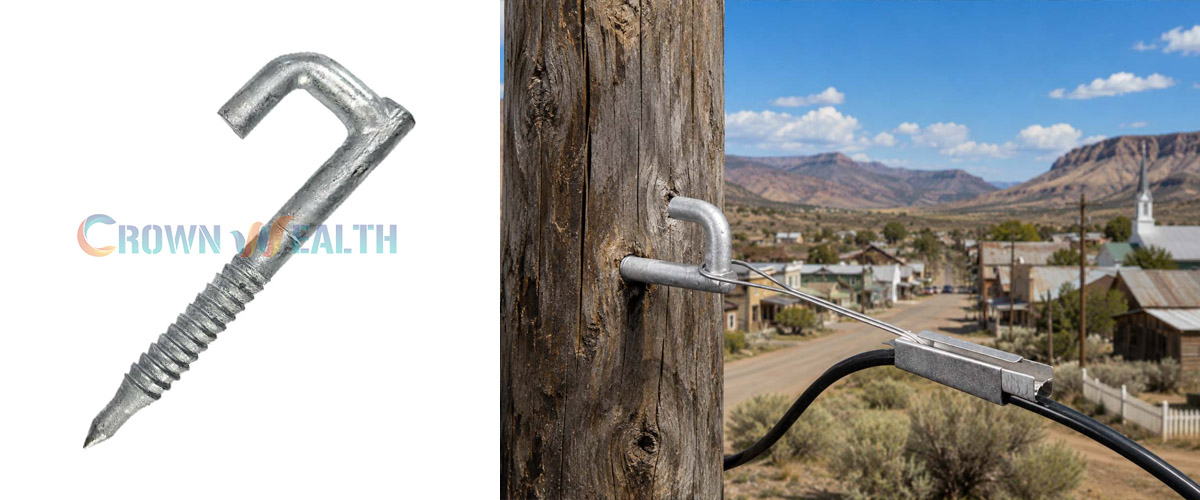

5. House Hooks

A house hook provides a convenient attachment point when an overhead service cable approaches a building.

You can install suitable hooks on wooden structures, walls, poles, or other approved supporting surfaces depending on the specific hook design.

They are particularly useful for:

• FTTH drop cable installation
• Telecom service drops
• CATV networks
• Building connection points
• Last-mile aerial networks

For installers, a simple and reliable attachment point can make final cable routing easier.

For distributors, house hooks are also practical products to stock together with drop wire clamps because the two components are frequently associated with service-drop installations.

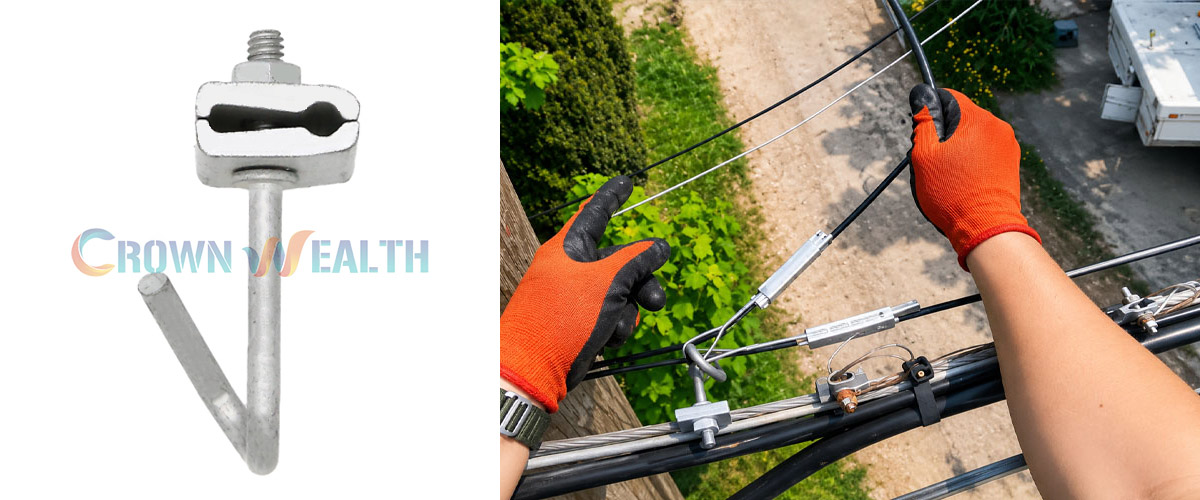

6. Span Clamps

Span clamps provide attachment points on messenger strands or supporting wires in aerial telecommunications systems.

Depending on the design, you may find different configurations such as Q-type, E-type, C-type, or other span clamp structures.

You can use span clamps to help support cable hardware and create attachment points without requiring an entirely new supporting structure.

Their compact design makes them useful in telecom networks where installers need a practical and secure method of attaching additional cable hardware to an existing aerial system.

When choosing span clamps, pay attention to the strand size, bolt configuration, material, coating, and required mechanical load.

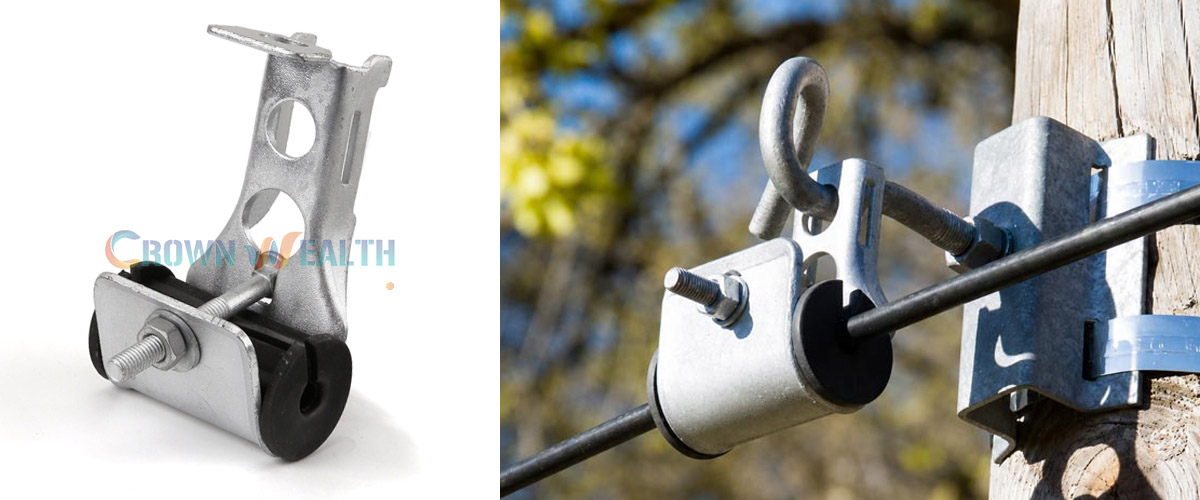

7. Suspension Clamps

Not every cable section needs to be terminated or heavily tensioned.

Along straight routes and intermediate poles, you normally need to support the cable while allowing it to maintain its intended route. A suspension clamp performs this function.

Suspension clamps are widely used for:

• ADSS cable
• ABC cable
• Figure-8 cable
• Fiber optic cable
• Telecom cable
• Overhead distribution systems

Different networks require different clamp designs. Therefore, you may encounter straight, curved, angle, J-hook, and other suspension configurations.

A properly selected suspension clamp helps distribute mechanical pressure and support the cable without creating unnecessary stress at the suspension point.

This becomes particularly important when you build long-distance networks with many intermediate poles.

How to Choose Pole Line Hardware for African Projects

You should not select pole line hardware based only on price. Instead, evaluate how each component will perform throughout the expected service life of the network.

Before ordering, consider:

Cable Type and Diameter
First, identify whether you are working with ADSS, ABC, FTTH drop cable, figure-8 cable, messenger wire, stay wire, or another cable structure.

Mechanical Load
Next, determine the required tensile, suspension, or supporting load.

Environmental Conditions
Consider temperature, rainfall, humidity, UV exposure, dust, wind, and coastal conditions.

Material
Choose appropriate galvanized steel, stainless steel, aluminum alloy, or engineering plastic according to the application.

Corrosion Protection
For steel components exposed outdoors, evaluate the galvanizing or other protective surface treatment.

Installation Method
Hardware that installers can mount efficiently can reduce field labor and simplify large projects.

Project Standards
Finally, confirm dimensions, mechanical performance, coating requirements, and applicable national or international standards before procurement.

This approach helps you choose products based on actual engineering requirements rather than simply selecting the lowest-priced option.

Building Reliable Power and Telecom Networks Across Africa

Africa’s electricity and telecommunications infrastructure will continue to require practical solutions for network expansion.

Whether you supply a national telecom project, regional utility contractor, FTTH installer, infrastructure distributor, or local wholesaler, reliable pole line hardware can help you build a more stable supply chain.

Products including drop wire clamps, anchoring clamps, guy grips, pole line bolts, house hooks, span clamps, and suspension clamps cover many of the fundamental attachment, anchoring, tensioning, and suspension requirements found in overhead networks.

More importantly, selecting compatible hardware as a complete system can simplify procurement.

Instead of sourcing every component separately, you can standardize product specifications, packaging, quality requirements, and delivery schedules across multiple product categories.

Your Pole Line Hardware Supplier for African Markets

For distributors, wholesalers, telecom contractors, power utility suppliers, and infrastructure companies, choosing the right pole line hardware manufacturer and supplier is just as important as choosing the right products.

Hbcrownwealth supplies pole line hardware and aerial cable accessories for power distribution, telecommunications, fiber optic, FTTH, and utility infrastructure applications.

If you are a distributor or project supplier serving African power and telecommunication markets, you can source multiple product categories from one supply chain.

We support OEM/ODM production, specification customization, bulk orders, mixed product procurement, and export packaging for different market requirements.

Whether your customers are expanding an FTTH network, building an overhead telecom line, upgrading utility poles, or developing power distribution infrastructure, we can help you select suitable pole line hardware according to the cable type, installation environment, and project specifications.
