What are the plastic fiber optic wire clamps？

Plastic fiber optic wire clamp with S-shaped hook is suitable for introducing tension clamps for FTTH optical cables.

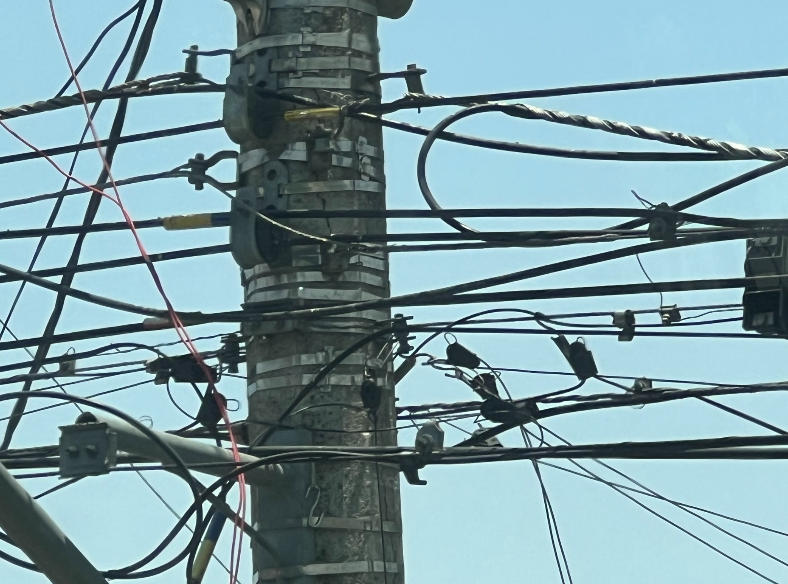

The function of the fiber optic wire clamp is to suspend the optical cable and connect it to the equipment or building. It is widely used in indoor and outdoor installations.S hook is used to hang the wire clamp.

It comes with a plastic serrated washer to increase friction on the drop wire.

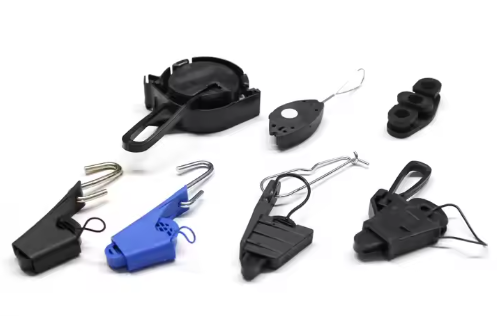

Types of Plastic Fiber Wire Clamps

The plastic fiber optic wire clamp is widely used in electrical systems and communication systems, They have different shapes and functions. Being familiar with and understanding them can help you to be at ease during the project.

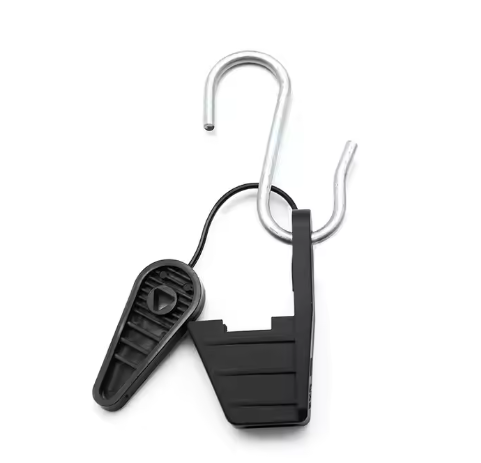

Plastic Fiber Optic Wire Clamp with S Hook

Fiber optic cable drop wire clamp, also called flat cable clamp, is widely used in overhead cable projects.

Cable  Retractor

External connection cable for connecting 1 pair of parallel conductors, suitable for cables with a diameter of 0.9 mm

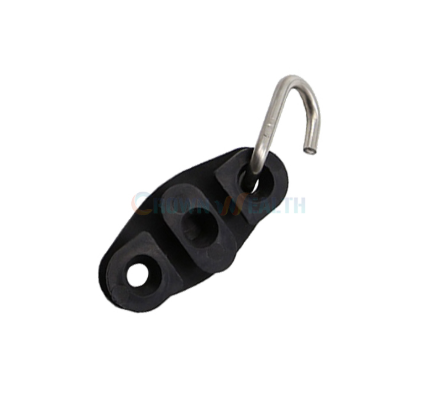

Indoor Fiber Optic Drop Cable Clamp

They are used to suspend ADSS overhead cables with a diameter in the range of 2-6 mm.

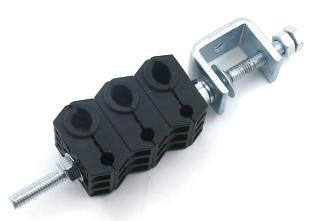

Fiber Feeder Cable Clamp

The feeder cable clamp is also fiber feeder cable clamp and feeder clamp, It is mainly used to fix 5-8mm communication cables or 9.5-14mm power cables.The metal part of the fiber optic feeder clamp is made of 304 stainless steel, and the plastic part is made of improved polypropylene (PP).

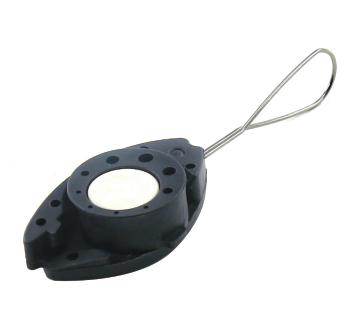

Anchor FIsh-Clmap For FTTH

Anchor fish-clamp for FTTH, designed for anchoring or supporting round drop cables, the FTTH fish-clamp can be adjusted manually, and easy to install.

Composition of plastic fiber optic wire clamp

The plastic wire clamp consists of a mandrel-shaped body and a split ring that locks into the clamp body. It is made of nylon and steel. The S-hook drop clamp can operate in harsh environments. Slots and holes on the wedge inside the clamp allow for slack adjustment, tensioning and aid in reintroducing the cable.

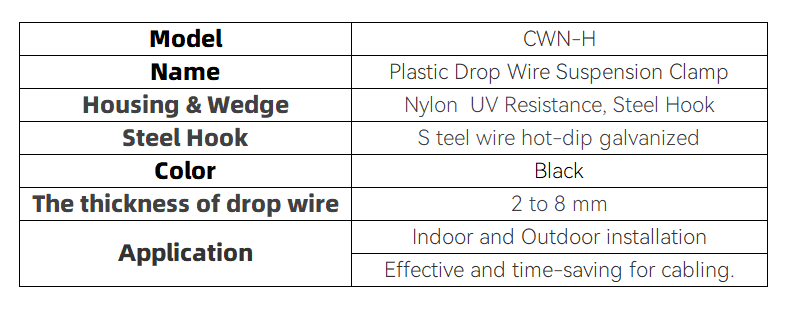

Specification of Fiber Optic Drop Cable Clamp

Material of Fiber optic drop wire clamp

Nylon – It can increase the friction of the cable to prevent cable damage.

Stainless steel – It has a very good corrosion resistance, longer service life.

EPDM Rubber – It has good wear resistance, stronger load-bearing strength and is not easy to break.

Features

• Good grip
• Good load-bearing capacity
• S-type for FTTH cable clamp, easy to install no additional tools required

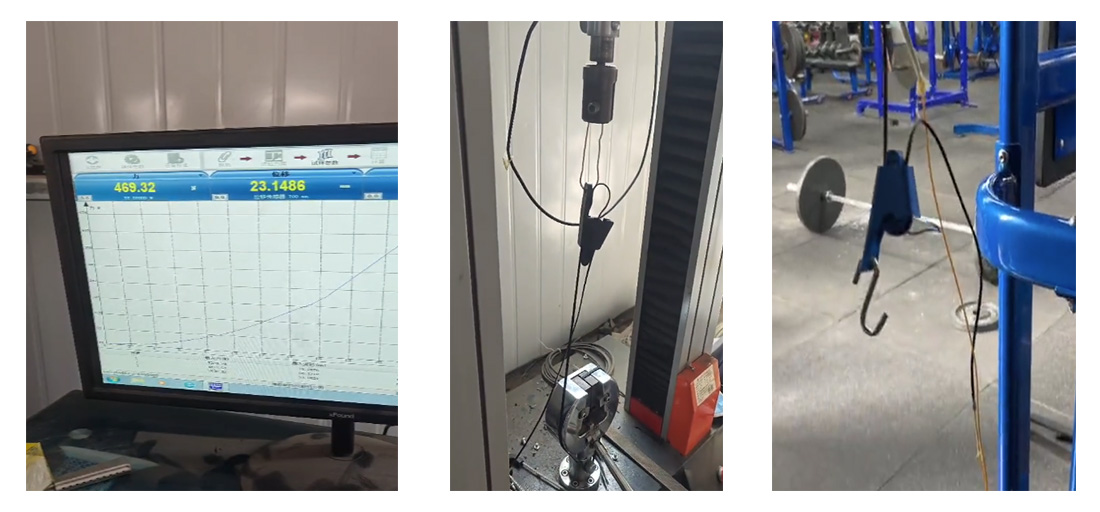

• All the assemblies passed the tensile tests

• Good corrosion resistance
• Good dynamic stress
• Self-adjustable tension clamp

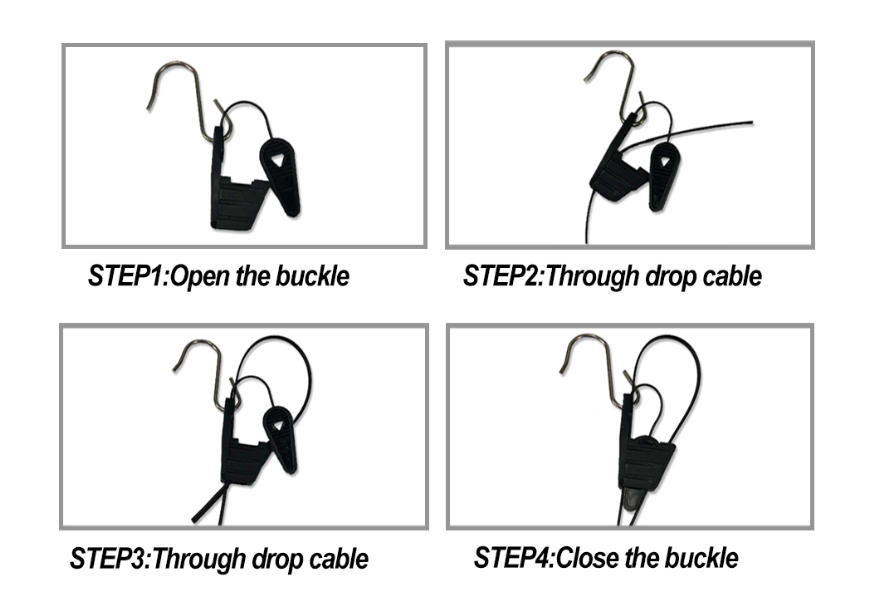

How to Install the Plastic Fiber Optic Wire Clamps？

Step 1: Open the buckle

Step 2: Through drop cable

Step 3: Through the plastic clamp from the circle

Step 4: Close the buckle

Fiber Optic Wire Clamp Supplier

As a professional fiber optic cable tension clamp supplier in China, Hebei crownwealth manufactures and provides you with high-quality fiber optic cable tension clamps. In addition, we can also customize fiber optic cable tension clamps according to your needs.
