ArabicIf you work with overhead power lines, telecommunications networks, or fiber optic cable installations, you have probably seen a guy grip, also called a preformed dead end grip, dead end guy grip, or guy wire grip.

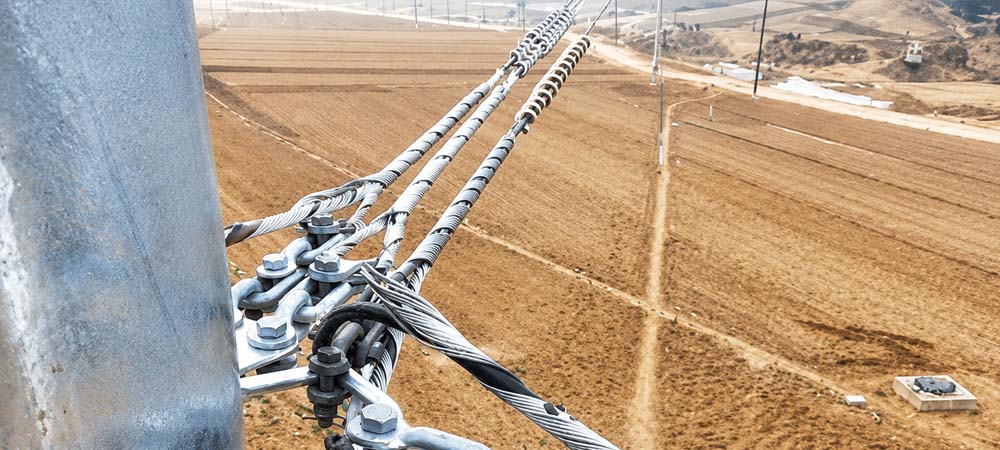

What Is a Guy Grip?
A guy grip is a preformed helical fitting designed to securely terminate, anchor, or tension stranded cables without damaging the conductor. Instead of using bolts or wedge clamps, the grip wraps around the cable in a spiral shape and distributes the holding force evenly across the cable surface.
Because of this unique design, a guy grip provides excellent holding strength while reducing stress concentration, making it one of the safest and most reliable cable termination solutions for overhead line systems.
What Does a Guy Grip Do?
A guy grip performs several critical functions in overhead cable systems.
Securely Anchors the Cable
The primary purpose is to terminate or anchor a conductor at the end of a span while preventing cable movement.
Transfers Mechanical Load
Instead of concentrating force at one point, the spiral design spreads the load along the entire grip length.
This significantly reduces:
- Cable fatigue
- Surface damage
- Wire deformation
- Stress concentration

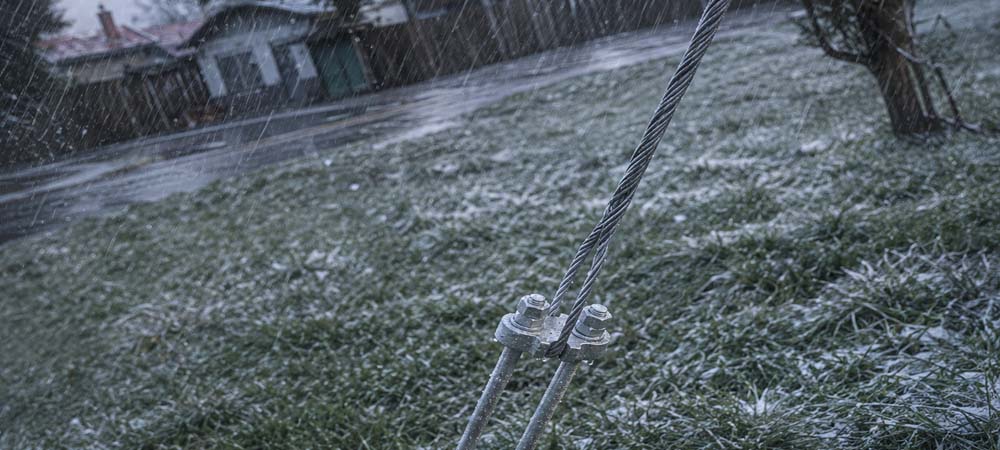

Maintains System Stability
A properly installed guy grip keeps conductors under correct tension, helping poles, towers, and anchors remain stable even under heavy wind, ice, or vibration.
Protects Cable Life
Because there are no sharp compression points, cable strands remain intact, extending service life.

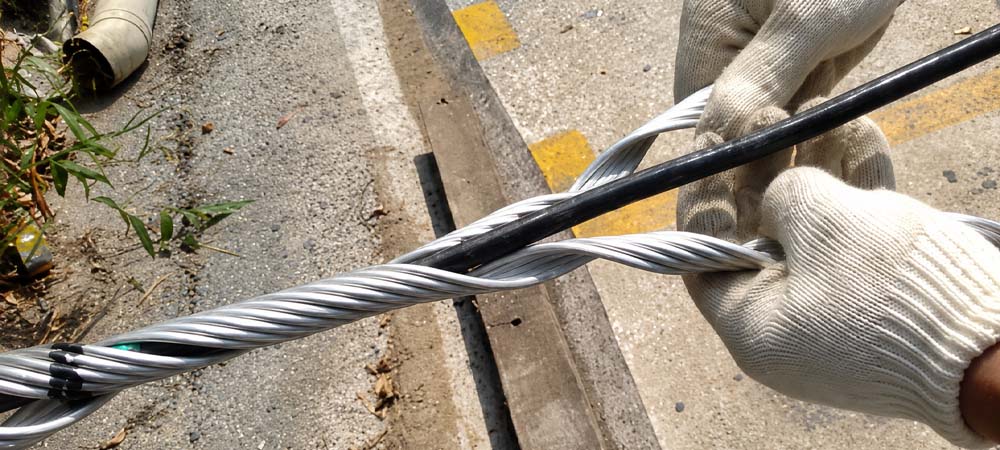

How Does a Guy Grip Work?
Unlike traditional mechanical clamps, a preformed dead end grip works through helical friction and radial compression.
When you wrap the preformed rods around the cable:
- The spiral legs naturally match the cable lay.
- The grip tightens around the conductor.
- Radial pressure is distributed evenly.
- Friction between the grip and cable prevents slipping.
- The tensile load transfers gradually across the entire grip instead of one concentrated point.
Many Hbcrownwealth guy grips also feature inert grit inside the spiral legs to increase friction and improve holding power without damaging the cable.
As a result, you achieve:
- High holding strength
- Reduced conductor stress
- Excellent vibration resistance
- Reliable long-term performance
Where Are Guy Grips Used?
Because they are versatile, guy grips are used across many industries.
Power Transmission: Transmission towers, Distribution poles, Ground wires, Guy wires, Static wires
Telecommunications: ADSS fiber optic cable, OPGW cable, Communication towers, Pole line hardware, FTTH networks
Renewable Energy: Wind farms, Solar power cable routing, Electrical substations
Transportation: Railway communication systems, Highway utility infrastructure, Bridge cable installations
Industrial Infrastructure: Utility construction, Mining, Oil & gas projects, Marine cable support
Dead End Guy Grip Types by Cable Diameter
Choosing the correct cable diameter is one of the most important factors when selecting a guy grip.
Below is a summary of the Hbcrownwealth standard cable diameter ranges.
| Series | Cable Diameter (mm) | Typical Application |
|---|---|---|
| CW-GUYTA-010 | 9.0–10.4 | Small guy wire |
| 10.5–13.4 | Distribution line | |
| 13.5–16.9 | Heavy-duty support | |
| CW-GUYTA-020 | 8.6–10.7 | ADSS / telecom |
| 10.8–12.9 | Medium ADSS | |
| 13.0–14.6 | Power cable | |
| 14.7–15.5 | Heavy cable | |
| CW-GUYTA-030 | 8.6–10.7 | Long span |
| 10.8–12.9 | Long span | |
| 13.0–14.6 | Long span | |
| 14.7–15.5 | Long span | |
| ADSS Guy Grip | 7.2–7.8 | ADSS Fiber |
| 7.9–8.8 | ADSS Fiber | |
| 8.9–10.1 | ADSS Fiber | |
| 10.2–11.4 | ADSS Fiber | |
| 11.5–12.8 | ADSS Fiber | |
| 12.9–14.1 | ADSS Fiber | |
| 14.2–15.5 | ADSS Fiber | |
| 15.6–17.3 | ADSS Fiber | |
| 17.4–19.2 | ADSS Fiber | |
| 19.3–21.1 | ADSS Fiber |
The final selection should always match the actual cable outside diameter specified in your project.

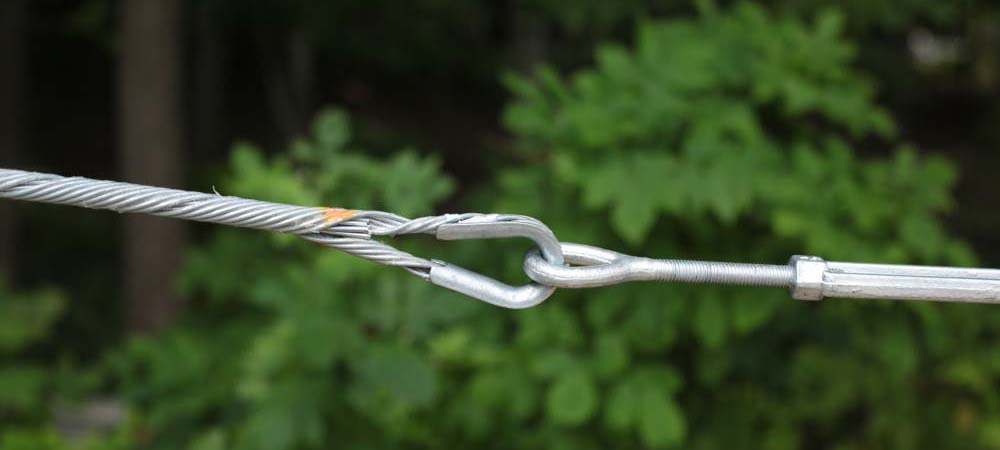

Advantages of a Guy Grip Dead End
Compared with conventional dead-end clamps, preformed guy grips offer several advantages.
High Holding Strength: Properly designed grips can achieve up to 95% or more of the cable’s rated breaking strength, providing reliable load transfer for demanding applications.
Even Stress Distribution: The helical design spreads the mechanical load across a longer section of the cable, reducing localized stress.
Easy Installation: You can install most guy grips quickly without special tools.
Long Service Life: Hot-dip galvanized steel, aluminum-clad steel, or stainless steel materials provide excellent corrosion resistance.
Lower Maintenance: With no moving parts or tightening bolts, maintenance requirements remain minimal throughout the product’s service life.
Benefits of Using Guy Grips in Overhead Cable Systems
When you choose preformed dead end guy grips, your entire overhead system becomes more reliable.
Key benefits include:
- Prevents conductor slipping
- Protects cable strands
- Improves vibration resistance
- Handles high tensile loads
- Supports long-span installations
- Minimizes installation time
- Reduces maintenance costs
- Performs well in harsh environments
- Compatible with utility pole hardware
- Suitable for power and telecom projects
Whether you install power conductors or fiber optic cables, a properly selected guy grip helps improve both safety and long-term reliability.
How to Choose the Right Preformed Dead End Guy Grip
Selecting the correct guy grip is essential for system performance.
1. Cable Diameter
Always match the grip to the exact outside cable diameter.
Even a small mismatch can reduce holding strength.
2. Tensile Load
Consider:
- Working load
- Maximum tension
- Safety factor
- Breaking strength
The grip should meet or exceed your project’s mechanical requirements.
3. Project Type
Different projects require different products.
Examples include:
- ADSS cable
- OPGW cable
- Guy wire
- Ground wire
- Power conductor
- Communication cable
4. Installation Environment
Environmental conditions directly affect product selection.
Evaluate:
- Coastal corrosion
- Industrial pollution
- High humidity
- Ice loading
- Strong winds
- UV exposure
- High temperature
- Low temperature
Then choose the appropriate material:
- Hot-dip galvanized steel
- Aluminum-clad steel
- Stainless steel 304
- Stainless steel 316
Installation Tips
Following correct installation procedures helps maximize grip performance.
- Verify the cable diameter before installation.
- Never force an incorrect grip size onto the conductor.
- Install the grip according to the cable lay direction.
- Ensure every helical leg fully contacts the cable.
- Avoid twisting or bending the grip during installation.
- Inspect the cable surface before use.
- Replace damaged or deformed grips immediately.
- Follow your local utility installation standards.
Although installation is simple, proper sizing remains the most important factor for long-term performance.
Why Choose Hbcrownwealth Guy Grips?
When you choose Hbcrownwealth, you are partnering with an experienced manufacturer that understands overhead line hardware.
Over 14 Years of Manufacturing Experience
Since 2011, Hbcrownwealth has specialized in manufacturing pole line hardware, aerial drop hardware, and overhead line accessories for customers worldwide.
Complete Manufacturing Chain
You benefit from an integrated production process that covers:
- Raw material selection
- Wire forming
- Precision manufacturing
- Hot-dip galvanizing
- Surface treatment
- Quality inspection
- Packaging
- Export logistics
This ensures consistent quality and dependable lead times.
Complete Product Specifications
Whether your project requires standard or customized dimensions, Hbcrownwealth offers a comprehensive range of guy grips for power, telecom, and fiber optic applications, with custom solutions available when needed.
Premium Raw Materials
Every product is manufactured using carefully selected galvanized steel, aluminum-clad steel, or stainless steel to deliver high strength and excellent corrosion resistance.
Strict Quality Control
Each production batch undergoes rigorous inspections, including dimensional checks, visual inspections, and mechanical performance testing, helping ensure reliable field performance.
OEM & ODM Manufacturing
Need a custom solution? Hbcrownwealth provides OEM and ODM services, including:
- Customized cable diameters
- Special lengths
- Material options
- Color coding
- Private labeling
- Custom packaging
Global Export Experience
Hbcrownwealth products have been supplied to customers in more than 60 countries, supporting power utilities, telecommunications contractors, distributors, and infrastructure projects worldwide.
Frequently Asked Questions
Can a guy grip be reused?
A guy grip is generally intended for single permanent installation. If it has been subjected to full working load or shows any deformation, it should be replaced to maintain system safety.
What materials are available?
Common materials include hot-dip galvanized steel, aluminum-clad steel, and stainless steel (304/316), depending on the application and environment.
Do I need special tools?
No. Most preformed dead end guy grips are designed for quick installation without special tools, provided the correct size is selected.
Can guy grips be used for fiber optic cables?
Yes. Specialized preformed guy grips are widely used for ADSS and OPGW fiber optic cable installations to provide secure dead-end terminations while protecting the cable from concentrated stress.
