ArabicA guy clamp is a bolted fitting that grips steel guy strand in a pole support system. You use the specified clamp to secure the strand connection shown in your project drawing. Before you order, match its groove, strand size, bolt arrangement, and tested holding performance to the job.
If you are comparing catalogues, you may also see straight or curved cable suspension fittings listed under “guy clamps.” These names do not make the products interchangeable. This guide helps you identify the fitting you need and prepare a clear specification for your supplier.
What Is a Guy Clamp Used For?
A guy wire helps brace a pole against sideways forces. The clamp forms part of the strand connection; it does not replace the anchor, pole attachment, or the rest of the guying system. A common application is securing a returned strand at a termination, where the approved clamp design allows it.
You may need a guy wire clamp for utility pole guying, telecom pole support, or replacement hardware on an existing line. For each job, use the fitting shown in the installation drawing rather than choosing from appearance alone.
You can compare the available models in the Hbcrownwealth guy clamp range. Check the exact product details before applying a catalogue description to your project.
Guy Clamp vs Suspension Clamp: What Should You Check?
The easiest way to separate these fittings is to ask what the connection must do. Does it secure a guy strand termination, or support a cable or messenger at a pole?
| Fitting | Main role | What you should verify |
|---|---|---|
| Bolted guy clamp | Grips guy strand in the specified connection | Strand range, groove design, holding performance, and termination layout |
| Cable suspension clamp | Supports the specified cable or messenger at a support point | Cable compatibility, mounting details, load rating, and permitted line angle |
| Preformed guy grip | Uses shaped helical rods to grip a matching strand or cable | Exact strand or cable type, diameter range, and approved assembly |
Some supplier catalogues group these fittings together. Therefore, compare the drawing and intended use, not just the product name. A clamp approved for steel messenger strand is not automatically suitable for direct contact with an ADSS cable jacket or an OPGW cable.
How Does a Bolted Guy Clamp Work?
When you tighten the nuts, the bolts draw the clamp sections together around the strand. The grooves locate the strand while the clamping pressure helps resist movement.
The result depends on more than bolt count. Strand diameter and grade, groove fit, body dimensions, bolt specification, and installation torque all matter. You need the model’s stated performance and installation instructions to judge whether it suits your connection.
Do not assume that a three-bolt model has a universal load capacity or that extra tightening will improve a poor fit.
Types of Guy Clamps and Related Fittings
Use the following product groups as a starting point. Then confirm the exact model against your project requirements.
1 Bolt Guy Clamp
A 1 bolt guy clamp has a single bolted clamping point. Check its strand range, dimensions, and approved use. Do not choose it simply because the wire looks small or the job appears light.
2 Bolt Guy Clamp
A 2 bolt guy clamp uses two bolts along the body. Compare the groove length, bolt spacing, and specified holding performance with your drawing. Its rating must come from the product data, not a general “medium-duty” label.

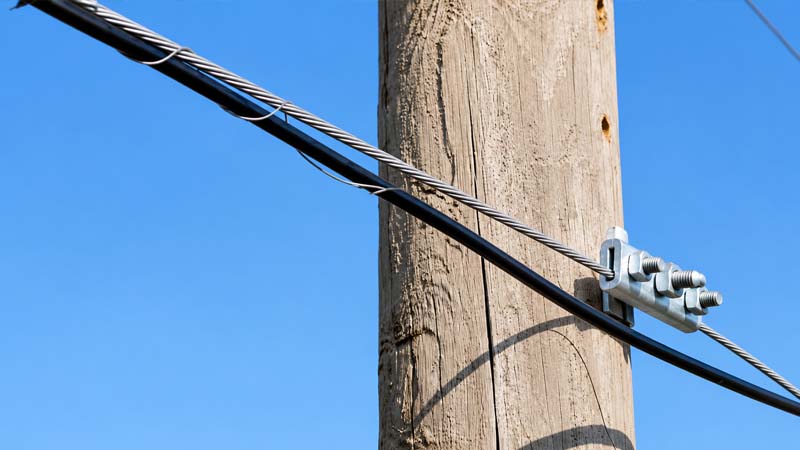

3 Bolt Guy Clamp
A 3 bolt guy clamp has three bolted clamping points. You may see this form in utility and telecom guying specifications. Confirm the tested strand combination and required tightening procedure before ordering.
Straight Cable Suspension Clamp
Hbcrownwealth lists this product as a straight guy clamp / straight cable suspension clamp. Check the strand seating and mounting arrangement to establish whether it matches your support point. A straight body does not by itself define the permitted load or line angle.
Curved Cable Suspension Clamp
The curved guy clamp / curved suspension clamp has a different body profile. Match that profile to the specified installation geometry. Curvature alone does not prove greater strength or suitability for a high-tension termination.
For a change in line direction, also review the angle cable suspension clamp. Ask for the model’s permitted angle and load details rather than estimating them from a photo.
How to Choose the Right Guy Wire Clamp
1. Identify the Connection
First, state whether you need a guy strand termination or a cable support fitting. Include the drawing, mounting method, and the hardware that will connect to it. This prevents suppliers from quoting different products under the same name.
2. Match the Strand Size and Type
Provide the strand diameter, construction, material, and grade. Use the manufacturer’s stated size range. A groove that is too large or too small can create an unsuitable connection even if you can tighten the bolts.
3. Check the Required Performance
Share the project’s holding-load requirement and test method. Ask whether a quoted value describes a test result, minimum breaking load, or working-load limit. These terms do not mean the same thing.
Next, confirm that the evidence applies to the clamp and strand combination you intend to buy. Do not transfer a rating from a similar-looking model.
4. Specify the Material and Galvanizing
A galvanized guy clamp uses a zinc coating to help protect the steel against corrosion. For your order, define the required material and coating specification, including any inspection requirements.
Coastal air, industrial pollution, and damage during handling can affect corrosion performance. Share the service conditions with your supplier. Avoid assuming that every galvanized finish offers the same service life.
5. Check the Full Assembly
Review the bolts, nuts, washers where specified, mating hardware, and installation access. Confirm that your crew can use the required tools and follow the stated tightening sequence.
Guy Clamp Installation: Checks Before You Start
Use a qualified line crew and the approved project procedure. The points below help you review the work; they do not replace the model’s installation instructions.
- Confirm the clamp model and strand size against the drawing.
- Inspect the body, grooves, threads, and coating for damage.
- Check the required strand overlap, clamp quantity, spacing, and orientation where applicable.
- Seat the strand correctly and use the specified bolt-tightening sequence.
- Apply the manufacturer’s torque value with suitable tools; do not guess a value.
- Inspect the completed connection and follow the project’s maintenance requirements.
If the strand slips or the clamp deforms, stop and identify the cause. Adding torque is not a reliable way to correct incompatible parts.
What to Send a Guy Clamp Supplier for a Quote
A clear enquiry helps you compare equivalent products and reduces delays before a bulk order. Send your guy clamp supplier:
- Product drawing, model number, or a sample for identification
- Guy strand diameter, construction, material, and grade
- Connection type and required holding performance
- Body dimensions, bolt details, and finish requirements
- Inspection plan and any required test documents
- Order quantity, packing, marking, and delivery destination
For distributor stock, ask for separate model labels and agreed dimensions. For project supply, approve the drawing and sample before production. These checks make repeat orders easier to manage.
Guy Clamp Manufacturer and Wholesale Supply in China
Hbcrownwealth is a Chinese manufacturer, supplier, and wholesaler of pole line and aerial telecom hardware. You can source guy clamps and related fittings for overseas distribution, utility work, and contractor projects.
Our manufacturing capabilities include stamping, forming, and hot-dip galvanizing. You can discuss OEM and ODM work based on drawings or samples, including dimensions, surface treatment, marking, and packaging.
When you select a guy clamp manufacturer, agree on material checks, dimensional inspection, coating inspection, and any required performance tests before production. We can review these requirements with your team so your purchase specification is clear.
Explore our wholesale guy clamps and related suspension fittings and send the model, strand details, quantity, and project drawing with your enquiry.
Frequently Asked Questions
What Is a Guy Clamp?
A guy clamp is a bolted fitting used to grip steel guy strand in a specified connection. You choose it by strand compatibility, connection layout, and documented performance.
Is a Guy Clamp the Same as a Suspension Clamp?
Not necessarily. A bolted guy clamp commonly serves a guy strand connection, while a suspension clamp supports the specified cable or messenger. Some catalogues overlap the names, so check the drawing and function.
Is a 3 Bolt Guy Clamp Always Stronger?
You cannot decide from bolt count alone. Compare the model’s dimensions, materials, compatible strand, and test data. Use the fitting that meets your project specification.
Can You Use a Guy Wire Clamp on Fiber Optic Cable?
Do not assume direct compatibility. A fitting intended for steel strand may damage a fiber cable jacket. Use hardware approved for the exact cable or its separate supporting messenger.
What Torque Should You Use?
Use the value and sequence supplied for the exact clamp and strand assembly. There is no single torque value suitable for every guy clamp.
Can You Order Custom Guy Clamps in Bulk?
Yes. You can discuss custom guy clamps with Hbcrownwealth using your drawing, sample, or specification. Confirm the material, dimensions, finish, testing, quantity, and packing before placing the order.
