Choose the CW-PA1000 aluminum anchor clamp for ADSS cable tension support. You get an 8–11 mm clamping diameter, a 10 kN breaking load, a cast aluminum body and a stainless steel bail. Order a compatible bracket separately or request factory assembly.
Choose the CW-PA1000 aluminum anchor clamp for ADSS cable tension support. You get an 8–11 mm clamping diameter, a 10 kN breaking load, a cast aluminum body and a stainless steel bail. Order a compatible bracket separately or request factory assembly.

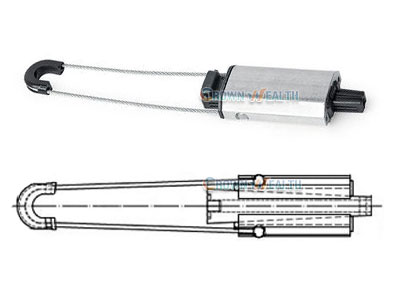

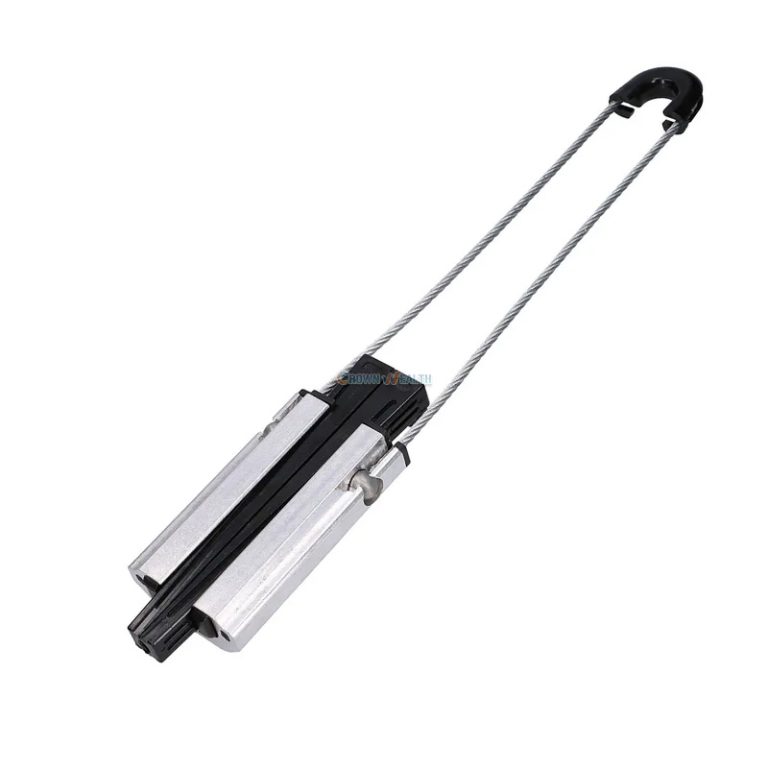

Choose the CW-PA1000 aluminum anchor clamp for ADSS cable tension support on utility poles or facility walls. This model has an 8–11 mm clamping diameter and a 10 kN breaking load. Its cast aluminum alloy body works with engineering-plastic wedges and a flexible stainless steel bail.
You can order clamps and compatible brackets separately or request factory assembly. First, provide your cable and support details so we can confirm the gripping interface and attachment arrangement for your project.
| Specification | CW-PA1000 |
|---|---|
| Product | Aluminum anchor clamp for ADSS cable |
| Clamping diameter | 8–11 mm |
| Breaking load | 10 kN |
| Body | High-strength cast aluminum alloy |
| Wedges | UV- and weather-resistant engineering plastic; nylon listed in the material specification |
| Bail | Flexible stainless steel wire rope |
| Span reference | Up to 100 m, subject to cable and project confirmation |
| Line angle reference | Less than 25°, subject to attachment configuration confirmation |
| Supply arrangement | Clamp and bracket supplied separately or factory-assembled as agreed |
Read the diameter correctly: 8–11 mm is the clamping diameter. Confirm which part of your cable assembly the clamp grips; the value alone does not establish compatibility with every cable construction.
Load terminology: The 10 kN value is a breaking load. Your allowable working load and installation tension require separate confirmation for the complete assembly.
Use this aluminum anchor clamp for compatible ADSS cable tension-support points on wooden or other utility poles and facility walls. Select the bracket and connection to suit your support structure.
The published application references cover spans up to 100 m and line angles below 25°. However, your cable characteristics, route loads and attachment configuration determine whether these conditions suit your project. Send those details before finalizing the selection.
For larger angles, request a reviewed attachment arrangement. Do not assume that adding a second clamp extends the stated angle range without checking the cable and bracket requirements.
Confirm these points before your crew installs the supplied assembly:
Request installation guidance for your selected configuration. Do not derive a tension setting or tightening torque from the breaking load. Material descriptions alone do not establish suitability for live-line work.

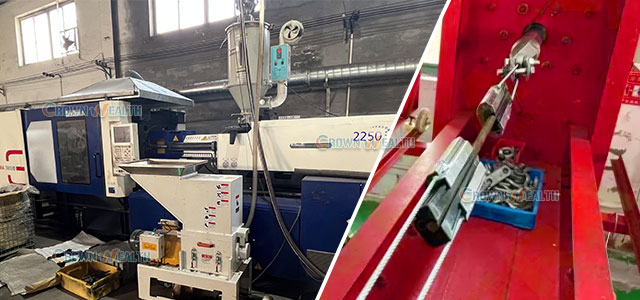

Hbcrownwealth is a professional manufacturer, supplier and wholesaler of aerial cable hardware in China. As an anchoring clamp manufacturer, we support your procurement for power and telecommunications overhead systems. For PA1000 orders, we help coordinate the clamp, compatible bracket and agreed supply arrangement.
It is the clamping diameter at the gripping interface. Send your cable datasheet and identify the component to be gripped so we can confirm compatibility.
No. The specified 10 kN is the breaking load. Confirm the allowable working load and installation tension for your cable and complete support assembly separately.
The listed reference permits spans up to 100 m, subject to project confirmation. Provide your cable construction, route loading and line angle before selecting this model.
It lists line angles below 25°. For larger angles or a multiple-clamp arrangement, request a configuration review rather than assuming the same limits apply.
Yes. You can purchase clamps and compatible brackets separately or request factory assembly as agreed. Send your support drawing and specify the items you need in the quotation.
Yes. Submit your OEM/ODM requirements, drawings and required test documents with your inquiry. We will confirm feasible options and available documentation for the selected configuration.
Contact Hbcrownwealth with your cable datasheet, clamping diameter, quantity, span, line angle and delivery destination. Also include your service load requirements and whether you need a bracket or assembled set.
Explore our anchoring clamp range or compare the CW-PA1500 ADSS tension clamp for other requirements. Check each model’s grip range, materials and load rating before selecting an alternative.
| Specification | CW-PA1000 |
|---|---|
| Product | Aluminum anchor clamp for ADSS cable |
| Clamping diameter | 8–11 mm |
| Breaking load | 10 kN |
| Body | High-strength cast aluminum alloy |
| Wedges | UV- and weather-resistant engineering plastic; nylon listed in the material specification |
| Bail | Flexible stainless steel wire rope |
| Span reference | Up to 100 m, subject to cable and project confirmation |
| Line angle reference | Less than 25°, subject to attachment configuration confirmation |
| Supply arrangement | Clamp and bracket supplied separately or factory-assembled as agreed |
Clamping diameter: 8–11 mm describes the diameter at the gripping interface. Confirm your cable construction and the component to be gripped before ordering.
Breaking load: 10 kN is not an allowable working load or installation tension. Confirm service limits for your complete cable, clamp and bracket assembly.
Send your cable datasheet, clamping diameter, span, line angle, service load and support drawing. The span and angle references do not replace project-specific selection. State whether you need the clamp alone, a separate bracket or a factory-assembled set.
Choose the CW-PA1000 aluminum anchor clamp for ADSS cable tension support on utility poles or facility walls. This model has an 8–11 mm clamping diameter and a 10 kN breaking load. Its cast aluminum alloy body works with engineering-plastic wedges and a flexible stainless steel bail.
You can order clamps and compatible brackets separately or request factory assembly. First, provide your cable and support details so we can confirm the gripping interface and attachment arrangement for your project.
| Specification | CW-PA1000 |
|---|---|
| Product | Aluminum anchor clamp for ADSS cable |
| Clamping diameter | 8–11 mm |
| Breaking load | 10 kN |
| Body | High-strength cast aluminum alloy |
| Wedges | UV- and weather-resistant engineering plastic; nylon listed in the material specification |
| Bail | Flexible stainless steel wire rope |
| Span reference | Up to 100 m, subject to cable and project confirmation |
| Line angle reference | Less than 25°, subject to attachment configuration confirmation |
| Supply arrangement | Clamp and bracket supplied separately or factory-assembled as agreed |
Read the diameter correctly: 8–11 mm is the clamping diameter. Confirm which part of your cable assembly the clamp grips; the value alone does not establish compatibility with every cable construction.
Load terminology: The 10 kN value is a breaking load. Your allowable working load and installation tension require separate confirmation for the complete assembly.
Use this aluminum anchor clamp for compatible ADSS cable tension-support points on wooden or other utility poles and facility walls. Select the bracket and connection to suit your support structure.
The published application references cover spans up to 100 m and line angles below 25°. However, your cable characteristics, route loads and attachment configuration determine whether these conditions suit your project. Send those details before finalizing the selection.
For larger angles, request a reviewed attachment arrangement. Do not assume that adding a second clamp extends the stated angle range without checking the cable and bracket requirements.
Confirm these points before your crew installs the supplied assembly:
Request installation guidance for your selected configuration. Do not derive a tension setting or tightening torque from the breaking load. Material descriptions alone do not establish suitability for live-line work.
Hbcrownwealth is a professional manufacturer, supplier and wholesaler of aerial cable hardware in China. As an anchoring clamp manufacturer, we support your procurement for power and telecommunications overhead systems. For PA1000 orders, we help coordinate the clamp, compatible bracket and agreed supply arrangement.
It is the clamping diameter at the gripping interface. Send your cable datasheet and identify the component to be gripped so we can confirm compatibility.
No. The specified 10 kN is the breaking load. Confirm the allowable working load and installation tension for your cable and complete support assembly separately.
The listed reference permits spans up to 100 m, subject to project confirmation. Provide your cable construction, route loading and line angle before selecting this model.
It lists line angles below 25°. For larger angles or a multiple-clamp arrangement, request a configuration review rather than assuming the same limits apply.
Yes. You can purchase clamps and compatible brackets separately or request factory assembly as agreed. Send your support drawing and specify the items you need in the quotation.
Yes. Submit your OEM/ODM requirements, drawings and required test documents with your inquiry. We will confirm feasible options and available documentation for the selected configuration.
Contact Hbcrownwealth with your cable datasheet, clamping diameter, quantity, span, line angle and delivery destination. Also include your service load requirements and whether you need a bracket or assembled set.
Explore our anchoring clamp range or compare the CW-PA1500 ADSS tension clamp for other requirements. Check each model’s grip range, materials and load rating before selecting an alternative.
| Specification | CW-PA1000 |
|---|---|
| Product | Aluminum anchor clamp for ADSS cable |
| Clamping diameter | 8–11 mm |
| Breaking load | 10 kN |
| Body | High-strength cast aluminum alloy |
| Wedges | UV- and weather-resistant engineering plastic; nylon listed in the material specification |
| Bail | Flexible stainless steel wire rope |
| Span reference | Up to 100 m, subject to cable and project confirmation |
| Line angle reference | Less than 25°, subject to attachment configuration confirmation |
| Supply arrangement | Clamp and bracket supplied separately or factory-assembled as agreed |
Clamping diameter: 8–11 mm describes the diameter at the gripping interface. Confirm your cable construction and the component to be gripped before ordering.
Breaking load: 10 kN is not an allowable working load or installation tension. Confirm service limits for your complete cable, clamp and bracket assembly.
Send your cable datasheet, clamping diameter, span, line angle, service load and support drawing. The span and angle references do not replace project-specific selection. State whether you need the clamp alone, a separate bracket or a factory-assembled set.
